Aztech HL113E Easy Start Manual

DEVICES ARE PLUG
AND PLAY READY.
A

Package Contents

The following items are included in your HL113E package.
HL113E Ethernet
Cable
B

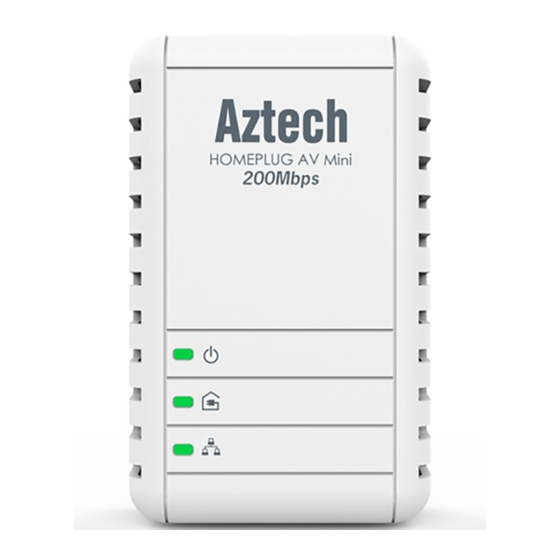

Device Overview

Power LED
Powerline
Activity LED
Ethernet
Activity LED
HomePlug AV devices are preconfigured with a common Private Network Name. Adding new HomePlug AV devices to an existing
network with the default Private Network Name is as easy as plugging the device into the power outlet. If you wish to have a unique
private Network Name, simply follow the instructions below. This Easy Start Guide, the User Manual, and the HomePlug AV Utility
software is included in the Resource CD and is also downloadable on our Aztech Support Website (www.aztech.com/support).
Resource CD Easy Start Warranty
Guide
MODEL
HL113E
C Setting up your HomePlug AV Network
Card
Step 1
In Room A, plug in your HomePlug AV device into the power outlet
and connect it to the router using an Ethernet cable.
NOTE: Ensure that your router's internet connection is UP to allow
access to the internet.
Step 2
Simple
Connect
In Room B plug in your other Homeplug AV device into the power
Button
outlet and connect it to your computer's ethernet port using an
Ethernet cable.
Step 3
Ethernet
Confirm that a connection has established on both HomePlug AV
Port
devices. All 3 LEDs (Power
must be ON. Your Homeplug AV Network is now ready to use and
can access Internet.
, Powerline , and Ethernet )
