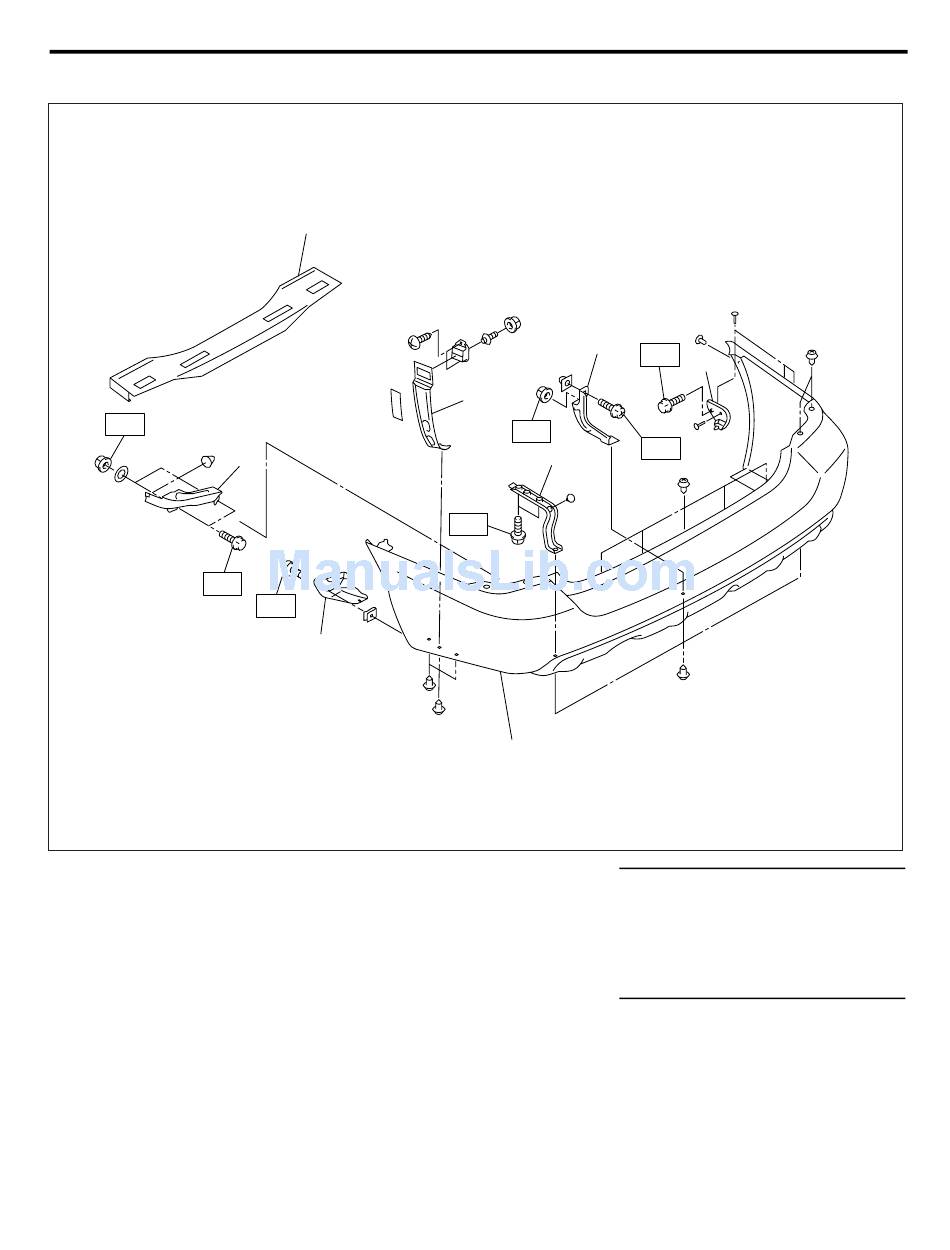

6. REAR BUMPER
T1
T3
(1)
Bumper face
(2)
Rear bumper upper beam
(3)
Rear arch cover
(4)
Rear bumper front side bracket
(5)
Center bracket
(6)
Stay COMPL
General Description
(2)
(8)
T3
(3)
(7)
Rear bumper side bracket ASSY
(8)
Rear bumper upper beam side
(5)
(7)
T1
(6)
T4
(1)
Tightening torque: N·m (kgf-m, ft-lb)
EI-5
EXTERIOR/INTERIOR TRIM
T2
(4)
T5
T1: 32 (3.3, 24)
T2: 7.4 (0.75, 5.46)
T3: 4.4 (0.45, 3.26)
T4: 93 (9.5, 68.7)
T5: 1.8 (0.18, 1.3)
