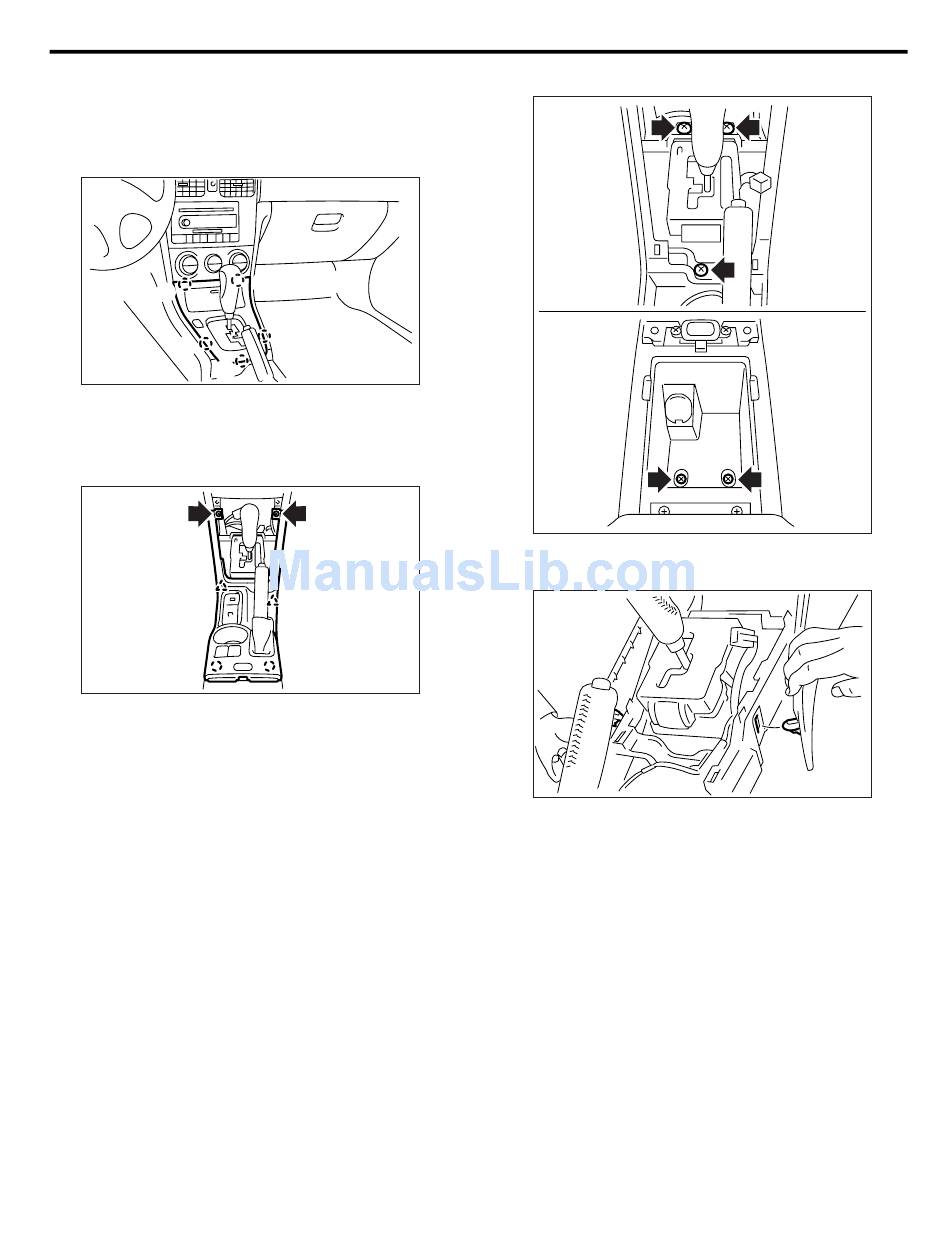

15.Console Box

A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console front cover.
(A)
(A)
(A)
(A) Hook pawl
3) Remove the shift knob (MT model).
4) Loosen the screws to remove console cover.
(B)
(A)
(A) Hook pawl
(B) Clip
Console Box
(A)
(A)
EI-00726
(B)
(A)
EI-00060
5) Loosen the screws.
6) Remove the hook pawl of console side panel to
remove console box.
B: INSTALLATION
Install in the reverse order of removal.
EI-39
EXTERIOR/INTERIOR TRIM
EI-00061
EI-00062
