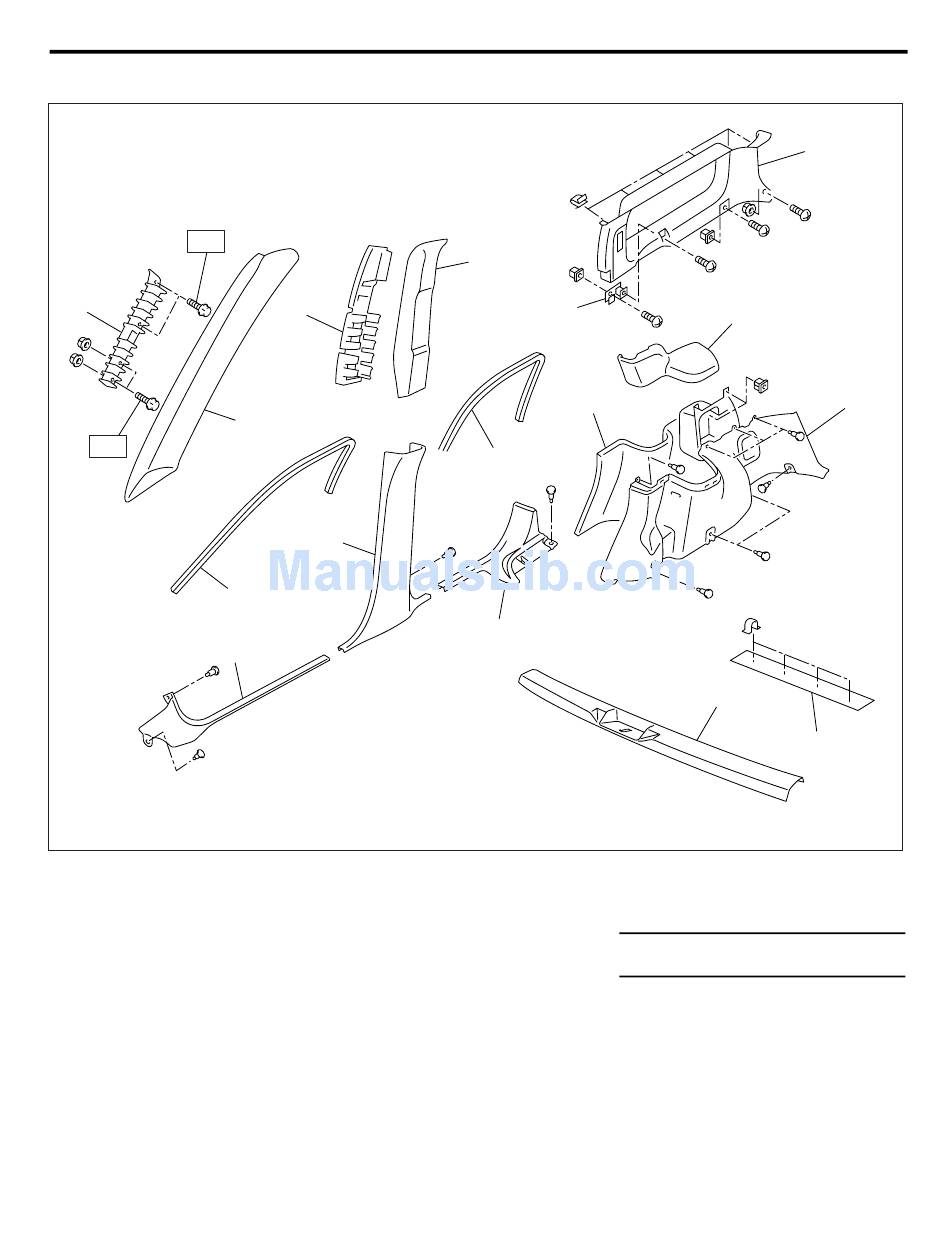

EXTERIOR/INTERIOR TRIM
15.INNER TRIM
T
(14)
T
(12)
(11)
(1)
Front pillar upper trim
(2)
Center pillar upper trim
(3)
Rear pillar upper trim
(4)
Rear rail trim
(5)
Insulator
(6)
Rear quarter lower trim
(7)
Strut cap
General Description
(15)
(1)
(10)
(8)
Rear skirt trim
(9)
Side sill rear cover
(10)
Center pillar lower trim
(11)
Side sill front cover
(12)
Front garnish
(13)
Rear garnish
(14)
Front pillar inner rib
(2)
(16)
(5)
(13)
(9)
Tightening torque: N·m (kgf-m, ft-lb)
EI-14
(3)
(7)
(8)
(15)
Center pillar inner rib
(16)
Bracket
T: 2 (0.20, 1.46)
(6)
(4)
EI-00015
