Electronic room thermostat with
manual or automatic day/night set-back
Hide thumbs
Also See for RT52:
- Installation instructions (4 pages) ,
- Installation instructions manual (11 pages)
Table of Contents
Advertisement
Available languages
Available languages

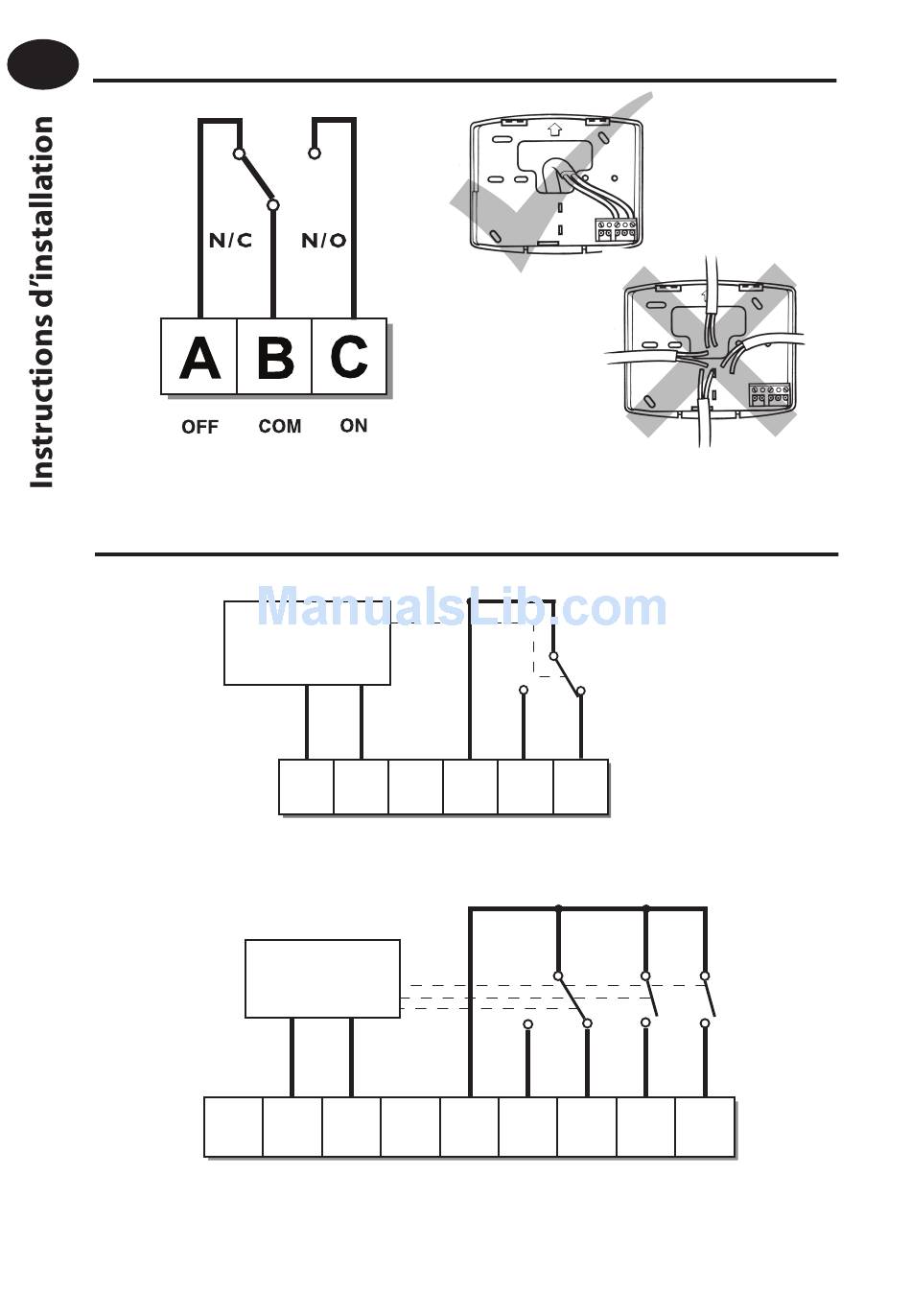

Câblage
F
Câblage du Récepteur RX
RX1
RX2 & RX3
NB. Pour les systèmes alimentés sur secteur, reliez la borne 2 à la phase du secteur.
16
(versions câblées seulement)
ELECTRONICS
N L
ELECTRONICS
A
B C 1 2 3 4 5 6
N
L
(modèles RF uniquement)
1 2 3 4
COM
ZONE
ZONE
1 ON
1 OFF
COM
ZONE
ZONE
1 ON
1 OFF
TERMINAL 6
RX3 ONLY
ZONE
ZONE
2 ON
3 ON
