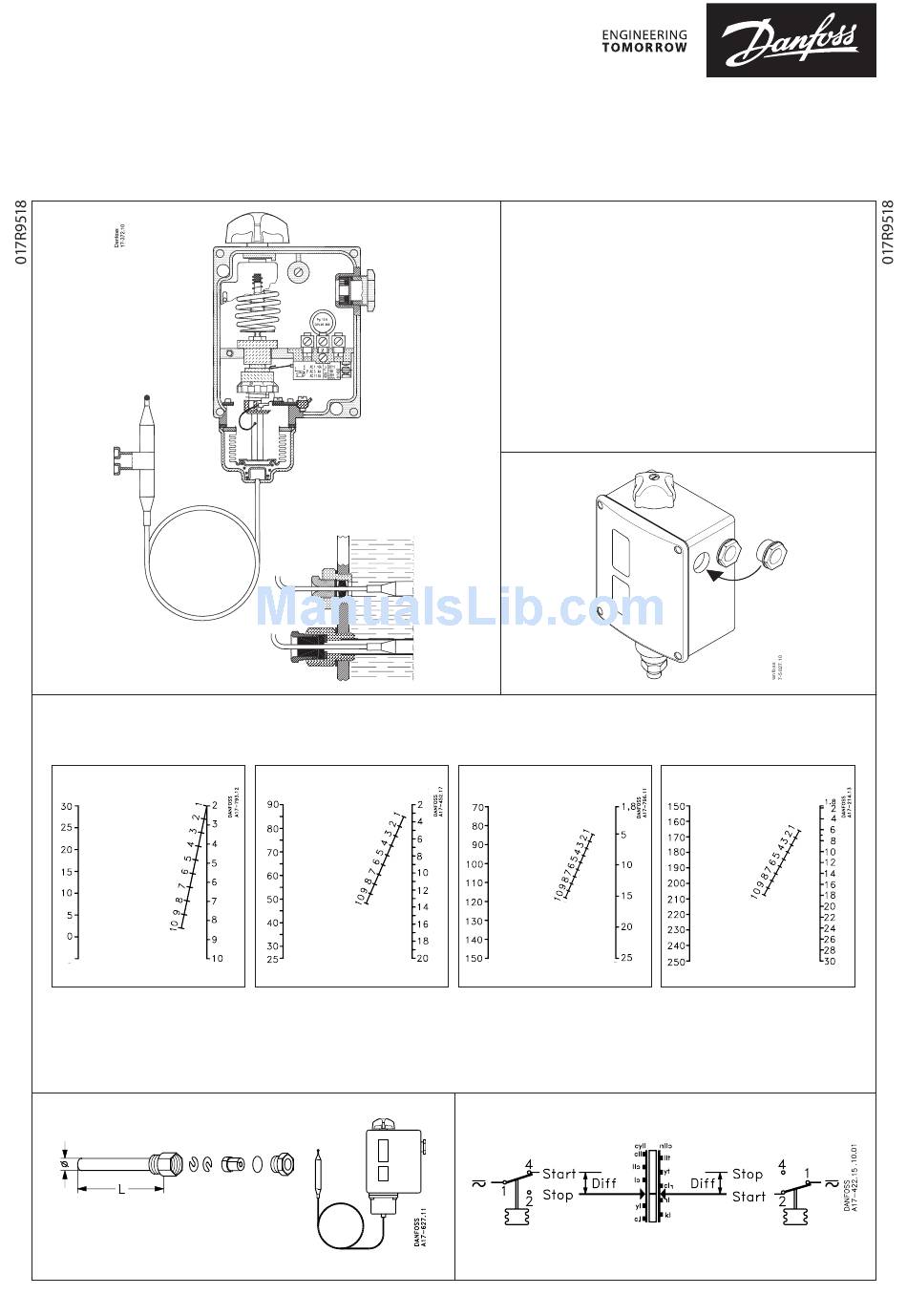

Danfoss RT 14E Installation Manual

Installation guide
Thermostat
RT 14E, RT 101E, RT 107E, RT 123E
Fig. 1
RT 14E
[°C]
C
-5
A B
A: Range setting
B: Diffential obtained
C: Differential setting
Fig. 3
Fig. 4
© Danfoss | DCS (jmn) | 2015.11
RT 101E
[°C]
[°C]
C
A
List of applicable standards:
for ATEX: EN 60079-0:2012+A11:2013; EN 60079-11:2012
for IECEx: IEC 60079-0:2011; IEC 60070-11:2011
Specific conditions of use:
The enclosure fascia has been coated with a layer of
stainless steel to prevent the accumulation of electrostatic
charge. In order to ensure that there is no accumulation
of electrostatic charge on the enclosure, the end user
shall ensure that the external metal work of the enclosure
is locally bonded to earth. Information on the durability
of the coating with regards to use of the equipment is
contained within the instruction manual.
Fig. 2
RT 107E
[°C]
[°C]
C
B A
Fig. 5
RT 123E
[°C] [°C]
C
B A
DKRCC.PI.CB0.A7.02 | 520H10533 | 1
[°C]
B
