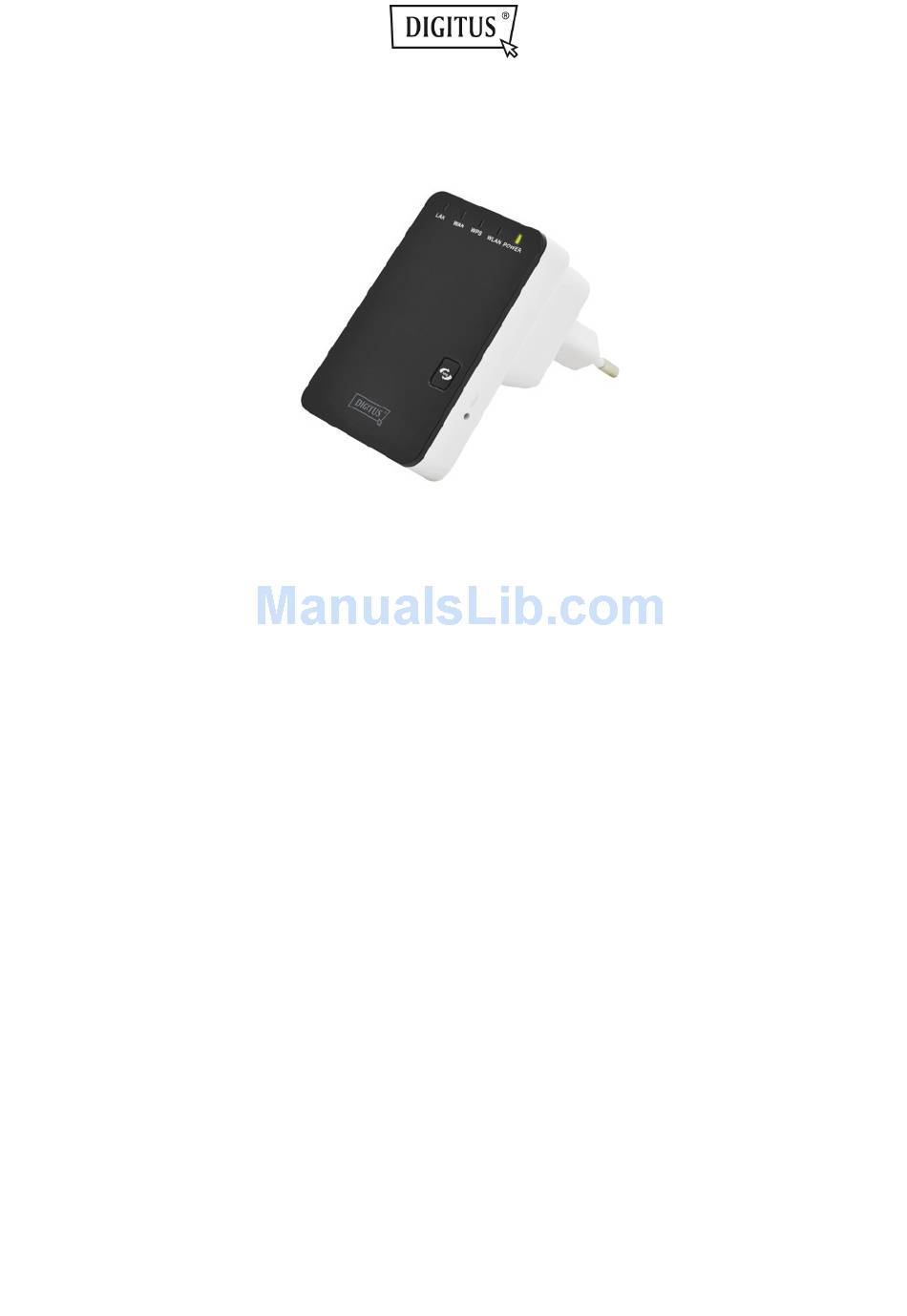

  • Page 1 WIRELESS-N MINI ROUTER Manual DN-70182...
  • Page 2 Open Source Code This product includes software codes developed by third parties. These software codes are subject to either the GNU General Public License (GPL), Version 2, June 1991 or the GNU Lesser General Public License (LGPL), Version 2.1, February 1999. You can copy, distribute, and/or modify in accordance with the terms and conditions of GPL or LGPL.

  • Page 3: Main Features

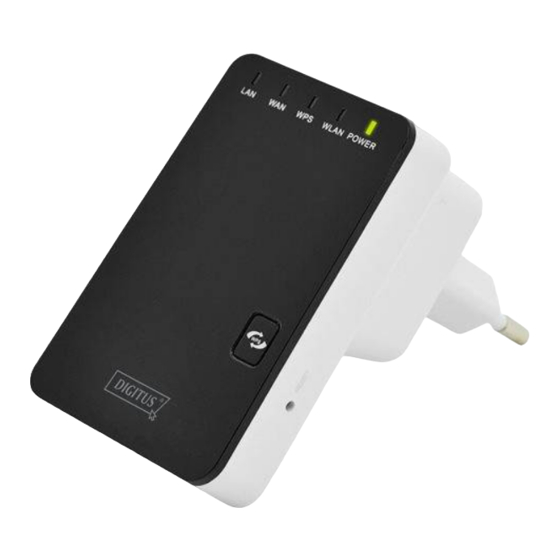

    Introduction DN-70182 is a Wireless-N Mini Router with a combined wired/wireless network connection device designed specifically for small business, office, and home office networking requirements. It complies with the IEEE 802.11n standard. It adopts MIMO as well as SST technologies. It also works well with other 11b/g and 11n protocol wireless products.
  • Page 4 I/O Illustration DN-70182 comes with 2x RJ-45 connectors. WAN/LAN: This port is normally used to connect to the ADSL modem to have Internet access under “Router mode”. Under Repeater mode, this port can also be used as LAN port. LAN: This port is the local area network port where it can be connected to your PC or notebook to provide Internet access.

  • Page 5: Led Indication

    LED Indication 1. POWER: Lights up Green color indicating power on 2. WLAN: Flashing Green color indicating Wireless ready for connection 3. WPS: Flashing Green color indicating WPS mode activated and waiting for WPS connection 4. WAN: Lights up when Ethernet cable is connected 5.

  • Page 6: Getting Started

    Consult with your ADSL or Cable Modem provider for proper installation of the modem. Connect the ADSL or Cable modem to DN-70182 WAN port Plug the power plug of the Router in electrical wall socket. Connects an Ethernet cable from your computer to the LAN port of DN-70182.
  • Page 7 Note: Please check if you can successfully connects to DN- 70182 or not under http://192.168.10.253 If not, please reset DN-70182 by pressing the reset button for 10 seconds, and then try again. A4. The login screen below will appear. Enter the “User Name”...
  • Page 8 A5. After logging in, you will see the web page below:...

  • Page 9: Configuring Via Web Browser

    Configuring Via Web Browser After you successfully login, you can click the Wizard's menu to quickly configure your Router.
  • Page 10 Choose the Operation Mode you need, and then click it. Mode Description Standard Wireless Router Mode：This router connect to Internet by WAN port, and then Router other terminal devices can connect to this router by wireless connection or connect to this router’s LAN port by wired Traditional wired router realize wireless function：...

  • Page 11: Router Mode

    Router Mode: Choose your WAN Connection Type If Dynamic IP is selected, the Router gets the IP address automatically from the DHCP server or the ISP. No configuration should be set and you can go on with the wireless configuration. If ADSL Dial-up (PPPoE) is selected, please enter the User Name and Password from your ISP, These fields are case-sensitive.
  • Page 12 Click ‘Save&Reboot’ button, It will restart. Wait for a few seconds your Wi-Fi Router is ready for use. AP Mode: Set the wireless parameter. It's recommended that you rename an SSID, choose a Security Mode and enter a Key. Click ‘Save&Reboot’ button, It will restart. SSID The "SSID"...

  • Page 13: Repeater Mode

    Repeater Mode: ASSMANN Digitus lab DN-70591 Test Test lab 1 Select the SSID of the target network and click Select. ASSMANN The target network's SSID will be automatically filled into the wireless setting figure. Then enter the Password. Click ‘Save&Reboot’ button, It will restart.

  • Page 14: Wisp Mode

    WISP Mode: In this mode, all Ethernet ports are bridged together and the wireless client will connect to ISP access point. ASSMANN Digitus lab Test Test lab 1 DN-70591 Select the SSID of the target network and click Select. ASSMANN...

  • Page 15: Change Management Password

    Wait for a few seconds your Mini Router will be ready for use. Change Management password  Default password of DN-70182 is “admin”, and it’s displayed on the login prompt when accessed from web browser. There’s a security risk if you don’t change the default password, since everyone can see it.

  • Page 16: Firmware Upgrade

    Firmware Upgrade  The system software used by this router is called as ‘firmware’, just like any applications on your computer, when you replace the old application with a new one; your computer will be equipped with new function. You can also use this firmware upgrade function to add new functions to your router, even fix the bugs of this router.
  • Page 17 NOTE: Never interrupt the upgrade procedure by closing the web browser or physically disconnect your computer from router. If the firmware you uploaded is corrupt, the firmware upgrade will fail, and you may have to return this router to the dealer of purchase to ask for help. (Warranty voids if you interrupted the upgrade procedure).
  • Page 18 DN-70182 ) in the notification area. Choose the wireless network (DN-70182) the list that appears, and then click Connect. Type the network security key or passphrase if you are asked to do so, and then click OK. You'll...
  • Page 19 Network folder, then network discovery and file sharing might be turned off. Adding a Wireless computers to  DN-70182 with WPS Button Log on to the computer. Press the WPS button of the Wireless-N Mini Router directly for 2 – 3 seconds.
  • Page 20 Adding a wired (Ethernet) computer to the  Wireless-N Mini Router Plug the Wireless-N Mini Router to a wall socket. Connect your computer / laptop with the Wireless-N Mini Router with enclosed RJ45 Cable. To confirm that you added the computer, do the following: Open Network by clicking the Start button , and then clicking Control Panel.
  • Page 21 How to Configure Your Computer/Laptop with the Network IP Address Log on to the computer. Click the “Start” button (it should be located at the lower-left corner of your screen), then click “Control Panel”. Click “View Network Status and Tasks”, and then click “Manage Network Connections”.
