Page 1: Broadband Router

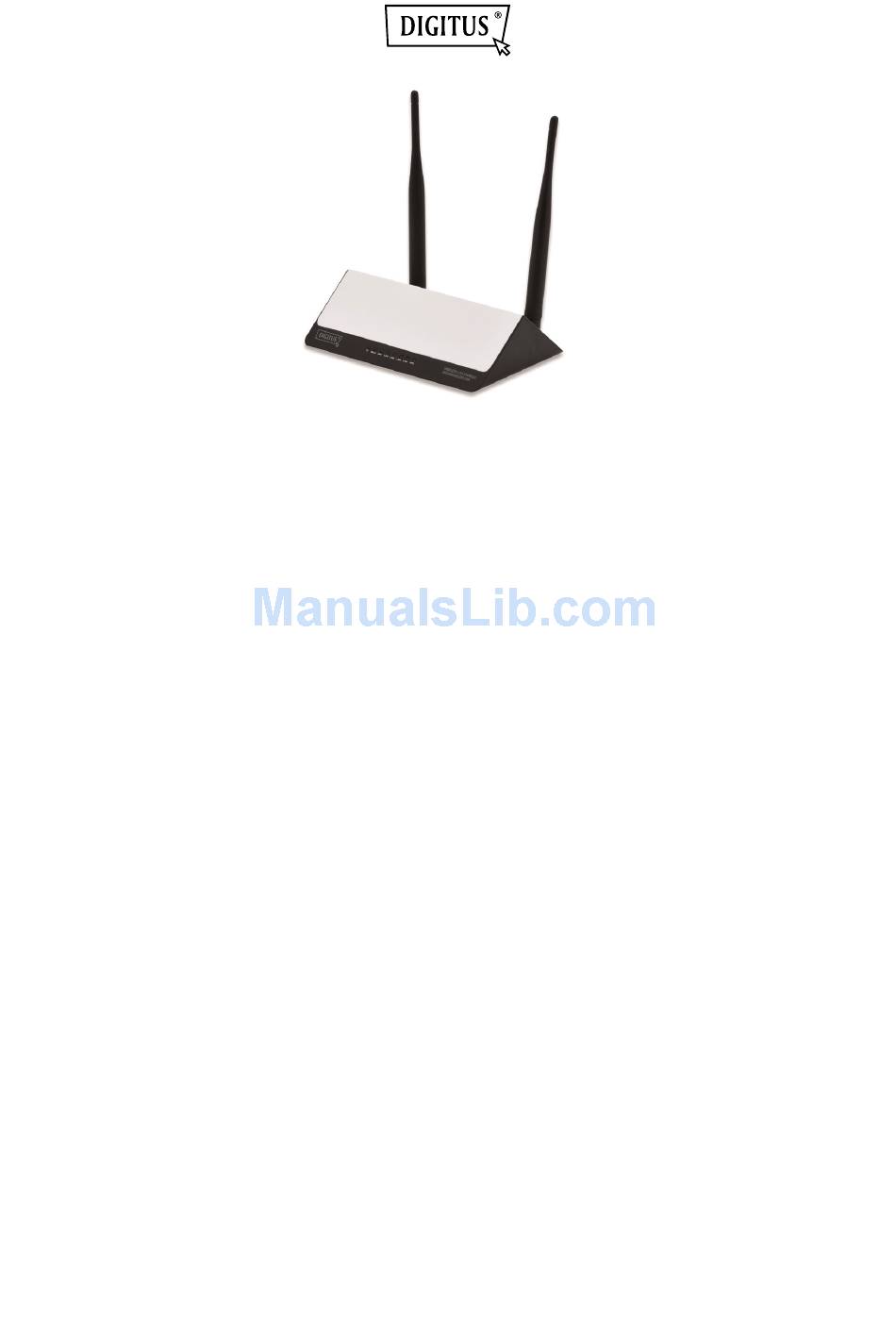

WIRELESS 11N 300MBPS BROADBAND ROUTER Quick Installation Guide DN-70591... -
Page 2: Package Contents
INTRODUCTION DN-70591 is a combined wired/wireless network connection device designed specifically for small business, office, and home office networking requirements. It complies with the IEEE 802.11n (Draft 2.0) standard. It adopts MIMO as well as SST technologies. It also works well with other 11b/g and 11n protocol wireless products. -
Page 3: Getting Started
(a ADSL, Cable Modem line into your home or office) Consult with your ADSL or Cable Modem provider for proper installation of the modem Connect the ADSL or Cable modem to DN-70591 Plug in the Power Adapter to the Wireless-N Router Connect your computer/notebook to the DN-70591... - Page 4 Adding computers to the Wireless-N Router Log on to the computer. Open Connect to a Network by right-clicking the network icon ( ) in the notification area. Choose the wireless network from the list that appears, and then click Connect. Type the network security key or passphrase if you are asked to do so, and then click OK.
-
Page 5: Configuring Via Web Browser
CONFIGURING VIA WEB BROWSER Open web browser and type http://192.168.0.1 in the browser's address box. This number is the default IP address for this device. The login screen below will appear. Enter the “User Name” and “Password” and click “OK” to login. The default User name is “admin”... - Page 6 Change management password and language Default password of Wireless Router is “admin”, and it’s displayed on the login prompt when accessed from web browser. There’s a security risk if you don’t change the default password, since everyone can see it. This is very important when you have wireless function enabled.
- Page 7 Setup Wizard After successfully login, the following Router Summary will be displayed on your web browser: The setup wizard will guide you to configure access point for first time. Please follow the setup wizard step by step. The Wizard will guide you the through following steps. Begin by clicking on Next.
- Page 8 Then follow the wizard to the Time Zone setting where you can manually change the Time Zone according to your area.
- Page 9 Gateway or you can simply keep it unchanged as default. For WAN setting, you have 3 options of Static IP, DHCP Client and PPPoE. For most of the application to connect DN-70591 to the ADSL modem, please select PPPoE and then key in the account and password of your...
- Page 10 For “Wireless Setting”, you can change the SSID to your desired name. For “Wireless Security Setup”, you can add your own password for WiFi access. Please note that the factory default of the encryption is turned OFF.
-
Page 11: Lan Settings
Then this is the end of the Setup Wizard. You should now be able to access Internet via WiFi connection. LAN Settings Please click “Network Lan Settings” located at the web management interface, the following message will be displayed on your web browser: IP Address: Enter the IP address of your Router or reset it to the factory default as 192.168.0.1... - Page 12 Connect to Internet (Gateway) Please click “Network WAN Settings” located at the web management interface, Following example is for “PPPoE” WAN setting. Enter the “Username” and “Password” that ISP provided and leave the others. (The “Service Name” can be blank) Click “Apply Changes”...
- Page 13 If your ISP provides the DHCP service, please choose ‘DHCP Client’, and the Router will automatically get IP parameters from your ISP. This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc.
- Page 14 Wireless Band Setting Please click “Wireless -> Basic Setttings” located at the web management interface, the following message will be displayed on your web browser: You could configure the minimum number of Wireless settings for communication, such as Network Name (SSID) and Channel. The Access Point can be set simply with only the minimum setting items.
-
Page 15: Wireless Security
Wireless Security Please click “Wireless-> Wireless Security” located at the web management interface, the following message will be displayed on your web browser: Setup the wireless security and encryption to prevent from unauthorized access and monitoring. Supports 64/128-bit WEP, WPA, WPA2 encryption methods. - Page 16 Disable WPS: Enable / Disable PIN method: If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN PBC method: If the wireless adapter supports Wi-Fi Protected Setup, and the Push Button Configuration (PBC) Step 1: Press the WPS button of the Router directly for 2 ~ 3seconds or Click web management interface ‘PBC’and ‘Apply Changes‘...
-
Page 17: Router Administrator Setup
ROUTER ADMINISTRATOR SETUP Factory Default You can backup all Setting of this router to a file, so you can make several copied of router configuration for security reason. To backup or restore router setting, please follow the following instructions: Please click click ‘Management-> Save/Reload Settings’ located at the web management interface, then the following message will be displayed on your web browser: Browse... -
Page 18: Firmware Upgrade
Firmware Upgrade The system software used by this router is called as ‘firmware’, just like any applications on your computer, when you replace the old application with a new one, your computer will be equipped with new function. You can also use this firmware upgrade function to add new functions to your router, even fix the bugs of this router.
