Digitus DN-7039-A User Manual

Digitus DN-7039-A User Manual

108m wireless internet broadband router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DN-7039-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitus DN-7039-A

Summary of Contents for Digitus DN-7039-A

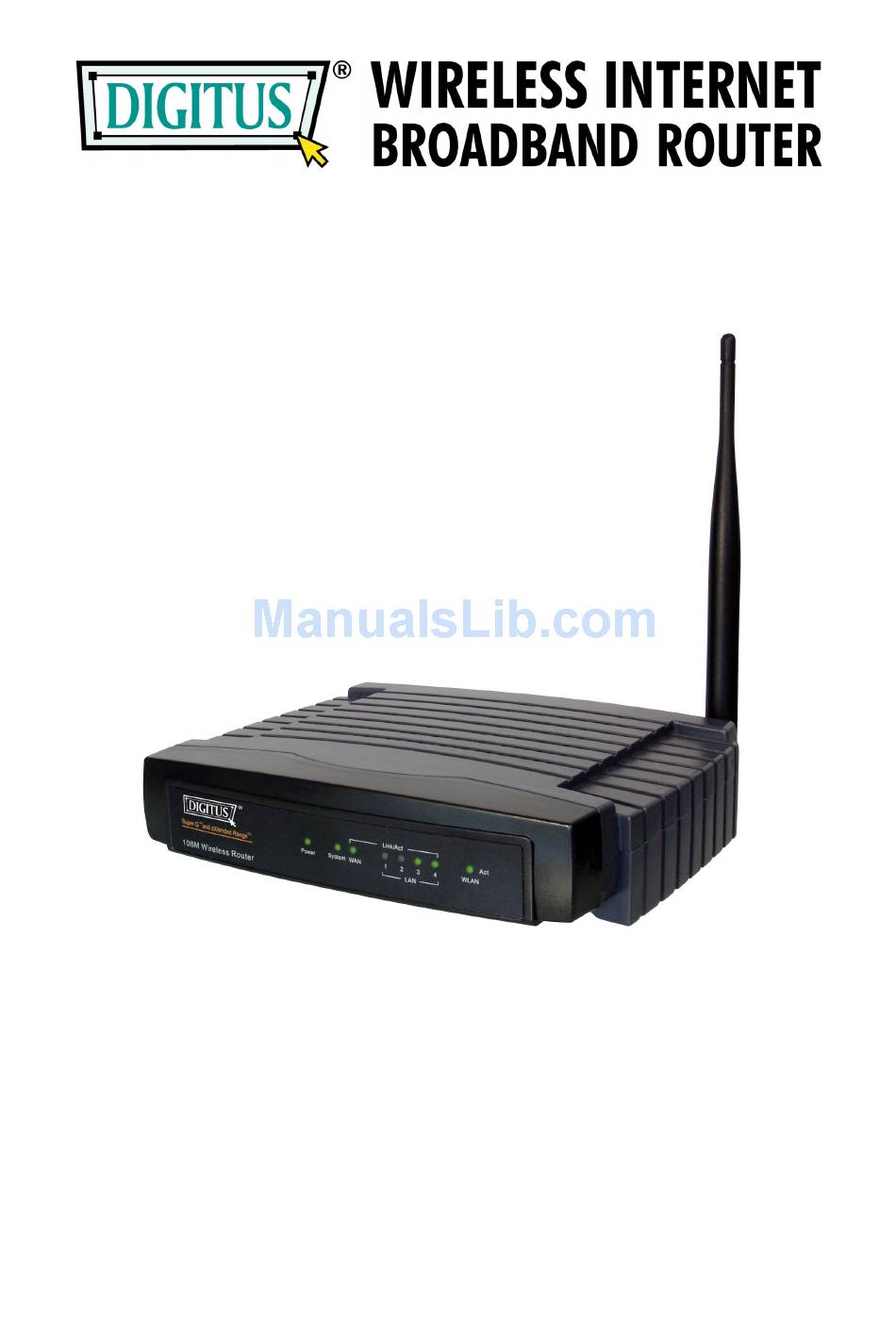

  • Page 1 User's Manual...

  • Page 2: Fcc Statement

    CE Declaration of Conformity For the following equipment: DN-7039-A Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC.
  • Page 3 EN 60950-1: 2001 EN 55022: 1998 + A1: 2000 + A2: 2003 EN61000-3-2:2001 EN61000-3-3:2001 EN 55024: 1998 +A1: 2001 + A2: 2003 European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use.

  • Page 4: Table Of Contents

    Package contents......................1 Chapter 1: About this Guide ....................2 1.1 Purposes......................2 1.2 Conventions ......................2 1.3 Overview of this User Guide ................2 Chapter 2: Introduction...................... 3 2.1 Overview of the Router ..................3 2.2 Features....................... 3 2.3 Panel Layout ......................4 2.3.1 The Front Panel ..................
  • Page 5 5.8.5 Remote Management ................40 5.8.6 Advanced Security ................... 41 5.9 Static Routing..................... 43 5.10 DDNS....................... 44 5.10.1 Dyndns.org DDNS ................. 44 5.10.2 Oray.net DDNS ..................44 5.10.3 Comexe.cn DDNS.................. 45 5.11 System Tools ....................46 5.11.1 Time ....................... 47 5.11.2 Firmware ....................

  • Page 6: Package Contents

    One Resource CD for DN-7039-A 108Mbps Wireless Router, including: • This Guide • Other Helpful Information Note: If any of the listed contents are damaged or missing, please contact the retailer from whom you purchased the DN-7039-A 108Mbps Wireless Router for assistance. - 1 -...

  • Page 7: Chapter 1: About This Guide

    108M Wireless Router User Guide Chapter 1: About this Guide Thank you for choosing the DN-7039-A 108Mbps Wireless Router. This router provides dedicated solution for Small Office/Home Office (SOHO) networks. With your network all connected, your local wired or wireless network can share Internet access, files and fun for multiple PCs through one ISP account.

  • Page 8: Chapter 2: Introduction

    The DN-7039-A 108Mbps Wireless Router integrates 4-port Switch, firewall, NAT-router and Wireless AP. Its design is dedicated to Small Office/Home Office (SOHO) wireless network solutions. The DN-7039-A 108Mbps Wireless Router will allow you to connect your network wirelessly better than ever, sharing Internet Access, files and fun, easily and securely.

  • Page 9: Panel Layout

    2.3 Panel Layout 2.3.1 The Front Panel The front panel of the DN-7039-A consists of several LED indicators, which is designed to indicate connections. Viewed from left to right. Table 2-1 describes the LEDs on the front panel of the router.

  • Page 10: The Rear Panel

    WAN RJ45 port for connecting the router to a cable, DSL modem, or Ethernet Four LAN 10/100Mbps RJ45 ports for connecting the router to the local PCs AC power socket: only use the power adapter supplied with the DN-7039-A 108Mbps Wireless Router, use of a different adapter may result in product damage.

  • Page 11: Chapter 3: Connecting The Router

    DN-7039-A 108M Wireless Router User Guide Chapter 3: Connecting the Router 3.1 System Requirements Broadband Internet Access Service (DSL/Cable/Ethernet) One DSL/Cable modem that has an RJ45 connector (you do not need it if you connect the router to Ethernet) Each PC on the LAN needs a working Ethernet Adapter and an Ethernet cable with...
  • Page 12 DN-7039-A 108M Wireless Router User Guide RESET To WAN To LAN Switch/Hub XDSL Cable Ethernet （ 、 、 ） Figure 3-1: Hardware Installation of the DN-7039-A 108Mbps Wireless Router - 7 -...

  • Page 13: Chapter 4: Quick Installation Guide

    108M Wireless Router User Guide Chapter 4: Quick Installation Guide After connecting the DN-7039-A Router into your network, you should configure it. This chapter describes how to configure the basic functions of your DN-7039-A Wireless Router. These procedures only take you a few minutes. You can access the Internet via the router immediately after successfully configured.

  • Page 14: Quick Installation Guide

    DN-7039-A 108M Wireless Router User Guide If the result displayed is similar to that shown in figure 4-1, the connection between your PC and the router has been established. Figure 4-2: Failed result of Ping command If the result displayed is similar to that shown in figure 4-2, it means that your PC has not connected to the router.
  • Page 15 DN-7039-A 108M Wireless Router User Guide Figure 4-4 Login Windows Note: If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
  • Page 16 DN-7039-A 108M Wireless Router User Guide Figure 4-7 Quick Setup - PPPoE User Name and Password - Enter the User Name and Password provided by your ISP. These fields are case sensitive. If you have difficulty with this process, please contact your ISP.
  • Page 17 SSID - Enter a value of up to 32 characters. The same SSID must be assigned to all wireless devices on your network. The default SSID is DIGITUS. This value is case-sensitive. For example, DIGITUS is NOT the same as digitus.

  • Page 18: Chapter 5: Configuring The Router

    DN-7039-A 108M Wireless Router User Guide Chapter 5: Configuring the Router This chapter describes each web page's key functions. 5.1 login After your successful login, you can configure and manage the router. There are ten main menus on the left of the web-based utility. Submenus will be available after you click one of the main menus.

  • Page 19: Quick Setup

    DN-7039-A 108M Wireless Router User Guide Figure 5-1: Router Status 5.3 Quick Setup Please refer to Section 4.2: "Quick Installation Guide." 5.4 Network Figure 5-2: the Network menu There are three submenus under the Network menu (shown in figure 5-2): LAN, WAN and MAC Clone.

  • Page 20: Lan

    DN-7039-A 108M Wireless Router User Guide 5.4.1 LAN You can configure the IP parameters of LAN on this page. Figure 5-3: LAN MAC Address - the physical address of the router, as seen from the LAN. The value can't be changed.
  • Page 21 DN-7039-A 108M Wireless Router User Guide Figure 5-4 WAN – Dynamic IP This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP. Click the Release button to release the IP parameters.
  • Page 22 DN-7039-A 108M Wireless Router User Guide Figure 5-4a: WAN - 802.1X + Dynamic IP User Name - Enter the user name for 802.1x authentication provided by your ISP Password - Enter the password for 802.1x authentication provided by your ISP.
  • Page 23 DN-7039-A 108M Wireless Router User Guide If you are also given a user name and a password for 802.1x authentication, you should select 802.1x + Static IP for WAN Connection Type, a box will then appear requesting a user name and a password, shown in figure 5-5a: Figure 5-5a: WAN - 802.1X + Static IP...
  • Page 24 DN-7039-A 108M Wireless Router User Guide Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications is visiting the Internet continually in the background. Connect Automatically - Connect automatically after the router is disconnected. To use this option, click the radio button.

  • Page 25: Mac Clone

    DN-7039-A 108M Wireless Router User Guide it is necessary for your ISP. Service Name/AC Name - The service name and AC (Access Concentrator) name, this should not be done unless you are sure it is necessary for your ISP. ISP Specified IP Address - If you know that your ISP does not automatically transmit your IP address to the router during login, click “Use the IP Address...

  • Page 26: Wireless

    SSID - Enter a value of up to 32 characters. The same name (SSID) must be assigned to all wireless devices in your network. The default SSID is DIGITUS, but it is recommended strongly that you change your networks name (SSID) to a different value.
  • Page 27 DN-7039-A 108M Wireless Router User Guide wireless function of the router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance Note: Some regions may not use 108Mbps Mode since the operation for the wireless interface in 108Mbps Mode is illegal.
  • Page 28 DN-7039-A 108M Wireless Router User Guide select Automatic , WPA –PSK or WPA2-PSK as authentication options. • When you select WPA/WPA2 as an authentication type you can select Automatic ,,WPA or WPA2 as authentication options. WEP Key Format - You can select ASCII or Hexadecimal format. ASCII Code Format stands for any combination of keyboard characters in a specified length.

  • Page 29: Mac Filtering

    DN-7039-A 108M Wireless Router User Guide Radius Port - Enter the port that the radius service used. Radius Password - Enter the password for the Radius Server. Be sure to click the Save button to save your settings on this page.
  • Page 30 DN-7039-A 108M Wireless Router User Guide Figure 5-12: Add or Modify Wireless MAC Address Filtering entry To add or modify a MAC Address Filtering entry, follow these instructions: Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit).

  • Page 31: Wireless Statistics

    DN-7039-A 108M Wireless Router User Guide 1. Click the Enable button to enable this function. 2. Select the radio button: Deny the stations not specified by any enabled entries in the list to access for Filtering Rules. 3. Delete all or disable all entries if there exist any entries already.

  • Page 32: Dhcp

    DN-7039-A 108M Wireless Router User Guide Figure 5-13: The router attached wireless stations MAC Address - The connected wireless station's MAC address Current Status - The connected wireless station's running status, one of STA-AUTH / STA-ASSOC / AP-UP / WPA / WPA-PSK /WPA2/WPA2-PSK/None...

  • Page 33: Dhcp Clients List

    DN-7039-A 108M Wireless Router User Guide DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must have another DHCP server within your network or else you must manually configure the computer. Start IP Address - This field specifies the first of the addresses in the IP address pool.

  • Page 34: Address Reservation

    DN-7039-A 108M Wireless Router User Guide 5.6.3 Address Reservation When you specify a reserved IP address for a PC on the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses should be assigned to servers that require permanent IP settings.

  • Page 35: Forwarding

    DN-7039-A 108M Wireless Router User Guide Note: The function won't take effect until the router reboots. 5.7 Forwarding Figure 5-18: the Forwarding menu There are four submenus under the Forwarding menu (shown in figure 5-18): Virtual Servers, Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the corresponding function.

  • Page 36: Port Triggering

    DN-7039-A 108M Wireless Router User Guide protocols supported by the router). Enable - The Enable checkbox to enable the virtual server entry. Common Service Port - Some common services already list in the pull-down list. To setup a virtual server entry: Select the service you want to use from the Common Service Port list, and select the ID you want to use, and click Copy to button.
  • Page 37 DN-7039-A 108M Wireless Router User Guide Figure 5-20: Port Triggering Once configured, operation is as follows: 1. A local host makes an outgoing connection using a destination port number defined in the Trigger Port field. 2. The router records this connection, opens the incoming port or ports associated with this entry in the Port Triggering table, and associates them with the local host.

  • Page 38: Dmz

    DN-7039-A 108M Wireless Router User Guide Select the protocol used for Incoming Ports Range from the pull-down list, either TCP or UDP, or All. Select the Enable checkbox to enable. Click the Save button to save the new rule. There are many popular applications in the Popular Application list. You can select it and the ID, then click the Copy to button, the application will fill in the Trigger Port, incoming Ports Range boxes and select the Enable checkbox.

  • Page 39: Upnp

    DN-7039-A 108M Wireless Router User Guide To assign a computer or server to be a DMZ server: Click the Enable radio button Enter the local host IP Address in the DMZ Host IP Address field Click the Save button. Note: After you set the DMZ host, the firewall related to the host will not work.

  • Page 40: Security

    DN-7039-A 108M Wireless Router User Guide 5.8 Security Figure 5-23: the Security menu There are six submenus under the Security menu (shown in figure 5-23): Firewall, IP Address Filtering, Domain Filtering, MAC Filtering, Remote Management and Advanced Security. Click any of them, and you will be able to configure the corresponding function.

  • Page 41: Ip Address Filtering

    DN-7039-A 108M Wireless Router User Guide Enable MAC Filtering - set MAC Address Filtering is enabled or disabled. You can select the default filtering rules of MAC Address Filtering, either Allow or Reny accessing the router. 5.8.2 IP Address Filtering The IP address Filtering feature allows you to control Internet Access by specific users on your LAN based on their IP addresses.

  • Page 42: Domain Filtering

    DN-7039-A 108M Wireless Router User Guide Keep the field open, which means all LAN IP Addresses have been put into the field. LAN Port - type a LAN Port or a range of LAN ports in the field. For example, 1030 - 2000.
  • Page 43 DN-7039-A 108M Wireless Router User Guide Figure 5-27: Domain Filtering Before adding a Domain Filtering entry, you must ensure that Enable Firewall and Enable Domain Filtering have been selected on the Firewall page. To Add a Domain filtering entry, click the Add New… button. The page " Add or Modify a Domain Filtering entry "...

  • Page 44: Mac Filtering

    DN-7039-A 108M Wireless Router User Guide Click the Next button to go to the next page and the Previous button to return to the previous page. For example, if you want to block the PCs on your LAN to access websites www.xxyy.com.cn,...

  • Page 45: Remote Management

    DN-7039-A 108M Wireless Router User Guide To add or modify a MAC Address Filtering entry, follow these instructions: Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0E-AE-B0-00-0B.

  • Page 46: Advanced Security

    DN-7039-A 108M Wireless Router User Guide Web Management Port - Web browser access normally uses the standard HTTP service port 80. This router’s default remote management web port number is For greater security, you can change the remote management web interface to a custom port by entering that number in this box provided.
  • Page 47 DN-7039-A 108M Wireless Router User Guide Packets Statistic interval (5 ~ 60) - The default value is 10. Select a value between 5 and 60 seconds in the pull-down list. The Packets Statistic interval value indicates the time section of the packets statistic. The result of the statistic used for analysis by SYN Flood, UDP Flood and ICMP-Flood.

  • Page 48: Static Routing

    DN-7039-A 108M Wireless Router User Guide Host IP Address- The IP address that blocked by DoS are displayed here. Host MAC Address - The MAC address that blocked by DoS are displayed here. To update this page and to show the current blocked host, click on the Refresh button.

  • Page 49: Ddns

    DN-7039-A 108M Wireless Router User Guide To delete all the entries: Click the Clear All button. Click the Save button. Note: You can set up to 8 entries. 5.10 DDNS The router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP Address.

  • Page 50: Comexe.cn Ddns

    DN-7039-A 108M Wireless Router User Guide Figure 5-36: Oray.net DDNS Settings To set up for DDNS, follow these instructions: Type the User Name for your DDNS account. Type the Password for your DDNS account. Click the Login button to login the DDNS service.

  • Page 51: System Tools

    DN-7039-A 108M Wireless Router User Guide Figure 5-37: Comexe.cn DDNS Settings To set up for DDNS, follow these instructions: Type the domain names your dynamic DNS service provider gave. Type the User Name for your DDNS account. Type the Password for your DDNS account.

  • Page 52: Time

    DN-7039-A 108M Wireless Router User Guide 5.11.1 Time You can set time manually or get GMT from the Internet for the router on this page (shown in figure 5-39): Figure 5-39: Time settings Time Zone - Select your local time zone from this pull down list.

  • Page 53: Factory Defaults

    To upgrade the router's firmware, follow these instructions: Download a more recent firmware upgrade file from the DIGITUS website (www. digitus.info). Run a TFTP Server on a PC on your LAN, and take th e file in the TFTP server’s...

  • Page 54: Password

    DN-7039-A 108M Wireless Router User Guide Figure 5-42: Reboot the router Click the Reboot button to reboot the router. Some settings of the router will take effect only after rebooting, which include: • Change LAN IP Address. (System will reboot automatically) •...

  • Page 55: Log

    DN-7039-A 108M Wireless Router User Guide 5.11.6 Log This page (shown in figure 5-44) allows you to query the Logs of the router. Figure 5-44: System Log The router can keep logs of all traffic. You can query the logs to find what happened to the router.
  • Page 56 DN-7039-A 108M Wireless Router User Guide The IP Address displayed with statistics IP Address Packets The total amount of packets received and transmitted by the router. Total Bytes The total amount of bytes received and transmitted by the router. The total amount of packets received and transmitted in the last Packets Packets Statistic interval seconds.

  • Page 57: Appendix A: Faq

    DN-7039-A 108M Wireless Router User Guide Appendix A: FAQ How do I configure the router to access Internet by ADSL users? First, configure the ADSL modem configured in RFC1483 bridge model. Connect the Ethernet cable from your ADSL modem to the WAN port on the router.
  • Page 58 DN-7039-A 108M Wireless Router User Guide MAC register, login to the router and click the "Network" menu link on the left of your browser, and then click "MAC Clone" submenu link. On the "MAC Clone" page, if your PC’s MAC address is proper MAC address, click the "Clone MAC Address"...
  • Page 59 DN-7039-A 108M Wireless Router User Guide Figure A-5 DMZ I want to build a WEB Server on the LAN, what should I do? Because the WEB Server port 80 will interfere with the WEB management port 80 on the router, you must change the WEB management port number to avoid interference.
  • Page 60 DN-7039-A 108M Wireless Router User Guide Figure A-7 Virtual Server The wireless stations cannot connect to the router. Make sure the "Wireless Router Radio" is enabled. Make sure that the wireless stations' SSID accord with the router's SSID. Make sure the wireless stations have right KEY for encryption when the router is encrypted.

  • Page 61: Appendix B: Configuring The Pcs

    DN-7039-A 108M Wireless Router User Guide Appendix B: Configuring the PCs In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows 95/98. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
  • Page 62 DN-7039-A 108M Wireless Router User Guide Figure B-3: Configuration tab Click on Properties. The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below: •...
  • Page 63 DN-7039-A 108M Wireless Router User Guide Figure B-5: Gateway tab Choose Disable DNS on the DNS configuration tab, as shown in the following figure: Figure B-6: DNS Configuration tab • Setting IP address manually Select Specify an IP address on IP Address tab, as shown in the following figure.
  • Page 64 DN-7039-A 108M Wireless Router User Guide Figure B-7: IP Address tab Type the router’s LAN IP address (the default IP is 192.168.1.1) into the New gateway field on the Gateway tab, and click on the Add button, as shown in the figure:...
  • Page 65 DN-7039-A 108M Wireless Router User Guide click Add button. Shown below: Figure B-9: DNS Configuration tab Now, all the configurations are finished, it will take effect after reboot. - 60 -...

  • Page 66: Appendix C: Specifications

    DN-7039-A 108M Wireless Router User Guide Appendix C: Specifications General Standards IEEE 802.3, 802.3u, 802.11b and 802.11g Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP Ports One 10/100M Auto-Negotiation WAN RJ45 port, Four 10/100M Auto-Negotiation LAN RJ45 ports supporting Auto MDI/MDIX...

  • Page 67: Appendix D: Glossary

    DN-7039-A 108M Wireless Router User Guide Appendix D: Glossary 108M Super G WLAN Transmission Technology - 108M Super G WLAN Transmission Technology employs multiple performance-enhancing techniques including packet bursting, fast frames, data compression, and dynamic turbo mode that combine to improve the throughput and range of wireless networking products.
  • Page 68 DN-7039-A 108M Wireless Router User Guide Domain Name - A descriptive name for an address or group of addresses on the Internet. DoS (Denial of Service) - A hacker attack designed to prevent your computer or network from operating or communicating.
  • Page 69 DN-7039-A 108M Wireless Router User Guide Safety Information: This device may only be operated in enclosed, dry rooms. To prevent the risk of fire or electrical shock, the device must be protected from moisture. In the event of a defective power plug, please contact an authorized retailer.
