Outform UID0382 User Manual

Android, i display interactive digital displays
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Android Media Player
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UID0382 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outform UID0382

Summary of Contents for Outform UID0382

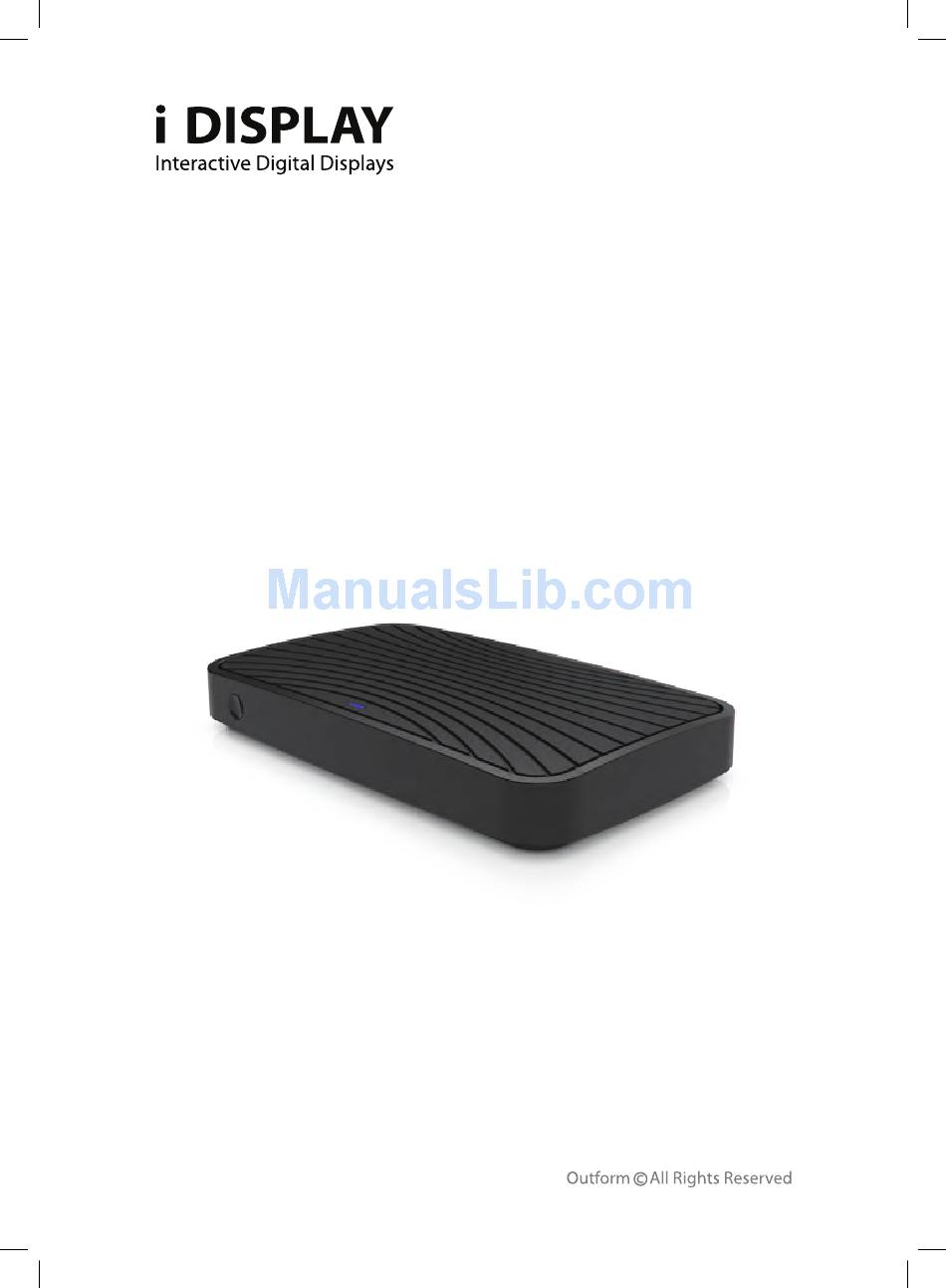

  • Page 1 Android Media Player User Manual...

  • Page 3: About This Guide

    Outform shall have no liability whatsoever to other parties in any way arising from or relating to the information or its use.
  • Page 4 Index Safety and Warnings Introducing the i DISPLAY Android Media Player Getting Started Playing Content Main Android OS Screen (Home Screen) Media Player Accessories...

  • Page 5: Safety And Warnings

    Safety and Warnings NOTE This mark is applied to indicate that the equipment conforms to European safety and electro-magnetic compatibility standards. WARNING! Main Supply: This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V.

  • Page 6: Introducing The I Display Android Media Player

    Introducing the i DISPLAY Android Media Player This chapter introduces the Android Media Player and its components. What is the Android Media Player? The Android Media Player is an Android-based (Android OS 2.3), media player that is specifically designed to be used by the retail market. The media player is a robust, yet slim line unit that features an embedded Wi-Fi and 3G (optional) with full HD 1080P resolution that can support almost any screen size.
  • Page 7 Android Media Player top view Android Media Player bottom view Introducing the i DISPLAY Android Media...
  • Page 8 Android Media Player front view Android Media Player side view Android Media Player back view Description Power Indicator Mounting option 3M Mounting stickers ON / OFF Button Micro SD port for playing content USB Port PB-Molex connector for a Connect Box. A Connect box has up to 12 buttons (push or touch) and one motion sensor.

  • Page 9: Getting Started

    Getting Started This chapter describes how to set up and start the Media Player. Setting Up the Android Media Player To set up the Media Player: Remove the Media Player from the box. Connect one side of the power supply to the Media Player socket located on back of the unit.
  • Page 10 To access the Android OS screen: While content is playing, quickly press the On/Off (front) button (for one second). A password window is displayed, as shown below: Please input password Cancel Click in the white field with a USB Mouse to display the virtual keyboard. Type in the password.
  • Page 11 If you change the password, please make sure to write it down and remember it. If you forget your password, then you must contact i Display for a new password. A standard Android Home screen is then displayed, as shown below: To turn off the Android Media Player: While the Media Player is playing, quickly press the On/Off button on the front of the Media Player.

  • Page 13: Playing Content

    Playing Content This chapter describes the various options for displaying videos, pictures and applications on the Android Media Player. What Does the Media Player Play? The Android Media Player runs standard Android applications (apk) using Android OS 2.3. Video Formats: The Media Player plays the following video formats: •...
  • Page 14 For example, if a folder contains an image file and two video files in the following order: • car-choice-banner.jpg car-choice-banner.mpeg • • top-of-range.mpeg then the Android Media Player will first display the car-choice-banner.jpg image for three seconds, and then play the discount-car.mpeg video and then play the top-of-range.mpeg video.
  • Page 15 Barcode Reader – Plays Per Barcode The Android Media Player can be used to automatically play the content of a specific file in the Root directory of the Media Player when a barcode reader is connected. Copy a file onto the Android Media Player with the same exact name as the barcode.
  • Page 16 Folder 0 will automatically start playing. If multiple files are in Folder 0, then they play one after another repeatedly. If the tablet does not start to play the content, then restart it and the content should start playing automatically after restart. NOTE Do not turn off the Media Player or remove the USB drive while it is copying.
  • Page 17 section on page 9. To use the Browser and the Market you must connect a USB Mouse into the USB socket in the back of the media player. - OR - If the Media Player is connected to a touch screen with Android 2.3 OS drivers then you can use the touch screen instead of a mouse.
  • Page 18 Android OS - Main page This chapter describes the Android Media Player standard Android Home screen and Application Drawer, which provides access to Media Player settings and other standard Android tools. Home Screen While you navigate in the Android environment, you can return to this Home screen by click ping the Home button.

  • Page 19: Media Player Accessories

    Mobile networks settings in order to download content to the Android Media Player. This menu also enables you to configure Bluetooth settings for working with Bluetooth accessories, such as Bluetooth earphones. Display Brightness Use the Settings --> Display --> Brightness option, which can be accessed from the Android OS screen.
  • Page 20 Connect Box and Buttons The Android Media Player can be connected to a Connect Box that has 12 push buttons or touch sensors. Android Media Player will then play the relevant folder according to which button is pressed, as described in the Connect Box – Selecting Folders 1 –...
  • Page 22 For further information or support, please contact: support@i-display.com...
  • Page 23 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
