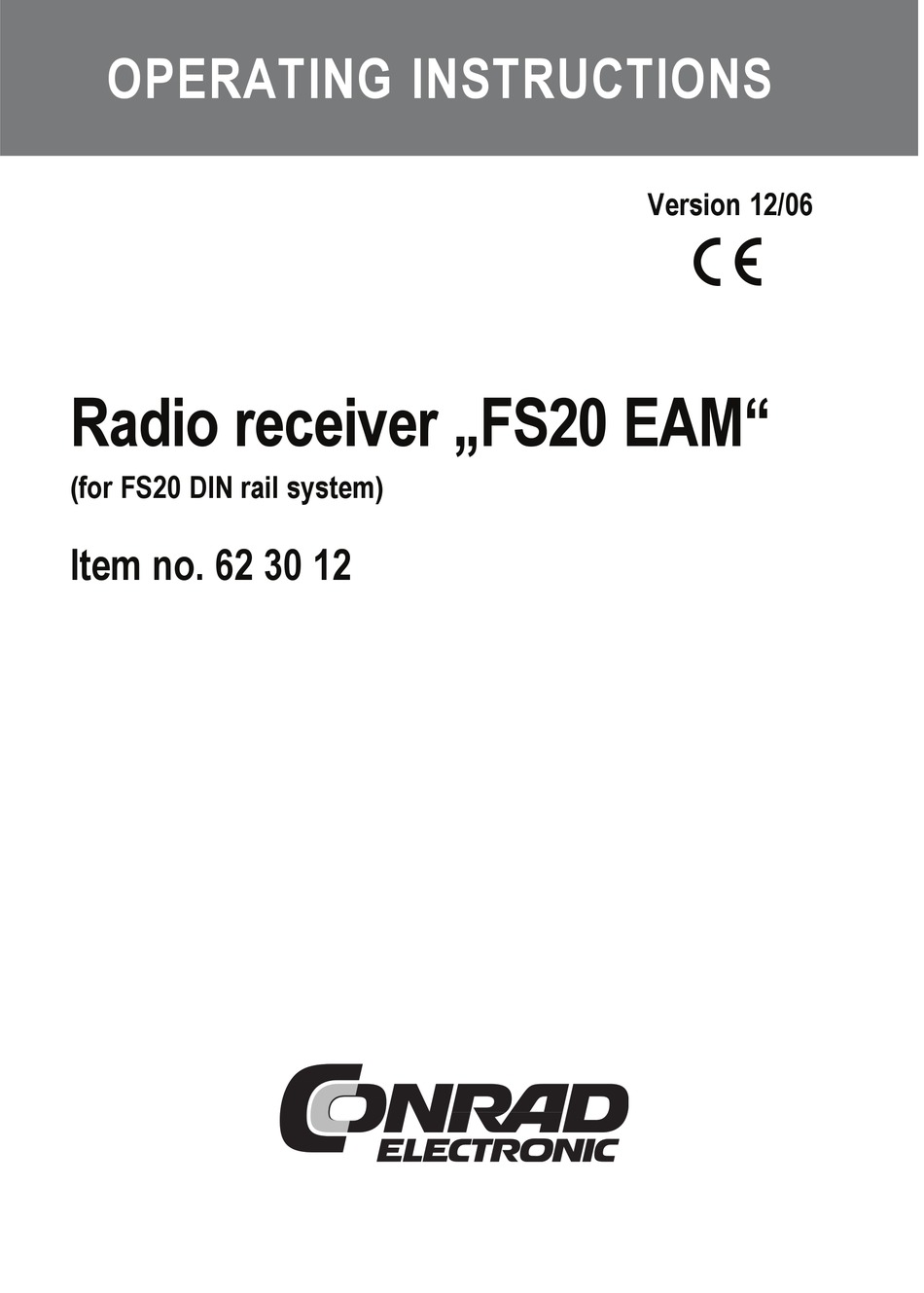

- Page 1 OPERATING INSTRUCTIONS Version 12/06 Radio receiver „FS20 EAM“ (for FS20 DIN rail system) Item no. 62 30 12...
- Page 2 Should you have any further questions, please contact our technical advisory service: Germany: Tel. no.: +49 9604 / 40 88 80 Fax. no.: +49 9604 / 40 88 48 e-mail: tkb@conrad.de Mon. to Thur. 8.00am to 4.30pm Fri. 8.00am to 2.00pm...
-
Page 3: Table Of Contents
Table of contents Page 1. Prescribed use ....................... 4 2. Scope of delivery ......................4 3. Explanation of icons ...................... 5 4. Safety instructions ......................5 5. Preparation ........................7 6. Connection, installation, mounting ................7 a) General information ....................7 b) Using the supplied connector cable .............. -
Page 4: Prescribed Use
The radio receiver must be installed outside the switchboard/distributor in order to ensure good radio reception. There are two possible ways of connecting the ‘FS20 ESH’ power supply and the ‘FS20 EAM’ radio receiver: • Connection via a standard, four-pole connection cable (supplied hardwired with the radio receiver);... -
Page 5: Explanation Of Icons
Interrupt the circuit current to all devices and power consumers before opening the distributor housing and mounting and connecting the ‘FS20 EAM’ and any other components. There is risk of a fatal electric shock if you touch live cables or parts! - Page 6 Ensure that the supply voltage cannot be switched on by a third party while this work is carried out. This can be done, for example, using mechanical security fixtures and additionally using conspicuous warning signs. • Do not use this product in hospitals or medical institutions. Although the components of the FS20 wireless control system only emit relatively weak radio signals, these may cause life-support systems to malfunction.
-
Page 7: Preparation
(which must be crimped on with an appropriate tool) must be used. The installation location is, amongst other things, determined by two important factors: • The existing ‘FS20 ESH’ power supply • Good radio reception for the ‘FS20 EAM’ receiver module 6. Connection, installation, mounting a) General information... -
Page 8: B) Using The Supplied Connector Cable
The procedure is described in precise detail in the following segments. b) Using the supplied connector cable The connector cable comes attached to the ‘FS20 EAM’ radio receiver. There is no need to open up the radio receiver. Proceed as follows: •... - Page 9 • Use suitable fixing or mounting devices to fix the connection cables into place, for instance, cable ties or adhesive pads. • Install the ‘FS20 EAM’ radio receiver as far away as possible from metal surfaces or voltage-carrying conductors so as not to affect the wireless range.
-
Page 10: C) Using Your Own Connection Cable
• Open the housing of the ‘FS20 EAM’ radio receiver by removing the four fastening screws with a suitable screw driver. Then carefully remove the cover of the housing. Do not bend any of the circuit board components in the radio receiver straight just so that it ‘looks better’! - Page 11 • Lastly, attach the cables to the ‘FS20 ESH’ power supply. Please take especial care that each cable is connected to the correct port. Otherwise there is a risk that both the ‘FS20 EAM’ radio receiver and the ‘FS20 ESH’ power supply, as well as any other connected components, will be destroyed! ...
- Page 12 For instance, using heat shrink tubing. • The cables can be fastened using, for example, cable ties, adhesive pads or other suitable fasteners. • Once again check that the connection between the ‘FS20 EAM’ radio receiver and the ‘FS20 EAM’ power supply is laid correctly.
- Page 13 If the wiring is incorrect, both the ‘FS20 EAM’ radio receiver and the ‘FS20 ESH’ power supply, as well as any other connected components, will be destroyed! • Close the radio receiver’s housing. Put the cover of the housing back onto the lower part and screw them together.
-
Page 14: Information On The Range
7. Information on the range Ranges and interference • The FS20 wireless control system works in the 868MHz range, which is also used by other radio services. Therefore devices that operate on the same or neighbouring frequency may restrict both its operation and its range. •... -
Page 15: Handling
8. Handling The product should only be used in dry indoor areas. Make sure that the insulation of the entire product is neither damaged nor destroyed. If damage is apparent, do NOT connect the product with the ‘FS20 ESH’ power supply! Life-threatening danger! Avoid the following adverse ambient conditions at the installation location or during transport: - Moisture or excessive air humidity - Direct sunlight... -
Page 16: Disposal
12. Declaration of conformity (DOC) We, Conrad Electronic, Klaus-Conrad-Straße 1, D-92240 Hirschau (Germany), hereby de- clare that this product complies with the fundamental requirements and other relevant regulations of directive 1999/5/EG. You can find the declaration of conformity for this product at www.conrad.com. - Page 20 100% The operating instructions reflect the current technical specifications at recycling time of print.We reserve the right to change the technical or physical paper. specifications. Bleached without © Copyright 2006 by Conrad Electronic SE. Printed in Germany. chlorine.
