Summary of Contents for Vax LiFE

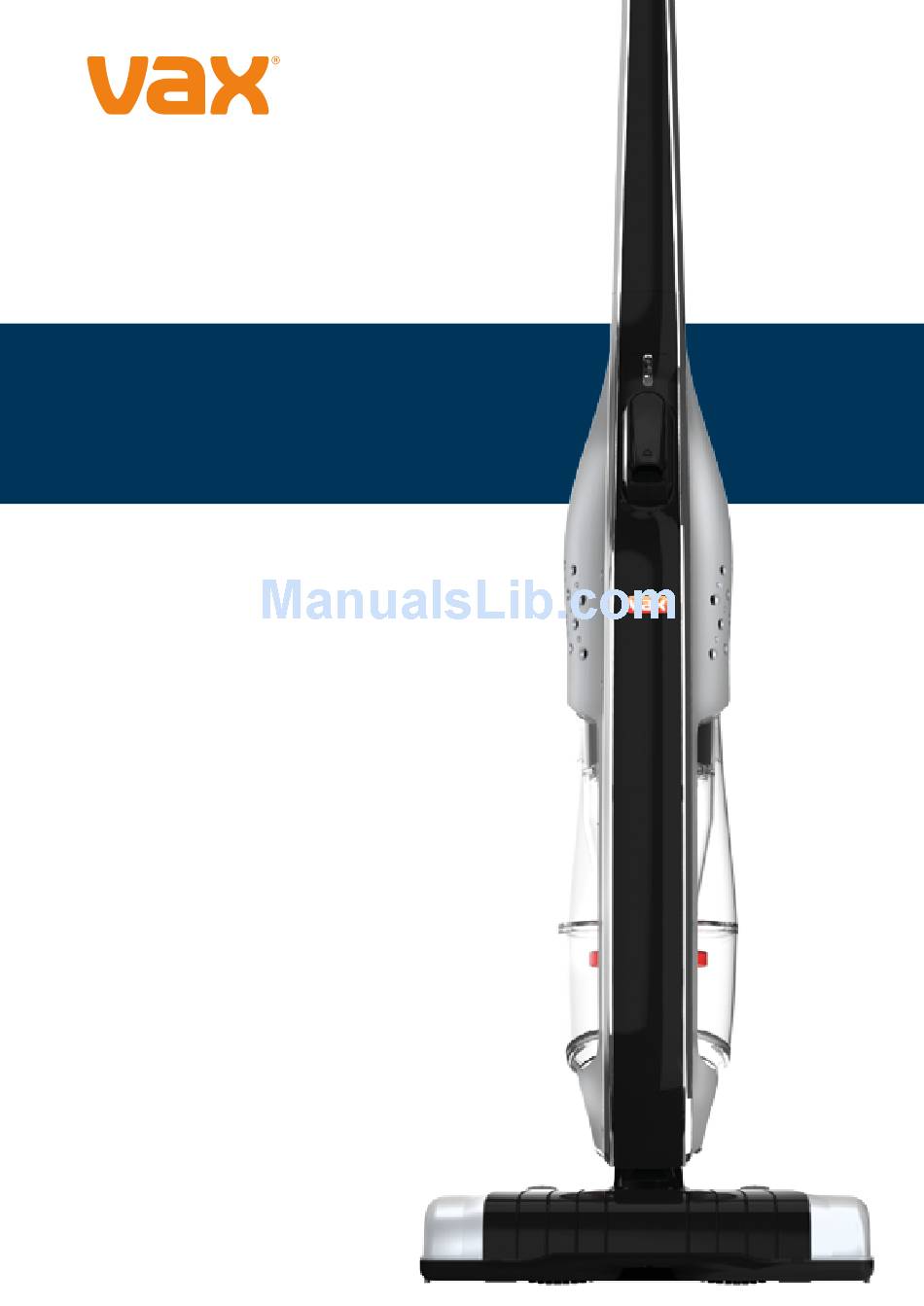

- Page 1 LiFE CORDLESS UPRIGHT VACUUM LET’S GET STARTED. U85-LF-B...
-
Page 2: Let's Talk Safety
Let’s talk safety • This Cordless upright is intended for household use only and NOT for commercial or industrial use. • Only use the Cordless upright indoors and keep the area your cleaning well lit. Basic • Keep fingers, hair and loose clothing from moving parts safety and openings whilst using the Cordless upright. - Page 3 • Use only the Vax recommended charger and accessories with this Cordless upright. • Turn off all controls on the Cordless upright before disconnecting or connecting the battery and before carrying out any maintenance. • Take extra care when cleaning on the stairs.
- Page 4 Thank you for buying this LiFE Cordless Vacuum. Taking care of your floors The LiFE is designed to make cleaning as quick and convenient as possible and this user guide will help you get the most out of your machine.
-
Page 5: Table Of Contents
Contents Dual Power Included with your machine Let’s talk safety Getting to know your machine Getting started Using your machine Lithium-Ion Battery Taking care of your machine Let’s talk technical What to do if it goes wrong Docking station Getting in touch Notes... -
Page 6: Getting To Know Your Machine
Battery Charge Indicator Filter Battery Slot Dirt Container Release Clip Dirt Container Floorhead Removal Button Floor Head Technical Specification Accessories & Consumables Name LiFE Belt Battery Pack 1-3-129504-00 1-5-136719-08 Code U85-LF-B Filter (Type 77) Charger Part Number 1-1-135634 1-7-129456-00 1-5-136533-00 Voltage 18v Weight 3.3kg... -
Page 7: Getting Started
Getting started PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE Assembling your LiFE cordless vacuum Line up floor head with Push the handle Insert screw from the rear of the main body, push into the main body. back panel and tighten with a... -
Page 8: Using Your Machine
Never leave the vacuum cleaner in one spot for an extended period of time as this may damage the floor surface. Vax cannot be held responsible for damage to the floor surface if the customer fails to take notice of this recommendation. -
Page 9: Taking Care Of Your Machine
Taking care of your machine Push dirt container Press dirt container quick release clip to release button, allowing remove dirt container. dirt to fall out. Advanced Cleaning Press the dirt container quick release button, to access separator. Twist the separator to unclip and pull, tap the separator over a bin and wipe clean. - Page 10 Taking care of your machine Cleaning the filter Push dirt container Pull lid of filter Remove the foam filter. release clip to cap upwards. remove dirt container. 24hr Tap the foam filter Foam filter can be washed Leave at least 24 hours or to remove any dust with water max 40’C.
-
Page 11: Let's Talk Technical
Let’s talk technical Removing blockages Press the floor head removal Remove any blockage and button to release the floor reassemble the machine. head from the main body. Changing the brushbar/belt Remove screws as indicated Lift the brushbar from housing and on the floor head plate with remove belt from motor spindle. - Page 12 Let’s talk technical Machine: Battery Charge Indicator All three LEDs will light momentarily when the power switch is turned on. The battery charge indicator will then indicate remaining capacity as below: 3 LEDs lit – Remaining capacity is more than 75% 2 LEDs lit –...
- Page 13 Notes...
-
Page 14: What To Do If It Goes Wrong
What to do if it goes wrong Problem Solution • Check the battery is inserted correctly into the machine. • The battery may not be charged, remove and charge battery. Why does my vacuum • Battery might be too hot, remove and allow to cool for 30 cleaner have no power? minutes. -
Page 15: Getting In Touch
Getting in touch Registration required. Terms and conditions apply. † * Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling. - Page 16 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. © 2015 All rights reserved. VAX®, VAX Lozenge, are trade marks or registered trade marks of Techtronic Floor Care Technology Ltd.
