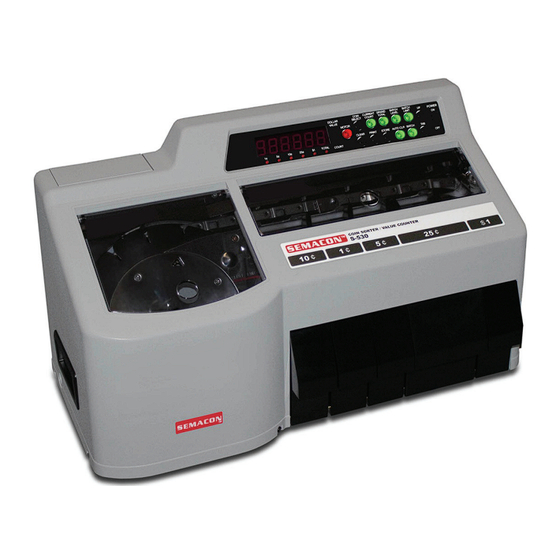

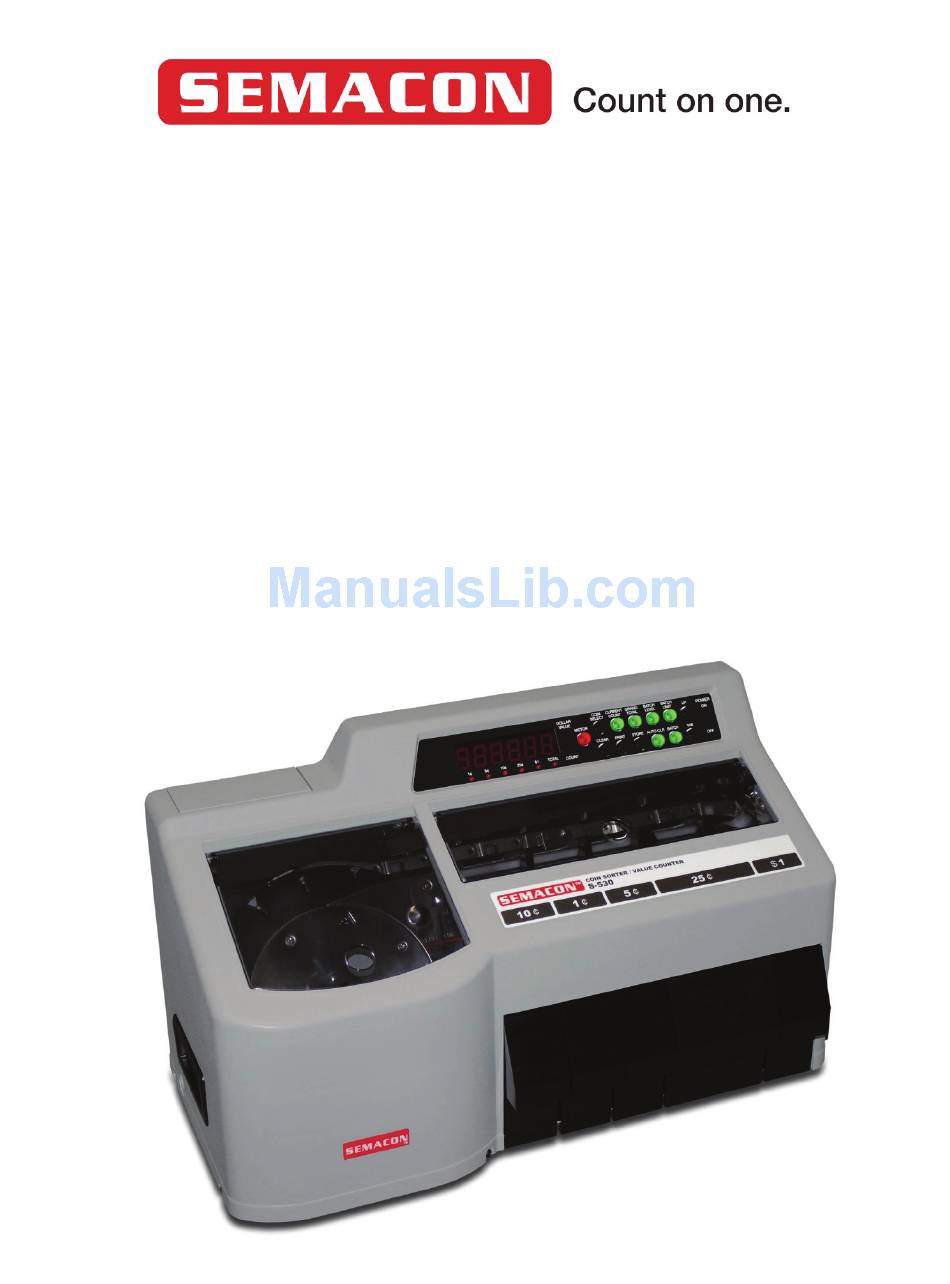

- Page 1 Model S-530 Coin Sorter / Value Counter Operating Manual...
-
Page 2: Table Of Contents
After reading this Manual, please keep it in a safe place. Caution Copyright © 2011 Semacon Business Machines, Inc. All rights reserved. No part of this Manual may be reproduced by any person or entity for any purpose without prior written permission from Semacon. Rev. K04... -
Page 3: Using The Product Safely
■ Using the Product Safely Please read this Operating Manual carefully before use and use the product accordingly. After reading this manual, please keep it in a safe place where its contents may be referred to at any time. If this manual should be lost or otherwise inaccessible, please contact our service center to obtain another copy. -
Page 4: Warnings
Warnings ♦ Use this product only in the environment listed in the specifications of the Operating Manual. If this product is used in an environment other than that specified, it may result in fire or electric shock. Prohibited ♦ Do not modify the component parts or attach altered parts to the product. -
Page 5: Cautions
Cautions ♦ Do not place this product in a location where the product or cord is likely to be damaged as this may result in fire, electric shock or product malfunction. Examples are: close to an open flame, humid or dusty locations, locations where shaking or strong vibrations are present, uneven surfaces, surfaces from which the product may fall, locations with direct Prohibited sunlight, close to air conditioners or heaters, locations where the product may get wet, and... -
Page 6: Names Of The Machine Parts
■ Names of the Machine Parts ◈ Please follow the safety label instructions on the respective parts of the sorter when operating the machine. Instruction Sticker Instruction Sticker Warning Sticker for the Hopper for the Counter ■ Accessories ◈ Please confirm that all of the accessories are included:... -
Page 7: Control Panel Functions
■ Control Panel Functions ● ● POWER Switch PRINT Button Turns power ON and OFF. Prints a receipt containing the totals displayed (CURRENT COUNT, GRAND TOTAL or BATCH ● MOTOR Button LEVEL). ● Starts and stops the sorting and counting operation. STORE Button ●... -
Page 8: Preparations For Counting
■ Preparations for Counting When carrying the sorter, hold it firmly using the handles on both sides. Place the sorter on a stable and flat surface. If bagging coins using bagging attachments, clamp the sorter to the mounting surface using the optional machine stabilizer kit. Confirm that the POWER switch on the control panel is turned OFF. - Page 9 Setting the BATCH LIMITS Auto Clear Function When using batch mode, BATCH LIMITS must be set previously. All When a BATCH LIMIT is reached (bag, package or drawer full) machine totals must be zero in order to set the BATCH LIMITS. and the batch is removed (bag, package or drawer replaced or emptied) the BATCH LEVEL may be cleared manually or To set the BATCH LIMITS, press the BATCH LIMIT button so it is...
-
Page 10: Error Indications
Error Condition: If one of the count sensors is pressed when the power is turned on, a Sensor Error will appear. Resolution: Clear any coins from the sorting rail and verify that the indicated sensor is clear and moves freely. For further assistance, contact Semacon Technical Support. Coin Jam Error Example: Coin jam error display for 5¢... -
Page 11: Cleaning Methods
Cleaning Methods ● Cleaning the Main Body Wipe with a soft, dry cloth. If grime or dirt is severe, wet the cloth with water or mild detergent, wring out excess water, and wipe. • Do not pour water or detergent directly on the machine as this may result in malfunction. -
Page 12: How To Clean The Coin Passageway
Rail Backrest Hopper and Rail Seam Specifications Specification Model S-530 Coin Types U.S. Coins (1¢, 5¢, 10¢, 25¢, $1) Counting Speed Approx. 450 coins / minute Hopper Capacity Approx. 500 coins Coin Drawer 1¢: approx. - Page 13 The contents of this Operating Manual are subject to change without notice. All questions or concerns relating to the use of this product or the contents of this Operating Manual should be addressed to the following: Semacon Business Machines, Inc. 6625 Top Gun Street, Suite 107 San Diego, CA 92121 U.S.A.
