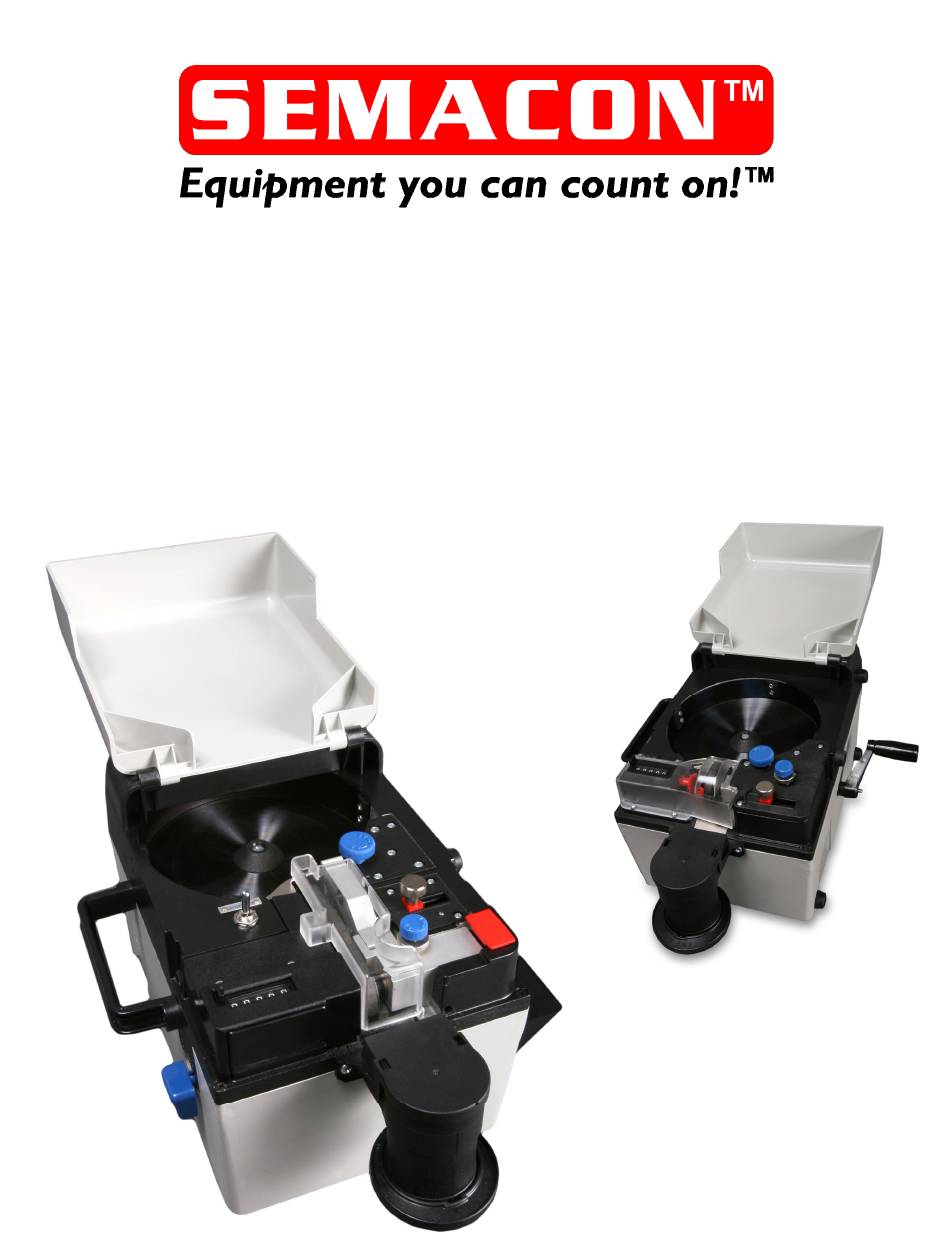

- Page 1 Coin Counter Operating Manual (Including Models: S-15, S-25, S-35, S-40 and S-45)
- Page 2 Assembly Instructions 1) Carefully remove counter from packing material. Save the box and packing materials should you ever need to send the counter in for servicing. 2) To install the bag holder, using a Phillips head screwdriver, remove the two screws on the front of the counter, place the bag holder over the screw hole openings and replace the screws so as to secure the bag holder in place.
- Page 3 Inspection Tray (K) On / Off / Reverse Switch Feed Guide Adjustment Feed Wheel or Belt Adjustment (On Electric Models) (H) (C) . . (D) Fig # 2 Coin Diameter Setting (B) Coin Feed Guide Adjustment Place Coin Here Place Coin Here to Size Coin’s Thickness (E) Fig # 3 Fig # 1...
- Page 4 Operating Instructions Note: Adjustments should be made before coins are placed into the rotating turntable. 1) Adjust Coin Diameter: Insert a coin into the opening slot (Figure # 2-A) of the denomination that will be counted by loosening the knob and sliding the spring loaded lever (Figure # 2-B) to the right. Place coin into the opening then allow the lever (Figure # 2-B) to slide back to the left so the coin is snug and tight.
- Page 5 Inspection Tray: Pour the coins to be counted into the inspection tray (Figure # 1-K) and slide the coins onto the spinning plate so that the coins remain no higher than approximately half of the height of the area where the plate rotates for optimum performance. Copyright © 2001-2008 Semacon Business Machines, Inc. All Rights Reserved. (Rev G12)
