Verity Systems CopyDisc AutoPrinter Platinum Operating And Maintenance Manual page 36

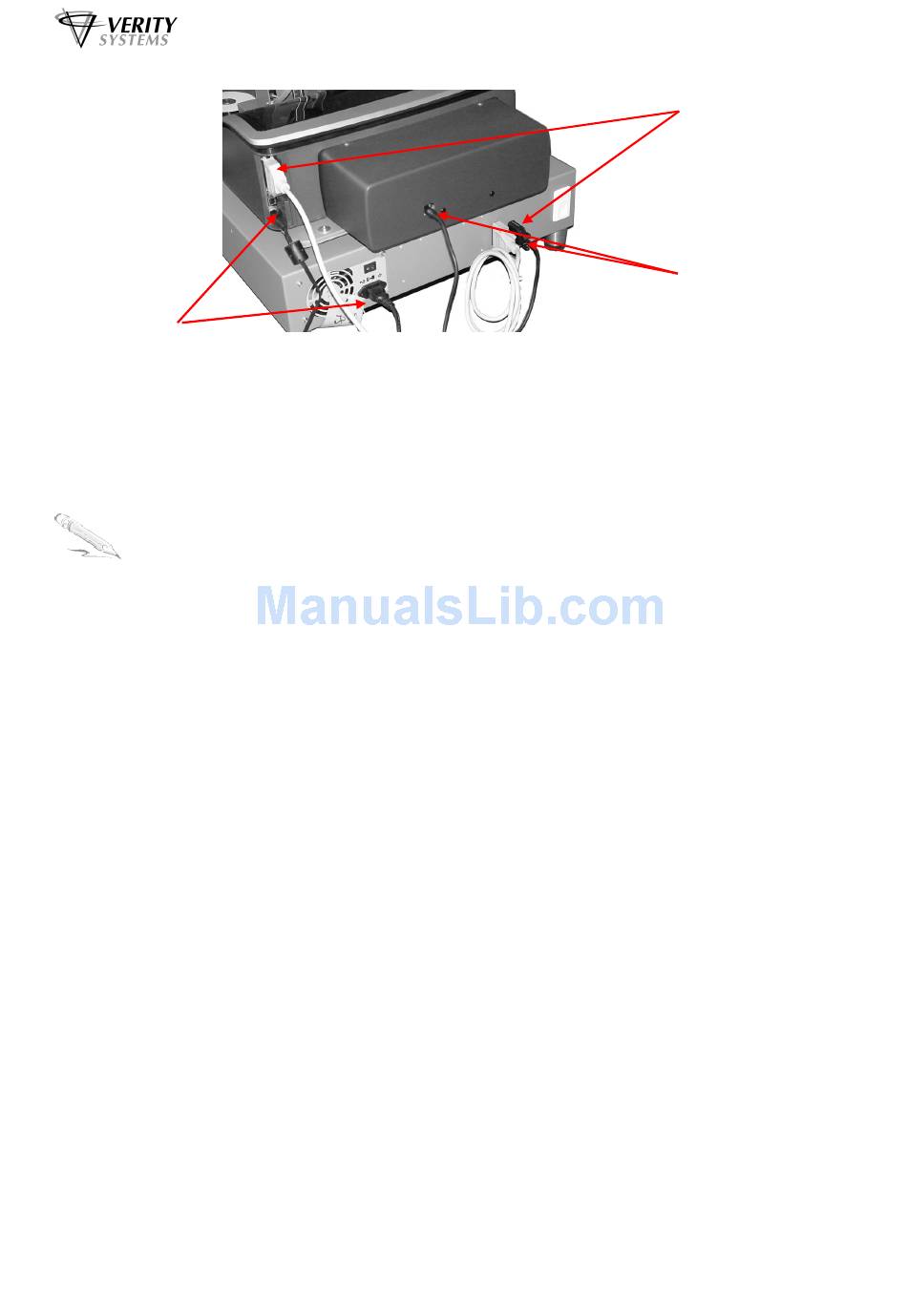

CopyDisc Duplicator Series
Parallel Cable
Serial Control Cable
Power Cables
Fig E3
Adjusting the Printer Position
Correct alignment of the OptiPrinter Pro on the CopyDisc system is essential to ensure the unit
works efficiently. If your system has problems picking up from the OptiPrinter Pro the following
procedures should help to solve the problem.
Note:
Lack of accuracy in setting the pick up position will lead to miss-picks and dropped discs.
To ensure accuracy follow these steps:-
1. Have the printer and CopyDisc in a state where there are no jobs running.
2. Scroll down to Utilities using the ▼ key and press ►
3. Use the ▼ key to select Loader Utilities and press ►
4. Use the ▼ key to select 'Input Bin to Printer' and press ►
5. The printer tray will open and a disc will be placed onto the tray.
6. Examine where exactly the disc has been placed on the tray. The disc must be
0.5mm (0.0197") from the 2 front pins on the drawer and be on equal distance from each pin.
