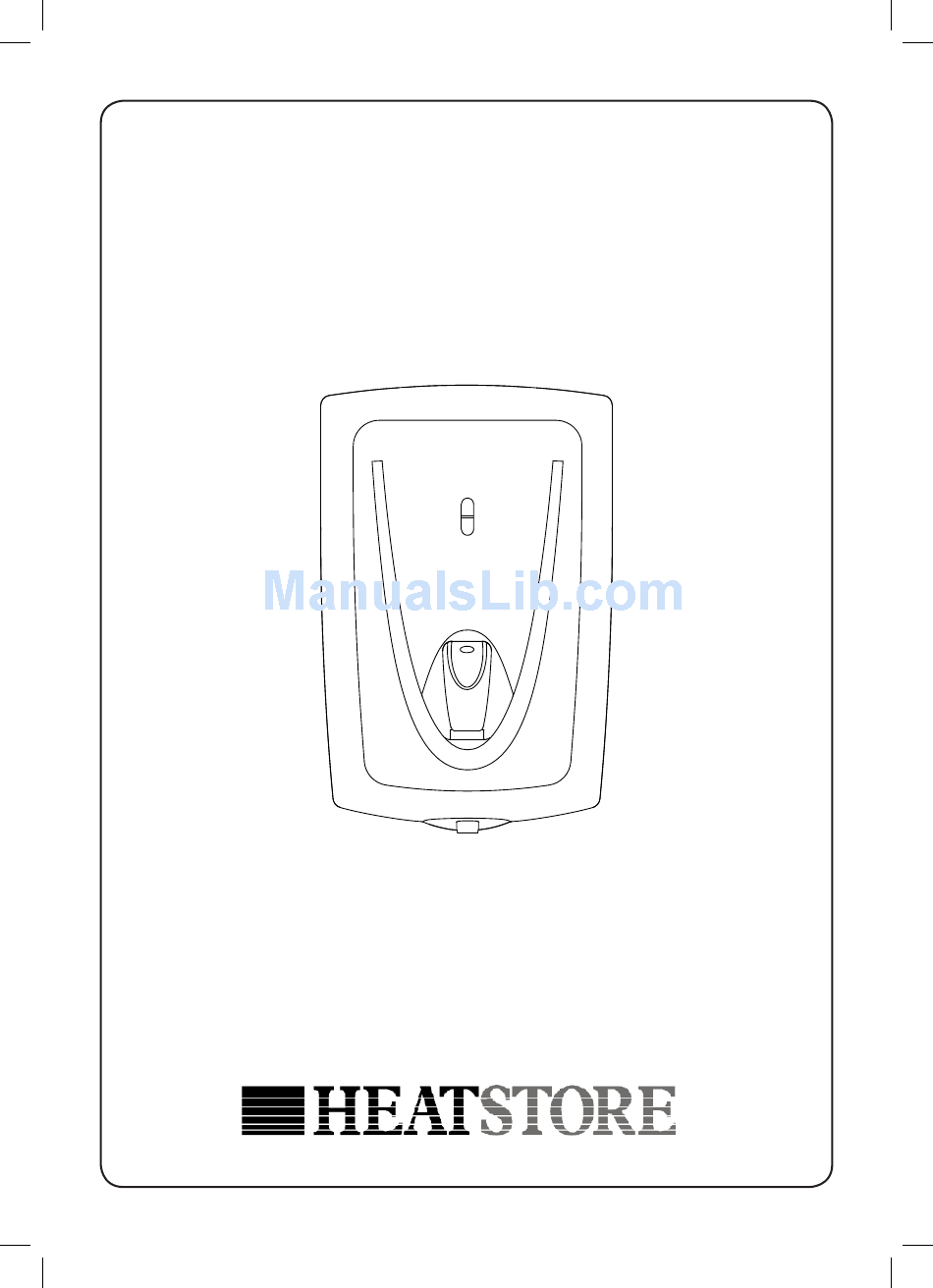

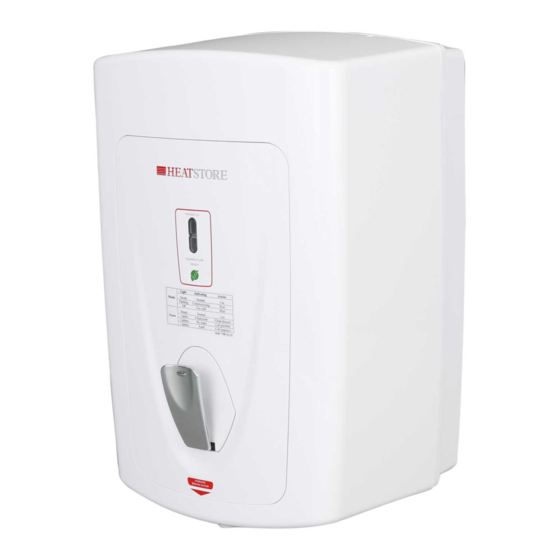

- Page 1 ULTIMA PROFILE ECO Installation and User Instructions Models: 2.5, 5.0, 7.5 litre Please read and understand these instructions before starting work. Please leave this leaflet with the user following installation. WARNING This Boiling Water Heater must only be installed by qualified persons.
-
Page 2: Component Checklist
INTRODUCTION Thank you for purchasing a Heatstore Ultima Profile Eco Boiling Water unit. The heater is manufactured to the highest standards and has been designed to meet all the latest relevant safety specifications. This water heater must be installed (Sections 1-5), commissioned (Section 6) and maintained (Sections 7-8) by a competent person. -
Page 3: Technical Specification
Water entry point - bottom and rear Cable entry point - bottom and rear ELECTRICAL Model numbers Heatstore Ultima Profile Eco 2.5ltr ......HSBW025ECO Heatstore Ultima Profile Eco 5.0ltr ......HSBW050ECO Heatstore Ultima Profile Eco 7.5ltr ......HSBW075ECO Electrical rating ............2.3/2.5kW@230/240V Weight (full) Model 2.5 litre ......8.4kg... -
Page 4: Important Installation Points
1.0 IMPORTANT INSTALLATION POINTS 1.1 The Heatstore Ultima Profile Eco stores and dispenses water at or close to boiling point at all times it is switched on. Due caution must be taken when choosing a location for the product to minimise misuse. Locate the unit over a draining board NOT over the sink or basin. - Page 5 2.0 IMPORTANT INSTALLATION POINTS 2.1 The Heatstore Ultima Profile Eco must be vertically wall mounted using the bracket supplied. 2.2 Fig.1, p6 details the outside dimensions of the unit. It is recommended that the unit is positioned above the draining board. If this is not possible, consideration should be given to any spillages that may occur under the appliance.
- Page 6 Figure 01:Dimensions Fixing Bracket Fixing Hole Worktop Model DIMENSIONS (mm) Inlet Vent Inlet/ Inlet/ Cable Vent Vent Entry 2.5l 5.0l 7.5l...
-
Page 7: Installation - Water Supply
Cable Fixing Fixing Bracket Bracket Bracket Outlet Entry Point Point 2.5l 52.5 5.0l 7.5l 3.0 INSTALLATION - WATER SUPPLY 3.1 Select appropriate push fit connector for chosen entry position: Bottom entry water - 15mm x 15mm 90º elbow. Rear entry water - 15mm x 15mm straight. Note: stainless or chromed pipes DO NOT provide secure connections with push fit fittings (use copper pipe at joints). -
Page 8: Installation - Electrical Requirements
5.0 INSTALLATION - ELECTRICAL REQUIREMENTS WARNING: 5.1 This appliance must be earthed. 5.2 The installation, supply cable and circuit protection must conform to the latest BS7671 ‘Requirements for electrical installations’ (IEE Wiring Regulations). 5.3 The appliance must only be connected to a 230/240 V ac supply. A double pole isolating switch, with a contact separation of at least 3mm in both poles, must be incorporated in the electrical supply. - Page 9 6.0 COMMISSIONING 6.1 The electronic control system of the unit has a self commissioning and calibration function. Once the heater is installed and all services have been connected the appliance should require no further adjustment before use. 6.2 Check that all electrical, water and vent pipe connections have been made and are secure.
-
Page 10: Maintenance
8.0 FAULT FINDING Your Heatstore Ultima Profile Eco should give trouble free operation. However should a fault occur, the table below should allow most faults to be identified. Fault finding should only be carried out by a competent person. - Page 11 100Kohms at 25°C) 3. Steam thermistor out of 3. Check values (5Kohms at 100°C, calibration 100Kohms at 25°C) For any faults that cannot be identified using the Fault Finding chart please contact Heatstore where shown on the back page.
-
Page 12: Spare Parts
9.0 SPARE PARTS The following comprehensive list of spare parts is available for your Heatstore Ultima Profile Eco water heater. Please refer to the rating label on the right hand side of your heater before ordering to ensure the correct spare parts are obtained. -
Page 14: User Instructions
10.0 USER INSTRUCTIONS 10.1 Once installed the filling and the heating cycles of the Heatstore Ultima Profile Eco are completely automatic. 10.2 To dispense water, place a suitable container under the outlet spout and pull the tap handle down and towards (or pushed away) the user. The water dispensed will at all times be boiling or close to boiling point so due caution must be taken when using the product. -
Page 15: Environmental Information
This guarantee in no way affects the statutory rights of the consumer. The policy of Heatstore is one of continuous product development and, as such, we reserve the right to change specifications without notice. - Page 16 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Telephone: 0117 923 5375 Fax: 0117 923 5374 Victoria Road, Avonmouth, Bristol BS11 9DB www.heatstore.co.uk 36006143_issue_01...
