Summary of Contents for Heatstore HSMF6000T

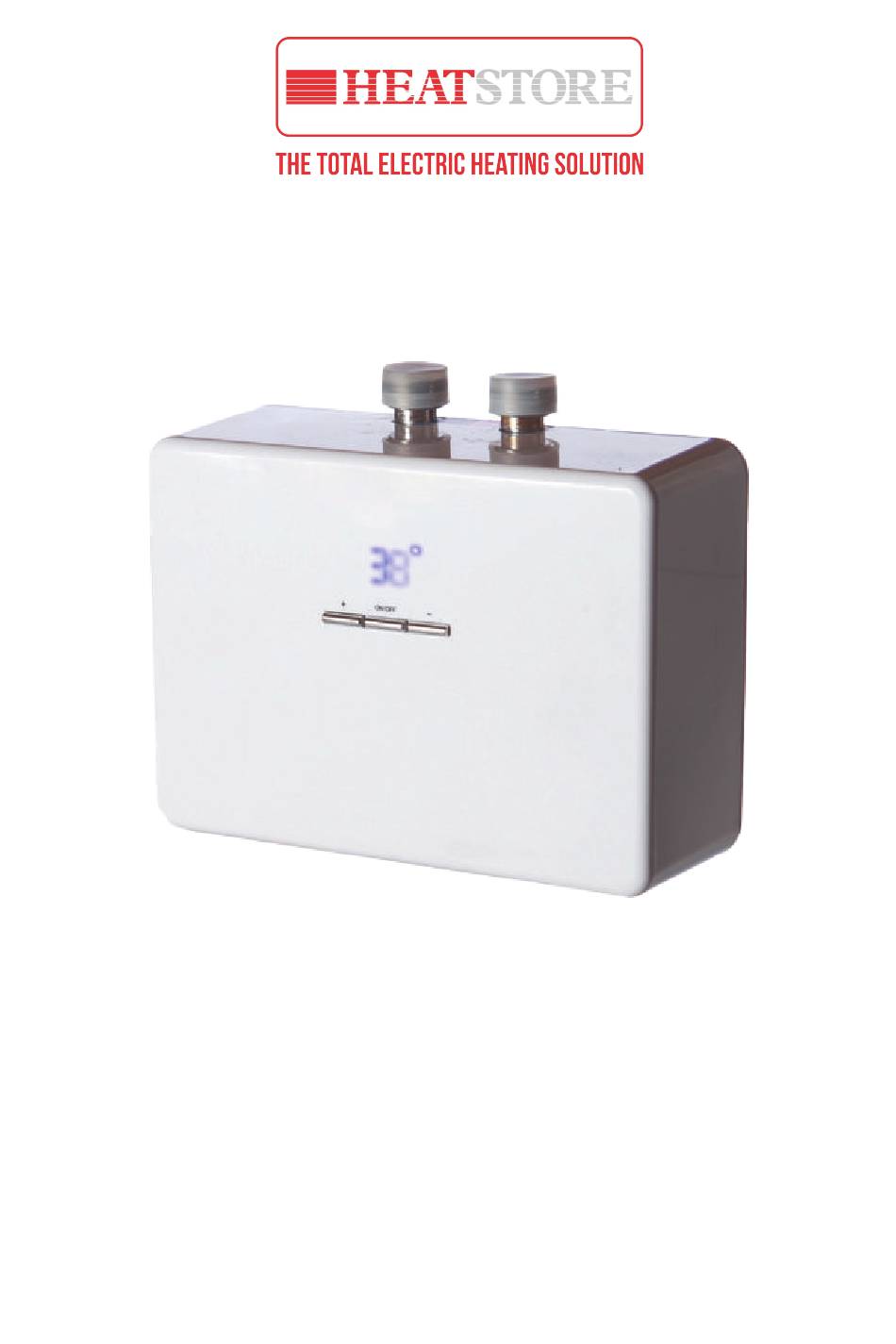

- Page 1 Inline Instantaneous Thermostatic Water Heater HSMF6000T Installation Instructions and User Guide...
-
Page 2: Important Safety Points
The HSMF6000T model is a type of water heater that uses the main water pressure to heat water, rather than relying on an external power source. This design allows for quick heating times and instant access to hot water. -
Page 3: Installation
Wall Mounting • When installing this appliance, make sure to avoid placing it in an area where a water leak could cause serious damage. Also, the HSMF6000T is not suitable for areas that freeze or that are exposed to moisture. -
Page 4: Plumbing Connection
2. Plumbing connection To ensure proper functioning, the water supply must meet the following requirements: • The resistance of the water supply must be at least 1300 ohms per centimetre. • The temperature of the incoming water should not exceed 48°C. •... -
Page 5: Electrical Connection
Electrical connection • Before starting the electrical installation, make sure the plumbing installation is fully complete. • If the power cord is damaged, it must be replaced by a qualified professional to ensure safety. • The appliance should be securely connected to the electrical supply using a suitable isolating switch that disconnects all power lines. -
Page 6: Operation
4. Operation • Once the appliance is installed and connected to the power source, it's ready to use. • To turn it on, simply press the power button. • When you first set up the appliance, the temperature will default to 38°C. To change this, press the + and - buttons until you reach your desired maximum target temperature. -
Page 7: Cleaning And Maintenance
5. Cleaning and maintenance • Before performing any maintenance or repairs on the appliance, make sure you've turned off the power and disconnected it from the electrical supply to ensure your safety. • Only authorized personnel who are knowledgeable about local electrical and plumbing regulations should install and maintain the appliance. -
Page 8: Technical Specification
6. Technical specification Model HSMF6000T Power 6.0 kW Voltage 230 V Rated current 26 A Frequency 50 Hz Min operating flow rate 2.5 l/m Min working pressure 0.1 MPa (1 bar) Max working pressure 0.75 MPa (7.5 bar) Maximum incoming water supply 48 °C... -
Page 9: Temperature Performance
Maximum temperature increase from ambient incoming water supply temperature at a flow rate of: HSMF6000T HSMF6000T Flow rate (l/m) 34°C 28.5°C 21°C 17°C Table 1 Examples Maximum water temperature Flow rate HSMF6000T Incoming water temperature 13 °C - Winter 2.5 l/m 47°C 51°C 17 °C - Summer 2.5 l/m... -
Page 10: Troubleshooting
8. Troubleshooting If problems persist contact Heatstore on 0117 923 5375. - Page 11 9. Guarantee and service policy This product is guaranteed against faulty materials and manufacture for a period of two years from the date of purchase. Heatstore will replace any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
-
Page 12: Declaration Of Conformity
UMBER BS EN 60335.2.30 (2009) • HSMF6000T ETSI BSEN 303 645 • Martyn Field ESPONSIBLE ERSON Technical Manager OSITION 01/08/24 Contact details Heatstore Unit 12, Access 18, Bristol, BS11 8HT Telephone: 0117 923 5375 Email: enquiries@heatstore.co.uk http://www.heatstore.co.uk VERSION 01 08/24...
