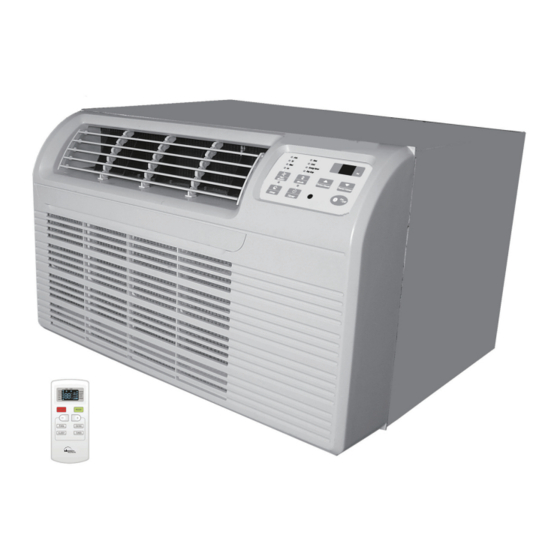

Thru-the-wall room air conditioner with optional electric heat and heatpump
Hide thumbs
Also See for EZ2609A5A1S44AA:
- Installation instructions and owner's manual (20 pages) ,
- Installation instructions and owner's manual (17 pages)
Related Manuals for Islandaire EZ2609A5A1S44AA
Summary of Contents for Islandaire EZ2609A5A1S44AA
- Page 1 This manual must be left with the owner of the equipment. EZ2609A5A1S44AA EZ2612A5A1S44AA EZ2609A9A1S44AA EZ2609A2C1S44AA EZ2609B2C1S44AA EZ2612A2C1S44AA EZ2612B2C1S44AA Islandaire...
-
Page 2: Table Of Contents
Contents IMPORTANT NOTE TO THE OWNER ......1 IMPORTANT NOTE TO THE SERVICER ....... 1 Unit Features ..............1 Transportation Damage ..........1 Unpacking The Unit ............. 1 Operating Instructions ..........1 Installation Instructions ..........2 Wiring ................5 Air Conditioner Features.......... -
Page 3: Important Note To The Owner
Operating Instructions IMPORTANT NOTE TO THE OWNER IMPORTANT NOTE TO THE SERVICER Transportation Damage 1 amp 1 amp 1 amp Figure 1 LCDI or AFCI Power Cords LCDI power Cord Operating Voltage Unit Voltage Voltage Utilization Range Rating Minimum Maximum Unpacking The Unit Table 1 Operating Voltage... -
Page 4: Installation Instructions
WARNING To prevent electrical shock, property damage, personal injury, or death, do not remove grounding prong from plug. Follow all operating instructions. Installation Instructions Figure A Wall sleeve (PBWS01A ) is not shipped with chassis and must be purchased separately. Level Inside Outside... - Page 5 Figure 3 Figure C Figure B Figure D...
- Page 6 Figure 4 AIR DIRECTION: OPEN Figure E...
-
Page 7: Wiring
Wiring WARNING To avoid the risk of electrical shock, personal injury or death, do not service this unit without first opening all disconnects and/or removing the unit cord set plug from the wall outlet. WARNING To avoid the risk of electrical shock, personal injury, or property damage, do not use an extension cord with this unit. -
Page 8: Air Conditioner Features
Air Conditioner ELECTRONIC CONTROL OPERATING INSTRUCTIONS Features LOWERS TEMPERATURE DISPLAYS TEMPERATURE/TIME OR TIME RAISES TEMPERATURE OR TIME TURNS UNIT SETS FAN SPEED ON OR OFF SETS MODE TIMER SLEEP MODE COOL UNIT LOWERS TEMPERATURE DISPLAYS OR TIME TEMPERATURE/TIME RAISES TEMPERATURE OR TIME TURNS UNIT SETS FAN SPEED... - Page 9 Air Conditioner Features sure that there are no obstructions between receiver and remote Note: Be controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. Signal transmitter SLEEP SLEEP button...
-
Page 10: Air Conditioner
Air Conditioner Features Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. -
Page 11: About Switch Between Fahrenheit And Centigrade
Air Conditioner Features Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly. -
Page 12: To Change Temperature Setting
Air Conditioner Features (continued) TO TURN UNIT ON: YOU WILL SEE: DO THIS: TO CHANGE YOU WILL SEE: TEMPERATURE SETTING: DO THIS: YOU WILL SEE THE TO CHANGE FAN SPEEDS: SPEED CHOSEN: LIGHT ON DO THIS: YOU WILL SEE: TO USE AUTO FAN FEATURE: LIGHT ON DO THIS: The fan speed toautomatically set to the speed needed to provideoptimum comfort settings with the set temperature. - Page 13 Air Conditioner Features (continued) YOU WILL SEE : TO OPERATE ON FAN ONLY: LIGHT ON DO THIS: r circulation. You can choose any fan speed you prefer, EXCEPT AUTO FAN. TO USE THE YOU WILL SEE : LIGHT ON ENERGY SAVER FEATURE: DO THIS: a short time after the compressor cycles off.
- Page 14 Air Conditioner Features (continued) HEATING FEATURE YOU WILL SEE: (on some models) DO THIS: SLEEP FEATURE : YOU WILL SEE DO THIS: TO TURN UNIT OFF : YOU WILL SEE: DO THIS: FAULT CODES If the display reads “F1” If the display reads “F2” a sensor has failed.
-
Page 15: Additional Things You Should Know
ADDITIONAL THINGS YOU SHOULD KNOW The "Cool "circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this time. Normal Operating Sounds and Conditions Obtaining Service... -
Page 16: Warranty
Warranty service must be performed by a qualified HVAC contractor. Islandaire maintains a centralized service network to provide parts and assist in resolving service problems if difficulties are encountered. Islandaire agrees to provide service information, sell repair parts and reimburse the dealer /serviceman for parts in accordance with Islandaire Policies and Procedures.
