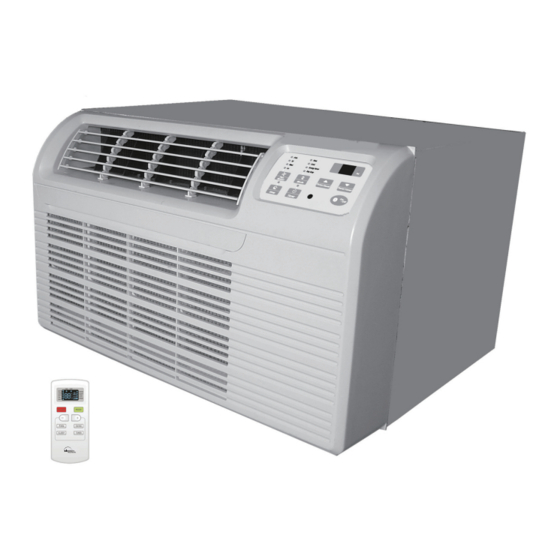

Thru-the-Wall
Room Air Conditioner
with optional Electric Heat
and Heatpump
Model :
Thank you for selecting Islandaire.
To ensure proper operation, please read this manual & keep it for future reference.
EZ2609A5A1S44AA
EZ2609A9A1S44AA
EZ2609B2C1S44AA
EZ2612B2C1S44AA
Installation Instructions
and Owner's Manual
This manual must be left with the owner
of the equipment.
EZ2612A5A1S44AA
EZ2609A2C1S44AA
EZ2612A2C1S44AA
Advertisement
Table of Contents
Related Manuals for Islandaire EZ2609A5A1S44AA
Summary of Contents for Islandaire EZ2609A5A1S44AA
-
Page 1: Installation Instructions
This manual must be left with the owner and Heatpump of the equipment. Model : EZ2609A5A1S44AA EZ2612A5A1S44AA EZ2609A9A1S44AA EZ2609A2C1S44AA EZ2609B2C1S44AA EZ2612A2C1S44AA EZ2612B2C1S44AA Thank you for selecting Islandaire. To ensure proper operation, please read this manual & keep it for future reference. -
Page 3: Table Of Contents
Contents IMPORTANT NOTE TO THE OWNER ......1 IMPORTANT NOTE TO THE SERVICER ....... 1 Unit Features ..............1 Transportation Damage ..........1 Unpacking The Unit ............. 1 Operating Instructions ..........1 Installation Instructions ..........2 Wiring ................5 Air Conditioner Features.......... -
Page 5: Important Note To The Owner
Operating Instructions IMPORTANT NOTE TO THE OWNER This equipment is to be serviced by professionally trained Check the data specification plate and ensure the proper personnel only. If this equipment is improperly installed, voltage and current rating for the type of power plug on the adjusted or altered by an unqualified person, a safety unit is available. -
Page 6: Installation Instructions
WARNING CHASSIS INSTALLATION 1. Remove front grille. See Figure A. To prevent electrical shock, property damage, personal injury, or death, do not remove grounding prong from plug. Follow Lift up on all operating instructions. Filter Handle Installation Instructions To ensure that the unit operates safely and efficiently, it must be installed, operated, and maintained according to these installation and operating instructions and all local codes and ordinances, or, in their absence, with the latest edition... - Page 7 Locking Plate Figure 3 3. Remove shipping pads inside air conditioner next to Figure C compressor. (See Figure B.) 6. If outlet is on the left side of the unit. route power cord as shown in Figure D. Power Remove shipping Cord Clamp...
- Page 8 To replace front grille: Grille EXHAUST AIR VENT Figure 4 AIR DIRECTION: Horizontal louvers on the front grille let you control the air Hook the tabs on the front grille even with the tabs on the direction up and down. case and snap into place.
-
Page 9: Wiring
Remove the front grille to adjust the vertical louvers side-to- Wiring side to direct the air left or right. Before wiring the unit, please review the following warnings and cautions. WARNING To avoid the risk of electrical shock, personal injury or death, do not service this unit without first opening all disconnects and/or removing the unit cord set plug from the wall outlet. -
Page 10: Air Conditioner Features
Air Conditioner ELECTRONIC CONTROL OPERATING INSTRUCTIONS Features Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below and all its functions. Then follow the symbol for the functions you desire. The unit can be controlled by the touch pad alone or with the remote. -
Page 11: Sleep Button
Air Conditioner Features sure that there are no obstructions between receiver and remote Note: Be controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. Signal transmitter SLEEP SLEEP button... -
Page 12: Air Conditioner
Air Conditioner Features Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. -
Page 13: About Switch Between Fahrenheit And Centigrade
Air Conditioner Features Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly. -
Page 14: To Change Temperature Setting
Air Conditioner Features (continued) TO TURN UNIT ON: YOU WILL SEE: DO THIS: PRESS ON/OFF BUTTON TO CHANGE YOU WILL SEE: TEMPERATURE SETTING: DO THIS: PRESS TO RAISE PRESS TO LOWER Note: Tap or hold either up(^) or down(v) button until the desired temperature is seen on display. This temperature will be °... -
Page 15: To Operate On Fan Only
Air Conditioner Features (continued) YOU WILL SEE : TO OPERATE ON FAN ONLY: LIGHT ON DO THIS: PRESS MODE BUTTON CHOOSE FAN ONLY Note: Use this function only when cooling is not desired, such as for room air circulation. You can choose any fan speed you prefer, EXCEPT AUTO FAN.During this function, the display will show the actual current temperature, not the set temperature as in the cooling mode. - Page 16 Air Conditioner Features (continued) HEATING FEATURE YOU WILL SEE: (on some models) DO THIS: PRESS MODE BUTTON SELECT HEAT Note: This feature can be used with any combination of FAN Speeds, Timer, or Sleep Modes. When in the “Heat” Mode, the fan will run continuously while heat is needed.
-
Page 17: Additional Things You Should Know
ADDITIONAL THINGS YOU SHOULD KNOW Now that you have mastered the operating procedure, here are more features in your control that you should know. The Remote Control will operate all the control panel features, follow the same instructions. � � The "Cool "circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. -
Page 18: Warranty
Warranty Islandaire warrants the accompanying Islandaire Thru-the -Wall Room Air Conditioner (Models: EZ2609A5A1S44AA etc) to be free of defects in material and workmanship for the applications specified in its operation instruction for the period of parts specified below . 5 YEARS FOR COMPRESSOR 1 YEAR FOR OTHER COMPONENTS This warranty shall not apply to broken or marred cabinets, accessories, knobs, filters or routine maintenance. - Page 20 66129905560...
