Packing Check List; Installation Of Fire - Flavel MISERMATIC FORM series Installation, Maintenance & User Instructions

2.1

PACKING CHECK LIST

1 off Firebox / Burner Assembly
1 off Flue Spigot
1 off Closure Plate
1 off Literature / Loose Items Pack
1 off Pack of Screws & Fixings for Wall Mounting
4 off Ceramic Radiants – Packed inside firebox
1 off AA Battery
1 off Arthritic control knob and 2 off self adhesive pads
2.2

INSTALLATION OF FIRE

2.2.1 Preparation.
a) Remove the dress guard by springing the location wires out at the top
and lifting away. See Fig. 2 Take care not to scratch the trim.
b) Remove the radiants and their packaging from inside the fire and store
in a safe place.
c) Remove the two lower outer case fixing screws. See Fig. 3, and the two
upper outer case fixing screws (Fig. 4)
Remove the outer case by lifting upwards and away, ensuring the rear
of the outer case clears the top of the control spindle area at the
right-hand side. NOTE- the control knob bezel must be removed
before refitting the outer case. The bezel can then be fitted with the
outer case in position.
d) Remove the ancillary parts from the packaging.
e) Fit the control knob.

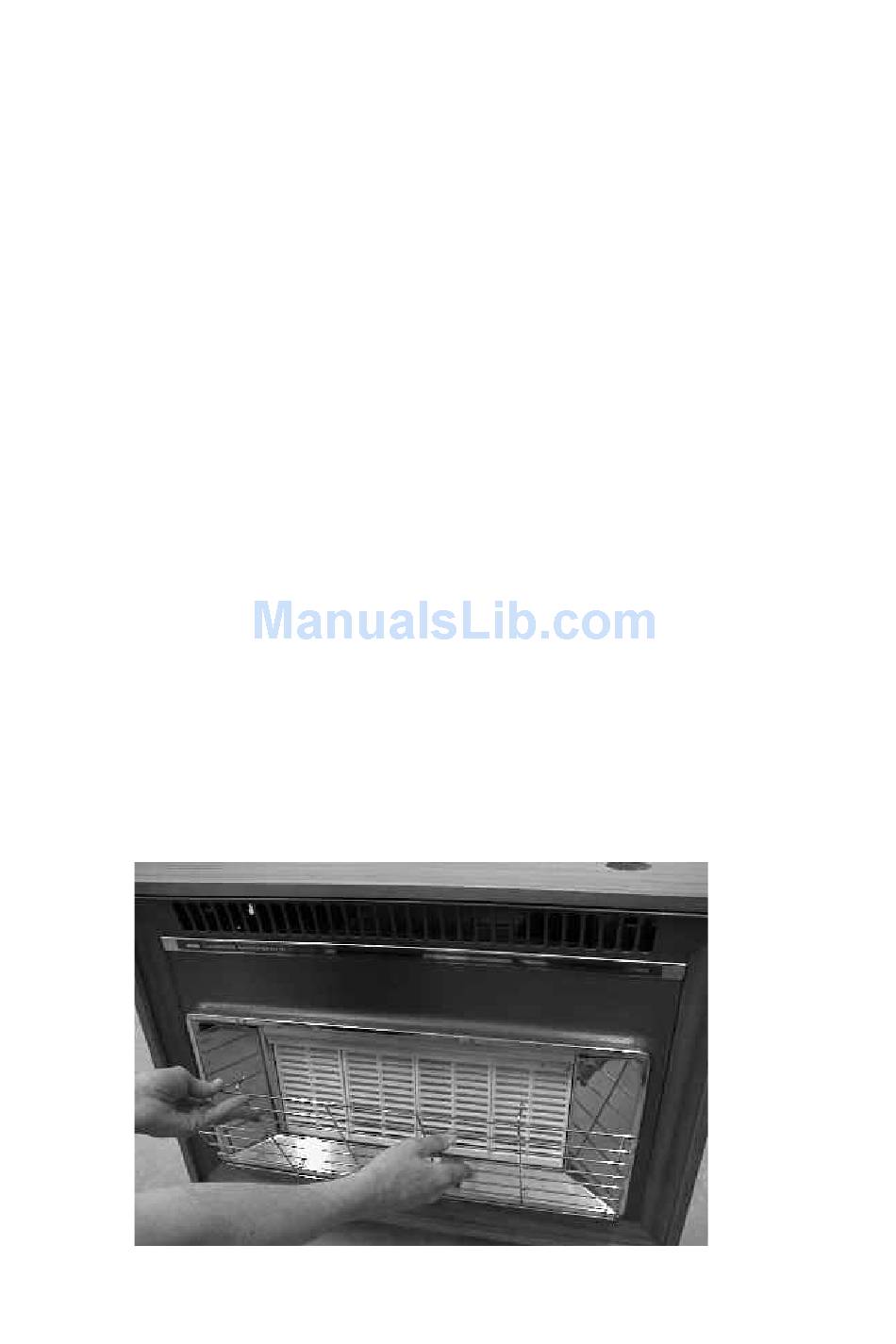

Fig. 2 Remove the Dress Guard.
9
