WALL MOUNTING. (NON COMBUSTIBLE WALLS ONLY)
NOTE: When the fire is wall mounted, the base of the fire must be a least
150mm above the floor level.
a) Remove the feet from the base of the fire. (4 screws in each.)
b) Mark the position of the upper fixing holes on the wall with reference to
fig. 6. The height of the upper holes should be at least 585mm above
the floor. This will determine the 150mm height required from the base
of the fire to the floor.
c) Drill and plug the upper holes with the wall plugs supplied.
d) Offer the fire to the wall and push the spigot on the rear of the fire
through the opening in the closure plate.
e) Fit the 4 screws through the holes in the firebox back panel and tighten
to secure the fire to the wall
f) Proceed with the gas connection as in section 2.3.

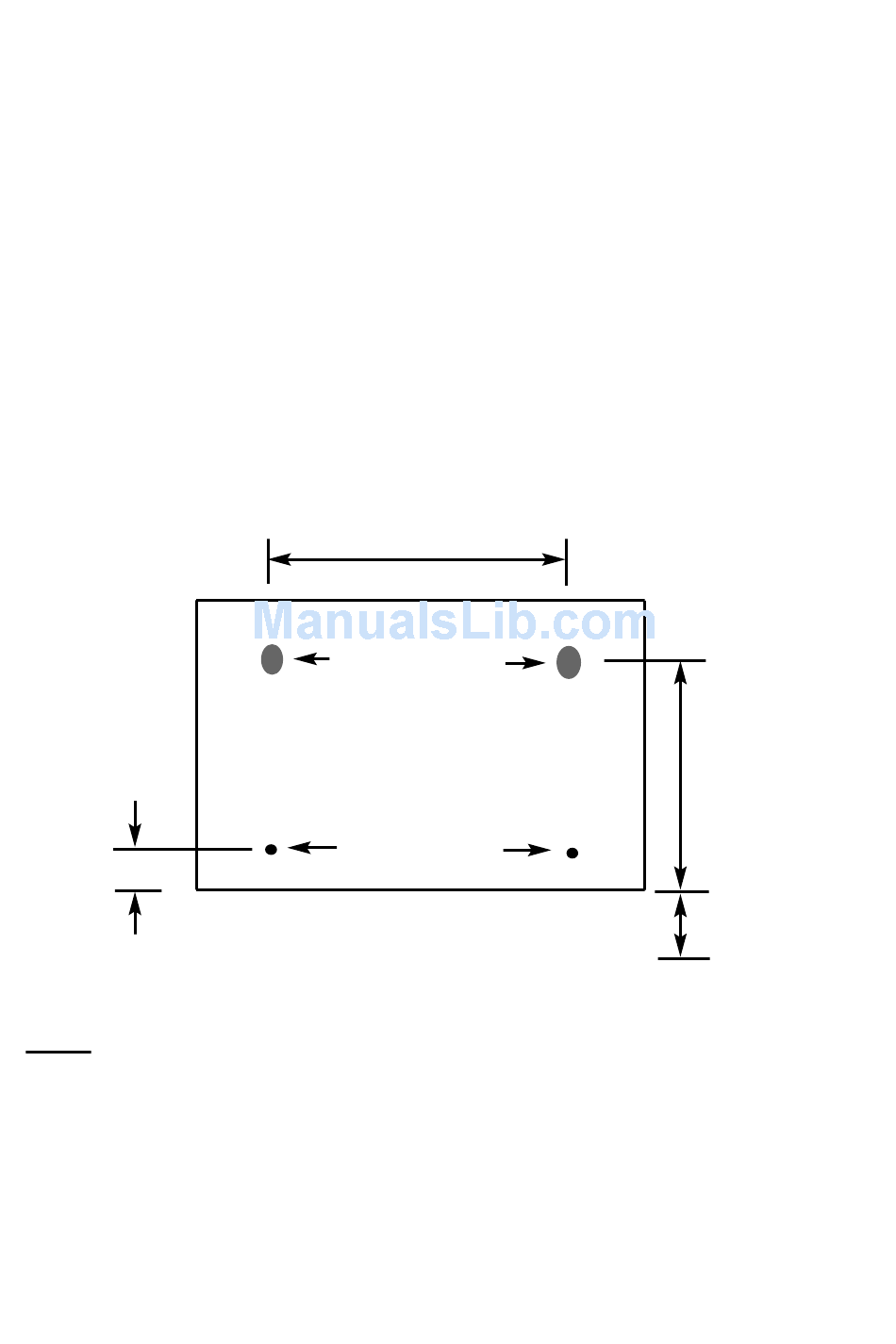

Fig. 6 Marking out Fixing Screw Position
42mm
2.3

GAS CONNECTION

Note :
A means of isolation must be provided near to the appliance to facilitate
servicing.
Ensure that the gas supply is turned off before commencing.
The gas connection should be made to the appliance inlet elbow using 8 mm rigid
tubing. The gas connection can be made left hand, right hand or rear
Before making the final gas connection, thoroughly purge the gas supply
pipe work to remove all foreign matter, otherwise serious damage may be
caused to the gas control valve on the fire.
600mm
Upper Fixing Screw
Positions (Keyhole
Slots)
Lower Fixing
Screw Positions
12
435mm
150mm Minimum to
floor level
