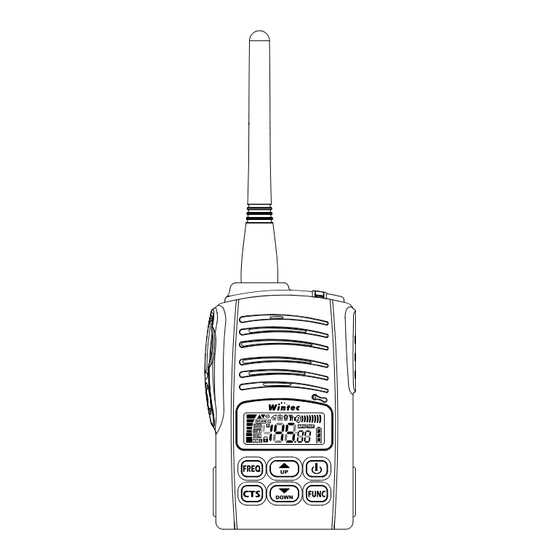

45V/45U
FM Radio Transceiver
USER'S MANUAL
Thank you for purchasing 45V/45U two way radio
manufactured by Wintecroncs. Based on the ever-changing
innovative technology ,we have been developing many
different wireless products which had gained consumers'
affection widely. Besides our appreciation for your love of
our products, we even wish you to find new product
information. Your precious comment will be cherished by
us.
Please read through the manual carefully for many features
of this model.
Certificate Approval
Applicable Model for this manual
45V-E VHF amateur transceiver
45V-A VHF amateur transceiver
45U-E UHF amateur transceiver
45U-A UHF amateur transceiver
Safety warning
Consumers need to have clear understanding of safety
se of this product.
Turn off power before fueling or parking at the gas station.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wintec 45V

Summary of Contents for Wintec 45V

  • Page 1 Thank you for purchasing 45V/45U two way radio manufactured by Wintecroncs. Based on the ever-changing innovative technology ,we have been developing many different wireless products which had gained consumers' affection widely. Besides our appreciation for your love of 45V/45U our products, we even wish you to find new product information.

  • Page 2: Specification

    Distinctive features Use of TCXO resonator to enhance freq. stability Distinctive features Digitally designed to ensure stable quality Radio controls/Functions Extra-small size with sturdy case, compliant with US military standards Icons Guide 7 group tone calls and includes amateur's MORSE code Operation Guide 4-15 8 levels of VOX ( voice-activate feature) with quick VOX...
  • Page 3 ICONS GUIDE RADIO CONTROLS/FUNCTIONS 45V/45U TONE CALL AUTO-POWER SAVE ( Voice-activate system ) VOX KEYPAD TONES VOLUME AUTO-POWER-OFF TIME-OUT TIMER BATTERY POWER CTCSS CODE Frequency Channel Display Squelch level KEYPAD lock 1. LED indicator 10. Down button TX power level 2.

  • Page 4: Power On/Off

    Operation Guide (This function will be unworkable when MEM channel function is on) 1. Power ON/OFF Hold about 0.5 sec to power radio. While power ON, hold about 1.5 sec to turn power OFF. 2. Momentarily press to swift to MEM 2.
  • Page 5 press to select the frequency. Press store and exit adjustment mode. ( Press once again can return to KHz mode) Press once, while frequency icon blinks, hold ※ Each selection is to add or decrease 1MHz of about 2 sec to start scanning of channel. frequency.

  • Page 6: Keypad Lock/Unlock

    the number of present frequency. Release 1. Hold on for about 3 sec till shows on the button about 2 sec., LCD display will return to MEM screen to confirm keypad is locked. mode automatically. 2. To unlock keypad ,hold on again for about 3 sec till disappear from the screen.
  • Page 7 8.time-out Timer: Under manu item 8, choose OFF 4.VOX's sensitivity: Under manu item 4, VOX's /30/60/120/180 according to your need. The sensitivity can be selected L1~L8 levels. L8 is factory default is OFF. When 30 is selected, the the least sensitive (Refer to 12). radio will send beep sounds twice and stop transmission.

  • Page 8: Tx Power Adjustment

    frequency of transmission is lower than that of receiving by 1 span. 11.Roger tone ON/OFF For selecting the type of tone call, please refer to The radio will send a sound to the receiver at 1. Holding , temporarily press can send each end of the talk.
  • Page 9 15.Attention for reapter mode Let go of all buttons after 1 beep sounds to restore Please attend to the following points while the operation. operating this function. 18.Keeping MEM channel 1. ( 10) select "+" or "-" MEM channel can be stored in a long period of 2.

  • Page 10: Low Battery Warning

    M ch. ※ M ch will not be changed. Programming by cable and software The radio can be edited some of functions, MEM and SOS frequencies by Wintec PC cable and software for more convenient setting.
  • Page 11 CTCSS vs. frequency 11=97.4Hz 01=67.0Hz 31=192.8Hz 21=136.5Hz 02=71.9Hz 22=141.3Hz 12=100.0Hz 32=203.5Hz 03=74.4Hz 13=103.5Hz 23=146.2Hz 33=210.7Hz 04=77.0Hz 14=107.2Hz 24=151.4Hz 34=218.1Hz 15=110.9Hz 05=79.7Hz 25=156.7Hz 35=225.7Hz 06=82.5Hz 16=114.8Hz 26=162.2Hz 36=233.6Hz 17=118.8Hz 07=85.4Hz 27=167.9Hz 37=241.8Hz 08=88.5Hz 18=123.0Hz 28=173.8Hz 38=250.3Hz 19=127.3Hz 09=91.5Hz 29=179.9Hz 10=94.8Hz 20=131.8Hz 30=186.2Hz...
  • Page 12 Specification Optional Accessories Frequency Range for 45V-E 144~146 ANT AL80 M/L antenna Frequency Range for 45V-A 144~148 LP-84M Belt clip Frequency Range for 45U-E 430~440 PB AL01 Leather case Frequency Range for 45U-A 438~450 WI AL01 Interface cable for programming...
  • Page 13 Safety information 1. Self-replacing or re-structuring of any parts by is legally not permitted or will lose license 2. Use is prohibited at restricted environment declared by authority,during flight, highly- explosive area like near mining areas 3. Avoid storing in high temperature or humid place for long time 4.
