Summary of Contents for Wintec MINI46

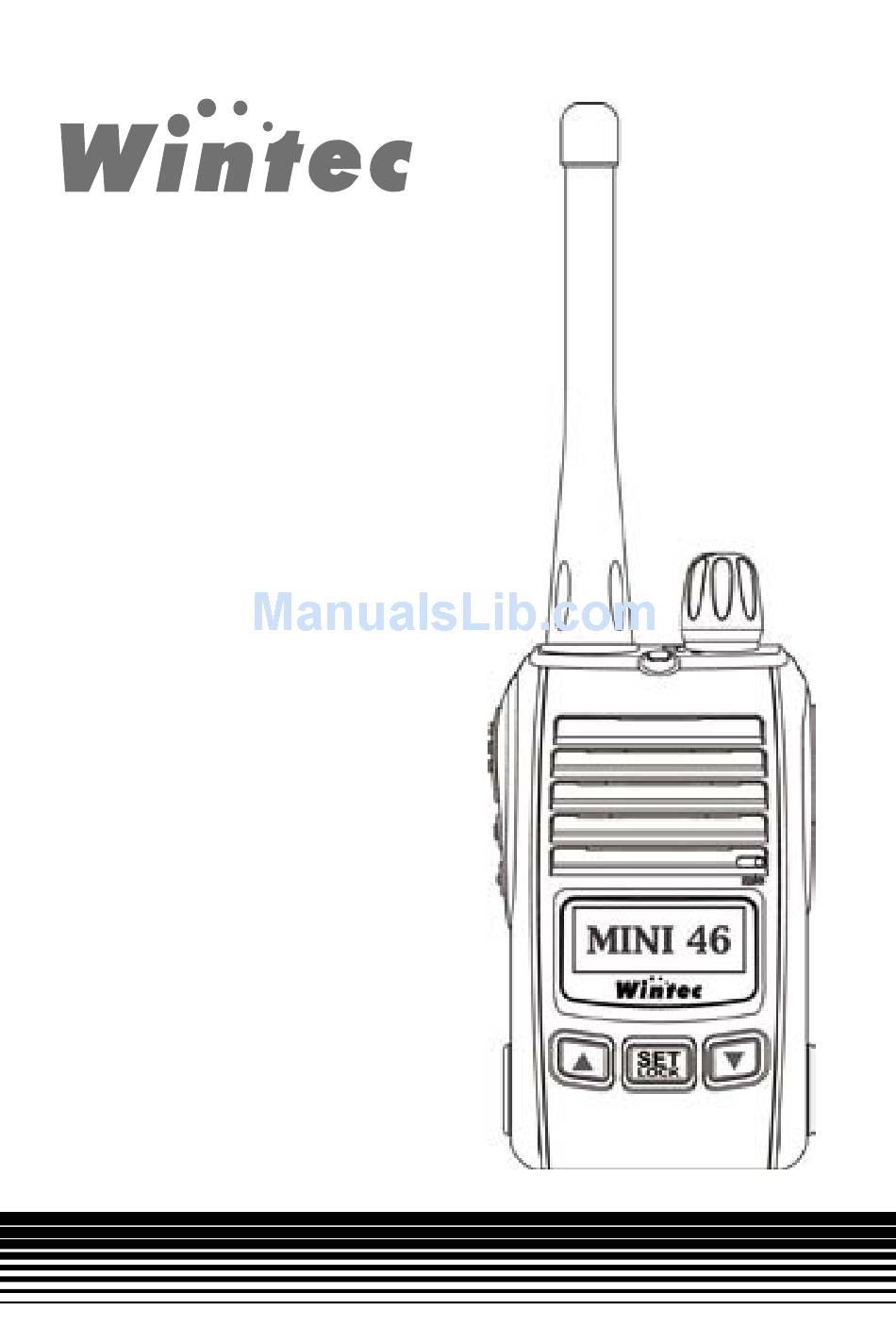

- Page 1 MINI46 User’s Manual...
-
Page 2: Table Of Contents
MINI46 Thank you for purchasing LP-Mini 46 ultra compact handhold FM transceiver manufactured by Wintecronics� Based on the ever-changing innovative technology, we have been able to develop many different CONTENTS wireless products that have gained widely consumers’ attention� Besides our appreciation for your love of our products, we even wish you to be attentive to new product information�... -
Page 3: Features
Features Appearance Introduction Wide frequency coverage that suits application in many 1� countries� 32 programmable channels and 2 programming keypads 2� Internal TCXO resonator to enhance freq� stability 3� Digitally designed to ensure stable quality 4� Extra-small size in rugged case, compliant with US military 5�... -
Page 4: Accessories Supplied With The Mini-46
Appearance Introduction Accessories Supplied with the Mini-46 1� Radio Unit 1PCS Functions 2� SMA rubber flex antenna 1PCS Provide attached SMA rubber flex Antenna or other 50Ω impedance Antenna� 3� Battery 1PCS 1� Antenna (SMA socket) It is harmful to radio if Antenna is not connecting or is Note connected wrong one�... -
Page 5: Installation Of Accessories
Installation of Accessories Installation of Accessories To remove belt clip To Install Lift belt clip lock tab up, then gently pull the belt clip up� Place battery pack into battery compartment, when the click sound of switch, it will lock into compartment� To Remove To install belt clip 1�... - Page 6 Installation of Accessories Installation of Accessories Battery charging Use of external MIC / Speaker 1�Green On: Charger is powered by the adapter� 1� Remove accessory jack cover 2�Turns Red: Battery is charging� 2� Insert accessory jack 3�Flash Green Light: Battery is fully charged� 3�...
-
Page 7: Operation Guide
Operation Guide Manu items The battery needs to be charged fully before using radio� The radio Factory Items Contents Note has a battery voltage icon to show on LCD screen� Setting Tone Squelch Type OFF / T / CTCSS / DCS 1�... -
Page 8: Contents Guide
Contents Guide Contents Guide 1� TSQ: TSQ selectable, there are four items as below: 2� CTCSS: There are 51 codes of CTCSS as below table (factory setting is OFF) (factory setting is 1 (67�0Hz)) setting is 1 (67�0Hz)) OFF: Turn off TSQ and LCD screen shows as below: DCS: Turn on DCS and LCD screen shows as below: 67�0 97�4... -
Page 9: Dcs
Contents Guide Contents Guide 3� DCS: There are 81 codes of DCS as below table� Tx Power: TX power is selectable to Low or 4� (Factory setting is 023) High (Factory setting is Low) LCD Screen shows as below: VOX: Volume / Sensitivity Adjustment (Factory setting is OFF) 5�... -
Page 10: Sql
Contents Guide Contents Guide Mic Gain: Mic� Gain (Factory setting is Low) 6� Scrambler: 9� Scrambler (Factory setting is OFF) Adjust Mic� Gain to transmit a clear volume� The radio sets 9 codes of scrambler to measure a radio signal securely�... -
Page 11: Tot
Contents Guide Contents Guide CALL TONE: TOT: 16� Factory setting is Music 1 12� Time-out timer (Factory setting is OFF) While turn on call tone, temporarily press backlight button to Choose 30/60/120/180 depending on your need� Turn off “TOT”, transmission all member of group� the radio will be continuous transmission�... - Page 12 Contents Guide DEFAULT: 18� Return to factory setting Follow LCD screen instruction and press “YES” to return to factory setting...
- Page 13 PK MINI46-E VER�2...
