CAUTION: At least two installers are required
due to the weight and size of the liner.
If possible, power up and test all functions prior to installation.
Use caution during installation to prevent scratches or damage to the
stainless steel.

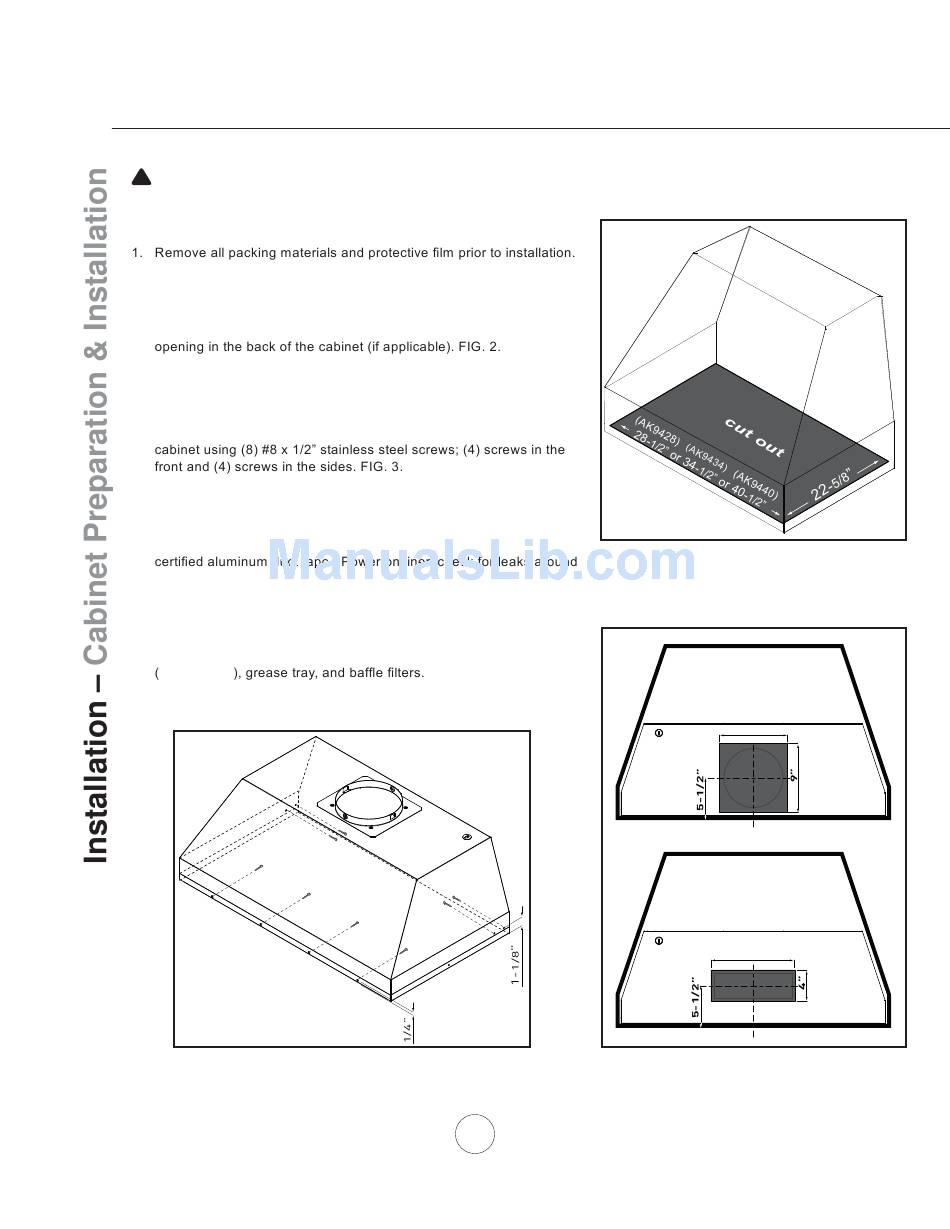

2. Cut out an opening in the bottom of the cabinet by following the
dimensions in FIG. 1. If ducting the liner horizontally, also cut out an
3. Prepare liner for installation into cabinet by following the steps on
page 11 for vertical ducting or pages 12 -14 for horizontal ducting.
Continue to Step 4 after preparation is completed.
4. Lift liner into bottom opening of cabinet and secure to interior of
WARNING: Make sure the surface you are securing the liner to
is capable of holding the weight of AK94. Failure to do so may
cause personal injury or damage to cooking surface or counter.
5. Finalize installation of electrical and duct work. Seal duct work with
duct tape and verify proper operation.
NOTE: If access to top of liner is not available after installation,
electrical and duct work connection may need to be made prior to
installing the liner.
6. Re-install the previously removed bottom panel, side spacer panels
if applicable
FIG. 3
10
www.zephyronline.com
FIG. 1
CABINET BACK
8in Round
9
"
C/L
CABINET BACK
3-1/4in x 10in Rectangular
11"
C/L
FIG. 2
