- Page 1 ® Professional Disc Jockey Products PRO SM-1 PROFESSIONAL SCRATCH MIXER OWNER’S MANUAL INDUSTRIES ©1999 11 Helmsman Avenue, North Kingstown, RI 02852 http://www.numark.com...
-
Page 2: Safety Instructions
Please record the serial number of your unit as shown on the back of the chassis as well as the name of the dealer from whom you purchased the unit. Retain this information for your records. Please return the warranty card enclosed to register your mixer with us. MODEL: PRO SM-1 SERIAL NUMBER:__________________ ©1999 Industries 7. -
Page 3: Table Of Contents
Front Panel Diagram Operating Instructions Rear Panel Diagram Connection Diagram Specifications Block Diagram Warranty and Service ©1999 Industries PRO SM-1 Professional Scratch Mixer INDEX - The Leader in DJ Technology PRO SM-1 Page 2 Page 4 Page 5 Page 6 Page 7... -
Page 4: Precautions
PRO SM-1 IMPORTANT INFORMATION... Please read this entire manual before connecting the PRO SM-1 to your system. For optimum performance: • Always make sure that AC power is OFF while making any connections. • Do not use excessively long cables (i.e. over 50ft/14m). -
Page 5: Introduction
You are now the owner of a ultimate tool for today’s skilled turntablist. The PRO SM-1 has been designed with the finest components to give you better reliability than ever before. The PRO SM-1 features ultra- smooth active optical faders that are designed to deliver reliable, long-life. They utilize super quiet photo couplers to deliver the cleanest possible sound. -
Page 6: Front Panel Diagram

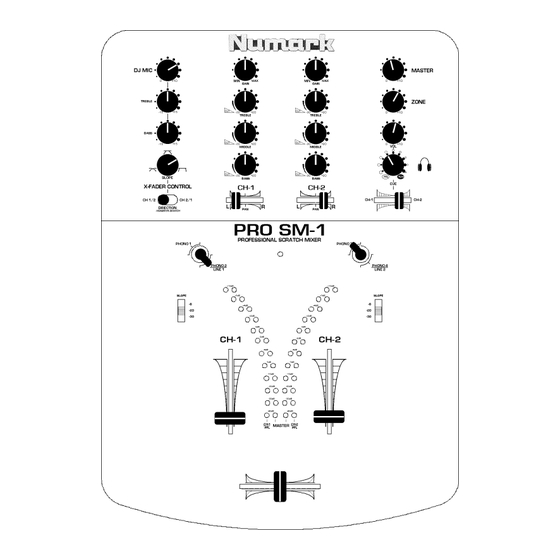

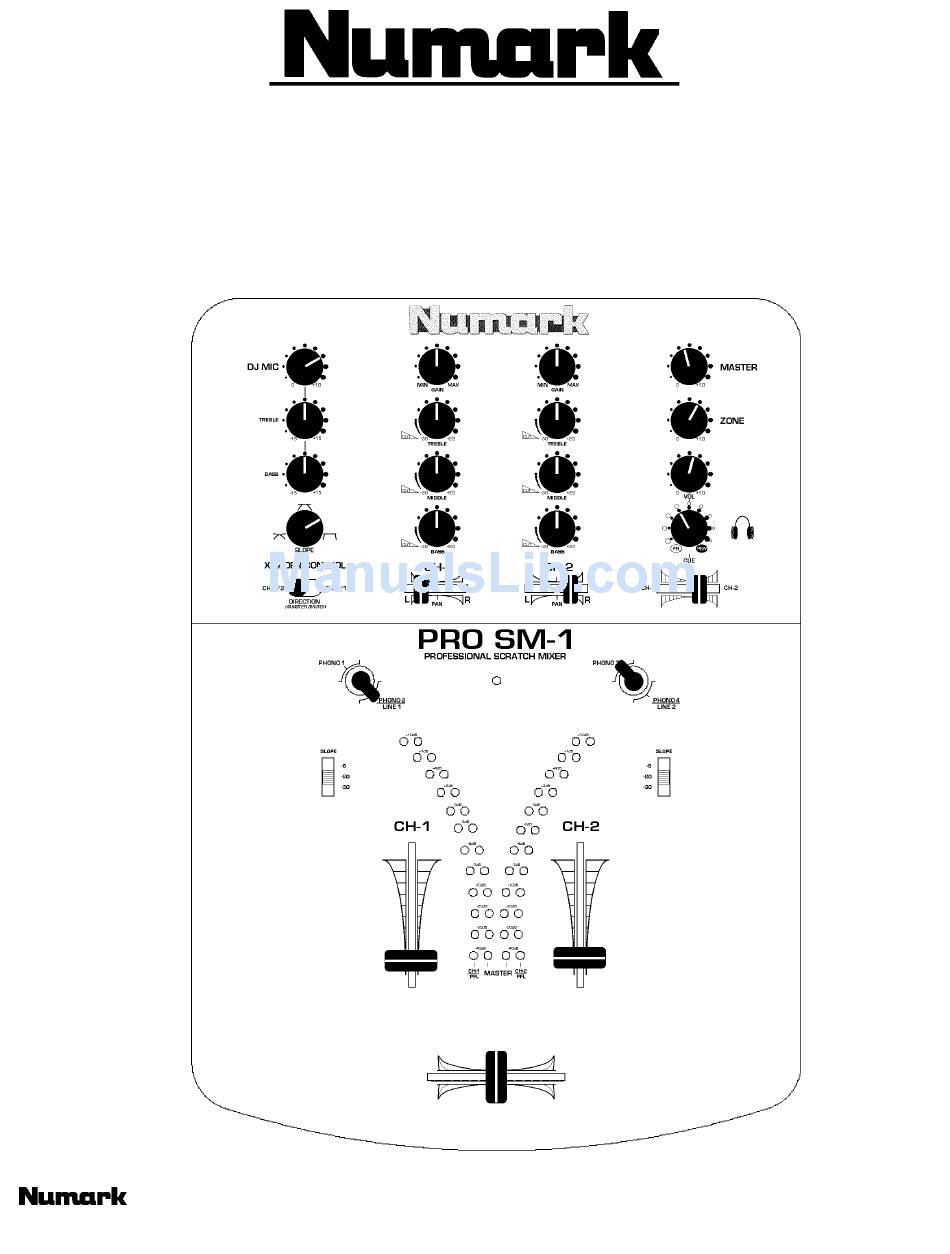

PRO SM-1 FRONT PANEL DIAGRAM... - The Leader in DJ Technology ©1999 Industries http://www.numark.com... -
Page 7: Operating Instructions
2 0 d B creates a more gradual volume increase 6 d B creates a very slow change at first and then very rapid at the top of the fader - The Leader in DJ Technology PRO SM-1 http://www.numark.com... - Page 8 PRO SM-1 CROSSFADER SECTION 8. The Active Crossfader achieves clean segues between the two input channels. "Hard left" selects Channel 1. "Hard right" selects Channel 2. With the crossfader centered, both channels are live and equal. Use the crossfader for fast and seamless segues from one selected channel to the other.
-
Page 9: Rear Panel Diagram
This can be best resolved by using balanced lines where inputs and outputs permit. Balanced lines are also the most effective means of reducing or eliminating RF or “radio frequency” interference. - The Leader in DJ Technology PRO SM-1 http://www.numark.com... -
Page 10: Connection Diagram
PRO SM-1 PRO SM-1 CONNECTION DIAGRAM... Power Transformer Sound System w/ Amplifier SPECIFICATIONS... Inputs: Line: 10K ohm input impedance 75mV rms sensitivity for 1.22V output Mic: 10Kohm input impedance unbalanced 2.5mV rms sensitivity for 1.22V output 50mV rms max input Phono: 47Kohm imput impedance 1.2mV rms sensitivity @ 1KHz... -
Page 11: Block Diagram
PRO SM-1 BLOCK DIAGRAM... - The Leader in DJ Technology ©1999 Industries http://www.numark.com... -
Page 12: Warranty And Service
1. What is covered and for how long? NUMARK INDUSTRIES LCC ("NUMARK") warrants to the original purchaser that NUMARK'S DJ mixers and amplifiers are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase from an authorized NUMARK dealer and continuing for the following period of time after that date for (2) Years.
