INTRODUCTION
CONGRATULATIONS for selecting Linear's DUAL 824
Security System. The Model DUAL 824P Control Panel and
the Model DUAL 824KP Keypad incorporate many advanced
and sophisticated features. The system can be expanded
and customized to fi t the installation's specifi c needs.
The DUAL 824P Control Panel and its accessories are
designed and manufactured by the oldest wireless security
company in North America. You can look ahead to many
years of reliable service with this Control Panel and its
accessories.
Many insurance companies offer discounts on homeowners and
renters policies when a security system is installed. Discount
credits vary with different companies and generally increase in
savings with an increase in the level of protection. Inform the
user to ask their insurance agent about savings available.
The DUAL 824P Control Panel is UL Listed. For a UL smoke
alarm system, there must be at least one smoke detector
programmed into the Control Panel to meet National Fire
Protection Association (NFPA) Rule 72 Chapter 2 and UL
217 requirements. Many insurance companies require these
conditions to be met to qualify for a discount. Only use the
Model DXS-73 smoke detector with this Control Panel for a
UL smoke alarm system.
NOTE: Some cities and municipalities may require an
alarm system permit. Check with the local authorities
before installing this system.
In this manual, the bullets preceding the text help to defi ne
the information. For example:
✦ This symbol indicates a feature.
✴ This symbol is for lit indications or system
sounds.
✎ This symbol is for important notes.
USOC JACKS:
WARNING:
RJ31X, RJ38X
1) MISCONNECTIONS MAY CAUSE DAMAGE TO
TELEPHONE
CONTROL PANEL ELECTRONICS
RED
RING
2) DO NOT REVERSE BATTERY LEADS
Incoming
Phone Line
3) TO PREVENT RISK OF ELECTRICAL SHOCK,
GREEN
TIP
DISCONNECT TELCO JACK BEFORE SERVICING
GRAY
THIS CONTROL PANEL
R1
Local
4) FOR CONTINUED PROTECTION AGAINST FIRE,
Telephones
BROWN
REPLACE ONLY WITH SAME TYPE AND RATING OF
T1
FUSES
HARDWIRED LOOP INPUTS
LOOP COM LOOP LOOP COM LOOP LOOP
1 2 3 4 5
LOOP 1 LOOP 2 LOOP 3 LOOP 4 LOOP 5
N.C. N.C. N.C. N.C. N.C.
N.O. N.O. N.O. N.O.
2.2k 2.2k 2.2k 2.2k 2.2k
E.O.L. E.O.L. E.O.L. E.O.L. E.O.L.
RESISTOR RESISTOR RESISTOR RESISTOR RESISTOR
LOOP RESPONSE TIME: 400 mS MAXIMUM RECOMMENDED LOOP LENGTH: 500 FEET
MADE IN CHINA 454
CAUTION:
1) NO USER SERVICABLE PARTS INSIDE
2) RISK OF FIRE AND ELECTRICAL SHOCK, ROUTE
WIRES AWAY FROM INTERNAL COMPONENTS
3) REMOVE AC POWER BEFORE CONNECTING
TRANSFORMER, BATTERY, OR REPLACING FUSES
Fire protection must follow NFPA Standard No. 72 (National
Fire Protection Association, Batterymarch Park, Quincy, MA
02269). Printed information describing proper installation,
operation, testing, maintenance, evacuation planning, and
repair service is to be provided with this equipment.
COM LOOP LOOP COM LOOP H/A H/A
6 7 8 - +
LOOP 6 LOOP 7 LOOP 8
N.C. N.C. N.C.
AUTOMATION
OUTPUT
Current limited
switched
+12 VDC, 40 mA
N.O. N.O. N.O. N.O.
voltage source
See instructions
for output options
2.2k 2.2k 2.2k
E.O.L. E.O.L. E.O.L.
RESISTOR RESISTOR RESISTOR

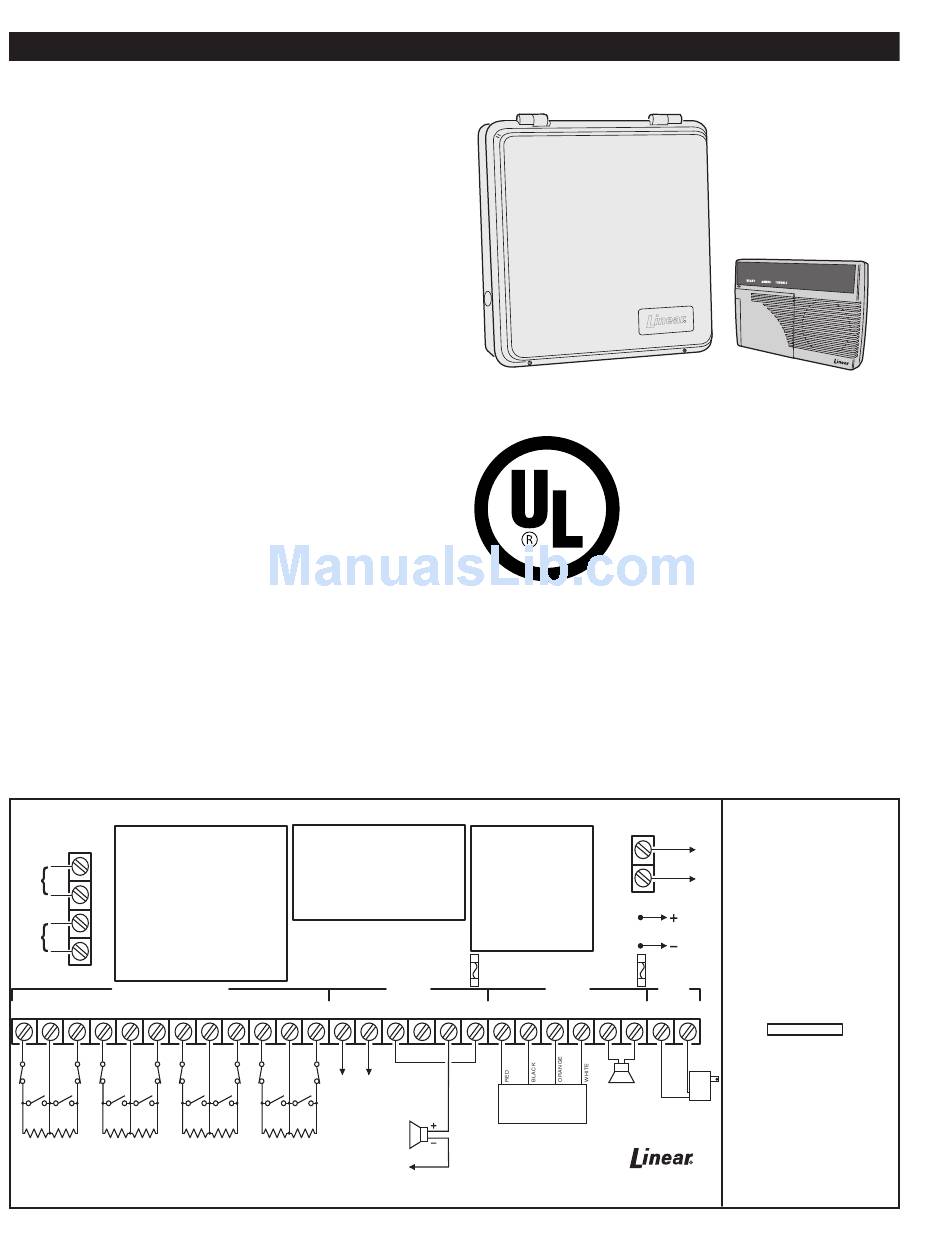

DUAL 824 WIRING DIAGRAM
CONTROL PANEL
MODEL DUAL 824P
IMPORTANT:
1) USE UL LISTED CABLE FOR ALL CONNECTIONS
2) WEEKLY TESTING IS REQUIRED TO ENSURE PROPER
OPERATION OF THIS SYSTEM
3) DO NOT CONNECT AC POWER TO A RECEPTACLE
CONTROLLED BY A SWITCH
4) CONNECTION OF THE FIRE ALARM SIGNAL TO A
FIRE ALARM HEADQUARTERS OR A CENTRAL STATION
SHALL BE PERMITTED ONLY WITH THE APPROVAL OF
THE LOCAL AUTHORITY HAVING JURISDICTION. THE
BURGLAR ALARM SIGNAL SHALL NOT BE CONNECTED
TO A POLICE EMERGENCY NUMBER.
AUXILIARY FUSE
TYPE 2AG, 1 AMP
OUTPUTS KEYPAD
RLY RLY RLY +12 KPD KPD KPD
COM N/C N/O VDC + - CLK
ALARM RELAY AUXILIARY
POWER
Rated 12 volts,
OUTPUT
1 amp maximum
DUAL 824KP
12 VDC at 1 Amp
maximum
EXTERNAL SIREN HARDWIRED KEYPAD
12 VDC at 1 Amp
ONE OR TWO
maximum
UNITS ALLOWED
KEYPAD WIRING
4-conductor 22 AWG wire
Up to 100 feet for all keypads used allowed
FOR INSTALLATION INSTRUCTIONS,
REFER TO THE MANUAL SUPPLIED
To any COM terminal
WITH THIS PRODUCT
DUAL 824 SYSTEM
MODEL DUAL 824KP
UL Listed as a Single Station
Smoke Detector Accessory, also
suitable as a Household Burglar-
Alarm System Control Unit. UL
Category CCN UTGT & NBSX
LINEAR LLC
ANTENNA RESIDENTIAL SECURITY RECEIVER
MODEL: DUAL 824
ANT
To internal antenna PART # SSC00056
wires or to Model LA-P
external antenna kit FREQUENCY: 315 MHz
SHIELD
POWER SUPPLY: 16 VAC, 1.25A
This device complies with FCC Part 15 and IC
BACKUP BATTERY
Canada Rules and Regulations. Operation is
RED (+)
CONNECT TO
subject to the following two conditions: (1) This
12 VDC/4AH
Battery wires
GEL CELL
Charging voltage: 13.8 VDC device may not cause harmful interference and (2)
BATTERY
BLACK (-) this device must accept any interference received,
Normal battery
life should including interference that may cause undesired
exceed 3 years
operation.
BATTERY FUSE
Complies with Part 68, FCC Rules.
TYPE 2AG, 3 AMP
FCC Registration Number: EF4HKG-31823-AL-E
XFRMR
Ringer Equivalence Number: 1.7B
KPD KPD KPD AC AC
DAT SPK+ SPK -
CANADIAN REGULATORY INFORMATION
Complies with IC RSS 210
En conformité avec IC CNR 210.
MODEL RSM-2
VOICE RESPONSE
SPEAKER
TRANSFORMER
8 Ohm - 2 Watts
16VAC, 1.25A
Warranty Expiration Date:
Connect to
24hr. 120VAC,
60 Hz Outlet
(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
www.linearcorp.com
KEYPAD
IC ID 1078-102-556A
