Summary of Contents for Kramer VP-6A
-
Page 1: User Manual

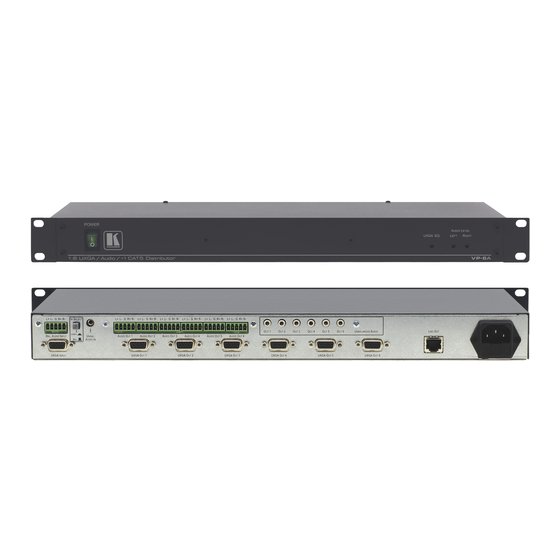

Kramer Electronics, Ltd. USER MANUAL Model: VP-6A 1:6 UXGA / Audio / +1 CAT5 Distributor... -
Page 2: Table Of Contents
Getting Started Overview Your VP-6A 1:6 UXGA / Audio / +1 CAT5 Distributor Using Your VP-6A 1:6 UXGA / Audio / +1 CAT5 Distributor Connecting the Balanced/Unbalanced Stereo Audio Output Wiring the CAT5 LINE IN / LINE OUT RJ-45 Connectors... - Page 3 ADDENDUM: Included with user manuals for machines with a CAT5 connector This addendum describes the Power Connect feature used with Kramer machines, and the choice between STP and UTP CAT5 cables. Power Connect Feature The Power Connect feature lets you power a transmitter / receiver system by connecting just one power adapter to either the transmitter or the receiver.
-
Page 4: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 5: Your Vp-6A 1:6 Uxga / Audio / +1 Cat5 Distributor
In applications with high interference, shielded twisted pair (STP) cable will give better results. Your VP-6A 1:6 UXGA / Audio / +1 CAT5 Distributor Figure 1 and Table 1 define the VP-6A 1:6 UXGA / Audio / +1 CAT5 Distributor: 1 Selected via a pushbutton... -
Page 7: Figure 2: Underside Of The Vp-6A
LINE IN RJ-45 connector on a Kramer CAT5 receiver Power Connector with FUSE AC connector enabling power supply to the unit Figure 2 and Table 2 define the underside panel switches of the VP-6A: Table 2: Underside Features of the VP-6A Feature Function... -
Page 8: Using Your Vp-6A 1:6 Uxga / Audio / +1 Cat5 Distributor
UXGA signal to an external VGA monitor 1 XGA HD15M +Audio jack to XGA HD15M +Audio jack (not supplied). The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com. Alternatively, you can connect an XGA source to the XGA INPUT HD15F connector, and a separate audio source to the UNBAL. -
Page 9: Figure 3: Connecting The Vp-6A
Using Your VP-6A 1:6 UXGA / Audio / +1 CAT5 Distributor If necessary, slide the VS and HS switches to the right to output negative sync polarity (or leave them in the left position (Normal) to retain the sync polarity) 7. -
Page 10: Connecting The Balanced/Unbalanced Stereo Audio Output
Using Your VP-6A 1:6 UXGA / Audio / +1 CAT5 Distributor 5.1 Connecting the Balanced/Unbalanced Stereo Audio Output Figure 4 and Figure 5 illustrate how to wire a balanced/unbalanced stereo audio output connection: Figure 5: Connecting the Unbalanced Figure 4: Connecting the Balanced Stereo... -
Page 11: Technical Specifications
Technical Specifications Technical Specifications Table 4 includes the technical specifications: Table 4: Technical Specifications of the VP-6A INPUTS: VIDEO: 1 XGA on an HD15F AUDIO: 1 unbalanced stereo audio on a 3.5mm connector mini jack; 1 balanced stereo audio on a 5-pin terminal block... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
