Quickie Salsa R2 Instructions For Use Manual page 29

5.8.3 Standard Arm pad Position Adjustment
(Fig. 45 - 48)

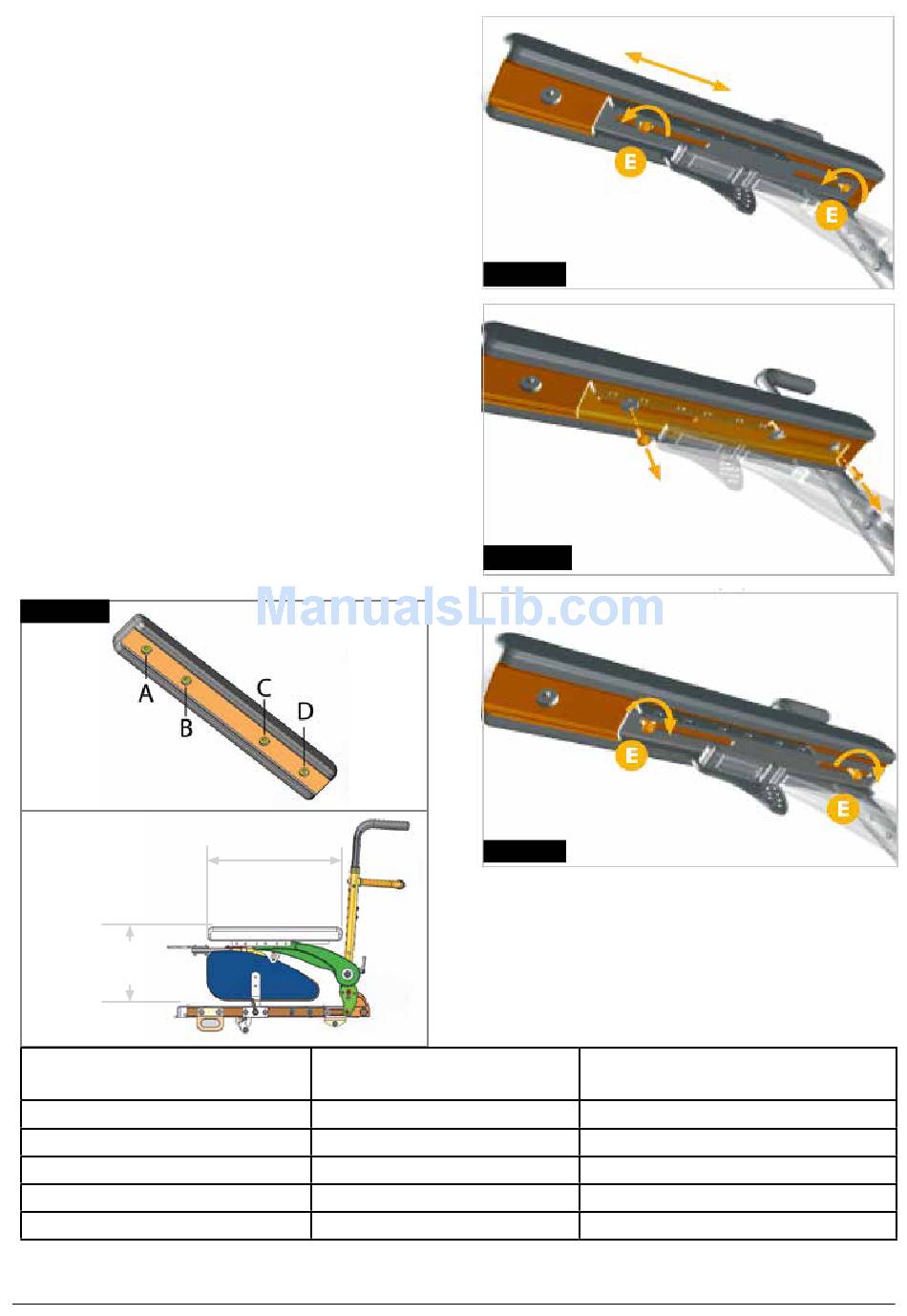

1. Fine arm pad position adjustments (one to two
inches) are possible by loosening the 4mm arm pad
adjustment bolts (E) and sliding the arm pad forward or
backward as required, (Fig.5.36, 5.37). Access to the
rear adjustment bolt may require pivoting the arm pad
2. Retighten both adjustment bolts (E). Use 10 N/m or
88.5 in/lb of torque, (Fig.5.38).
NOTE: If more than one to two inches of adjustment is
required, refer to chart below, (Fig.5.39).
3. For larger adjustments, remove both sets of arm pad
adjustment bolts. Slide both arm pads to the next set
of attachment holes (refer to the chart). Retighten both
sets of arm pad adjustment bolts, (Fig.5.36 - 5.39). Use
10 N/m or 88.5 in/lb of torque.
Fig. 5.39
ARMREST
HEIGHT
ARM PAD DEPTH
(mm)
305
330
356
381
406
Rev.1.0
ARM PAD
DEPTH
ARMREST HEIGHT
RANGE (mm)
305 - 229
305 - 229
305 - 229
305 - 229
305 - 229
Fig. 5.36
Fig. 5.37
Fig. 5.38
ARM PAD SETTING POSITION
A & C
A & C
B & C
B & C
B & D
29
