Clarion DXZ945MP Service Manual

SPECIFICATIONS

FM tuner section
Frequency range:
Usable sensitivity:
50dB quieting sensitivity: 15dBf
Alternate channel selectivity:
Stereo separation:
Frequency response:
AM tuner section
Frequency range:
Usable sensitivity:
CD player section
System:
Usable discs:
Frequency response:
S/N ratio:
Dynamic range:
Distortion:
MP3/WMA mode
MP3 sampling rate:
MP3 bit rate:
WMA bit rate:
Logical format:
Audio section
Maximum power output: 53Wx4
Continous average power output:
Line output level:
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
87.9MHz to 107.9MHz(U.S.A.)
87.0MHz to 108.0MHz(OTHERS)
9dBf
70dB
35dB (1kHz)
30Hz to 15kHz (+/-3dB)
530kHz to 1710kHz(U.S.A.)
531kHz to 1629kHz(OTHERS)
25uV
Compact disc digital audio system
Compact disc
5Hz to 20kHz (+/-1dB)
100dB (1kHz)
96dB (1kHz)
0.01%
11.025kHz to 48kHz
8kbps to 320kbps/VBR
48kbps to 192kbps
ISO9660 level1,2
JOLIET or Romeo
18Wx4, into 4ohm, 20Hz to 20kHz,
1%THD
4V/F 2ch+4V/R 2ch (CD 1kHz)
4V/NON-FADER 2ch (CD 1kHz)
0.5V/2-ZONE 2ch (CD 1kHz)
Service Manual
AM/FM CD/MP3/WMA Player
Built-in DSP/EQ With Touchpanel
Model
(PE-2635B-A / For U.S.A.)
Model
(PE-2635K-A / For other countries)
(PE-2635K-B / For other countries)
Bass control action:
Treble control action:
General
Power supply voltage:
Current consumption:
Speaker impedance:
Dimensions(mm):
Source unit;
Remote control unit;
Weight:
Source unit;
Remote control unit;
NOTES
* Use only compact discs bearing the
* Some CDs recorded in CD-R/CD-RW mode may not be
usable.
* WMA is the abbreviation of Windows Media Audio, an
audio file format developed by Microsoft Corporation.
*
marks, or registerd trademarks of Microsoft Corporation
in the United States and/or other countries.
* This product includes technology owned by Microsoft Cor-
poration and cannot be used or distributed without a li-
cense from MSLGP.
* This product is manufactured under license from Dolby
Laboratories."Dolby","Pro Logic" and the double-D sym-
bol are trademarks of Dolby Laboratories.
* We cannot supply PWB with component parts in principle.
When a circuit on PWB has failure, please repair it by
component parts base. Parts which are not mentioned in
service manual are not supplied.
* Specifications and design are subject to change without
notice for further improvement.
- 1 -
Published by Service Dept.
298-6140-00 Dec.2003 P
Printed in Japan
+/-12dB (50Hz)
+/-12dB (12.5kHz)
14.4V DC(10.8V to 15.6V allow-
able) negative ground
Less than 15A,3A
4ohm(4ohm to 8ohm allowable)
178(W)x50(H)x155(D)
32(W)x56(H)x24(D)
1.7kg
80g(including battery)
or
, and the Windows logo are trade-

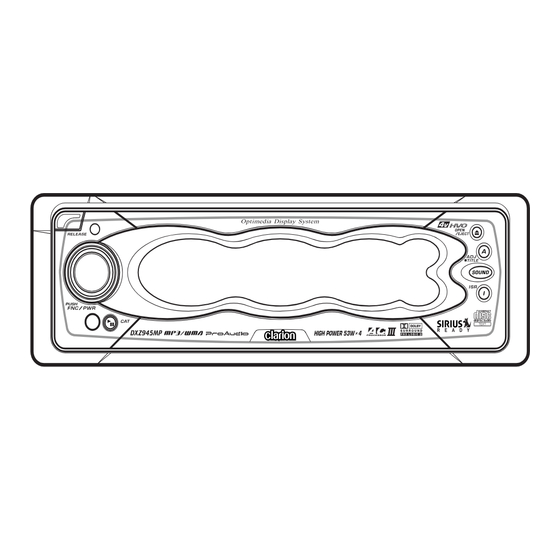

DXZ945MP
DXZ946MP
mark.
