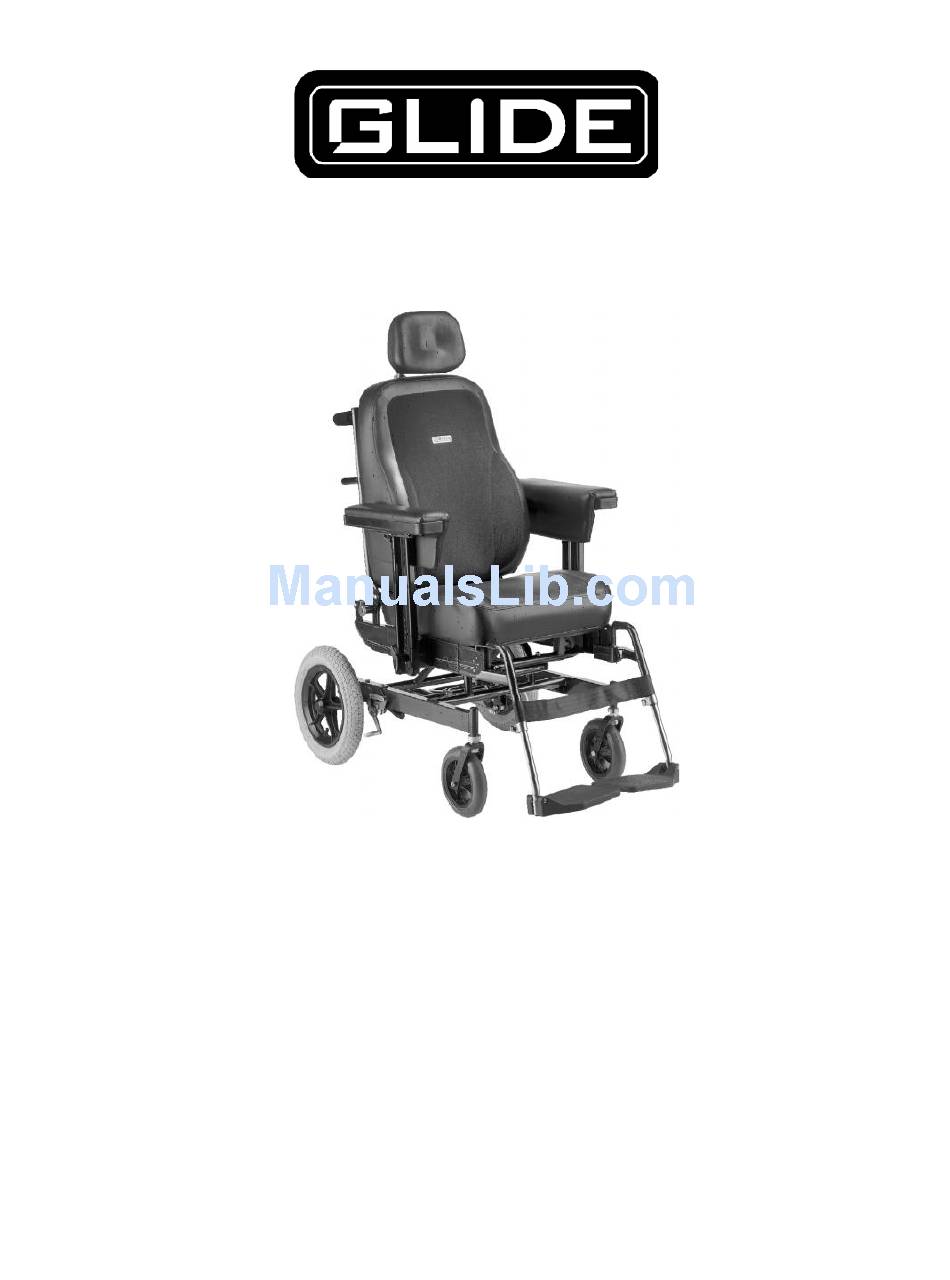

- Page 1 COMFORT-PLUS DELUXE OWNERS MANUAL For your safety and comfort read carefully and understand all of the features prior to using your new Glide Rehabilitation Products chair. Maximum Recommended User Weight 100kg...
- Page 2 TABLE OF CONTENTS SECTION 1. INTRODUCTION SECTION 2. STANDARD FEATURES SECTION 3. OPERATING YOUR WHEELCHAIR SECTION 4. TRANSPORTING YOUR CHAIR SECTION 5. ROUTINE MAINTENANCE SECTION 6. ENVIRONMENT PRECAUTIONS SECTION 7. TRANSFERRING TO AND FROM YOUR WHEELCHAIR SECTION 8. AVAILABLE OPTIONS SECTION 9.
-
Page 3: Section1. Introduction
Please take the time to familiarise yourself with the functions and features of your chair by reading this owners manual. If you have any queries about the functions of the chair you can call Glide Rehabilitation Products or your nearest Glide Rehabilitation Products dealer. -
Page 4: Section 2. Standard Features
SECTION 2. STANDARD FEATURES The illustration (Fig 1. below) is a list of standard features on your Comfort - Plus Deluxe wheelchair. 1. 12” Rear Wheels 2. 7” MCP front castor wheels 3. Inner Sprung Deluxe Seat & Back Upholstery for Superior Comfort 4. -
Page 5: Section 3. Operating Your Wheelchair
SECTION 3. OPERATING YOUR WHEELCHAIR ARMRESTS The armrests are adjustable in height and position forward or aft of arm pad. Height Adjustment Loosen Turn Wheel located at seat level on outside of armrest T - Post. When adjustment is complete retighten Turn Wheel ensuring that dimpled locking plate is located in corresponding dimples on T-Post. - Page 6 The Comfort - Plus Deluxe wheelchair has an incrementally adjustable seat frame. This feature will allow for changes in growth and condition. It is recommended that a Glide Rehabilitation Products representative make these adjustments. Note: When changes are made to either seat width or depth, new upholstery will need to be supplied.
- Page 7 COMFORT PLUS HI-CARE Within the range of the Comfort Plus is the Comfort Plus Hi-Care chair. It has all of the same features and operating functions as the standard Comfort Plus wheelchair as per the operating instructions in this manual. Unique to the Hi-Care are the following features: Removable armrest padding The armrest pads have a slip on style padded cover.
-
Page 8: Section 4. Transporting Your Chair
SECTION 4. TRANSPORTING YOUR CHAIR Transporting your Comfort - Plus Deluxe Chair in motor vehicles can be easily achieved by the following methods. STATION WAGON The backrest folds down onto the seat by pulling out pins A, B, and C (see Fig 2 below) Note: Pins A &... - Page 9 NOTE: Ensure that your restraint system complies with AS2942 and you fully understand the manufacturer instructions on how your tie down system works and whether it is compatible with the Glide Rehabilitation Products Comfort - Plus Deluxe Chair. Fig 2. Fold Down Back...
-
Page 10: Section 5. Routine Maintenance Vinyl Care
For any questions concerning procedures or service, contact your nearest Glide Rehabilitation Products Agent or Glide Rehabilitation Products direct. ANNUALLY We recommend that your wheelchair, be serviced by an approved Glide Rehabilitation Products Agent at least once a year. Fig 3. - Page 11 VINYL CARE General Cleaning Instructions To clean, wipe with a sponge or cloth, which has been moistened in warm soapy water. Then dry with a clean cloth. Regular cleaning (weekly) of headrests, armrests and seat cushions is important to remove body oils, which can cause hardening of the vinyl.
-
Page 12: Section 6. Environment Precautions
SECTION 6. ENVIRONMENT PRECAUTIONS The Glide Rehabilitation Products Comfort - Plus Deluxe wheelchair has been designed with the user safety as it's prime consideration. Even though the Comfort - Plus Deluxe has been designed with safety as it's prime consideration, this does not negate the effect or take into account, circumstances, which put the wheelchair outside the specified operating conditions for which it was designed. -
Page 13: Section 7. Transferring To And From Your Wheelchair
SECTION 7. TRANSFERRING TO AND FROM YOUR WHEELCHAIR The Glide Rehabilitation Products Comfort - Plus Deluxe Chair is designed in such a way that transferring in and out can be done with a minimum of fuss. Please be aware that there is a point during transfer when the seat will not be underneath you. -
Page 14: Section 8. Available Options
2. 22” Rear Wheels (not shown) 3. Elevating Legrests (not shown) 4. Stump Supports - refer to Glide Agent (not shown) 5. Flip Up and Fold Away Tray - refer to Glide Agentt (not shown) 6. Adjustable Arm Support - refer to Glide Agent (not shown) 7. -
Page 15: Section 9. Spare Parts
8. Castor Fork 9. Castor Wheel 10. Bearing Spacer 11. Castor Wheel Bearings 12. Spacer Washers 13. Axle Bolt 14. Nyloc Axle Retaining Nut Fig 5 For service advice contact your Glide Rehabilitation Products Agent or Glide Rehabilitation Products direct. -
Page 16: Section 10. Warranty
Frame - 3-year warranty Frame will be replaced within the first twelve month period. Thereafter, Glide will extend the warrant for further two years and will either replace or repair frame. Upholstery - 6 month warranty This will cover against defects in materials or workmanship. - Page 17 The payment of the cost of having the product repaired Warranty could be voided if chair is not returned to Glide Rehabilitation Products or authorized agent for it’s free service within 3 months of purchase date.
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 REHABILITATION PRODUCTS Glide Rehabilitation Products are manufactured in Australia by Lendal Pty. Ltd. (ACN 009 003 694) 25 Ledgar Rd Balcatta, Western Australia 6021 Phone +61 8 93453400 Fax +61 8 93451384 Email: info@glide.com.au Web: www.glide.com.au...
