Lindy 32452 User Manual

Technical Data

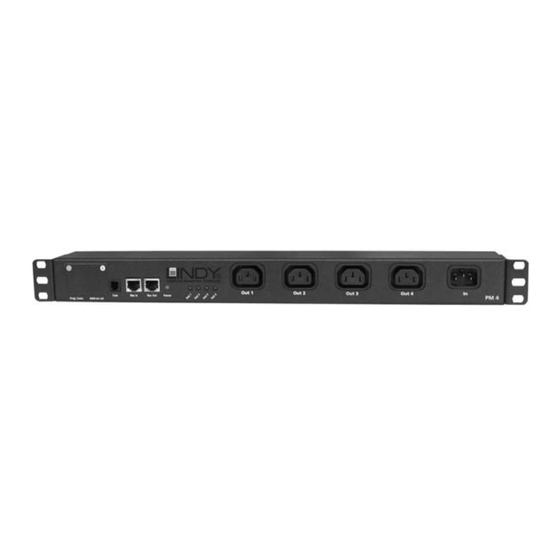

Model COMPower Switch 4 LITE
No. 32452
Remote Access Port RS-232, RJ-10, 2m cable RJ-10/D9-female
Power INLETs / OUTLETs 1x IEC-320 socket / 4x IEC-320 socket
Max. Power on INPUT 230VAC 2300VA (10A@230V)
Max. Power on OUTLETs Max. 8A per OUTLET, total 10A
Operating Temperature +5°C ... 40°C, for indoor use only
Humidity 5 bis 85% rel.H. non condensing, for indoor use only
Measurements (HXWXD), Weight 44.5 (1U) x 441 x 63 mm, 1.4kg
European EMC Directive 89/336/EEC CE statement
This equipment complies with the requirement for CE mentioned in the European Directive 89/336/EC and
Standards EN55022 and EN55024.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B Digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced technician for help
You are cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
For Commercial Use
Tested to Comply with
FCC Standards
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - SECOND EDITION (JAN 2005)
COMPower Switch 8 LITE
No. 32453
2x IEC-320 socket / 8x IEC-320 socket
230VAC 2x2300VA, 2x(10A@230V)
Max. 8A per OUTLET, total 2x10A
44.5 x 788 x 63 mm, 2.3kg
COMPower Switch LITE
User Manual
(Version 8/2004 Firmware Version 0.06, May be different to the supplied version)
Model 1 IN / 4 OUT: LINDY No. 32452
Model 2 IN / 8 OUT: LINDY No. 32453
www.LINDY.com
For Commercial Use
Tested to Comply with
FCC Standards
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - SECOND EDITION (JAN 2005)
English
