Aiwa TP-VS485 Service Manual

Hide thumbs Also See for TP-VS485:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions
SERVICE MANUAL

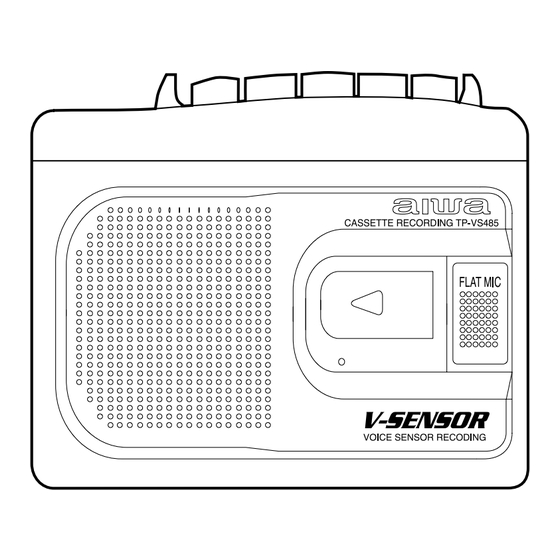

CASSETTE RECORDER
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-007-435-9T1).
TP-VS485
BASIC TAPE MECHANISM : ZZM-6 R2NF
S/M Code No. 09-008-435-9R1
Y, YH, YHT,
YJ, YL
