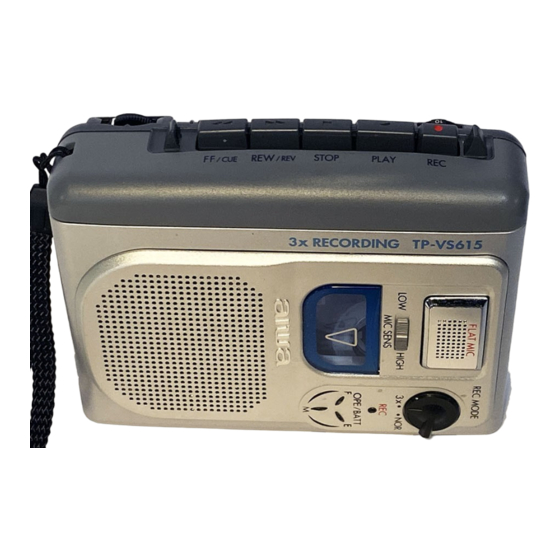

TP-VS615
CASSETTE RECORDER
GRABADOR DE CASETES
OPERATING INSTRUCTIONS
INSTRUCCIONES DE MANEJO
MODE D'EMPLOI
A
OWNER'S RECORD
For your convenience, record the model number and serial number (you will find
it in the cassette holder of your set) in the space provided below. Please refer to
them when you contact your AIWA dealer in case of difficulty.
Model No.
Serial No.
A
B
D
AC-D302
E
8A-HT6-901-01
000605AYO-O9
Printed in Indonesia
AA (R6) 2
R6 (AA) 2
C
DC 3 V
ENGLISH

PRECAUTIONS

To maintain good performance
• Do not use the unit in places which are extremely hot, cold, dusty or humid. In
particular, do not keep the unit:
• in a high humidity area such as a bathroom
• near a heater
• in an area exposed to direct sunlight (e.g., inside a parked car, where there
could be a considerable rise in temperature)
• Keep cassette tapes, magnetic cards and other magnetic recorded materials
away from the speaker as the recorded information may be erased or noise may
occur on cassette tapes.
• Do not open the cassette holder during playback, recording, fast forwarding or
rewinding.

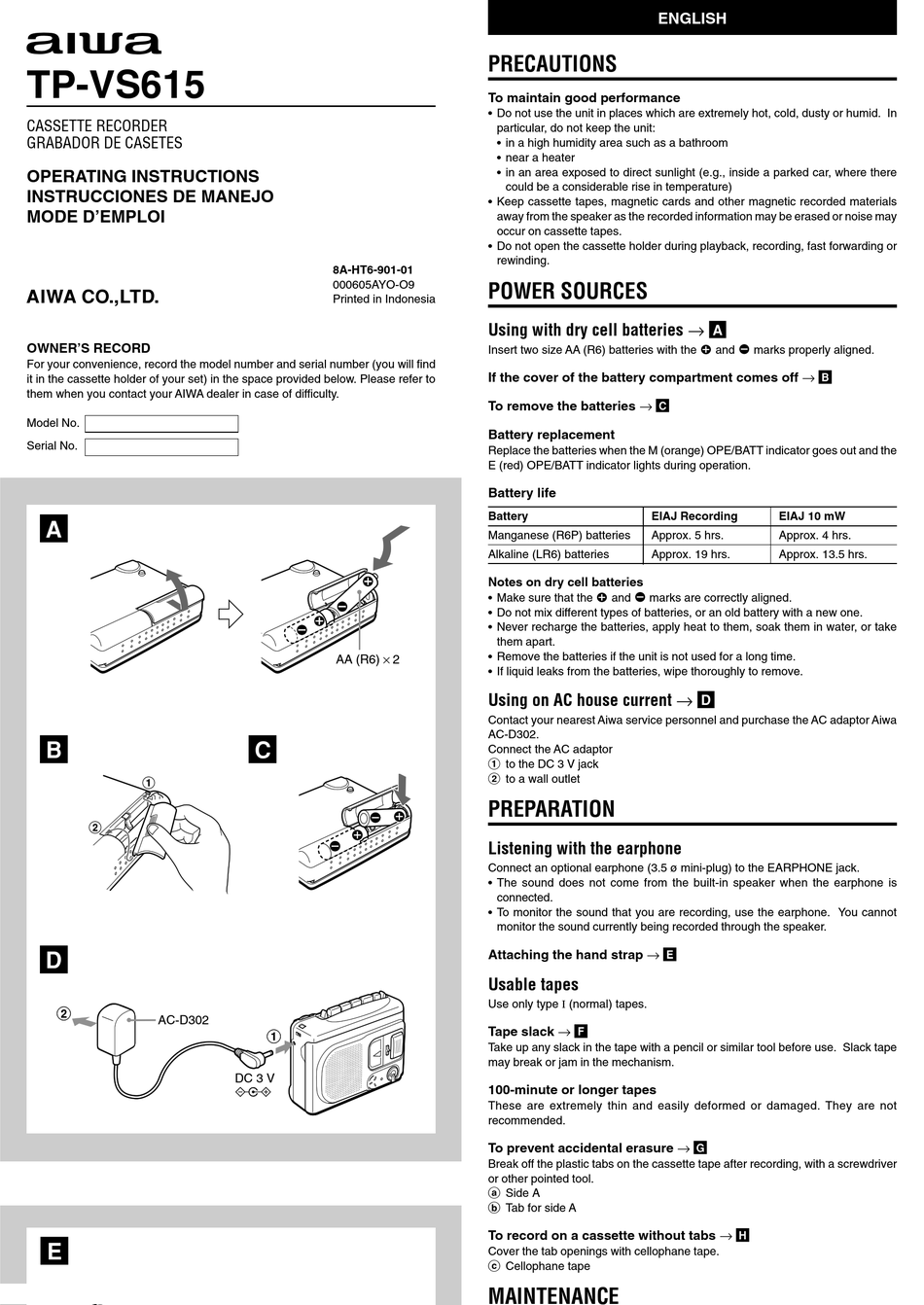

POWER SOURCES

Using with dry cell batteries
Insert two size AA (R6) batteries with the 0 and 9 marks properly aligned.
If the cover of the battery compartment comes off
C
To remove the batteries
Battery replacement
Replace the batteries when the M (orange) OPE/BATT indicator goes out and the
E (red) OPE/BATT indicator lights during operation.
Battery life
Battery EIAJ Recording
Manganese (R6P) batteries Approx. 5 hrs.
Alkaline (LR6) batteries Approx. 19 hrs.
Notes on dry cell batteries
• Make sure that the 0 and 9 marks are correctly aligned.
• Do not mix different types of batteries, or an old battery with a new one.
• Never recharge the batteries, apply heat to them, soak them in water, or take
them apart.
• Remove the batteries if the unit is not used for a long time.
• If liquid leaks from the batteries, wipe thoroughly to remove.
Using on AC house current
Contact your nearest Aiwa service personnel and purchase the AC adaptor Aiwa
AC-D302.
Connect the AC adaptor
1 to the DC 3 V jack
2 to a wall outlet

PREPARATION

Listening with the earphone
Connect an optional earphone (3.5 ø mini-plug) to the EARPHONE jack.
• The sound does not come from the built-in speaker when the earphone is
connected.
• To monitor the sound that you are recording, use the earphone. You cannot
monitor the sound currently being recorded through the speaker.
Attaching the hand strap
Usable tapes
Use only type I (normal) tapes.
F
Tape slack
Take up any slack in the tape with a pencil or similar tool before use. Slack tape
may break or jam in the mechanism.
100-minute or longer tapes
These are extremely thin and easily deformed or damaged. They are not
recommended.
To prevent accidental erasure
Break off the plastic tabs on the cassette tape after recording, with a screwdriver
or other pointed tool.
a Side A
b Tab for side A
To record on a cassette without tabs
Cover the tab openings with cellophane tape.
c Cellophane tape
MAINTENANCE
A
B
EIAJ 10 mW
Approx. 4 hrs.
Approx. 13.5 hrs.
D
E
G
H
