Summary of Contents for FLIR TG165

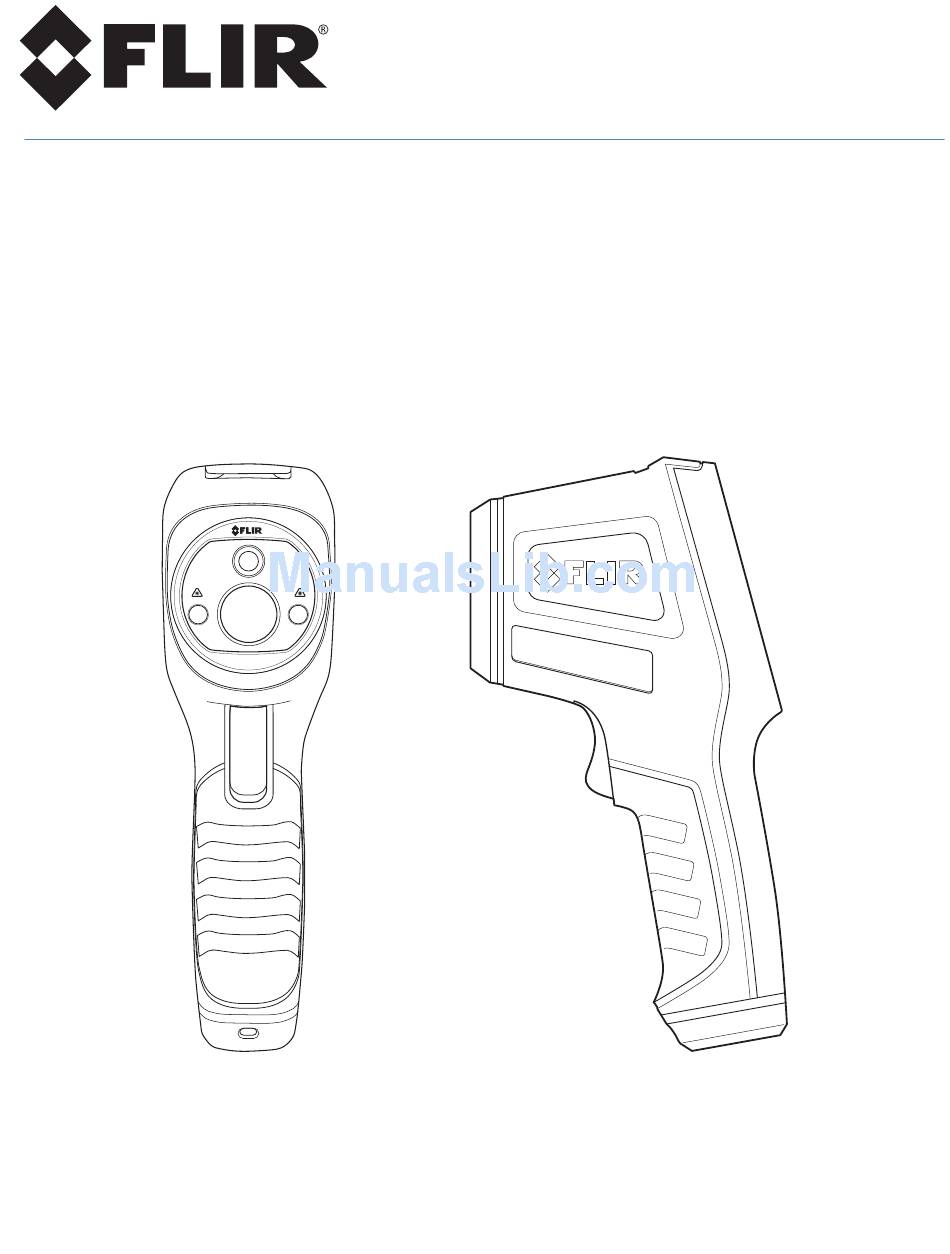

- Page 1 GETTING STARTED FLIR TG165 Imaging IR Thermometer ...
- Page 2 TG165 ‐ GETTING STARTED ‐ USER GUIDE LOCATION: The detailed User Guide is located on the supplied SD memory card installed in the TG165 at the factory. Connect the TG165 to a computer USB port with the supplied USB cable. View the contents of the card as you would with any external drive. The PDF User Guide, in a variety of languages, can be opened or copied. Please read the entire User Guide to gain a thorough understanding of the TG165. Quick Steps FRONT DESCRIPTION Charge battery with USB cable (USB port under flap) 1. USB port & SD Card Press and hold for > 2 seconds to power ON or OFF 2. Thermometer lens View IR Image & IR Thermometer temperature 3. Trigger Pull trigger to switch ON laser pointers Release trigger & press to save image or to 4. Lanyard discard image within 5 seconds 5. Tripod mount Pull trigger again to return to real‐time imaging 6. Lasers ...
- Page 3 Emissivity (see Settings Menu in User Guide) Laser Pointers: Press to toggle ON/OFF Temperature Units: Press to toggle F Cross‐hairs: Press to toggle ON/OFF Auto Power OFF (see Settings Menu in User Guide ) Date/Time (see Settings Menu in User Guide ) Press for Firmware & Calibration info Copyright © 2014 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form. www.flir.com FLIR TG165 GETTING STARTED Document Identifier: TG165‐QS‐mul_AA ...
- Page 4 Publication Identification No.: TG165‐QS‐mul Release version: AA Release Date: 2014 August Language: Multiple FLIR TG165 GETTING STARTED Document Identifier: TG165‐QS‐mul_AA ...
