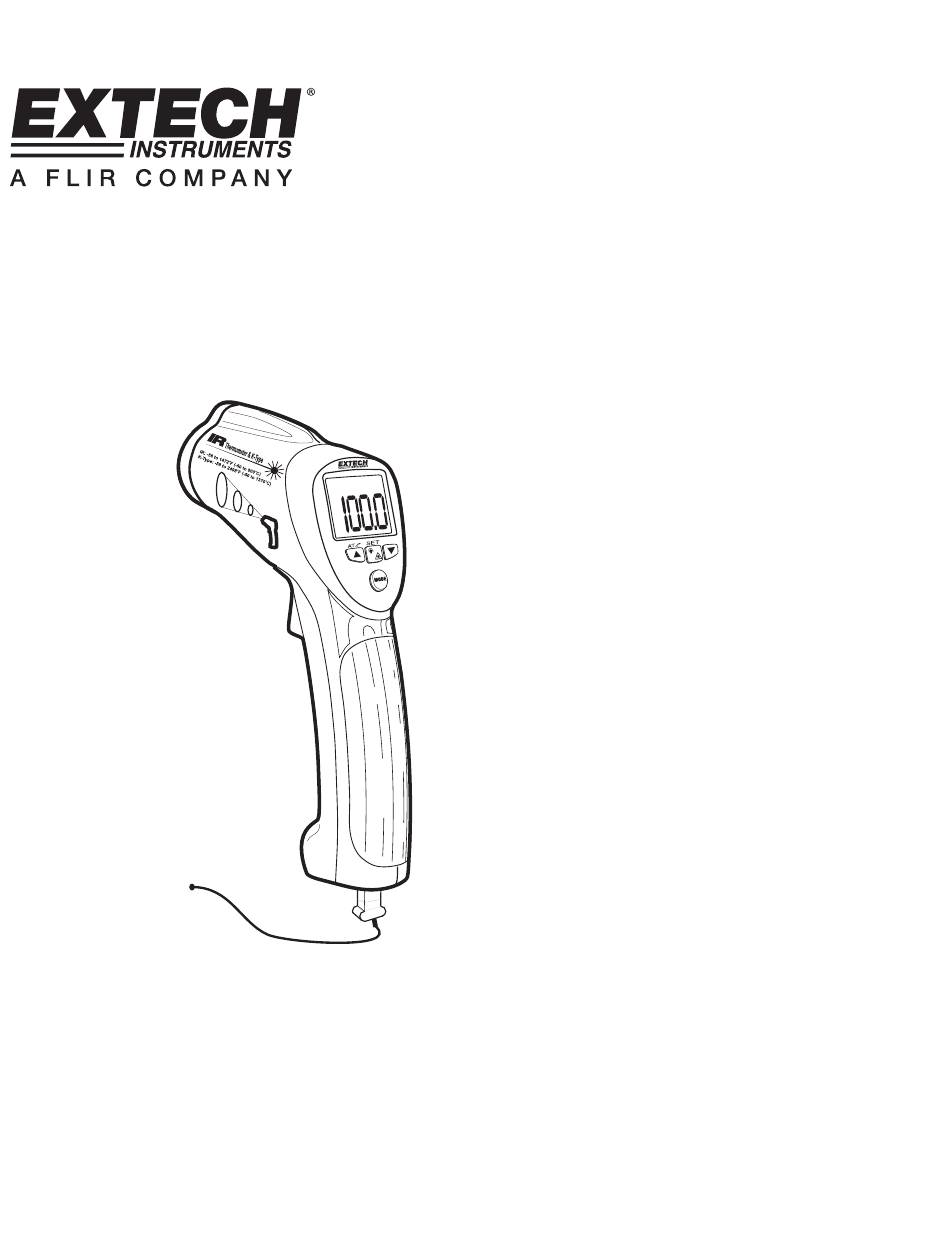

- Page 1 User Manual Wide Range InfraRed (IR) Thermometer with Type K input and Laser Pointer MODEL 42515...
- Page 2 Introduction Congratulations on your purchase of the Model 42515 IR Thermometer. The Model 42515 IR thermometer measures and displays non-contact (infrared) temperature readings up to 1472 F (800 C). The built-in laser pointer increases target accuracy while the backlit LCD and handy push-buttons combine for convenient, ergonomic operation. The Type K thermocouple input provides contact measurements up to 2498 F (1370 C)*.
-
Page 3: Meter Description
Meter Description Laser pointer IR Sensor Measurement Trigger Battery and Switch compartment LCD Display Function Buttons Type-K thermocouple Temperature units ( C or F) switch Test lock ON / OFF switch 10. Alarm ON / OFF switch Note that switches are located in the battery compartment behind the battery. Model-42515-EU-EN-V4.4-9/10... - Page 4 Operating Instructions IR (non-contact) Measurements 1. Hold the meter by its handle and point it toward the surface to be measured. 2. Pull and hold the trigger to turn the meter on and begin testing. The temperature reading, the flashing ‘SCAN’ icon, the emissivity, and the unit of measure will appear. Note: Replace the 9V battery if the display does not switch on.
- Page 5 The MODE button options The MODE button is used to access the programming functions of the instrument. The selected function is displayed on the bottom line of the LCD. Each parameter is listed below with a detailed account of its use. Press the MODE button to step from one parameter to the next.
- Page 6 6. Proceed to take measurements. Model-42515-EU-EN-V4.4-9/10...
-
Page 7: Battery Replacement
Over-range Indicator If the temperature measurement exceeds the specified temperature range, the thermometer will display dashes in place of a temperature reading. High and Low Alarm Feature The Model 42515 has an alarm feature whereas a High Alarm setting and a Low Alarm setting can be programmed by the user. - Page 8 IR Measurement Notes 1. The object under test should be larger than the spot (target) size calculated by the field of view diagram (printed on the side of the meter and in this guide). 2. Before measuring, be sure to clean surfaces that are covered with frost, oil, grime, etc. 3.
- Page 9 0.89 to 0.91 Iron Oxides 0.78 to 0.82 Brick 0.93 to 0.96 Textiles 0.90 Copyright © 2010 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. Model-42515-EU-EN-V4.4-9/10...
-
Page 10: Specifications
180g / 6.4 oz. Dimensions 82 x 42 x 160mm (3.2 x 1.6 x 6.3”) Copyright © 2010 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. Model-42515-EU-EN-V4.4-9/10... - Page 11 Model-42515-EU-EN-V4.4-9/10...
