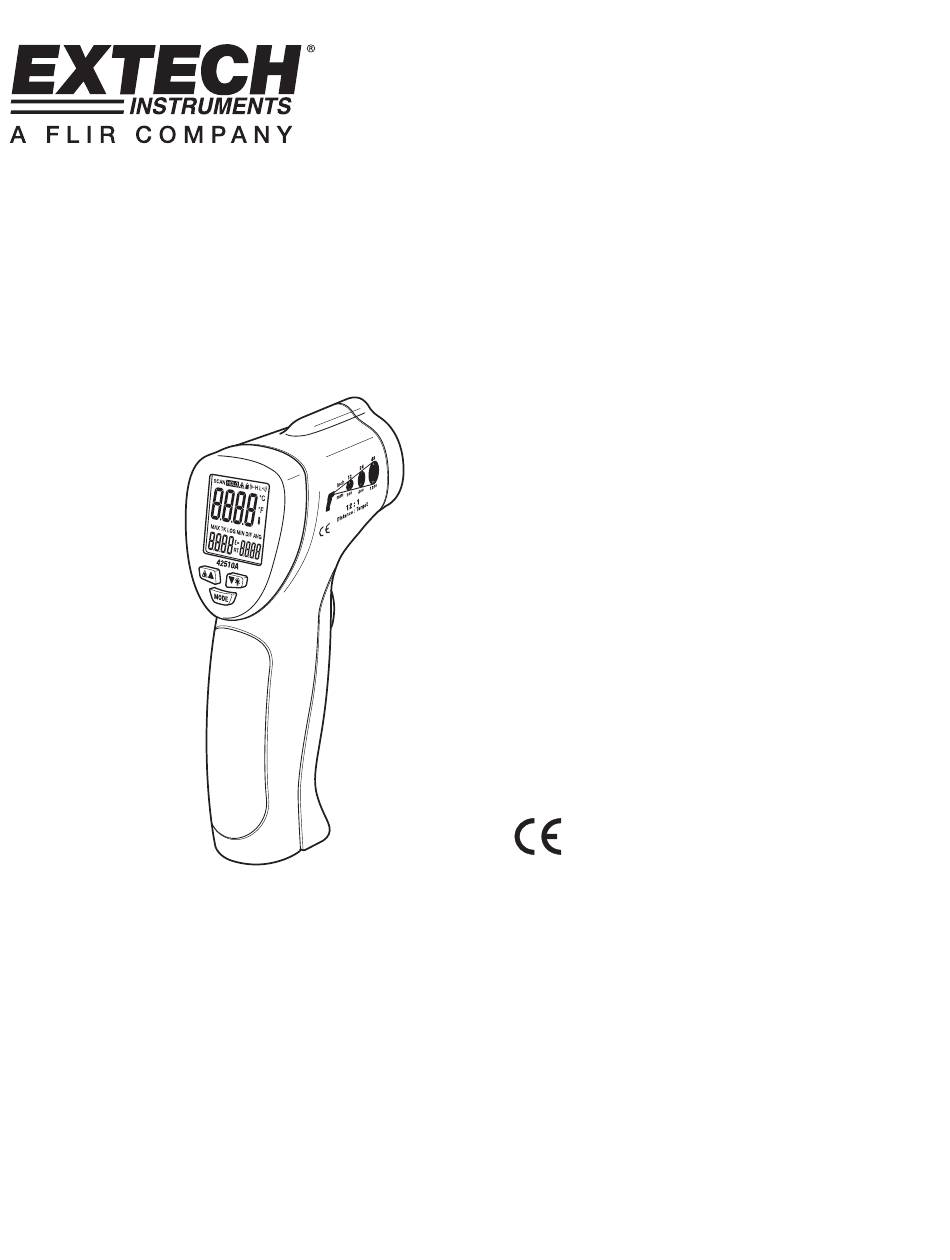

- Page 1 User’s Manual Wide Range Mini InfraRed Thermometer with Laser Pointer MODEL 42510A...
- Page 2 Introduction Congratulations on your purchase of the Model 42510A IR Thermometer. This Infrared thermometer measures and displays non-contact temperature readings up to 650 (1200 F). The adjustable emissivity feature allows the IR thermometer to measure the temperature of virtually any surface. The built-in laser pointer increases target accuracy while the backlit LCD and handy push buttons combine for convenient, ergonomic operation.
- Page 3 Function buttons (Laser) and ▲ (UP) arrow button (Backlight) and ▼ (DOWN) arrow button MODE button Display Description SCAN, measurement in progress HOLD, last measurement locked in display Laser pointer active Power locked ON High limit alarm Low limit alarm C or F temperature units Main temperature display Low battery icon...
- Page 4 Operating Instructions Temperature Measurements 1. Hold the meter by its handle and point it toward the surface to be measured. 2. Pull and hold the trigger to turn the meter on and begin testing. The temperature reading will change as the user scans various targets. 3.
- Page 5 The MODE button options The MODE button is used to access the emissivity adjustment, unit of measure selection, MAX-MIN feature, test-lock feature, and high-low alarms 1. Press and release the trigger 2. While HOLD is on the display, press the MODE button to enter the programming mode and to step through and configure the following features.
- Page 6 IR Measurement Notes 1. The object under test should be larger than the spot (target) size calculated by the field of view diagram (printed on the side of the meter and in this guide). 2. Before measuring, be sure to clean surfaces that are covered with frost, oil, grime, etc. 3.
- Page 7 Emissivity and IR Measurement Theory IR Thermometers measure the surface temperature of an object. The thermometer’s optics sense emitted, reflected, and transmitted energy. The thermometer’s electronics translate the information into a temperature reading which is then displayed on the LCD. The amount of IR energy emitted by an object is proportional to an object's temperature and its ability to emit energy.
-
Page 8: Specifications
6.4 oz. / 180g Dimensions 82 x 42 x 160mm (3.2 x 1.6 x 6.3”) Copyright © 2010 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. 42510A-EU-EN-V3.3-9/10...
