Instruction Manual

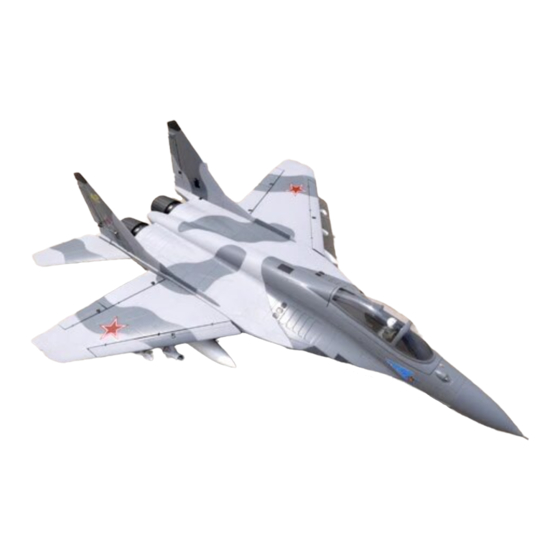

Twin 70MM EDF
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BlitzRCWorks MIG-29
Summary of Contents for BlitzRCWorks MIG-29
-
Page 1: Instruction Manual
Instruction Manual NOTE SKY FLIGHT HOBBY CO., LTD will not take any responsibility for damage or accident caused by the improper use of this model. Twin 70MM EDF HEAD OFFICE: HTTP:www.lxhm.us ADD:4th floor F2 Chaohui Building No.180 Huating Road Shuiwei Village Dalang Street Bao'an District Shenzhen China TEL: 086-755-81781620 36943520... - Page 2 WARNING Thank you for purchasing MiG-29. MiG-29 Fighter Jet is an Electric R\C model Jet, it is not a toy and is not suitable for pilots under 14 years of age. The MiG-29 is an electric ducted fan jet which is best suited for the i n te rm e di at e t o advanced R/C pilot.
- Page 3 Drag parachute Coloured smoke Cockpit ejection 360 vector vents Description: The kits include: length:1514mm (60") 9 CH Radio Control wingspan:1142mm (45) 2 x 50A Brushless ESC EDF diameter:2*70mm 17*9gram servos flying weight:2400g 2*2100KV brushless motor thrust:>2500g 2*3600mAh/11.1V 25C li-po battery...
- Page 4 Assembly procedure Cockpit Installation:1-6 Nose LED Light Installation:7 Battery Strap Installation:8-10 Power Parts Installation:13-17 Front Retracts Installation:18-20 Back Retracts Installation:28-30 Parachute Bolt Installation:31 Parachute Rod Installation:32-33 Fuselage Installation:34 Receiver Installation Spots:35 Battery Installation Spots:36-37 Vector Thrust Installation:38-39 Parachute Installation:40-44 Door for Retracts Installation:45-55 Horizontal Tail Installation:56-61 Vertical Tail Installation:62-67 Wings Installation:68-77...
- Page 5 Two 1100mm Servos and Picture 3:a Servo with 250mm Wire is one 1000mm Servo are Required for Pilot Ejection Function Required for Vector Thrust...
- Page 6 Installation of Stablizer Servos(with 1000mm wire), Parachute Servo(with 1000mm wire),Vertical Fin Connecting Wire, Retracts Connecting Wire,Flaps Connecting Wire,Color Smoke Connecting Wire and Aileron Connecting Wire. Flap servo's Y wire Color smoke bomb ignition wire...
- Page 11 picture 92:please connects the ignitor according to the manul Installation is finished...
- Page 12 Test before flying Check your vector nozzles and ensure they are working properly. Installation of colored smoke ignitor The coloured smoke is ignited when LED light turns on. Coloured smoke Receiver connection connection Coloured smoke igniter Steps:1.receiver connects. 2.Coloured smoke connects(make sure LED light is out before coloured smoke connection.) *Always do a full pre-flight check before every flight.
