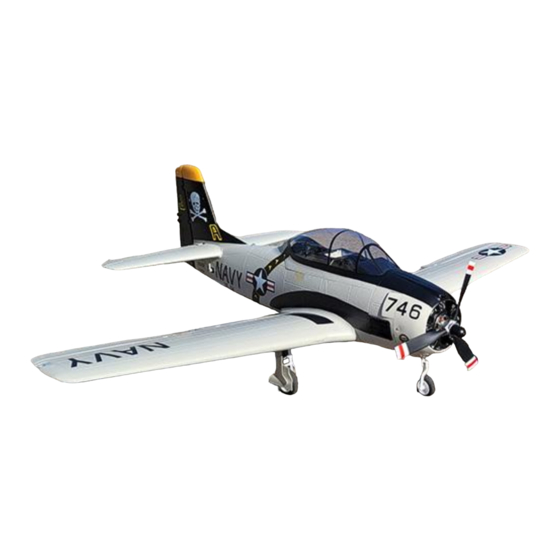

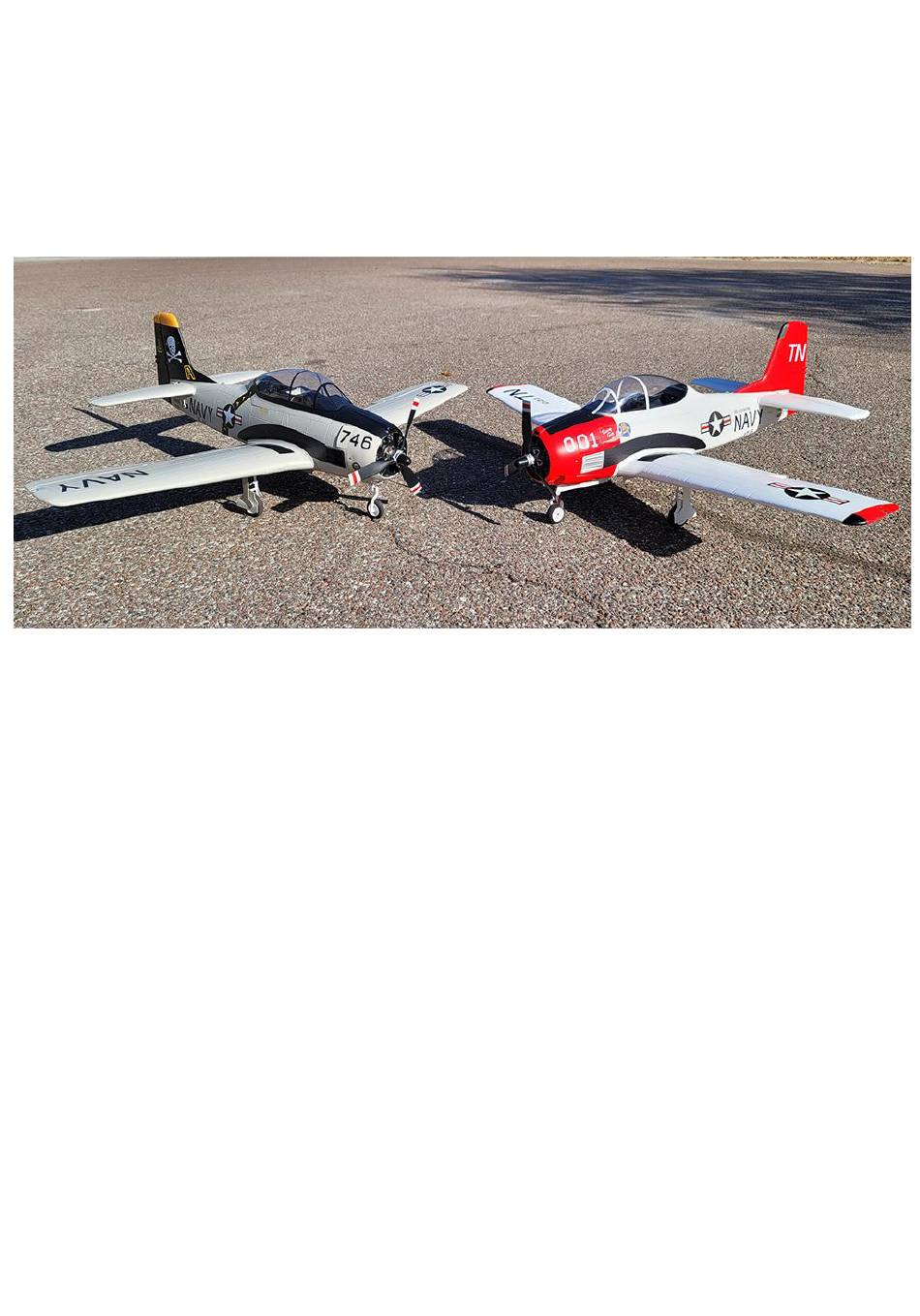

BlitzRCWorks Navy 1100mm T-28 Trojan
SPECIFICATIONS:
- Wingspan:1100mm (43.3in)
- Length: 930mm (35.4in)
- Flying Weight:1460g (52oz)
- Controls: 7 Channel (Aileron, Elevator, Throttle, Rudder, Flap, Gear, Airbrake)
- Motor: 3536 750Kv brushless outrunner.
- Prop: 10x6 3-Blade
- ESC: 40amp
- Battery: 4S 14.8V 25C 2200mah 4S
- Channels: 7 Channel Transmitter and Receiver
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BlitzRCWorks Navy
Summary of Contents for BlitzRCWorks Navy
- Page 1 BlitzRCWorks Navy 1100mm T-28 Trojan SPECIFICATIONS: - Wingspan:1100mm (43.3in) - Length: 930mm (35.4in) - Flying Weight:1460g (52oz) - Controls: 7 Channel (Aileron, Elevator, Throttle, Rudder, Flap, Gear, Airbrake) - Motor: 3536 750Kv brushless outrunner. - Prop: 10x6 3-Blade - ESC: 40amp - Battery: 4S 14.8V 25C 2200mah 4S...
- Page 2 ASSEMBLY: 1. Locate the bag marked “Aileron” and “Flap”. Install aileron and flap control horns and rods for each side of the wing as shown. Ensure the servo horn is at 90 degrees to the wing when installing the rod. 2.
- Page 3 3. Locate the bag marked “Elevator”Install horizontal tail, control horns and rods with the supplied bolts as shown. Ensure tail is firmly secured and aligned. 4. Locate the bag marked “Rudder” Install the control horns on the vertical tail. Connecting the pre installed control rods to the outer hold of the control horn.
- Page 4 5. Mount the wing to the fuselage with the supplied bolts. Make sure to feed servo wires into passage to fuselage compartment, ensuring no wires are pinched in the wing saddle. 6. The final stage of assembly is to mount propeller. Slide prop onto motor shaft, engaging molded hex detail on back of propeller to hex fitting on prop shaft.
- Page 5 RADIO SET UP: 10-18mm 10-20mm Elevator 10-20mm 10-18mm Rudder 50-60mm Aileron 12-18mm 12-18mm *Elevator ‘low rates’ 10mm ‘high rates’ 20mm in either direction from neutral. *Rudder ‘low rates’ 10mm ‘high rates’ 18mm in either direction from neutral. *Aileron ‘low rates’ 12mm ‘high rates’ 18mm in either direction from neutral.
- Page 6 Check control surfaces for proper movement with applicable stick input. A reversed control could lead to loss of control and damage to the model. 4. Linear power delivery is important to optimal flight performance. Calibrate the ESC using the instructions below when switching to a new transmiter. A.
- Page 7 5. The center gravity (CG) for the T-28 Trojan is approximately 50-60mm from the leading edge of the wing. Using the recommended 4S 14.8V 2200mah LiPo, the correct CG can be attained quite easily due to the ample battery space. If using larger capacity batteries, you may need to shift the battery backwards more to attain the correct CG.
- Page 8 TROUBLESHOOTING: Problem Cause Solution 1. Charge the batteries. 1. Battery is not fully charged. 2. Install a full charged battery. 2. Transmitter battery low. 3. Check connection 3. Motors not connected. between the ESC and motor. 4. Replace motor. Motor does 4.
