Summary of Contents for BlitzRCWorks T-50

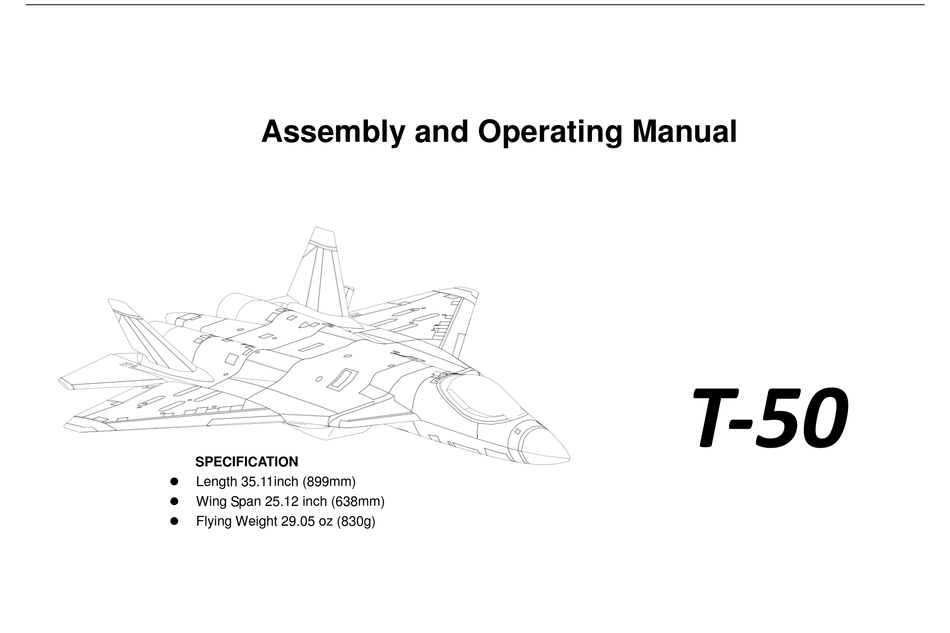

- Page 1 Assembly and Operating Manual T-50 SPECIFICATION Length 35.11inch (899mm) Wing Span 25.12 inch (638mm) Flying Weight 29.05 oz (830g)
- Page 2 Dear customer, The radio control system transmitter. Congratulations on your choice of a To fly the T-50, a radio control system is Glued joints with suitable adhesives factory-assembled model aircraft from necessary, at least four channels 2.4GHz radio BlitzRCWorks and thank you for trust to us.
-
Page 3: Parts Illustration
Assembly and Operating manual T-50 Fig. 1 Open the box and check all the parts.(Pic.shows for PNP version) Parts Illustration Parts List Description Fuselage Nose Cone Cockpit Canopy Wing Set - Two Wings Tail Set - One set of Horizontal Stabilizers... - Page 4 Assembly and Operating manual T-50 Fig. 4 – Glue the aileron and fuselage. Fig. 2 - Locate the push rods set. Fig. 3 - Install the aileron control horn. Fig. 5 – The finished view after glue the aileron Fig. 6 – Prick four holes in the horizontal and Fig.
- Page 5 Assembly and Operating manual T-50 Fig. 9 –Attention:when assembly the horizontal Fig. 10 – Ready to assemble the servos and Fig.8 - Connect the horizontal stabilizer with fuselage. The finished view is shown as above stabilizer, please make sure its top point is motors and ESCs.
- Page 6 Assembly and Operating manual T-50 Fig. 16 – The finished view after gluing the Fig. 14 - The finished view after gluing the Fig. 15 - Apply glue to the Vertical Stabilizer. servos and ducted fans in place is shown as Vertical Stabilizer is shown as above photo.
- Page 7 Assembly and Operating manual T-50 Fig. 20 – Glue the landing gear into the Fig. 21 – Put the nose cone to the fuselage Fig.22 -Connect the electronic speed controller fuselage. and servos to the receiver. Refer the radio instructions for the correct channel sockets and servo lead polarity.
- Page 8 Assembly and Operating manual T-50 matching your charger (adapter lead not included). Fig.27 - Switch the transmitter on and move the throttle stick to the “OFF” position (Diagram shows right joystick as throttle joystick, which is mode 1). Fig.26 - Charge the battery, and connect the white charge lead and adapter lead...
- Page 9 Assembly and Operating manual T-50 Fig. 29 - Checking Ailerons and Elevators Check that the control surfaces respond to the appropriate movements of the transmitter joysticks. If not, swap over the servo lead at the receiver. Check the neutral position of the control surfaces;...
- Page 10 Assembly and Operating manual T-50 Fig.31 - Checking the model’s Balance - Place the battery in its compartment without connecting. - Mark the Centre of Gravity (CG) on both sides of the fuselage; the position is shown in the photo.
- Page 11 T-50 for the first time. with the fuselage and wings leveled. Allow the T-50 to fly straight and level initially; don’t try to turn it when it is close to the ground. Adjust the trims if necessary so that the model settles into a steady climb.
