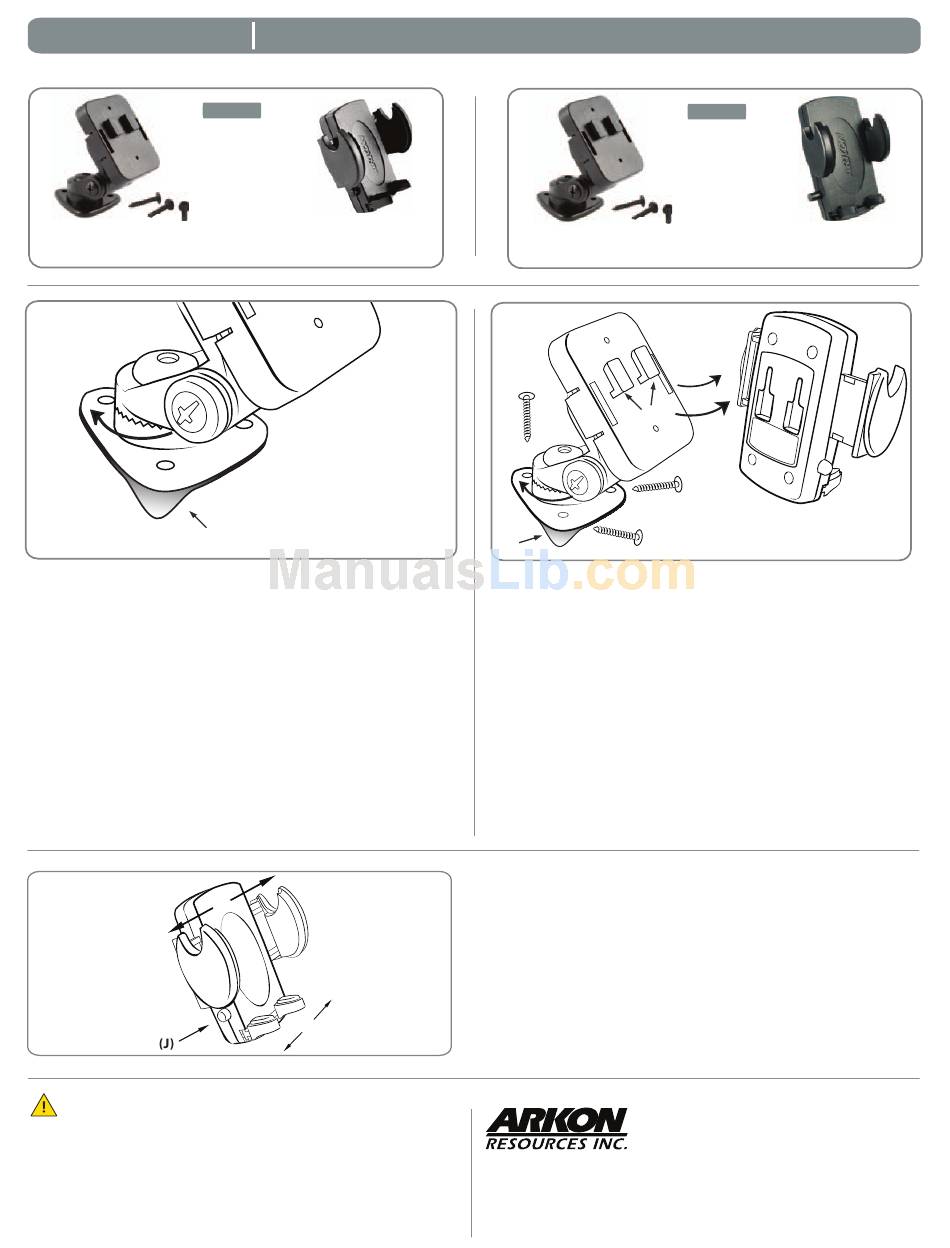

Arkon MULTI ANGLE DASH CM928 User Manual

SM228 & CM928
CM048-2 (Dual T-tab)
CM048 (Single T-tab)

Dash or Console Adhesive Mounting

Find a safe location on the dash or console to mount the
Step 1.
pedestal. Make sure the area is clean and dry. Use the
included alcohol pad to clean the mounting surface.
Remove the adhesive backing (A) under the triangular
Step 2.
pedestal and firmly press into place.
Step 3. After adhesive has bonded at room temperature (approx.
72°F), allow 24 hrs prior to use for best results.
Adjust the angle of the pedestal head by firmly holding the
Step 4.
base and rotating to the desired angle.
(I)

Safety Precautions

Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or
air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of the
pedestal mount.
1" Multi Angle Dash or Console Phone or PDA Mount
SM228
SM020-2
SM020
(A)
(K)
CM048-2 (Dual T-tab)
CM048 (SIngle T-tab)
(B)
(C)
(A)

Dash or Console Screw (optional)

Step 1. Find a safe location on the dash or console to mount the
pedestal. Make sure the area is clean and dry. Use the
included alcohol pad to clean the mounting surface if
necessary. Remove the adhesive backing (A) under the
triangular pedestal and firmly press into place.
Step 2. Using a screwdriver, tighten the 3 screws (B) through the
pedestal base into the mounting surface.
Adjust the angle of the pedestal head by firmly holding the
Step 3.
base and rotating to the desired angle.
Attach the device cradle to the pedestal by inserting the dual
Step 4.
T-tabs of the pedestal (C) into the T-slots of the cradle (D).

Universal Cradle Instructions

Step 1.
If necessary, adjust the support legs (K) by sliding them
laterally. These provide support for your device.
Step 2.
Place device on the support legs (K) and squeeze the side
grip arms (I) until they fit securely to the device.
Step 3.
Push the release button (J) in order to release the device from
the cradle.
The Mobile Mounting Specialists
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Mon-Fri. 9am-5pm, PST
CM928
CM090-2
CM090
(D)
TM
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
© Copyright 2007 Arkon Resources, Inc.
