Arkon SM588 Quick Start Manual

SM588 |
Flexible Gooseneck Seat Bolt or Floor Mount for Smartphones and 7" Tablets
SM588 SM588
Flexible Gooseneck Flexible Gooseneck
Floor or Console Mount Floor or Console Mount
SP-SM050-LF
Extra Long
Support Legs
(2 Pack)
1

Passenger Seat Bolt Mounting

For a simple mount that can be easily moved to another vehicle, install
using the passenger seat track bolt.
Do not place mount in or near an air bag deployment zone or
!
where it will obstruct view of the road.
Step 1. With a socket wrench, loosen the passenger seat track bolt, insert
the seat track bolt bracket, and retighten the seat track bolt.
2

Alternative Floor or Console Mounting

For a more permanent mount, connect the Floor / Console Mount Bracket
to the floor or console. This will require drilling into your vehicle's
interior surface.
!
Drilling into the dash, floor, or console will permanently damage
the vehicle. Use caution and consult a mobile install professional
to avoid drilling into the gas tank, electrical system or other highly
sensitive vehicle components.
Step 1. Screw the mount bracket to the mount. Depending on your vehicle,
you may need to change the orientation of the bracket.
Step 2. Attach the Floor / Console Bracket with screws.
!

Safety Precautions

Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.

Package Contents:

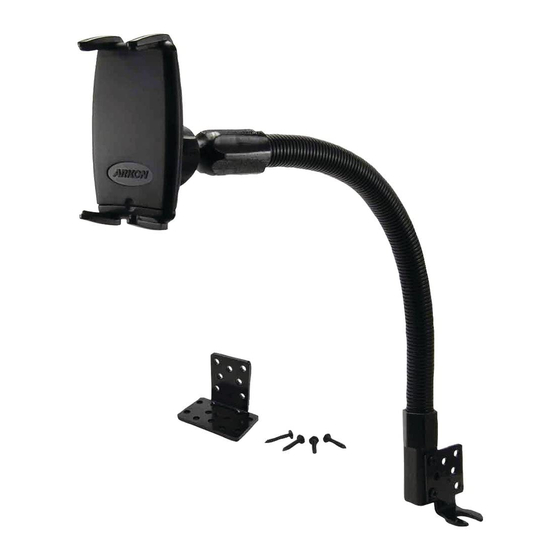

(1) GN088 - 20" Flexible aluminum gooseneck floor or console mount
Includes: (1) Seat Bolt Bracket, (1) Floor / Console Bracket, (4)Screws
(1) SM050-2 - Slim-Grip™ holder for Smartphones and 7" tablets
(1) SP-SM050-LF - Extra Long Support Legs (2 Pack) for larger phones and
tablets
Do not place mount in or near an air bag deployment zone or where it
!
will obstruct view of the road.
1
Mount Bracket
Floor Bracket
3

Pedestal Head Adjustments

Step 1. Adjust the steel shaft by bending with both hands to the
desired location of the male dual T head.

Install the Support Legs to the Holder

Step 1. Insert the holder support legs (A) by sliding them into the
support leg grooves (B) on the top and bottom of the holder.
A
A
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
2
B
A
A
B
Continued on other side...
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2011 Arkon Resources, Inc.
