Summary of Contents for Ozito BVP-2400

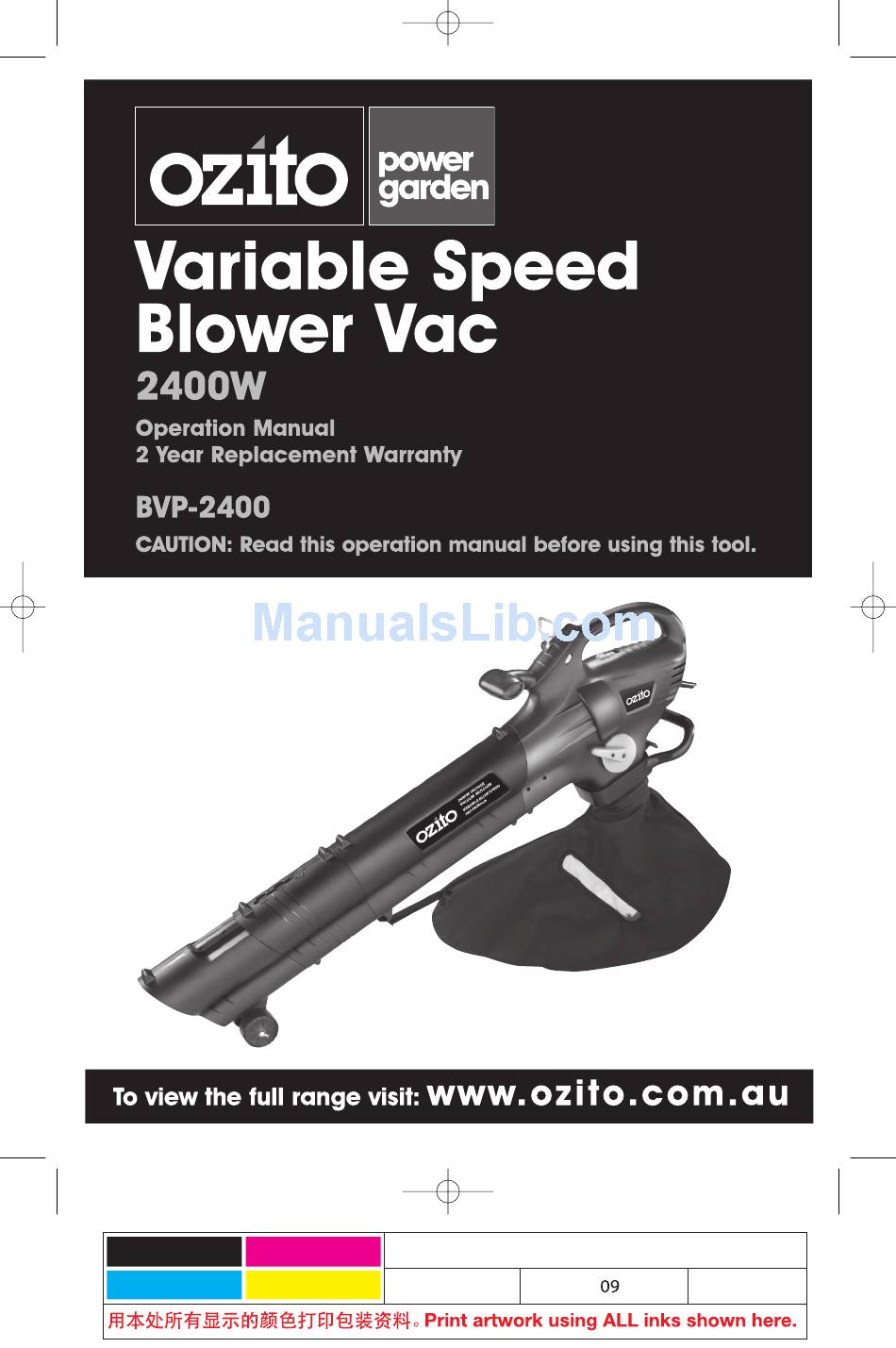

- Page 1 BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 1 0909 Black Magenta Code: BVP-2400 Cyan Yellow Date: 11/09/09 Edition: Op: Even...
-
Page 2: Specifications
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 2 SPECIFICATIONS - MODEL NO. BVP-2400 Motor: 2400W Input: 230-240V ~ 50Hz No load speed: 9,000 - 15,000/min Air speed: 180-300km/h Air volume: /min Mulching ratio: 10:1 Collection bag size: 45 Litres Weight (tool only): 6.5kg... -
Page 3: Table Of Contents
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 3 TABLE OF CONTENTS SPECIFICATIONS…………………………………………. Page 2 INTRODUCTION………………………………………….. Page 4 GENERAL SAFETY INSTRUCTIONS…………………….. Page 4 GENERAL SAFETY RULES……………………………….. Page 5-6 ADDITIONAL SAFETY INSTRUCTIONS………………… Page 7 ASSEMBLY…………………………………………………… Page 8-9 OPERATION……………………………………………….. Page 10-11 MAINTENANCE…………………………………………… Page 12 DESCRIPTION OF SYMBOLS……………………………. -
Page 4: Introduction

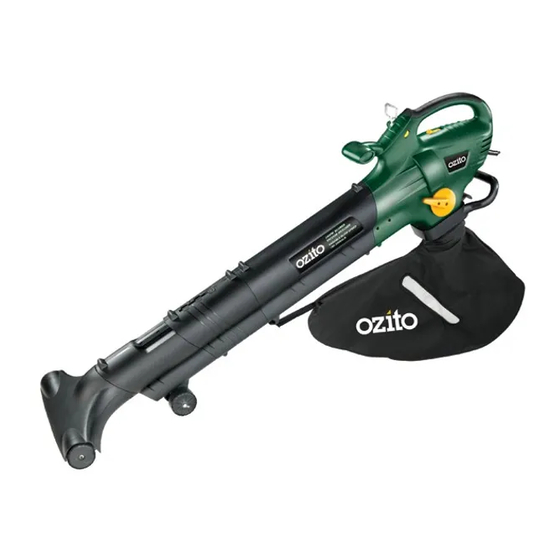

5:40 PM Page 4 INTRODUCTION The Ozito 3 in 1 Blower, Vacuum & Mulcher provides a complete solution to your garden maintenance needs. It is ideal for blowing leaves, grass clippings and other debris from courtyards, driveways, decks and footpaths. The variable speed ensures greater control when blowing different material from lightweight grass clippings to wet leaves. -
Page 5: General Safety Rules
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 5 GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. -
Page 6: General Safety Rules
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 6 GENERAL SAFETY RULES (cont.) e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. -
Page 7: Additional Safety Instructions
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 7 ADDITIONAL SAFETY RULES FOR BLOWERS VACS Always wear adequate protective clothing when operating the tool to avoid injuries to face, eyes, hands, feet, head or hearing. Use safety glasses or a face shield, high boots or sturdy shoes, long trousers, work gloves, a hard hat and ear defenders. -
Page 8: Assembly
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 8 ASSEMBLY Assembling the tubes to the blower vac 1. Insert lower tube (1) into upper tube (2) and push them together until they are connected firmly (Fig. 1). Fig. 1 2. Loosen and remove the four screws from the upper tube using a screwdriver (not included). - Page 9 BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 9 ASSEMBLY (cont.) Fitting the collection bag Prior to fitting the collection bag (8), the lower & upper tubes must be fitted to the housing. 1. Attach the strap on the collection bag to the hook underneath the upper tube (Fig.
-
Page 10: Operation
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 10 OPERATION Prior to use Prior to using the blower vac, ensure you have read and understood this instruction manual. Ensure you are wearing suitable clothing and safety equipment including safety glasses, ear protection and a mask if necessary. - Page 11 BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 11 OPERATION (cont.) Important notes when using the blower/vacuum selection lever Do not force the lever. The lever should move with very little resistance. If the lever is difficult to move, disconnect the power supply, remove the collection bag, inspect the motor housing and ensure debris, dirt or mud has not jammed the lever.
-
Page 12: Maintenance
Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the tool by an unauthorised person or mishandling or mistreatment of the tool. -
Page 13: Description Of Symbols
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 13 SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part Part No. -
Page 14: Contents
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Blower Vac BVP-2400 1 x Collection Bag 2 x Blower Tubes 1 x Patio Head... -
Page 15: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 2 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 24 months from the ORIGINAL date of purchase under the following conditions: Professional, industrial or high frequency use will VOID this warranty.
