Summary of Contents for Durr EcoGun 648

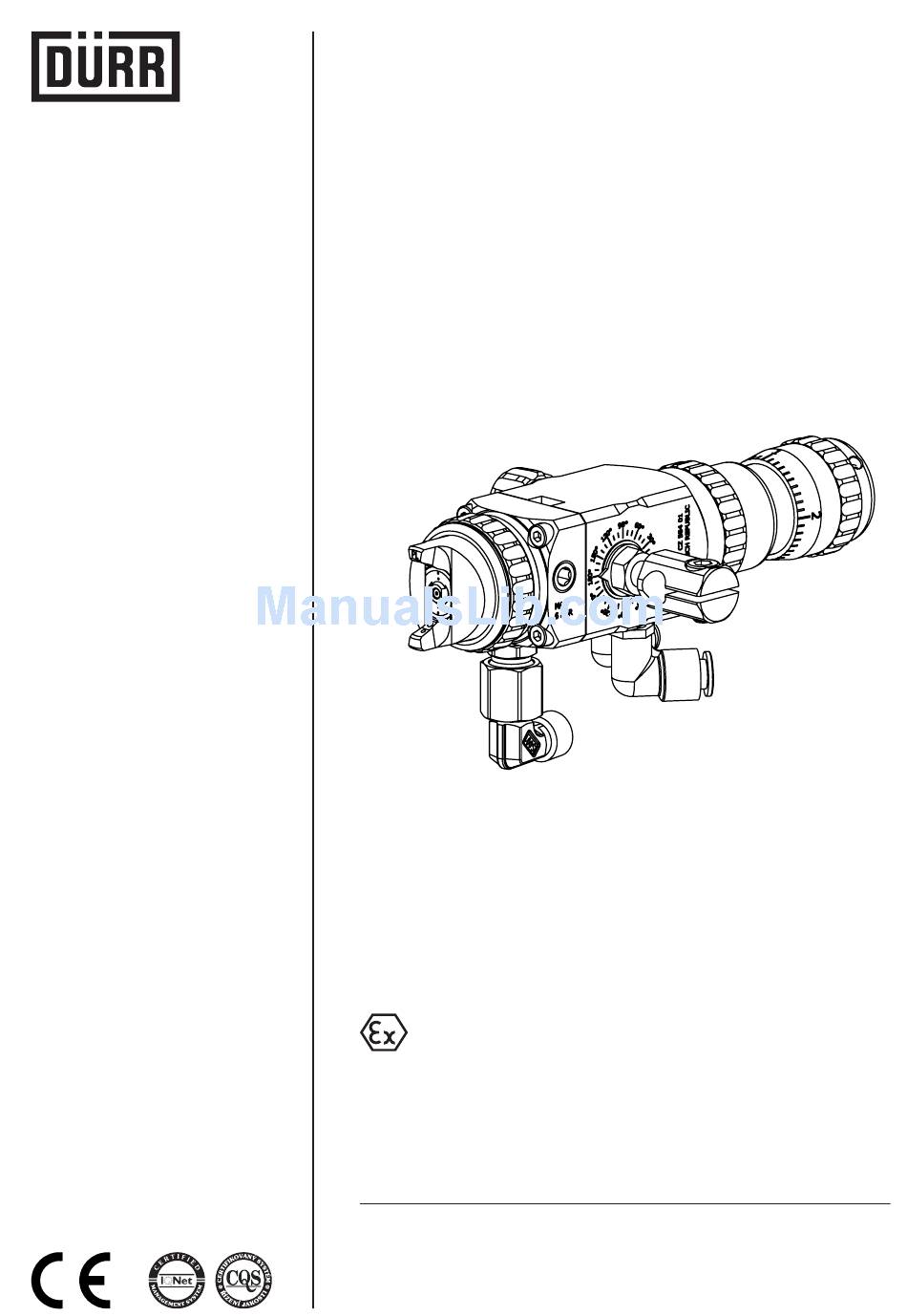

- Page 1 OPERATION MANUAL EcoG automatic spraying gun II 2 GX his device is inTended for professional use efore commissioning The device please read This manual n The case of incorrecT use of The spray gun serious injury To The user or damage To The device may occur...
- Page 2 EC-DECLARATION OF CONFORMITY RODUCT low pressure automatic spray gun EcoGun 648 automatic coating of liquid paints SAGE OMPLIES WITH European directives 2006/42/EC; 94/9/EC; 2003/10/EC; 2002/44/EC SED STANDARDS EN ISO 12100; EN 13463-1; EN 1953; EN 1127-1; EN ISO 3746 ATEX Czech gov.
-
Page 3: Table Of Contents
EcoGun 648 CONTENTS SAFETY REGULATIONS EQUIPMENT DESCRIPTION TECHNICAL PARAMETERS COMMISSIONING ADJUSING THE AUTOMATIC GUN Adjustment Assembly of hoses SERVICING MAINTENANCE AND CLEANING Principles for cleaning and maintenance Important principles for error-free operation OPERATIONAL SAFETY PRODUCT TESTING PACKING OF PRODUCTS DISPOSAL... -
Page 4: Safety Regulations
EcoGun 648 SAFETY REGULATIONS Grounding of equipment (for flammable application materials) Due to the speed of the flow of the liquid at the high spraying pressure, then under certain circumstances an electro-static charge may originate in the equipment. When discharging, this may result in the occurrence of sparks or flames. -
Page 5: Equipment Description
EQUIPMENT DESCRIPTION » The EcoGun 648 automatic spray gun is designed for the application of liquids by pressure supply (painting substances, glues, etc.). The gun can be divided into three functional parts: »... -
Page 6: Use
The EcoGun 648 automatic spray gun is designed for the surface treatment of products by air spraying. The nozzle system is designed for the pressure supply of applied material and is recommended for... -
Page 7: Technical Parameters
EcoGun 648 TECHNICAL PARAMETERS The consumption of air for spraying is ..150-700 l.min Performance (according to the nozzle system) 50-1200 g.min Range of spraying air ........max. 6 bar Recommended control pressure of air .......4 bar Quality of air (spraying): – max. dew point ............+3°C –... -
Page 8: Commissioning
EcoGun 648 COMMISSIONING Before commissioning, the gun must be cleaned from preservation substances using a suitable de-greasing detergent. Connect the hose for control and spraying air. Connect the NH hose; tighten the cap nut on the adjusting angular threading for NH. -
Page 9: Servicing
EcoGun 648 must be electro-statically conductive. For the connection of this hose, use clamping unit M14x1.5 (not included in the delivery). Connect the hose for the control air with the diameter 6.0x4.0mm and the spraying air with the diameter 8.0x6.0mm. -
Page 10: Operational Safety
EcoGun 648 4. Follow the recommended air pressures for spraying. If the equipment is used for the application of oils, varnishes, expoxydes, two-component substances and materials with similar properties, only solvents recommended by the producers of these substances must be used. -
Page 11: Disposal
EcoGun 648 DISPOSAL » After termination of the service life of the parts or the sprayer, then after cleaning, the product can be put into sorted waste. » Packaging materials of products (catalogue number 200101, see Regulation of the Ministry of the Environment No. 381/2001 Coll.) are liquidated as mixed communal waste. -
Page 12: Specification Of Parts
EcoGun 648 SPECIFICATION OF PARTS osition dentificAtion number uAntity Body NH EcoGun 648 — not included as a spare part Air body — not included as a spare part according to the table of Air cap — combinations according to the table of Nozzle set —... -
Page 13: Display Of Parts
EcoGun 648 isPlAy of PArts... -
Page 14: Accessories Included With The Device
EcoGun 648 ccessories included with the device osition dentificAtion number uAntity Universal wrench 806 697 Allen wrench 5 152 021 Allen wrench 3 152 011 Assembly wrench 906 699 Test brush 139 100 Set of rings 906 439 DIMENSIONAL SKETCH... -
Page 15: Dimensions Sketch
EcoGun 648 DIMENSIONS SKETCH 157,5... - Page 16 . d u r r - c z . c z N02.036 GB Dürr Systems Czech Republic a.s. rev: 02 Podolí 1237 | 584 01 Ledeč nad Sázavou | Czech Republic 2014/10 Tel.: +420 569 726 094 | Fax: +420 569 726 096 | E-mail: info.cz@durr.com...
