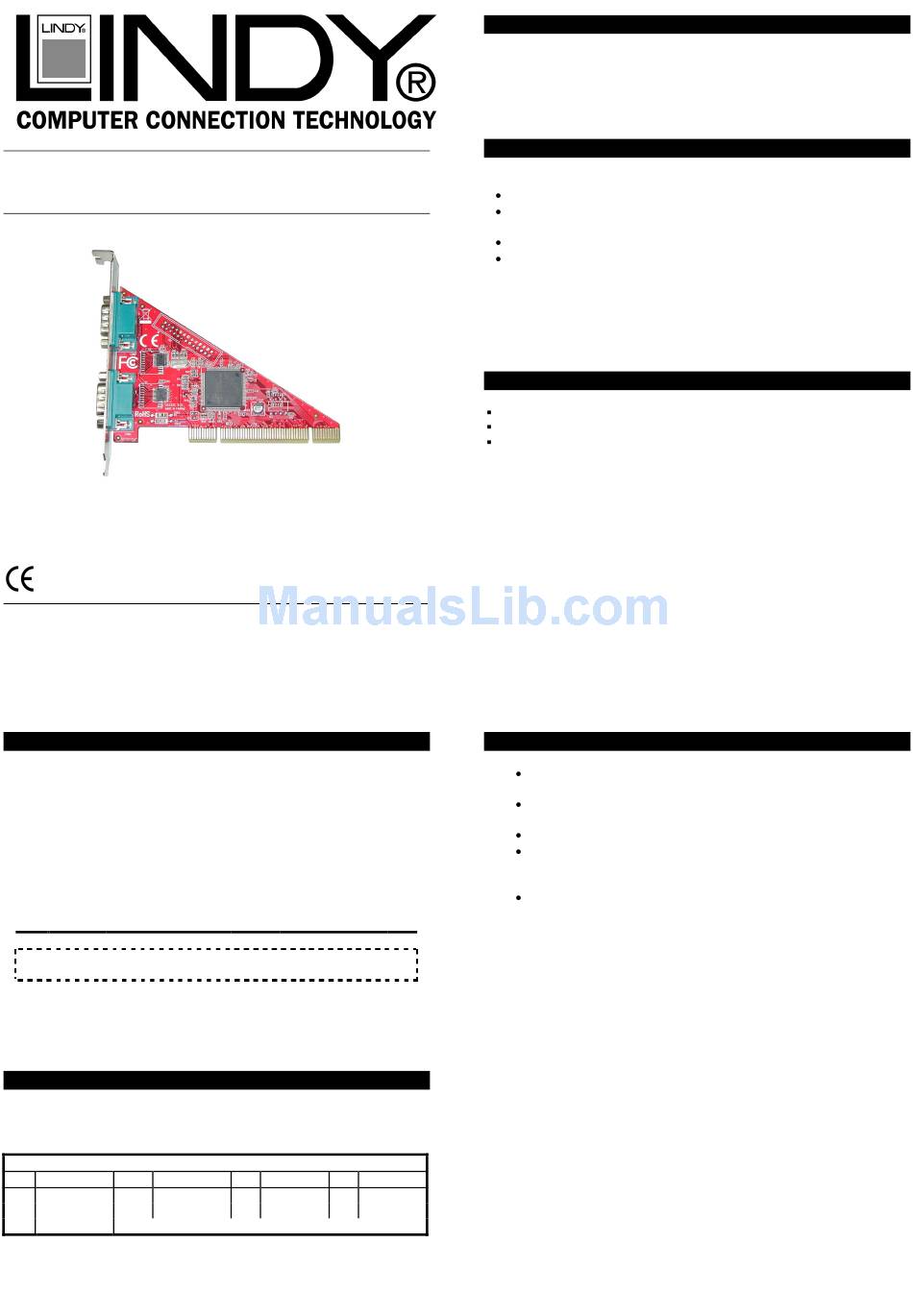

Lindy 51236 User Manual

PCI 2S (16C950 128 FIFO)
User Manual
LINDY No. 51236
www.lindy.com
Installation
1. Turn off the power of your computer and remove the power
cable
2. Install the PCI card into an available PCI slot in your computer
3. Connect the peripheral ie Printer, Modem, etc. to the adapters
port
4. Re-connect the power cable & turn on the power of your
computer
PCI device listing display (for example...)
Bus Device Func Vendor ID
No No No
0 7 1 8086
0 13 0 1409
If the Vendor ID, Device ID, Device Class or IRQ aren't displayed or an
error occurs, please try another PCI slot.
Once the hardware has installed correctly you can start installing the
software from the driver CD.
Pin Assignments
Serial 9 Pin male connector pin assignments:
Serial 9 Pin male connector :
Pin Signal Pin Signal
1 CD 4 DTR
2 RD 5 GROUND
3 TD
English
Device Device Class IRQ
ID
7010 IDE Controller 14
7168 Simple COMM. 10
Controller
Pin Signal Pin Signal
6 DSR 8 CTS
7 RTS 9 RI
Introduction

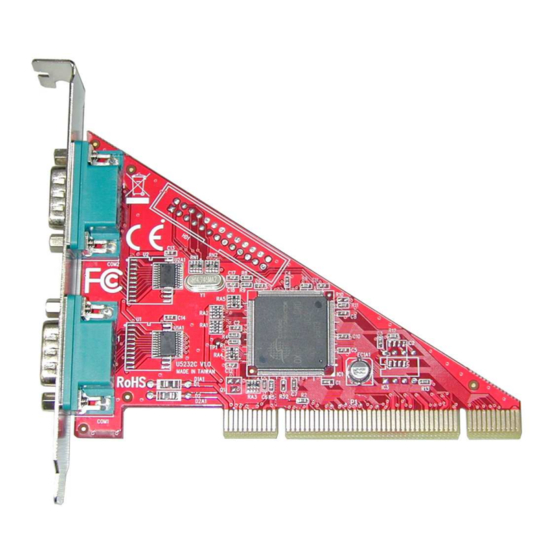

Thank you for purchasing the LINDY PCI two Port Serial. This card is
equipped with two high speed RS-232 serial interfaces.
The serial ports include 128Byte FIFO with speeds up to 921Kb/Sec.
Port Specification
Serial Port:
Chipset: Oxford uPCI952, 128Byte FIFO
Compatible chips: with 16C950, 16C750, 16C650, 16C550,
and 16C450.
IEEE standard: RS-232 Interface
Max. Speed: Up to 921Kb/Sec (HYPER Terminal program)
Package Contents
1 x LINDY PCI 2S Card
LINDY User manual
LINDY Driver CD
Technical Specifications
Compatibility: PCI 32Bit card for 486, 586, Pentium,
Pentium-II, P-III, P4, C5, K6, K7
Operating system: WIN 9.x, ME, NT, 2000, XP, 2003
Server, VISTA, WIN7, LINUX,
Chipset: Oxford uPCI952
Connections:
Serial: 2 x DB9 Male
PCB: 2 Layer / 120 x 76 mm
