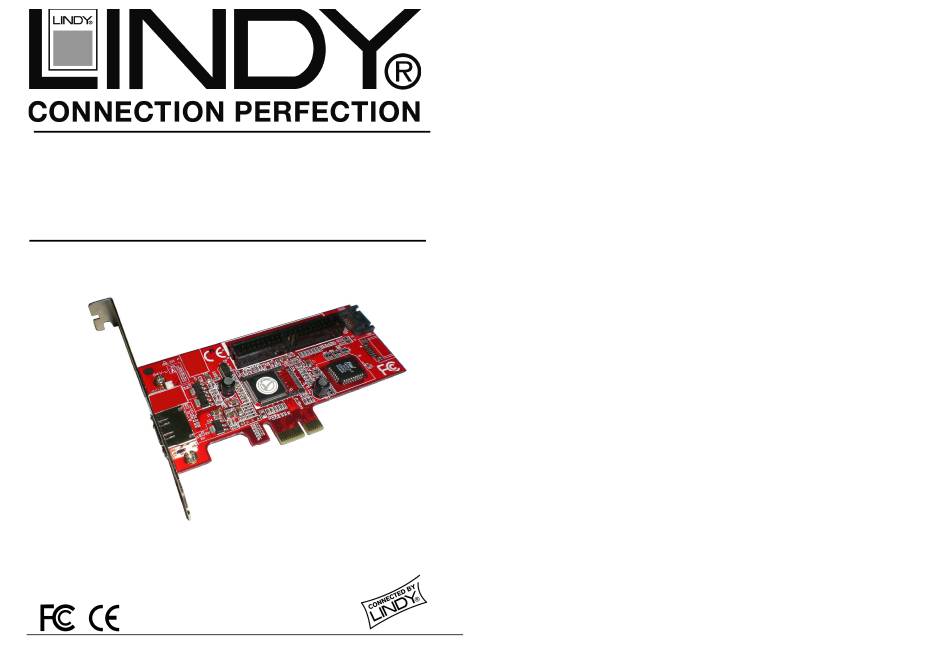

Lindy 51125 User Manual

_________________________________________ ________________________________
2 Ports SATA II & 1 Port PATA
User Manual
LINDY No. 51125
www.LINDY.com
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (AUG. 2009)

Overview

PCIe Card
SATA II/PATA
•
•
•
•
•
English
•
•
•
PCI Express
•
•
•
Overall
•
•
•
•
•
•
•
•
RAID AP
•

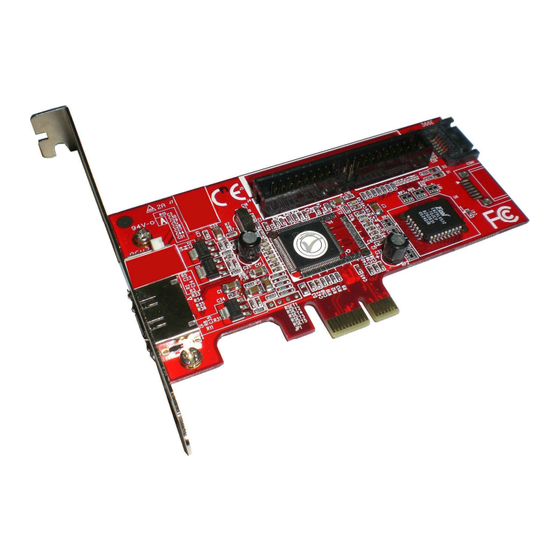

The SATA PCI Express Card provides two-port SATA II and one-port PATA
connectivity .The card supports both AHCI and Legacy IDE controller to increase
system feasibility, including Native Command Queuing (NCQ), Hot Plugging,
ATAPI Device Supporting, Port Multiplier with Command-based Switching
Supporting, Programmable Output Swing Control to fit SATA II Gen2i and Gen2m
(External SATA Connection, eSATA). It features PCI Express bus and Serial ATA II
interface to express high performance storage devices.
Supports 2-port 3.0Gbps SATA II interface
Supports two independent SATA II channels (separate logic and FIFO)
Supports Native Command Queue (NCQ) on SATA II port
Supports SATA II Gen2i and Gen2m (External SATA Connection, eSATA)
Supports Port Multiplier with Command-based Switching on SATA II port
Supports up to UDMA6 transfer mode of PATA
Supports up to 4 storage device connection
Supports up to 0,1,0+1,JBOD RAID function
Supports 1-Lane 2.5Gbps PCI Express bus
Internal native interface multiplexed to 2-port SATA II and 1-port PATA
All registers accessible in unified memory space
Integrated 1-Lane PCI Express PHY and 2-port SATA II PHY
Integrated two PLL for both PCI Express bus and SATA II interface
Output swing control and Automatic impedance calibration for both PCI Express and
SATA II PHY
Supports up to 64K Byte external Flash for BIOS expansion
Supports a slave SMBus interface (follow System Management Bus Specification
Revision 1.1)
Fabricated 0.18um/3.3V UMC CMOS Standard Logic Process with 1.8V and 3.3V
Available in 100-pin LQFP package
Pin compatible with JMB361 (1-port SATA II & 1-port PATA Host Controller)
Supports RAID 0,1,0+1 & JBOD. Form user's viewpoint, a windows AP provides
facility to manage RAID built on 363. Support Windows 2000/XP/2003 RAID AP to
user in order to manage RAID function easier.
