MD Helicopters MD900 with PW206E Flight Manual

page of 450

/ 450
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

Manual:

CSP–900RFM206E–1, Rotorcraft Flight Manual

Models:

MD900 with PW 206E Helicopter

Original:

FILING INSTRUCTIONS:

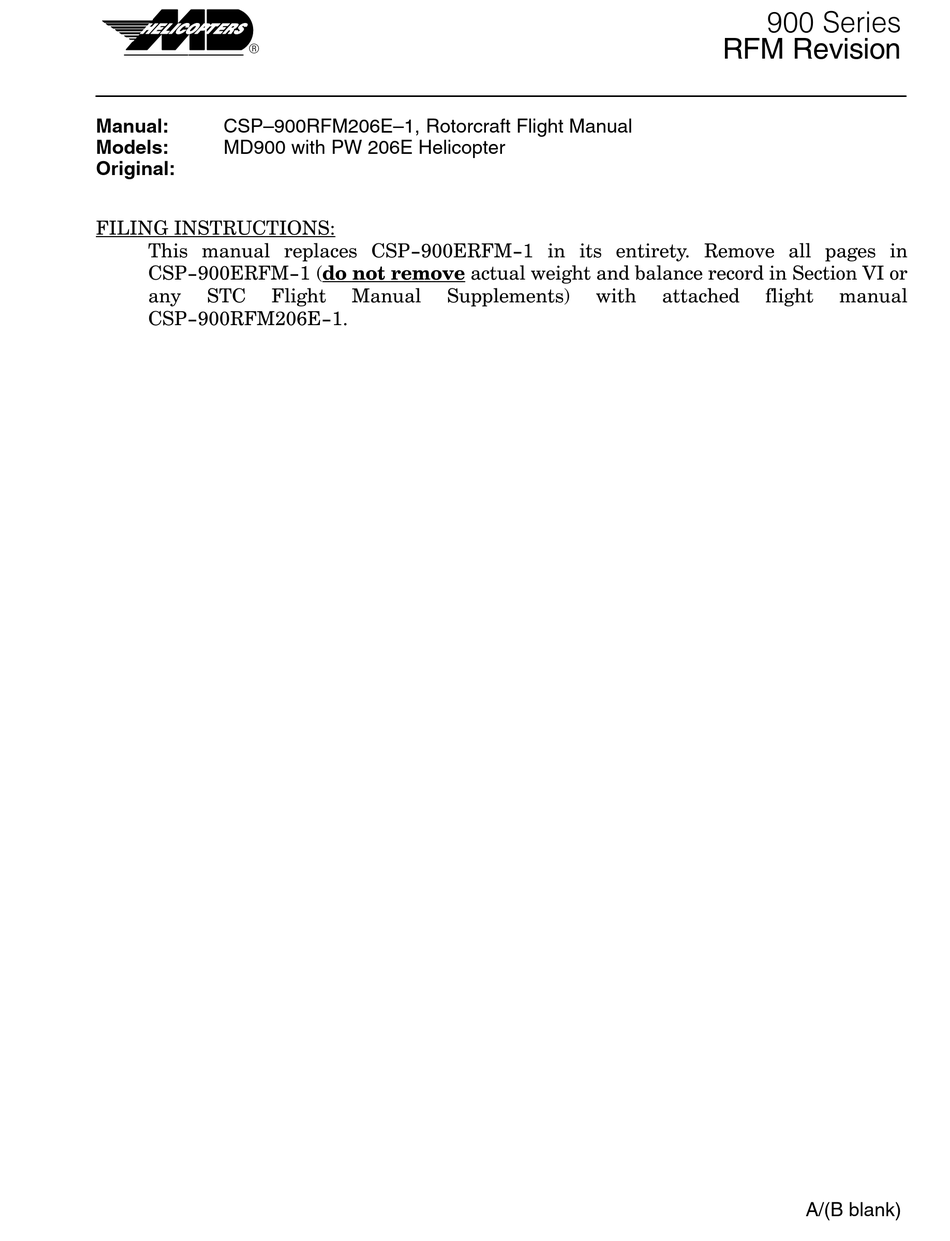

This manual replaces CSP−900ERFM−1 in its entirety. Remove all pages in

CSP−900ERFM−1 (do not remove actual weight and balance record in Section VI or

any

STC

Flight

CSP−900RFM206E−1.

Manual

Supplements)

900 Series

RFM Revision

with

attached

flight

manual

A/(B blank)

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the MD900 with PW206E and is the answer not in the manual?

Questions and answers

Summary of Contents for MD Helicopters MD900 with PW206E

Page 1 900 Series RFM Revision Manual: CSP–900RFM206E–1, Rotorcraft Flight Manual Models: MD900 with PW 206E Helicopter Original: FILING INSTRUCTIONS: This manual replaces CSP−900ERFM−1 in its entirety. Remove all pages in CSP−900ERFM−1 (do not remove actual weight and balance record in Section VI or Flight Manual Supplements)
Page 3 CSP–900RFM206E–1 Cover Model MD900 with PW206E R O T O R C R A F T F L I G H T M A N U A L REGISTRATION NO: _________________ SERIAL NO: _________________ F90–001...
Page 5 Sections III, IV, V, X and section XI contain recommended procedures and data and are FAA approved. THIS MANUAL MUST BE KEPT IN THE HELICOPTER AT ALL TIMES. Copyright E 1999−2003 by MD Helicopters, Inc. All rights reserved under the copyright laws.
Page 6 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LOG OF REVISIONS BY DATE FAA / NON–FAA REVISIONS REVISION NUMBER AND DATE Original Issue . . . 3 September 1999 Revision 1 ..02 November 2001 Revision 2 .
Page 7 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E APPROVING AUTHORITIES F–iii/( F–iv blank) Original...
Page 9 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E TABLE OF CONTENTS PARAGRAPH PAGE Cover ..............Title Page .
Page 10 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E PARAGRAPH PAGE 2−10. Generator Limitations ..........2−7 2−11.
Page 11 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E PARAGRAPH PAGE 4−9. Cruise ..............4−26 4−10.
Page 12 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E PARAGRAPH PAGE Section VII – Systems Description 7−1. Helicopter Exterior Description ......... . . 7−1 7−2.
Page 13 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E PARAGRAPH PAGE Section IX Additional Operations and Performance Data 9−1. Abbreviated Checklists ..........9−1 9−2.
Page 15 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E SUMMARY OF REVISIONS TO THE ROTORCRAFT FLIGHT MANUAL NOTE: Revisions are listed below by number with appropriate remarks. REVISION SUMMARY OF REVISIONS NUMBER Reissue #1 This reissue replaces CSP−900ERFM−1 in its entirety. Section III.
Page 16 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER Cover − − − − − − − − Original FRONT F−i Original − − − − − − − − F−ii Original −...
Page 17 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 1−9 − − − − − − − − Original 1−10 − − − − − − − − Original 1−11 −...
Page 18 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 3−3 Original − − − − − − − − 3−4 Original − − − − − − − − 3−5 Original −...
Page 19 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 3−38 Original − − − − − − − − 3−39 Original − − − − − − − − 3−40 Original −...
Page 20 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 4−27 Original − − − − − − − − 4−28 Original − − − − − − − − 4−29 Original −...
Page 21 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 5−24 Original − − − − − − − − 5−25 Original − − − − − − − − 5−26 Original −...
Page 22 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 6−i − − − − − − − − Original 6−ii − − − − − − − − Original 6−1 −...
Page 23 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 7−5 − − − − − − − − Original 7−6 − − − − − − − − Original 7−7 −...
Page 24 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 7−39 − − − − − − − − Original 7−40 − − − − − − − − Original 7−41 −...
Page 25 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 8−i − − − − − − − − Original VIII 8−ii − − − − − − − − Original 8−1 −...
Page 26 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 8−33 − − − − − − − − Original 8−34 − − − − − − − − Original 8−35 −...
Page 27 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 9−17 − − − − − − − − Original 9−18 − − − − − − − − Original 9−19 −...
Page 28 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 10−23/(10−24 blank) Original − − − − − − − − 10−25 Original − − − − − − − − 10−26 Original −...
Page 29 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E LIST OF EFFECTIVE PAGES FAA APPROVED NON FAA APPROVED SECTION PAGE NUMBER REVISION NUMBER REVISION NUMBER 11−7 Original − − − − − − − − 11−8 Original − − − − − − − − 11−9 Original −...
Page 31 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E General E C T I O N ENERAL TABLE OF CONTENTS PARAGRAPH PAGE 1−1. Introduction ............1−1 1−2.
Page 33: Introduction
This manual meets all FAA requirements for APPROVED DATA and that data is so designated. MD Helicopters, Inc. has included additional supplemental data which is intended to provide the pilot with information that expands, enhances and eases his task. 1–3. ORGANIZATION...
Page 34 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E General SECTION III − EMERGENCY AND MALFUNCTION PROCEDURES (FAA Approved) Problems which could be encountered in flight are defined and the procedures necessary to cope with or alleviate them are discussed. The data is recommended by the manufacturer.
Page 35: Method Of Presentation
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E General SECTION XI Increased Gross Weight Operations (FAA Approved) Information contained in this section allows the pilot to operate at internal gross weights up to 6500 pounds. At the front of each section there is an table of contents that lists the data by para graph number, title, and page number.
Page 36: Abbreviations
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E General LAND AS SOON AS POSSIBLE − Execute a power−on approach and landing to the nearest safe landing area that does not further jeopardize the aircraft or occupants. LAND AS SOON AS PRACTICAL − Extended flight is not recommended. Whether to complete the planned flight is at the discretion of the pilot−in−command.
Page 37 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E General Intercom System Instrument Flight Rules Federal Aviation Administration In Ground Effect FADEC Full Authority Digital Electronic Control IIDS Integrated Instrumentation Display System Federal Aviation Regulation Instrument Meteorological Conditions Fuel Metering Unit Flights since overhaul INST Instrument...
Page 38 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E General R.H. Right Hand Meters Rotor MBAR Millibar Maximum Continuous Power Minutes Seconds Miles−Per−Hour Main Rotor Sound Exposure Level MSTR Master Sea Level Navigation Searchlight Gas Producer RPM Starts since overhaul Power Turbine RPM Rotor Speed Station STBY...
Page 39: Multi−Purpose Utility Operations
Refer to Section X for Optional Equipment. MD Helicopters, Inc. optional equipment items and STC items which are FAA ap proved for the MD EXPLORER may be installed and used.
Page 40 4555 E McDowell Rd Mesa, AZ 85215−9734 or your local Service Center, Distributor, or Sales Company. All persons who fly or maintain MD helicopters are urged to keep abreast of the latest information by using the subscription service. 1–8 Original...
Page 41: Rotorcraft Certification
Certificate Number H19NM. The FAA model designation is MD900 The FAA/ICAO aircraft type designator is EXPL The MD Helicopters, Inc. commercial designation is MD Explorer 1–10.PILOT’S BRIEFING Prior to flight, passengers should be briefed on the following. Approach and depart the rotorcraft from the front in full view of the pilot, being aware of the main rotor.
Page 42: Dimensions
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E General 1–11. DIMENSIONS Refer to Figure 1−1 and Figure 1−2 for exterior dimensions and interior volumes. 33.83 FT (10.34 M) 5.33 FT (1.62 M) 5.92 FT (1.80 M) 38.38 FT (11.84 M) 9.33 FT °...
Page 43 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E General 6.25 FT (1.9 M) 4.75 FT (1.4 M) 12.9 FT (3.9 M) 18.25 FT (5.5 M) BAGGAGE COMPARTMENT 51.4 FT (1.5 M 4.08 FT (1.2 M) ENTIRE AFT CABIN 172.5 FT (4.9 M 4.16 FT (1.2 M) WITH DOOR ON 4.33 FT (1.3 M) WITH DOOR OFF...
Page 44: Conversion Charts And Tables
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E General 1–12.CONVERSION CHARTS AND TABLES EXAMPLE: CONVERT 100 KNOTS TO MPH AND TO KM/HR: ENTER CHART AT 100 KNOTS AND FOLLOW ARROW TO SLOPING LINE. TO FIND MPH, MOVE LEFT AND READ 115 MPH.
Page 45 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E General TEMPERATURE ° ° EXAMPLE: CONVERT °F TO °C KNOWN: TEMPERATURE = 50° F METHOD: ENTER AT 50° F READ 10° C ACROSS ON °C SCALE –10 METHOD MAY BE REVERSED TO FIND ° F WHEN ° C IS KNOWN –20 –20 –30...
Page 46 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E General Table 1–1. Liquid Measure – U.S. Gallons to Liters U.S. Gallons Liters Liters Liters Liters Liters Liters Liters Liters Liters Liters – 3.785 7.571 11.356 15.142 18.927 22.713 26.498 30.283 34.069 37.854 41.640 45.425...
Page 47 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E General Table 1–3. Linear Measure – Feet to Meters Feet Meters Meters Meters Meters Meters Meters Meters Meters Meters Meters – 0.305 0.610 0.914 1.219 1.524 1.829 2.134 2.438 2.743 3.048 3.353 3.658 3.962 4.267...
Page 48 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E General KNOTS METERS/SEC EXAMPLE CONVERT KNOTS TO METERS/SEC KNOWN: WIND SPEED = 25 KT METHOD: ENTER CHART AT 25 KT READ APPROXIMATELY 13 METERS/SEC ACROSS ON METERS/SEC SCALE METHOD MAY BE REVERSED TO FIND KNOTS WHEN METERS/SEC ARE KNOWN F92–006...
Page 49 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E General EXAMPLE 1: 29.44 IN. Hg = 997 mbar EXAMPLE 2: 30.18 IN. Hg = 1022 mbar 29.5 30.5 31.1 29.4 30.4 31.0 29.3 30.3 30.9 29.2 30.2 30.8 29.1 30.1 30.7 29.0 30.0 30.6...
Page 50 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E General Table 1–5. Standard Atmosphere Table Standard Sea Level Conditions: Temperature: 59°F (15°C) Pressure: 29.921 in.Hg (1013.25 mbar) Density: 0.0023769 slugs/ft (1.225 kg/m TEMPERATURE ALTITUDE ALTITUDE DENSITY DENSITY PRESSURE PRESSURE PRESSURE PRESSURE PRESSURE PRESSURE pσ...
Page 51: Table Of Contents
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations E C T I O N IMITATIONS TABLE OF CONTENTS PARAGRAPH PAGE 2−1. Flight Restrictions ............2−1 2−2.
Page 52: Paragraph Page
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations PARAGRAPH PAGE Figure 2−14. Decals and Placards (Sheet 1 of 2) ......2−13 Figure 2−14.
Page 53: 2−1. Flight Restrictions
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations SECTION II LIMITATIONS 2–1. FLIGHT RESTRICTIONS Approved as an eight place (maximum) helicopter. The minimum flight crew consists of one pilot operating the helicopter from the right seat. The left crew seat may be used for an additional pilot when the approved dual controls are installed.
Page 54: 2−2. Environmental Operating Conditions
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations 2–2. ENVIRONMENTAL OPERATING CONDITIONS Kinds of Operations: This rotorcraft is certified in the normal helicopter category for day and night VFR operation when the appropriate instruments and equipment required by the airworthiness and/or operating rules are approved, installed and are in oper able condition.
Page 55 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations Critical wind azimuth in hover: Above 5000 feet density altitude, hovering operations in winds above 15 knots from the critical azimuth (120° to 135°) are to be avoided (Ref. Figure 2−2). 16000 HOVER OPERATION...
Page 56: 2−3. Airspeed Limitations
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations 2–3. AIRSPEED LIMITATIONS Observe gross weight depictions on chart. decreases at a rate of 4 kts/1000 FT above 5500 Feet H 100 KIAS ENVELOPE 20000 DUE TO TIP MACH : POWER ON 15000 −25°C −36°C...
Page 57: 2−5. Center Of Gravity (Cg Envelope)
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations 20000 4000 2000 1153 −2000 −4000 −6000 −6812 −8000 4185 3500 4000 4500 5000 5500 6000 3000 GROSS WEIGHT − LB F92−169 Figure 2–4. Minimum Flying Weight 2–5. CENTER OF GRAVITY (CG ENVELOPE) Ensure helicopter CG and weight are within approved limits throughout flight.
Page 58: 2−7. Rotor Speed Limitations
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations 2–7. ROTOR SPEED LIMITATIONS Power on: Continuous operation Maximum 101% Minimum 99% Transient Range: 91% to 98% 102% to 108% Power off: Continuous operation: 108% maximum 88% minimum 2–8. TRANSMISSION LIMITATIONS Maximum transmission oil pressure: 104% PSI Minimum transmission oil pressure: See Figure 2−1 1 Maximum transmission oil temperature: 110°C...
Page 59: 2−10. Generator Limitations 2−7
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations Exhaust gas temperature limits: Normal limits: Maximum continuous: 820°C Takeoff (5 minutes): 821°C to 863°C Transient limits: 864°C to 972°C for 20 seconds OEI limits: Maximum continuous: 885°C 2.5 minute: 886°C to 930°C Maximum transient limits: 931°C to 972°C for 20 seconds Overtemperature limits for starting: 760°C for 2 seconds maximum...
Page 60: 2−12. Fuel System Limitations 2−8
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations 2–12.FUEL SYSTEM LIMITATIONS Table 2–1. Fuel Specifications PRIMARY FUELS SECONDARY FUELS Jet A (ASTM−D−1655) Jet B (ASTM−D−1655) Jet A−1 (ASTM−D−1655) JP−4 (MIL−T−5624) JP−5 (MIL−T−5624) JP−8 (MIL−T−83133) Notes: (1). Using these primary fuels, the engine shall operate satisfactorily throughout the altitude/temperature envelope (Ref.
Page 61: 2−13. Integrated Instrumentation Display System (Iids) 2−9
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations 2–13.INTEGRATED INSTRUMENTATION DISPLAY SYSTEM (IIDS) EXHAUST GAS ENGINE TORQUE TEMPERATURE DISPLAY DISPLAY ......DIGITAL TORQUE DISPLAYS...
Page 62 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations NORMAL OEI OPERATIONS TORQUE TORQUE OPERATIONS >109% >130% >100% >124% >98% >122% FAIL FAIL NOTE: > = GREATER THAN < = LESS THAN F92–014 Figure 2–8. Engine Torque >863°C >930°C >820°C >885°C >815°C >879°C...
Page 63 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations SECONDARY IIDS DISPLAY LEFT ENGINE PARAMETER TRANSMISSION OIL TRANSMISSION PARAMETER RIGHT ENGINE PARAMETER DISPLAY DISPLAY PRESSURE DISPLAY DISPLAY ENGINE OIL TEMPERATURE DISPLAY CAB HEAT FIRE FIRE FIRE ENGINE OIL PRESSURE DISPLAY CHIPS CHIPS CHIPS...
Page 64 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations FIRE CHIPS HIGH WARNING: >110°C HIGH WARNING: >104% PSI HIGH CAUTION: >93°C HIGH CAUTION: >100% PSI FLIGHT IDLE ° C %PSI LOW CAUTION: <−18°C LOW CAUTION: <75% PSI NONE LOW WARNING: <65% PSI <50% PSI FUEL LOW FUEL WARNING LOW CAUTION: 300 LBS...
Page 65: Decals And Placards
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations 2–14.DECALS AND PLACARDS SEAT ATTACH LOCATED AT UPPER CABIN ONLY SEAT ATTACH POINTS NO TIEDOWN FUEL CELL ACCESS DOOR WARNING LOCATED ON CABIN FLOOR REPLACE DOOR BEFORE FLIGHT AND JACKING AIRCRAFT WARNING LOCATED ON BAGGAGE THIS PANEL MUST BE SECURED...
Page 66 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Limitations DURING OPERATIONS IN TEMPERATURES OF 13_F (–10_C) OR COLDER, FUEL ADDED TO THE TANK MUST CONTAIN LOCATED ABOVE FUEL FILLER EITHER ANTI-ICING ADDITIVE PFA-55MB OR ANTI-ICING ADDITIVE PER MIL-I-27868 OR MIL-I-85470 WITH A MINIMUM CONCENTRATION OF .06% BY VOLUME AND A MAXIMUM CONCENTRATION OF .15% BY VOLUME.
Page 67 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures E C T I O N MERGENCY AND ALFUNCTION ROCEDURES TABLE OF CONTENTS PARAGRAPH PAGE 3−1. General ..............3−1 3−2.
Page 68 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures PARAGRAPH PAGE VSCS Failure ............3−22 Figure 3−3.
Page 69 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures PARAGRAPH PAGE Cabin Door ............3−38 Baggage Door .
Page 71: General
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures SECTION III EMERGENCY AND MALFUNCTION PROCEDURES 3–1. GENERAL The procedures contained in this section are to be followed in the event of an emergen cy or malfunction that may potentially affect the safety of the aircrew, passengers, aircraft, or personnel on the ground.
Page 72: Caution And Warning Annunciators And Audio Tones
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–2. CAUTION AND WARNING ANNUNCIATORS AND AUDIO TONES A red warning or yellow caution annunciator will illuminate on the IIDS display and in some cases, an audio warning will sound announcing a failure or malfunction. Some secondary IIDS displays have a digital display with a corresponding caution/ warning annunciator.
Page 73: Engine Emergencies
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–3. ENGINE EMERGENCIES The ENG OUT warning annunciator is located between the TORQUE and EGT vertical displays. When the IIDS senses an engine failure, the ENG OUT TORQUE warning flashes and the low rotor RPM tone is activated for one cycle.
Page 74 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures Conditions: In flight: Maintain operating engine within OEI limits Reduce airspeed to 100 KIAS or less (Ref. Section II) Identify affected (failed) engine by cross checking torque, N CAUTION prior to performing the following steps.
Page 75 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures SECOND ENGINE FAILURE Indications: Low rotor RPM with low rotor tone ON if RPM is below 88%. Possible left yaw Torque, N , and N decreasing to zero. Procedures: Lower collective and maintain rotor speed within limits.
Page 76: Emergency Landing Procedures
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–4. EMERGENCY LANDING PROCEDURES WATER LANDING − DUAL ENGINE FAILURE Procedures: Adjust collective pitch as necessary to establish autorotation. Cabin doors may be opened when airspeed is 60 KIAS or less. Make autorotative approach, flaring as required to minimize forward speed at touchdown.
Page 77 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures WATER LANDING − OEI/AEO Conditions: Available power allows hovering. NOTE : The gross weight of the aircraft will determine whether sufficient power is available to terminate the approach at a hover or whether a run–on landing must be performed if landing OEI.
Page 78 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures Conditions: Available power does not allow hovering. Procedures: Establish normal approach to intended landing point. Cabin doors may be opened when airspeed is 60 KIAS or less. Plan to arrive at 100 FT above touchdown at approximately 40 KIAS. At approximately 50 FT, enter a decelerating attitude and increase power to reduce rate of closure.
Page 79: Eec Malfunctions
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–5. EEC MALFUNCTIONS TORQUE EEC NON CRITICAL FAULT CAUTION ANNUNCIATOR ( YELLOW) FAIL FAIL EEC MANUAL MODE EEC CRITICAL FAULT WARNING ANNUNCIATOR (YELLOW) ANNUNCIATOR (RED) F92–021 Figure 3–1. EEC Caution/Warning Annunciators NOTE : The pilot should attempt to reset the EEC by by slightly moving the affected engine’s twistgrip out of the NORMAL detent, pressing the EEC RESET button,...
Page 80 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures Continue flight and monitor engine indications on the IIDS primary display. There is no N governing following EEC failures on both engines. CAUTION and power must be controlled by the pilot using a combination of collective and twistgrips.
Page 81 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures Indications: Inability to change engine mode with engine control switch. Conditions: In flight Procedures: Continue flight After landing, perform manual engine shutdown (Ref. paragraph 3−7). Conditions: On ground Procedures: Perform manual engine shutdown (Ref.
Page 82: Engine Starting − Manual
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures EEC MANUAL CONTROL Indications: EEC and MAN annunciator ON Procedures: EEC RESET switch PRESS Twistgrips CHECK IN NORMAL DETENT Indications: EEC annunciator flashing. The EEC is in automatic, but one of the twist grips is not in the normal position.
Page 83 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures Collective control: NOTE : The following steps of rotating the twist grip to reset the PLA are not required if the engine was previously shut down utilizing the manual shutdown procedures in paragraph 3–7.
Page 84 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures Abort start procedure: Twistgrip on selected engine NOTE : AT a point between NORMAL and OFF, the twist grip will no longer able to be rotated toward the OFF position without applying additional force (approximately 30 to 40 LBS).
Page 85: Engine/Aircraft Shutdown − Manual
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–7. ENGINE/AIRCRAFT SHUTDOWN – MANUAL NOTE : This procedure may be performed in the event a normal shutdown cannot be accomplished on one or both engines. Collective stick FULL DOWN Cyclic stick TRIM TO NEUTRAL...
Page 86: Fire Emergencies
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–8. FIRE EMERGENCIES CABIN FIRE/SMOKE Indications: Smoke and fume accumulation in the cabin. Conditions: On ground Procedures: Engine control switches Passengers/crew EVACUATE Rotor brake (if installed) APPLY Power switch Conditions: In flight Procedures: Cabin heat...
Page 87 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures ELECTRICAL FIRE Indications: Smoke and fume accumulation in the cabin. Conditions: On ground Procedures: Engine control switches Passengers/crew EVACUATE Rotor brake (if installed) APPLY Power switch Conditions: In flight Procedures: Cabin heat Fresh air vents...
Page 88 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures TRANSMISSION DECK FIRE LEFT ENGINE FIRE WARNING WARNING ANNUNCIATOR (RED) ANNUNCIATOR (RED) RIGHT ENGINE FIRE WARNING ANNUNCIATOR (RED) FIRE FIRE FIRE CHIPS CHIPS CHIPS F92–022 Figure 3–2. Engine/Transmission Deck Fire Annunciators ENGINE FIRE −...
Page 89 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures ENGINE FIRE − DURING FLIGHT Indications: Engine FIRE warning annunciator ON and activation of the warning tone for two cycles. Procedures: Attempt to confirm existence of fire Engine control switch OFF FOR AFFECTED ENGINE Fuel shutoff valve OFF FOR AFFECTED ENGINE...
Page 90: Flight Control Malfunctions
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–9. FLIGHT CONTROL MALFUNCTIONS ANTI−TORQUE FAILURE − GENERAL Different types of failure may require slightly different techniques for optimum success in recovery. Therefore, it is not possible to provide a standardized solution for an anti−torque emergency.
Page 91 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures Conditions: At a high hover Indications: Helicopter begins an uncommanded turn to the right and does not respond to pilot input to the pedals. Procedures: Reduce power with collective and attempt to fly away. NOTE : If altitude permits, a positive reduction of collective pitch may result in a stopping or slowing of the “uncommanded turn to the right”, and allow the pilot to fly out...
Page 92: Vscs Failure
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures Conditions: Left pedal applied Procedures: Use a shallow to normal approach into wind or with a right crosswind. Plan to touchdown with little or no forward speed. Maintain directional control with small adjustments in collective. VSCS FAILURE LEFT VERTICAL STABILIZER MID−RANGE DEFLECTION...
Page 93: Hydraulic System Failure 3−23
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures HYDRAULIC SYSTEM FAILURE Indications: Single system failure: The ‘‘1HYD’’ or ‘‘HYD2’’ caution annunciator illuminated on the caution/warning advisory display. Both hydraulic system pressures or ‘‘TEMPERATURE’’ indication will be displayed on the IIDS alphanumeric display.
Page 94: Collective Friction Failure 3−24
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures COLLECTIVE FRICTION FAILURE Conditions: Collective friction release failure Indications: 25 pounds of force required to move the collective up or down. Procedures: Continue flight. Conditions: Collective friction fails to engage Indications: Collective control movements will require only 5 pounds of force.
Page 95: 3−11. Engine And Generator Malfunction Indications 3−25
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–11. ENGINE AND GENERATOR MALFUNCTION INDICATIONS NOTE : Certain malfunctions may require an engine to be shutdown, however, the pilot must assess the type of problem and decide if the affected engine is to remain operational.
Page 96: Engine High Oil Pressure 3−26
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures ENGINE LOW OIL TEMPERATURE Indications: Lower yellow caution annunciator ON at +10°C and below for N >50%. Procedures: Allow engine oil temperature to increase to normal range before placing Engine Control in FLY.
Page 97: Engine Chips
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures ENGINE CHIPS Indications: Yellow CHIPS caution annunciator ON. Conditions: On ground: Shut down engine Conditions: In flight: Land as soon as practical. HIGH Indications: Red warning or yellow caution annunciator ON. Procedures: Reduce power to normal range Check engine torque and EGT indications...
Page 98: Generator High Load 3−28
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures GENERATOR HIGH LOAD Indications: Upper yellow generator high load annunciator ON. Procedures: Turn off unnecessary electrical equipment. Failure to turn off unnecessary electrical equipment may cause CAUTION the generator(s) to automatically go off line. GENERATOR Indications: Yellow GEN annunciator ON and %LOAD is ‘‘0’’.
Page 99: 3−12. Transmission Malfunction Indications 3−29
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–12.TRANSMISSION MALFUNCTION INDICATIONS TRANSMISSION CHIPS CAUTION FIRE WARNING TRANSMISSION ANNUNCIATOR (RED) ANNUNCIATOR (YELLOW) HIGH OIL TEMP WARNING ANNUNCIATOR (RED) TRANSMISSION TRANSMISSION FIRE HIGH OIL PRESSURE HIGH OIL TEMP CAUTION WARNING ANNUNCIATOR (RED) CHIPS ANNUNCIATOR (YELLOW)
Page 100: Transmission Oil Pressure Low 3−30
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures TRANSMISSION OIL PRESSURE LOW Indications: Lower red warning annunciator ON. Conditions: Loss of transmission oil pressure. Procedures: Reduce power to 56% torque or less as soon as possible. Land as soon as possible.
Page 101: 3−13. Fuel System Display Advisories 3−31
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–13.FUEL SYSTEM DISPLAY ADVISORIES CAB HEAT FIRE FIRE FIRE CHIPS CHIPS CHIPS BAT HOT FUEL FILTER FUEL FILTER IMPENDING BAT WRM BY−PASS CAUTION IMPENDING BY−PASS (YELLOW) CAUTION ROTOR °...
Page 102: Fuel Low
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures FUEL LOW Indications: Fuel quantity displays yellow caution bars when fuel level decreases to 300 pounds; the red warning bar displays at 150 pounds. Low fuel warning tick mark displays at 97 to 127 LBS.
Page 103: Single Fuel Probe Failure 3−33
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures SINGLE FUEL PROBE FAILURE Indications: Digital fuel quantity indicator blanked. Vertical fuel quantity segments indicate approximately half the remaining fuel quantity. Procedures: NOTE : Continuous display of fuel flow is available on the IIDS as a top level menu item: L ENG WF XXX PPH L ENG WF XXX PPH Continue the flight using consumption and time calculations.
Page 104: Fuel Shutoff Valve Malfunction 3−34
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures FUEL SHUTOFF VALVE MALFUNCTION Indications: Two yellow bar segments flashing above and below the fuel flow line to the left or right of center. Conditions: Fuel valve not fully opened/closed Procedures: In flight: Continue flight...
Page 105: 3−14. Caution And Warning Advisories 3−35
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–14.CAUTION AND WARNING ADVISORIES CABIN HEAT WARNING ANNUNCIATOR (RED) CAB HEAT BATTERY HOT WARNING ANNUNCIATOR (RED) BAT HOT BATTERY WARM CAUTION ANNUNCIATOR (YELLOW) BAT WRM ROTOR BRAKE ROTOR CAUTION ANNUNCIATOR (YELLOW) BRAKE CABIN...
Page 106: Battery Hot
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures BATTERY HOT Indications: Red BAT HOT warning annunciator ON (battery internal temperature 71°C) and activation of the warning tone for two cycles. Conditions: On ground Procedures: Shut down aircraft. Service or replace battery prior to next flight.
Page 107: Battery Warm
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures BATTERY WARM Indications: Yellow BAT WRM annunciator ON (battery internal temperature 57°C). Conditions: On ground Do not attempt to start an engine on battery power with BAT WRM CAUTION annunciator ON.
Page 108: Rotor Brake
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures ROTOR BRAKE Indications: Yellow ROTOR BRAKE annunciator ON. Procedures: Rotor brake handle CHECK STOWED If annunciator remains on, land as soon as possible. CABIN DOOR Indications: Yellow CABIN DOOR annunciator ON. Conditions: On ground Procedures: Close and safe lock door...
Page 109: Other Malfunction/Advisories
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures IIDS Indications: Yellow IIDS annunciator ON. Conditions: IIDS fault Procedures: Continue flight. Check fault log after landing; advise maintenance. 3–15.OTHER MALFUNCTION/ADVISORIES IIDS FAILURE Indications: IIDS displays blanks. Conditions: Loss of electrical power to IIDS. Procedures: On ground Shut down.
Page 110 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures EXTINGUISHER PRESSURE LOW Indications: EXTNGSHR PRESS LO message on IIDS alphanumeric display Conditions: Low pressure in Halon containers Procedures: Advise maintenance IPS BYPASS Indications: IPS BYPASS message on IIDS alphanumeric display. Conditions: Both IPS bypass doors open.
Page 111: Emergency Egress
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–16.EMERGENCY EGRESS Crew compartment doors: Both doors function as primary and emergency exits. Cabin door window removal: Each cabin door window may be used as an emergency exit by pulling the emergency exit pull tab and pulling the window inward.
Page 112: Emergency Equipment
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Emergency and Malfunction Procedures 3–17.EMERGENCY EQUIPMENT Emergency Fire Extinguisher: The fire extinguisher mounts to the aft side of the center console. It detaches from the mounting bracket by unfastening the quick release clamps. The extin guisher uses Halon 1211 extinguishing agent.
Page 113 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures E C T I O N ORMAL ROCEDURES TABLE OF CONTENTS PARAGRAPH PAGE 4−1. Preflight Requirements ..........4−1 Figure 4−1.
Page 115: Preflight Requirements
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures SECTION IV NORMAL PROCEDURES 4–1. PREFLIGHT REQUIREMENTS NOTE : The checks described in this Section apply to the standard configuration MD900 and do not include certain optional equipment items. Preflight checks for optional equipment items may be found in Section X of this manual.
Page 116 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures F92–031–1A Figure 4–1. Pilot’s Preflight Guide (Sheet 1 of 2) FAA Approved 4–2 Original...
Page 117 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures F92–031–2 Figure 4–1. Pilot’s Preflight Guide (Sheet 2 of 2) FAA Approved 4–3 Original...
Page 118: Pilot's Daily Preflight Check
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–2. PILOT’S DAILY PREFLIGHT CHECK Perform these checks prior to the first flight of the day. PRELIMINARY CHECKS Aircraft attitude CHECK Covers and tiedowns REMOVE Main rotor blades CHECK EXTERIOR CHECKS – FRONT Battery compartment BATTERY CONNECTED;...
Page 119 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures Door strut and strap OPERATION, SECURITY, CONDITION Crew Seat CONDITION; NOTHING STOWED UNDER SEAT Pilot pedals: Adjust ADJUSTMENT PINS ENGAGED Move pedals by hand OBSERVE MOVEMENT OF THRUSTER Electrical master panel: POWER switch BAT/EXT IIDS panel:...
Page 120 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures Auxiliary power door, avionics access panel, SECURITY, CONDITION static port, fuel cap Right side passenger door: Upper and lower track and guide CHECK Door rollers CHECK OPERATION Door skin and glass CHECK Door stops/pins CHECK...
Page 121 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures Oil cooler CHECK LEAKS Forward access door CHECK OPERATION AND CONDITION; CLOSE RIGHT CENTER TRANSMISSION DECK Oil cooler: Cooling air inlet NO OBSTRUCTIONS Oil cooler CHECK MOUNTING AND CONDITION Air ducts CHECK MOUNTING AND CONDITION Transmission: Transmission oil level...
Page 122 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures Transmission access door latches, hinges, CHECK OPERATION; CLOSE and door Cabin door closed and latched CHECK FUSELAGE – RIGHT TOP REAR Work platforms/steps. CHECK Engine air inlet w/o particle separator: Inlet screen CHECK –...
Page 123 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures Pitch change links CHECK Striker plates and rollers CHECK Inner flexbeam attach points CHECK Flexbeam lead and lag legs CHECK Upper and lower damper and damper caps CHECK Elastomeric feathering bearing CHECK Pitch change housing CHECK...
Page 124 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures TAILBOOM AND EMPENNAGE – RIGHT SIDE Tailboom attach ring CHECK Tailboom slots CLEAR OF OBSTRUCTIONS Tailboom CHECK CONDITION Horizontal stabilizer: Horizontal stabilizer attach points CHECK Horizontal stabilizer fairing CHECK Vertical stabilizer CHECK Nav light/strobe lenses CHECK...
Page 125 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures LEFT REAR FUSELAGE Fuselage skin CHECK Exhaust ejector cowl CHECK Work platforms/steps CHECK FUSELAGE – LEFT SIDE Landing gear: CHECK Aft crosstube and damper fluid level CHECK (REF. SECTION VII) Passenger step CHECK Skid tube and abrasion strips...
Page 126 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures FORWARD LEFT SIDE Left crew/passenger door: Glass and vents SECURITY, CONDITION Hinges CHECK Latch system and handle CHECK OPERATION Door release handle CONDITION Door strut and strap OPERATION, SECURITY, CONDITION Crew Seat CONDITION –...
Page 127 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures Environmental control system: (if installed) Evaporator CHECK Freon lines CHECK Air ductwork CHECK CONDITION Transmission deck CHECK FOR FOREIGN OBJECTS AND SIGNS OF FLUID LEAKAGE Transmission oil filter CHECK BYPASS INDICATOR (REF. SECTION VIII) Oil cooler CHECK LEAKS...
Page 128 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures NOTE : To reduce the possibility of over servicing and ensure accurate readings for oil consumption measurement, it is recommended that oil level always be checked within 10 minutes after engine shutdown. If oil level is in doubt, check at filler dipstick (Ref.
Page 129: Pilot's Preflight Check
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–3. PILOT’S PREFLIGHT CHECK Perform these checks prior subsequent flights of the same day. Fluid levels CHECK Transmission deck − signs of fluid leakage CHECK Air inlet screens/particle separators CHECK Fuel cap, access doors and panels CHECK Rotor blades...
Page 130 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures ATTITUDE AIRSPEED INDICATOR INDICATOR MAGNETIC COMPASS IIDS ALTIMETER IVSI VSCS INDICATOR ALTERNATE STATIC SOURCE TOGGLE VALVE FOOT HEATER CONTROL VALVE FE92–032–1 Figure 4–2. Instrument Panel – Single Pilot (Typical) FAA Approved 4–16 Original...
Page 131 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures FE92–032–2 Figure 4–3. Instrument Panel – Two Pilot (Typical) FAA Approved 4–17 Original...
Page 132 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures ENGINE CONTROL OVSP TEST L ENGINE R ENGINE IDLE FLY TRAIN IDLE FLY TRAIN UTILITY PANEL KEY SWITCH COCKPIT HEAT CONTROL FUEL SYSTEM L BOOST R BOOST AC/VENT TEST HEAT VENT COOL SYS 1...
Page 133 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures LEFT GENERATOR BUS BATTERY BUS AUDIO CRGO CKPT FUEL PNL2 BST PMP HOOK UTIL UTIL EVAP VENT COMP PITOT IGNTR DETENT GATE EVAP HEAT2 CNDSR POSN AREA CNSL INSTR STROBE LIGHTING GYRO2 FAN 2...
Page 134 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 1. COLLECTIVE FRICTION RELEASE 2. EEC RESET SWITCH LIGHTS 3. NOT USED 4. HOVER AND LANDING LIGHT SWITCH 5. SEARCH LIGHT SWITCH (SEE NOTE) 6. GO−AROUND SELECT SWITCH 7. COMMUNICATIONS SELECT SWITCH 8.
Page 135 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures AUTO PILOT DISENGAGE RADIO/ICS CARGO HOOK CYCLIC TRIM RELEASE FLOAT INFLATION SWITCH F92–036 Figure 4–7. Cyclic Stick Grip FAA Approved 4–21 Original...
Page 136: Engine Pre−Start Cockpit Check
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–4. ENGINE PRE–START COCKPIT CHECK ELECTRICAL POWER – OFF All cabin doors closed and safelocked CHECK Seat belt and shoulder harness for proper fit and engage FASTENED ment of buckle Operation of shoulder harness inertia lock CHECK Rotor brake...
Page 137 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures Lighting control panel: LT MSTR AS REQUIRED CONSOLE/IIDS/FLOOD/INSTR AS DESIRED STROBE/POSN/AREA AS DESIRED Electrical master panel: Avionics AS DESIRED L GEN and R GEN ON (OFF FOR GPU START) POWER Fuel system panel: L BOOST AND R BOOST LEFT/RIGHT FUEL SHUTOFF...
Page 138: Engine Starting − Automatic
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–5. ENGINE STARTING – AUTOMATIC NOTE : Either engine may be started first. Engine starts have been demonstrated at temperatures as low as –36°C with a ground power unit (GPU) assisted by the aircraft battery. Engine starts using battery power only have been demonstrated after the aircraft and battery have been statically exposed to temperatures down to 0°C for 12 hours or more.
Page 139: Engine Runup
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures IIDS CHECK FOR NORMAL INDICATIONS NOTE : Do not start second engine until at least 60% N is attained on the first engine. Repeat starting procedure for second engine GPU start only: L GEN/R GEN DISCONNECT 4–6.
Page 140: Takeoff
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–8. TAKEOFF NOTE : For takeoff in noise–sensitive areas, refer to Paragraph 4–14. Determine that hover area and takeoff path are clear. Follow normal helicopter takeoff procedures. NOTE : With the Range Extender filler installed and the fuel system ‘‘topped off’’, the IIDS fuel quantity will not display a decrease until after approximately 10 minutes of flight.
Page 141: Landing
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–11. LANDING Use the illustration below to determine safe landing attitudes. Nose up attitudes in excess of 9° 51′ will result in the tail skid contacting the landing surface. 32 IN (81cm) ′...
Page 142: Engine/Aircraft Shutdown − Normal
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–12.ENGINE/AIRCRAFT SHUTDOWN – NORMAL NOTE : Shut down the engines before exiting the helicopter unless safety or operational considerations dictate otherwise. Maximum demonstrated wind speed for starting and stopping the rotor is 50 knots.
Page 143 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures If there is evidence of high EGT following engine shut down, follow the WARNING dry run procedure as described below. Should an abnormal vibration occur as the N passes through 40 CAUTION to 35%, advise maintenance before further flights.
Page 144: Post Flight
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures CENTERING STRAP IN EXTENDED POSITION 90° CENTERING DECAL CENTERING STRAP IN STOWED POSITION) CENTERING STRAP CAUTION: CYCLIC SHOULD BE TRIMMED TO THE NEUTRAL POSITION FOR START−UP AND SHUTDOWN. NEUTRAL POSITION IS ACHIEVED WITH CENTERING STRAP EXTENDED, TOUCHING CENTERING DECAL WHEN PERPENDICULAR TO INSTRUMENT PANEL. F92–037 Figure 4–9.
Page 145: Noise Impact Reduction Procedures
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–14.NOISE IMPACT REDUCTION PROCEDURES Safe operation of the helicopter always has the highest priority. CAUTION Utilize the following procedures only when they will not conflict with safe helicopter operation. Certain flight procedures are recommended to minimize noise impact on surrounding areas.
Page 146: Flight With Doors Removed Or Cabin Doors Open
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–15.FLIGHT WITH DOORS REMOVED OR CABIN DOORS OPEN Stow or secure all loose objects with doors opened or removed. CAUTION The aircraft may be flown with cabin doors open or removed in accordance with the flight restrictions stated in Section II.
Page 147: One Engine Inoperative Training
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Normal Procedures 4–16.ONE ENGINE INOPERATIVE TRAINING Placing an engine control switch in the TRAIN position will simulate a one engine inoperative (OEI) condition by resetting the selected engine’s governed speed to 92% N , thereby putting the engine on standby while allowing single engine training on the opposite engine.
Page 149 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data E C T I O N ERFORMANCE TABLE OF CONTENTS PARAGRAPH PAGE 5−1. General ..............5−1 5−2.
Page 150 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data PARAGRAPH PAGE Figure 5−15. Single Engine Rate of Climb and Descent, at VY, OEI MCP, and 6000 LB Gross Weight ..... . . 5−20 Figure 5−16.
Page 151 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data PARAGRAPH PAGE Figure 5−40. Hover Ceiling, OGE, IPS, 2.5 Minute OEI Power ... . . 5−48 5−10. Height Velocity Diagram .
Page 153: General
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data SECTION V PERFORMANCE DATA 5–1. GENERAL This section contains baseline helicopter performance information as defined within certain conditions such as airspeed, weight, altitude, temperature, wind velocity and engine power available. Data is applicable to the basic helicopter without any optional equipment installed unless otherwise noted.
Page 154: Density Altitude Chart
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 5–3. DENSITY ALTITUDE CHART Description: The chart allows a quick estimation of the density altitude when pressure altitude and OAT are known. This chart can also be used to determine true airspeed.
Page 155 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 1.36 1.34 18000 1.32 1.30 16000 1.28 1.26 14000 1.24 1.22 12000 1.20 1.18 10000 1.16 1.14 8000 1.12 1.10 6000 1.08 4000 1.06 1.04 2000 1.02 1.00 0.98 −2000 −40 −30...
Page 156: Airspeed Calibration
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 5–4. AIRSPEED CALIBRATION Description: This charts show the difference between indicated and calibrated airspeeds. Indicated airspeed (IAS) corrected for position error equals calibrated airspeed (CAS). Use of chart: Use the chart as illustrated by the example. To determine calibrated airspeed, the pilot must know the indicated airspeed.
Page 157 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data INDICATED AIRSPEED − KNOTS F92–040 Figure 5–2. Airspeed Calibration Curve FAA Approved 5–5 Original...
Page 158: Best Rate Of Climb Speed
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 5–5. BEST RATE OF CLIMB SPEED Description: This chart shows the indicated airspeed to use for the best rate of climb at any given density altitude. Use of Chart: Use the chart as illustrated by the example below. Example: Wanted: Best rate of climb Known: Density altitude = 8,000 feet...
Page 159 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 18000 16000 14000 12000 10000 8000 6000 4000 2000 INDICATED AIRSPEED − KNOTS F92–041 Figure 5–3. Best Rate of Climb Speed (V FAA Approved 5–7 Original...
Page 160: Rate Of Climb And Descent − Oei
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 5–6. RATE OF CLIMB AND DESCENT – OEI Description: These charts (Ref. Figure 5−4 thru Figure 5−16) show the rate of climb vs pressure altitude at maximum continuous OEI power at gross weights ranging from 3500 LB to 6250 LB at the best rate of climb speed.
Page 161 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 19000 Continuous OEI Power, Vy, 3500 lb 18000 MAXIMUM OAT LIMIT 17000 16000 15000 14000 13000 12000 11000 10000 −10°C 9000 −36°C 8000 −30°C 0°C 7000 −20°C 6000 5000 4000 3000 2000...
Page 162 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 CONTINUOUS OEI POWER, VY, 3500 LB 19000 18000 17000 16000 15000 14000 −10°C 13000 12000 0°C 11000 10°C 10000 9000 20°C 8000 MAXIMUM OAT LIMIT 7000 6000 30°C 5000 4000 3000 40°C...
Page 163 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy, 4000 lb 19000 MAXIMUM OAT LIMIT 18000 17000 16000 15000 14000 13000 −10°C 12000 11000 0°C −36°C 10000 9000 −30°C −20°C 8000 7000 6000 5000 4000 3000 2000...
Page 164 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy, 4000 lb 19000 18000 17000 16000 15000 14000 13000 12000 −10°C 0°C 11000 10000 9000 8000 10°C 7000 MAXIMUM OAT LIMIT 6000 20°C 5000 4000 30°C 3000 2000...
Page 165 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy and 4500 lb 19000 MAXIMUM 18000 OAT LIMIT 17000 16000 15000 14000 13000 12000 11000 −10°C 10000 9000 0°C −20°C 8000 −30°C 7000 −36°C 6000 5000 4000 3000...
Page 166 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy, 4500 lb 19000 18000 17000 16000 15000 14000 13000 12000 11000 −10°C 10000 9000 0°C 8000 10°C 7000 20°C 6000 5000 30°C MAXIMUM 4000 OAT LIMIT 3000 40°C 2000...
Page 167 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 MAXIMUM OAT LIMIT Continuous OEI Power, Vy, 5000 lb 19000 18000 17000 16000 15000 14000 13000 12000 11000 10000 9000 8000 −36°C 7000 −30°C −20°C 6000 −10°C 5000 0°C 4000 3000 2000...
Page 168 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy, 5000 lb 19000 18000 17000 16000 15000 14000 13000 12000 11000 10000 −10°C 9000 8000 10°C 0°C 7000 6000 5000 4000 20°C 3000 MAXIMUM 30°C 2000 OAT LIMIT 40°C...
Page 169 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy and 5500 lb 19000 18000 17000 16000 15000 14000 13000 12000 11000 10000 9000 8000 7000 −36°C −30°C 6000 −20°C −10°C 5000 0°C 4000 3000 2000 1000 −1000...
Page 170 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy, 5500 lb 19000 18000 17000 16000 15000 14000 13000 12000 11000 10000 9000 8000 7000 −10°C 6000 0°C 5000 10°C 4000 MAXIMUM 20°C 3000 OAT LIMIT 30°C 2000 40°C...
Page 171 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy, 5750 lb 19000 18000 17000 16000 15000 14000 13000 12000 11000 10000 9000 −10°C 8000 0°C −30°C 7000 −20°C 10°C −36°C 6000 20°C 5000 30°C 4000 3000 40°C...
Page 172 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy, 6000 lb 19000 18000 17000 16000 15000 −10°C 14000 −20°C 13000 12000 11000 10000 0°C 9000 8000 10°C −36°C 7000 −30°C 6000 20°C 5000 30°C 4000 3000 2000...
Page 173 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 Continuous OEI Power, Vy, 6250 lb 19000 18000 17000 16000 15000 14000 −20°C 13000 12000 11000 10000 9000 −10°C 8000 0°C −36°C 7000 10°C −30°C 6000 20°C 5000 4000 30°C 3000 40°C...
Page 174: Rate Of Climb − Aeo
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 5–7. RATE OF CLIMB – AEO Description: These charts show the rate of climb vs pressure altitude at twin engine (AEO) MCP (Ref. Figure 5−17 thru Figure 5−23) or TOP (Figure 5−24 thru Figure 5−30) at the best rate of climb speed.
Page 175 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 MCP, V , 3,500 lb 19000 18000 17000 16000 −36°C −10°C 15000 −30°C 14000 −20°C 0°C 13000 12000 10°C 11000 10000 20°C 9000 8000 7000 MAXIMUM 30°C OAT LIMIT 6000 5000 4000...
Page 176 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 MCP, V , 4000 lb 19000 18000 17000 16000 −36°C −10°C 15000 −30°C 14000 −20°C 0°C 13000 12000 10°C 11000 10000 9000 20°C 8000 7000 MAXIMUM OAT LIMIT 30°C 6000 5000 4000...
Page 177 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 MCP, V , 4500 lb 19000 18000 17000 16000 −36°C 15000 −30°C −10°C 14000 −20°C 0°C 13000 12000 11000 10°C 10000 9000 20°C 8000 7000 30°C 6000 MAXIMUM 5000 OAT LIMIT 4000 40°C...
Page 178 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 MCP, V , 5000 lb 19000 18000 17000 −36°C 16000 15000 −30°C −10°C 14000 −20°C 13000 0°C 12000 11000 10°C 10000 9000 20°C 8000 7000 MAXIMUM OAT LIMIT 30°C 6000 5000 4000...
Page 179 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 MCP, V , 5500 lb 19000 18000 OAT°C 17000 16000 −36°C 15000 −30°C 14000 −10°C −20°C 13000 12000 0°C 11000 10000 10°C 9000 20°C 8000 7000 6000 30°C MAXIMUM OAT LIMIT 5000 4000...
Page 180 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 19000 MCP, V , 6000 lb 18000 17000 16000 15000 −36°C 14000 −30°C 13000 −10°C −20°C 12000 0°C 11000 10000 10°C 9000 8000 20°C 7000 6000 30°C 5000 4000 MAXIMUM 40°C 3000...
Page 181 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 19000 MCP, V , 6250 lb 18000 17000 16000 15000 −36°C 14000 −30°C 13000 −10°C −20°C 12000 0°C 11000 10000 10°C 9000 8000 20°C 7000 6000 30°C 5000 4000 3000 40°C MAXIMUM...
Page 182 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 TOP , V , 3,500 lb 19000 18000 17000 16000 −36°C 15000 −30°C 14000 −20° −10°C 13000 12000 0°C 11000 10°C 10000 9000 8000 20°C MAXIMUM 7000 OAT LIMIT 6000 30°C 5000...
Page 183 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 TOP, V , 4000 lb 19000 18000 17000 16000 15000 −20°C 14000 −30°C/−36°C −10°C 13000 12000 0°C 11000 10°C 10000 9000 20°C 8000 7000 6000 30°C 5000 MAXIMUM OAT LIMIT 4000 40°C 3000...
Page 184 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 TOP, V , 4500 lb 19000 18000 17000 16000 15000 −20°C 14000 −30°C/−36°C −10°C 13000 0°C 12000 11000 10°C 10000 9000 20°C 8000 7000 30°C 6000 MAXIMUM 5000 OAT LIMIT 40°C 4000 3000...
Page 185 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 TOP, V , 5000 lb 19000 18000 17000 16000 15000 −20°C 14000 −30°C/−36°C −10°C 13000 0°C 12000 11000 10°C 10000 9000 20°C 8000 7000 MAXIMUM 30°C OAT LIMIT 6000 5000 40°C 4000...
Page 186 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 TOP, V , 5500 lb 19000 18000 17000 16000 15000 −20°C 14000 −30°C/−36°C −10°C 13000 0°C 12000 11000 10°C 10000 9000 20°C 8000 7000 30°C 6000 MAXIMUM OAT LIMIT 5000 40°C 4000...
Page 187 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 TOP, V , 6000 lb 19000 18000 17000 16000 15000 14000 13000 −20°C 12000 −30°C/−36°C −10°C 11000 0°C 10000 9000 10°C 8000 20°C 7000 6000 MAXIMUM 30°C 5000 OAT LIMIT 4000 40°C 3000...
Page 188 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 20000 TOP, V , 6250 lb 19000 18000 17000 16000 15000 14000 13000 −20°C 12000 −30°C/−36°C −10°C 11000 0°C 10000 9000 10°C 8000 20°C 7000 6000 MAXIMUM 30°C 5000 OAT LIMIT 4000 40°C 3000...
Page 189: Hover Ceiling, Aeo
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 5–8. HOVER CEILING, AEO Description: The hover ceiling charts (Ref. Figure 5−31 thru Figure 5−38) show the maximum hover weight capability, in ground effect (IGE) or out of ground effect (OGE), both engines operating at take off power for known conditions of pressure altitude and outside air temperature, or alternately, the maximum hover ceiling for a known gross weight and outside air temperature.
Page 190 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data THIS CHART BASED ON WINDS 3KTS OR LESS AND 15% ELECTRICAL LOAD. FOR ELECTRICAL LOADS ABOVE/BELOW 15%, DECREASE/INCREASE WEIGHT CAPABILITY 35 LBS PER 10% CHANGE IN ELECTRICAL LOAD. 4600 REDUCE WEIGHT CAPABILITY 45 LBS WITH A/C ON 4700 4800 15300 H...
Page 191 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data THIS CHART BASED ON WINDS 3KTS OR LESS AND 15% ELECTRICAL LOAD. FOR ELECTRICAL LOADS ABOVE/BELOW 15%, DECREASE/INCREASE WEIGHT CAPABILITY 35 LBS PER 10% CHANGE IN ELECTRICAL LOAD. 4600 REDUCE WEIGHT CAPABILITY 40 LBS WITH A/C ON 15300 H 4700 11000...
Page 192 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data THIS CHART BASED ON WINDS 3KTS OR LESS AND 15% ELECTRICAL LOAD. FOR ELECTRICAL LOADS ABOVE/BELOW 15%, DECREASE/INCREASE WEIGHT CAPABILITY 35 LBS PER 10% CHANGE IN ELECTRICAL LOAD. REDUCE WEIGHT CAPABILITY 40 LBS WITH A/C ON 4400 4500 15300 H...
Page 193 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data THIS CHART BASED ON WINDS 3KTS OR LESS AND 15% ELECTRICAL LOAD. FOR ELECTRICAL LOADS ABOVE/BELOW 15%, DECREASE/INCREASE WEIGHT CAPABILITY 35 LBS PER 10% CHANGE IN ELECTRICAL LOAD. 4400 REDUCE WEIGHT CAPABILITY 40 LBS WITH A/C ON 4500 12000 11000...
Page 194 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data THIS CHART BASED ON WINDS 3KTS OR LESS AND 15% ELECTRICAL LOAD. FOR ELECTRICAL LOADS ABOVE/BELOW 15%, DECREASE/INCREASE WEIGHT CAPABILITY 35 LBS PER 10% CHANGE IN ELECTRICAL LOAD. 4600 REDUCE WEIGHT CAPABILITY 45 LBS WITH A/C ON 4700 4800 11000...
Page 195 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data THIS CHART BASED ON WINDS 3KTS OR LESS AND 15% ELECTRICAL LOAD. FOR ELECTRICAL LOADS 4600 ABOVE/BELOW 15%, DECREASE/INCREASE WEIGHT CAPABILITY 35 LBS PER 10% CHANGE IN ELECTRICAL LOAD. REDUCE WEIGHT CAPABILITY 40 LBS WITH A/C ON 15300 H 4700 11000...
Page 196 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data THIS CHART BASED ON WINDS 3KTS OR LESS AND 15% ELECTRICAL LOAD. FOR ELECTRICAL LOADS ABOVE/BELOW 15%, DECREASE/INCREASE WEIGHT CAPABILITY 35 LBS PER 10% CHANGE IN ELECTRICAL LOAD. 4400 REDUCE WEIGHT CAPABILITY 40 LBS WITH A/C ON 4500 15300 H 4600...
Page 197 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data THIS CHART BASED ON WINDS 3KTS OR LESS AND 15% ELECTRICAL LOAD. FOR ELECTRICAL LOADS ABOVE/BELOW 15%, DECREASE/INCREASE WEIGHT CAPABILITY 35 LBS PER 10% CHANGE IN ELECTRICAL LOAD. REDUCE WEIGHT CAPABILITY 40 LBS WITH A/C ON 11000 15300 H 4500...
Page 198: Hover Ceiling, Oei
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 5–9. HOVER CEILING, OEI Description: These charts (Ref. Figure 5−39 and Figure 5−40) may be used to deter mine hover performance in zero wind conditions for internal load operations or in headwind conditions during external load operations with one engine inoperative (emergency conditions) and the remaining engine at 2.5 minute power rating.
Page 199 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data GROSS WEIGHT – POUNDS –50 PRESSURE –40 ALTITUDE − FEET –30 –20 15000 –10 12000 14000 13000 11000 10000 9000 OAT − °C 8000 7000 6000 5000 4000 3000 2000 1000 −1000 NOTE:...
Page 200 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data GROSS WEIGHT – POUNDS –50 PRESSURE ALTITUDE − FEET –40 –30 –20 –10 12000 13000 14000 11000 10000 9000 OAT − °C 8000 7000 6000 5000 4000 3000 2000 1000 −1000 NOTE: WIND SPEEDS ARE UNFAC...
Page 201: Height Velocity Diagram
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 5–10.HEIGHT VELOCITY DIAGRAM 7000 Ñ Ñ Ñ Ñ Ñ Ñ É É É É É É Ñ Ñ Ñ Ñ Ñ Ñ É É É É É É 6000 Ñ Ñ Ñ Ñ Ñ Ñ É...
Page 202: Power Assurance Check − Automatic
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data 5–11. POWER ASSURANCE CHECK – AUTOMATIC The power assurance check provides a means for the pilot to determine, prior to take off, that each engine is capable of developing specification power. NOTE : The primary purpose of this chart is its use as an engine performance trending tool to aid in determining whether the engine is producing specification power,...
Page 203 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data HOW TO PERFORM THE CHECK: NOTE : Power checks should be performed under the following conditions. 1. Aircraft should be faced into the wind. 2.Wind speed should not exceed 15 knots nor gust spread 5 exceed knots while performing the check.
Page 204: Power Assurance Check − Manual
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data VIEWING THE PREVIOUS POWER CHECK: Select top level menu on IIDS alphanumeric display. POWER CHECK Press the key once to access the second level menu. PERFORM POWER ASSURANCE CHK Press the key to enter the next second level menu.
Page 205 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data EXAMPLE: NOTE : This example assumes the inability to access the third level POWER CHECK menu and therefor uses Figure 5–45 to determine maximum N value. Recorded from the IIDS: OAT = +30°C Pressure Altitude = 2000 ft.
Page 206 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data SEA LEVEL 2000 4000 6000 8000 10000 12000 14000 16000 −36 −30 −20 −10 AMBIENT TEMPERATURE (°C) F92–048 Figure 5–43. Engine Torque Chart FAA Approved 5–54 Original...
Page 207 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data SEA LEVEL 4000 PRESSURE ALTITUDE − FEET 8000 12000 16000 −40 −20 AMBIENT TEMPERATURE (°C) F92–049 Figure 5–44. EGT Chart FAA Approved 5–55 Original...
Page 208 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data LEVEL 4000 PRESSURE ALTITUDE − FEET 8000 12000 16000 −40 −36 −30 −20 −10 AMBIENT TEMPERATURE (‘C) F92–050–1 Figure 5–45. N Chart – (N read from Secondary IIDS Display) FAA Approved 5–56 Original...
Page 209 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Performance Data SEA LEVEL 4000 PRESSURE ALTITUDE − FEET 8000 12000 16000 20000 –40 –30 –20 –10 F92−050−2 AMBIENT TEMPERATURE (‘C) Figure 5–46. N Chart – (N read from Third Level POWER CHECK menu) FAA Approved 5–57/(5–58 blank) Original...
Page 211 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data E C T I O N EIGHT AND ALANCE TABLE OF CONTENTS PARAGRAPH PAGE 6−1. Weight and Balance Characteristics ........6−1 Table 6−1.
Page 212 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data PARAGRAPH PAGE Table 6−9. Weight and Lateral Moments − Pilot and Passengers ... . 6−21 Table 6−10. Weight and Lateral Moments − Cargo .
Page 213: Weight And Balance Characteristics
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data SECTION VI WEIGHT AND BALANCE DATA 6–1. WEIGHT AND BALANCE CHARACTERISTICS The weight and balance characteristics are as follows: Maximum weight on the landing gear: 6250 pounds. Minimum Flying Weight: 3500 pounds. Longitudinal Reference Datum: 199.3 inches forward of rotor hub centerline (rotor hub centerline is located at Station 199.3) Cargo Deck Capacity: 1500 pounds not to exceed 115 pounds per square foot.
Page 214 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data 6500 LONGITUDINAL CG 6000 ENVELOPE 5500 5000 NORMAL CG LIMITS 4500 4000 3500 3000 FUSELAGE STATION (IN) 6500 LATERAL CG 6000 ENVELOPE 5500 NORMAL CG LIMITS 5000 4500 4000 3500 3000...
Page 215 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data CG REAR FACING C L OF BAGGAGE PASSENGERS COMPARTMENT CG FWD FACING CG OF PILOT OR PASSENGERS COPILOT/PASSENGER CG CABIN +19.0 +15.85 −15.85 −19.0 193.0 130.7 173.0 245.6 213.0 F92–052 Figure 6–2.
Page 216 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data −50 0 −20 −40 −60 WL 106 FLOOR BL 8.5 BL 24 BEAM BEAM 120 140 180 200 260 280 340 360 5° 0" STA 199.25 WL 207.97 STA 292.817 WL 147 WL 159...
Page 217 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data F92–054A Figure 6–4. Sample Weight and Balance Record 6–5 Original...
Page 218 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data AIRCRAFT ACTUAL WEIGHT MD900 900−000XX N92XXX 12/23/XX Model Serial No. Reg. No. Date J. Doe Weighed by EMPTY FULL FUEL OIL, ENGINE LH OIL, ENGINE RH OIL, TRANSMISSION HYDRAULIC FLUID 120 140 180 200...
Page 219: Load Limits And Balance Criteria
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data 6–2. LOAD LIMITS AND BALANCE CRITERIA The load limits and balance conditions are as noted in Table 6−1. Do not exceed these limitations at any time during flight. Use the helicopter Basic Weight as recorded in the Basic Weight and Balance Record inserted in this section to perform all weight and balance computations.
Page 220: Longitudinal Weight And Balance Determination: Passenger Configuration
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data 6–4. LONGITUDINAL WEIGHT AND BALANCE DETERMINATION: PASSENGER CONFIGURATION To determine that the gross weight and longitudinal center of gravity (fore and aft) for a given flight are within limits, proceed as follows. Obtain aircraft basic weight and moment from the Weight and Balance Record in serted in this section.
Page 221: Longitudinal Loading Of Cargo
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data 6–5. LONGITUDINAL LOADING OF CARGO The large aft compartment of the Model 900 provides great flexibility in the variety of cargo loads it can accommodate. To determine the gross weight and center of gravity for a given flight are within limits, proceed as follows.
Page 222: Permissible Lateral Loadings − Passengerconfiguration
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data 6–6. PERMISSIBLE LATERAL LOADINGS – PASSENGER CONFIGURATION Safe operation of this helicopter requires that it be flown within established lateral as well as longitudinal center of gravity limits. It is therefore imperative that lateral center of gravity control be exercised.
Page 223: Lateral Loading Of Cargo
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data 6–7. LATERAL LOADING OF CARGO To determine the gross weight and lateral center of gravity for a given flight are with limits, proceed as follows. Find weight of load. Determine lateral location (station) of load center of gravity.
Page 224 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data EXAMPLE IV: Tiedown 500 pounds of cargo in the main cabin. LATERAL TIEDOWN No. FORWARD LEFT RIGHT −−− −−− −−− −−− −−− −−− −−− −−− −−− −−− ____ ____ ____ TOTAL...
Page 225 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data Table 6–4. Internal Cargo Loading TIE−DOWN LOCATION RESTRAINT VALUE/POUNDS OF CARGO MAIN CABIN BAGGAGE COMPARTMENT RESTRAINT DIRECTION RESTRAINT DIRECTION TIE−DOWN TIE DOWN FUSELAGE FUSELAGE LATERAL LATERAL NUMBER STATION STATION LATERAL LATERAL...
Page 226 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data CARGO RESTRAINT LOCATION LEFT RIGHT TIEDOWNS 25 AND 26 ARE ‘‘D’’ RINGS LOCATED AT WL 154.5 TIEDOWNS 19 THRU 28 ARE ‘‘D’’ RINGS. TIE DOWNS 27 AND F92–056 28 ARE LOCATED AT WL 155.0 Figure 6–6.
Page 227 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data 1100 1075 1050 1025 1000 NOTES: WEIGHTS AND MOMENTS BASED ON JET–A FUEL (ASTM D–1655) AT 6.8 POUNDS PER U.S. GALLON 2. TOTAL WEIGHT OF FUEL IS DEPENDENT UPON THE SPECIFIC GRAVITY AND TEMPERATURE VARIATION SHOULD BE ANTICIPATED IN GAUGE READINGS WHEN TANKS ARE FULL.
Page 228 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data 1050 1025 1000 NOTES: WEIGHTS AND MOMENTS BASED ON JET B FUEL (ASTM D–1655) AT 6.5 POUNDS PER U.S. GALLON 2. TOTAL WEIGHT OF FUEL IS DEPENDENT UPON THE SPECIFIC GRAVITY AND TEMPERATURE VARIATION SHOULD BE ANTICIPATED IN GAUGE READINGS WHEN TANKS ARE FULL.
Page 229 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data Table 6–5. Fuel Loading Table – Jet A (6.8 lb/U.S. gal) VOLUME WEIGHT STATION MOMENT U.S. GALLONS POUNDS INCHES IN–LBS 184.0 12511 184.4 18813 184.9 25144 185.3 31503 185.7 37888 186.1...
Page 230 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data Table 6–6. Fuel Loading Table – Jet B (6.5 lb/U.S. gal) VOLUME WEIGHT STATION MOMENT U.S. GALLONS POUNDS INCHES IN–LBS 184.0 11959 184.4 17983 184.9 24035 185.3 30113 185.7 36216 186.1...
Page 231 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data Table 6–7. Weight and Longitudinal Moments – Pilot, Passengers, Baggage PILOT OR REAR FACING FWD FACING COPILOT/PASSENGER STA 130.7 PASSENGER PASSENGER PASSENGER STA 173.0 STA 213.0 WEIGHT WEIGHT (LBS) MOMENT MOMENT...
Page 232 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data Table 6–8. Weight and Longitudinal Moments – Cargo MOMENT (IN–LB) WEIGHT WEIGHT (LBS) STATION 160 STATION 180 STATION 200 STATION 220 STATION 240 16000 18000 20000 22000 24000 19200 21600 24000...
Page 233 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Weight and Balance Data Table 6–9. Weight and Lateral Moments – Pilot and Passengers PILOT OR REAR FACING FWD FACING COPILOT/PASSENGER PASSENGER PASSENGER PASSENGER STA. ±15.85* STA. ±19.00* STA. ±19.00* WEIGHT WEIGHT (LBS) MOMENT MOMENT...
Page 234 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Weight and Balance Data Table 6–10. Weight and Lateral Moments – Cargo MOMENT (IN–LB) WEIGHT WEIGHT LATERAL LATERAL LATERAL LATERAL (LBS) STATION ±5 in.* STATION ±10 in.* STATION ±15 in.* STATION ±20 in.* 1200 1200 1600...
Page 235 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description V I I E C T I O N YSTEMS ESCRIPTION TABLE OF CONTENTS PARAGRAPH PAGE 7−1. Helicopter Exterior Description ......... . . 7−1 Figure 7−1.
Page 236 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description PARAGRAPH PAGE 7−11. Fuel System ............7−30 Figure 7−17.
Page 237 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description PARAGRAPH PAGE Figure 7−43. Aircraft Monitor − IIDS Setup ......7−67 Figure 7−44.
Page 239: Helicopter Exterior Description
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description SECTION VII SYSTEMS DESCRIPTION 7–1. HELICOPTER EXTERIOR DESCRIPTION Design features: Cockpit with outstanding field of view All composite fuselage with expanded aluminium foil embedded in skin for light ning protection Wide (52 inch), sliding cabin doors for loading bulky cargo Crash resistant fuel cell Built−in steps and work platforms for maintenance...
Page 240 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description MAIN ROTOR BLADE ASSEMBLY EMPENNAGE ASSEMBLY ENGINE RIGHT HAND UPPER COWLING AND FAIRINGS ANTI−TORQUE THRUSTER ENGINE TRANSMISSION LEFT HAND CABIN DOOR ASSEMBLY TAILBOOM ASSEMBLY FUSELAGE STRUCTURE ASSEMBLY COCKPIT DOOR BAGGAGE ANTI−TORQUE COMPARTMENT ASSEMBLY...
Page 241: Fuselage
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description The composite flexbeam main rotor hub replaces the normal hinges with a fiberglass/ epoxy flexbeam that twists and bends to accommodate the blade motions. It, and the elastomeric lead/lag dampers, are located within the elliptical pitchcase for a low drag hub that is composed of a minimum number of parts.
Page 242 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description Entry Doors: Hinged cockpit doors, sliding cabin doors, and a hinged baggage compartment door provide access. The cockpit doors have door release handles that allow the doors to be removed (Ref. Section VIII). The windows in the cabin doors are easily remov able and the meet Transport Category emergency exit size criteria.
Page 243: Tailboom And Empennage
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description 7–3. TAILBOOM AND EMPENNAGE Anti−torque, directional control, and yaw stability is provided by the NOTAR fan, circulation control tailboom, the thruster, and the horizontal and vertical stabilizers with VSCS. The NOTAR fan is driven directly from the main transmission.
Page 244: Landing Gear
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description 7–4. LANDING GEAR The landing gear (Ref. Figure 7−3) supports the helicopter when it is in contact with the ground. The landing gear can withstand loads encountered during landing, ground handling, and provides a stable platform to prevent ground resonance. The landing gear primarily absorbs normal landing forces, with the capabilities to absorb severe landing forces during overload conditions.
Page 245 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description SIDE STOP CLAMP ASSEMBLY CROSSTUBE PLUG ABRASION STRIP SADDLE ASSEMBLY DAMPER FORWARD ASSEMBLY CROSSTUBE FORWARD FORWARD SPACER FITTING FORWARD SADDLE ASSEMBLY ABRASION STRIP GROUND HANDLING STEP ATTACH POINTS MID ABRASION STRIP SKID TUBE LANDING GEAR DAMPER...
Page 246: Main Rotor System
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description 7–5. MAIN ROTOR SYSTEM The main rotor is a five−bladed, fully articulated hingeless flexbeam system. The rotor diameter is 33.83 feet with a blade chord of 10 inches. At its nominal 100 percent rotational speed (N ), the rotor runs at 392 rpm (695 feet/second tip speed).
Page 247 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description ROTOR BLADE ROTOR BLADE RETENTION BOLTS FLEXBEAM BUMPER PITCHCASE DAMPER DRIVE PLATE MAIN FLEXBEAM ROTOR CENTERING BEARING PITCH CHANGE UPPER INBOARD HORN ABRASION STRIP LOWER DRIVE RING OUTBOARD ABRASION STRIP SCISSORS TRIM TAB ASSEMBLY...
Page 248: Flight Controls
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description Safety − if the drive shaft should break, the rotor remains mounted to the mast by its two bearings for a safe autorotation landing. The main rotor blade is made from fiberglass/epoxy with a hollow leading edge spar and a Nomex honeycomb−filled trailing edge.
Page 249 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description Longitudinal and lateral trim actuators − Allow the pilot to position the cyclic as required during flight and while on the ground. Longitudinal linkages − Allow for cyclic input to the main rotor blades for helicop ter pitch control.
Page 250 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description UPPER DECK LATERAL CONTROL LONGITUDINAL CLOSET CONTROL ROD ASSEMBLY ASSEMBLY LONGITUDINAL CYCLIC STICK BELLCRANK ASSEMBLY DUAL ASSEMBLY LONGITUDINAL LONGITUDINAL CONTROL ROD BRACKET ASSEMBLY LATERAL CONTROLS ASSEMBLY BRACKET ASSEMBLY CYCLIC CONTROL AFT COCKPIT STICK BOOT LONGITUDINAL...
Page 251 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description COLLECTIVE HYDRAULIC SERVOACTUATOR LONGITUDINAL/ UPPER DECK COLLECTIVE COLLECTIVE CONTROL FOD COVER ROD ASSEMBLY CONTROL BRACKET ASSEMBLY COLLECTIVE BELLCRANK ASSEMBLY COLLECTIVE BRACKET ASSEMBLY COLLECTIVE CONTROL ROD ASSEMBLY COLLECTIVE BELLCRANK ASSEMBLY COLLECTIVE CONTROL DETENT MODULE ROD ASSEMBLY ASSEMBLY...
Page 252 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description Main Rotor Controls: The main rotor mechanical control system uses conventional pushrods and bell cranks under the cockpit floor; in the forward, right hand cockpit/cabin bulkhead; and in the cabin ceiling to transmit the control motions to the dual tandem hy draulic actuators that operate the rotor control mixer and the swashplate.
Page 253 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description Anti−torque Controls: The anti−torque pedals are adjustable fore and aft and include an adjustable friction device. They operate through a pushrod/bellcrank system and a single hydraulic actuator to control the rotation of the direct jet thruster and change the blade pitch angle of the NOTAR fan to maintain constant air pressure in the tail boom as the thruster nozzle opens and closes.
Page 254 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description REF UPPER DECK DIRECTIONAL DIRECTIONAL BELLCRANK ASSEMBLY CONTROL ROD ASSEMBLY LOWER CLOSET HEEL REST DIRECTIONAL ASSEMBLY BELLCRANK ASSEMBLY AFT DIRECTIONAL CONTROL ROD ASSEMBLY PEDAL COPILOT DUAL CONTROL ADJUSTMENT DIRECTIONAL PEDAL ASSEMBLY HANDLE PEDAL HEEL REST...
Page 255 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description SPLITTER ASSEMBLY  NOTAR FAN INPUT FORCE LIMITING CONTROL ROD DIRECTIONAL ASSEMBLY ANTI−TORQUE BRACKET ASSEMBLY SERVO ACTUATOR DIRECTIONAL CONTROLS COVER UPPER CONTROL ROD DIRECTIONAL DECK ASSEMBLY BELLCRANK ASSEMBLY DIRECTIONAL CONTROL ROD ASSEMBLY DIRECTIONAL DIRECTIONAL...
Page 256 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description ROTATING CONE ASSEMBLY THRUSTER BUILDUP ASSEMBLY TAILBOOM ASSEMBLY THRUSTER CONTROL ROD ASSEMBLY DIRECTIONAL CONTROL CABLE ASSEMBLY THRUSTER CONTROL ROD ASSEMBLY THRUSTER CONTROL CABLE ASSEMBLY THRUSTER STATIONARY CONE ASSEMBLY THRUSTER CONTROL SECTOR ASSEMBLY THRUSTER CONTROL DRUM ASSEMBLY...
Page 257 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description The Vertical Stabilizer Control System (VSCS) operates the incidence of the vertical stabilizers through two electro−mechanical actuators, one for the left stabi lizer and one for the right stabilizer. One portion of the system is a fly−by−wire actuator of stabilizer incidence as a function of collective pitch stick position.
Page 258: Hydraulic Systems
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description 7–7. HYDRAULIC SYSTEMS Flight Controls: The helicopter is equipped with two hydraulic systems for operation of the flight controls. Under certain conditions, the main rotor control loads are such that they require at least one hydraulic system operating at all times;...
Page 259 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description SYSTEM NO. 2 PUMP SYSTEM NO. 2 MANIFOLD SYSTEM NO. 1 PUMP SYSTEM NO. 1 MANIFOLD SAMPLING VALVE GSE PANELS PRESSURE BLEED VALVE TRANSDUCER TEMPERATURE FLUID LEVEL SWITCH SIGHT GAUGE SYSTEM SELECT FILTER BOWL...
Page 260 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description HAND SYSTEM 1 SYSTEM 2 PUMP (OPTIONAL) VARIABLE VARIABLE DELIVERY DELIVERY PUMP PUMP MANIFOLD MANIFOLD PANEL PANEL RESERVOIR RESERVOIR COLLECTIVE SERVO ACTUATOR LONGITUDINAL SERVO ACTUATOR LATERAL SERVO ACTUATOR DIRECTIONAL SERVO ACTUATOR F92–065 Figure 7–11.
Page 261 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description Rotor Brake: A completely separate secondary stand−alone hydraulic system is a part of the rotor brake installation. It incorporates a master cylinder operated by the brake handle in the cockpit, and the actuator that operates the disc brake on the back side of the transmission where the NOTAR drive shaft connects.
Page 262: Propulsion System
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description 7–8. PROPULSION SYSTEM The propulsion system is designed to meet the engine isolation requirements for multi−engine rotorcraft that are defined by the Category A requirements of FAR Part 29, paragraph 29.903(b). Powerplant: This system consists of two Pratt and Whitney Canada (P&WC) PW206E turbo shaft engines mounted above the baggage compartment and pointing inboard...
Page 263 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description FUEL PUMP FUEL MANIFOLD FUEL FILTER T6 THERMOCOUPLE FUEL NOZZLE FMU SHROUD SENSOR LH OIL LEVEL SIGHT GLASS OIL FILTER COVER OIL FILTER IMPENDING BYPASS INDICATOR T1 SENSOR CHIP DETECTOR OIL FILLER CAP T1/T6 TERMINAL BOX SENSOR...
Page 264 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description Drive system: A short shaft with flexible diaphragm couplings and anti flail devices connects each engine to the transmission. A longer shaft with similar couplings drives the NOTAR fan. The main rotor drive shaft connects the planet gear carrier in the top of the transmission to the main rotor hub through a splined connection at each end.
Page 265 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description To minimize structurally−transmitted acoustic noise from the transmission into the passenger spaces, the transmission is supported from the mast base by eight bolts in elastomeric bushings, and is restrained against rotation by a toothed coupling arrangement that has a contoured elastomeric ring between the bottom of the mast base and the top of the gearbox.
Page 266: Engine Air Intake And Inlet Particle Separator (Ips)
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description 7–9. ENGINE AIR INTAKE AND INLET PARTICLE SEPARATOR (IPS) The air intake system provides a path for ambient air to enter each engine compressor case inlet. The air intake system consists of an inlet screen or optional inlet particle separator for each engine that prevents debris from entering the engine ducts.
Page 267: Engine Power Management System
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description STANDARD INLET SCREEN BLEED AIR TUBE ASSEMBLY SOLENOID SHUTOFF VALVE EJECTOR TUBE ASSEMBLY PARTICLE SEPARATOR EJECTOR PARTICLE SEPARATOR PANEL BYPASS DOOR BYPASS DOOR NACA INLET DOOR F92–070 SOLENOID LATCH (IF INSTALLED) Figure 7–16.
Page 268: Fuel System
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description Train Mode: Placing an engine control switch in the TRAIN position will simulate a one engine inoperative condition by resetting the selected engine’s governed speed to 92 percent N , thereby putting the engine on standby while allowing single engine training on the opposite engine.
Page 269 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description The engine fuel drain system provides a path for residual fuel from the combusters and fuel control system that remains after shutdown to be directed overboard by way of catch cans located under the baggage compartment floor. A provision is made in the fitting at the aft left hand corner of the cell for making a connection to an optional auxiliary fuel tank.
Page 270 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description Fuel flow to the engines is shown below the fuel quantity bargraph: Connections from the fuel tank to each engine is shown immediately below the digit value of fuel quantity. A solid line indicates normal fuel flow and alternating white and yellow offset segments indicate low fuel pressure.
Page 271: Electrical System
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description 7–12.ELECTRICAL SYSTEM The electric system is designed to maintain separation of the power generating sys tems. Wiring for each system is physically separated to each side of the helicopter to the greatest extent possible.
Page 272 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description a successful start, the starter−generator begins generating current and is brought on line by the GCU through the generator contactor. The pilot monitors generator load on the IIDS. The pilot can manually reset or dese lect either generator by using the generator switches located on the Electrical Master panel.
Page 273 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description Aircraft Lighting: Aircraft Interior Lighting: Cockpit: Floodlight Map Light Instrument Floodlights (3) (Powered By Right Essential Bus) Main Cabin: Threshold Lights Baggage Compartment: Floodlight Aircraft Exterior Lighting: Nose: Fixed Landing Light Fixed Hover Light Empennage: Left End of Horizontal Stabilizer:...
Page 274: Environmental Control
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description 7–13.ENVIRONMENTAL CONTROL The environmental control system for the helicopter consists of the ventilation sys tem and the heat/defog system. Ventilation System: Ambient air is taken in through an inlet in the right side of the upper cowling, is directed through a water separator and a two−speed fan, and into a manifold that distributes the air to the cockpit and to the cabin −...
Page 275 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description CHECK VALVES ENGINE ENGINE PASSENGER COMPARTMENT FLOW CONTROL VALVES START–UP LOCK OUT PASSENGER HEAT ON/OFF COMPARTMENT SWITCH EJECTORS FLOW CONTROL FLOW CONTROL VALVES SHUT–OFF VALVE DEFOGGING (ON/OFF) MANIFOLDS PILOT HEAT EJECTORS FOOT HEATERS FOOT HEATERS...
Page 276: Integrated Instrumentation Display System (Iids)
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description 7–14.INTEGRATED INSTRUMENTATION DISPLAY SYSTEM (IIDS) General The IIDS provides for the monitoring and display of various aircraft parameters and for caution/warning annunciation. The baseline config uration includes a set of engine, drive train, rotor, NOTAR , electrical, fuel, hydraulic, and caution/warning indicators.
Page 277 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description FUEL SYSTEM POWERPLANT SYSTEM DRIVE SYSTEM ROTOR SYSTEM BALANCE MONITORING NOTARR SYSTEM SYSTEM HYDRAULIC SYSTEM ELECTRICAL SYSTEM INTEGRATED INSTRUMENT DISPLAY SYSTEM (IIDS) AIRFRAME SYSTEM F92–077 Figure 7–22. IIDS System Monitoring BIT failures are stored in non−volatile memory to assist in three situa Failures tions:...
Page 278 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description the failure of another function. These fault monitoring provisions are implemented using hardware Built−in−Test Equipment (BITE) and soft ware diagnostics, allowing isolation of failures to at least the internal module level. In addition, provisions are made to check operation of the transducers and sensors and provide an appropriate maintenance alert.
Page 279 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description Torque display: Displayed in % torque. The IIDS obtains engine torque from the EEC. If the EEC fails, the IIDS calculates torque by using , OAT, and pressure altitude measurements. The vertical bargraphs and three digit indicators on this display indicate torque in percent (%).
Page 280 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description In the secondary display, caution annunciators in yellow are given for engine chips, engine oil temperature, high or low, engine oil pressure high or low, generator load high, generator out, N high, transmission chips, transmission oil temperature high or low, fuel pressure low, fuel filter impending by−pass, fuel valve closed, battery warm, rotor brake,...
Page 281 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description Alphanumeric The IIDS has a 2 line by 16 character alphanumeric display. This display Display allows messages to be displayed regarding systems limit exceedance, condition, various cautions and warnings as well as expanded features of the IIDS to be viewed by the pilot.
Page 282 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description NOTE : Advisory messages may not indicate a malfunction or emergency. WARNING ANNUNCIATOR (RED) ALPHA− ....CAUTION ANNUNCIATOR NUMERIC (YELLOW)
Page 283 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description Table 7–1. Automatic Alphanumeric Display Warning/Caution/Advisory Messages SAMPLE MESSAGE CAUSE FOR W/C/A CORRECTIVE ACTION (Fault) DISPLAY BMS sensor(s) fail CHK BMS SENSOR Advise maintenance TORQ LFT 2:30 TORQ RT 2:30 EGT LFT 2:30 TOP or OEI count EGT RT 2:30...
Page 284: Iids Data Storage
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description 7–15.IIDS DATA STORAGE Data Storage Selected information that is monitored by the IIDS for display is also stored by the IIDS. Information is stored in non−volatile memory and is available by selecting various menu functions through the front panel keys.
Page 285 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description This feature is capable of storing 100 exceedance Logs. Exceedances are recorded for EGT, engine torque, transmission torque, N (high), engine oil pressure (low), transmission oil pressure (low), and cargo hook. Exceedance logs maybe either recorded or downloaded to the GBMC.
Page 286 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description MENU: Used to access the next higher level of the menu structure or to enter the top level menu from display blanked and to return to the ‘‘action’’ menu with edit fields not updated. UP ARROW "...
Page 287: Balance Monitoring System
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description 7–16.BALANCE MONITORING SYSTEM : Helicopter gross weight should be at 5200 300 LBS before performing ‘‘Main NOTE Rotor Balance’’ procedure. Standard BMS The BMS program is an integrated vibration monitoring system which Program calculates and displays balance solutions for both main rotor and NO fan.
Page 288: Iids Menu Structures
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description 7–17.IIDS MENU STRUCTURES TOP LEVEL ELAPSED TIME ‘‘ENT’’ Key resets, starts and stops timer (alternate action); MM.SS ‘‘CLR’’ Key exits function and resets timer TIME SUMMARY For expanded menu structure Ref.
Page 289 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description SECOND LEVEL TOP LEVEL THIRD LEVEL TIME SUMMARY LST FLT TIME TOT FLT HR TOT FLIGHTS LFT ENGINE TIME NOTE 1 RT ENGINE TIME GEAR BOX TSO = POWER MODULE TSO= IMPELLER CYCLE CNT ACCUM =...
Page 290 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description SECOND LEVEL TOP LEVEL THIRD LEVEL FOURTH LEVEL BALANCE MONITOR MAIN ROTOR FLY 100% GROUND COLLECT M/R DATA BALANCE PRESS REC RUN XX RPM XXX NOTE 2 ACQUIRING MAIN ROTOR TRACK RUN XX M/R 100% GND LAT MEASUREMENTS...
Page 291 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description SECOND LEVEL TOP LEVEL THIRD LEVEL FOURTH LEVEL BALANCE MONITOR MAIN ROTOR COLLECT M/R 100% GND LAT BALANCE DATA RUN XX X.XX IPS AT YY.YY RUN XX M/R HOVER IGE LAT MAIN ROTOR TRACK MEASUREMENTS X.XX IPS AT YY.YY...
Page 292 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description SECOND LEVEL TOP LEVEL THIRD LEVEL FOURTH LEVEL NOTE 1 BALANCE MONITOR MAIN ROTOR COLLECT M/R BALANCE DATA RUN XX BLADE 1 HUB WT <XXX> GRAMS THROUGH NOTE 1 AND 2 RUN XX M/R MAIN ROTOR TRACK BLADE 5 HUB WT...
Page 293 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description TOP LEVEL SECOND LEVEL THIRD LEVEL FOURTH LEVEL NOTE 1 BALANCE MONITOR MAIN ROTOR COLLECT M/R ADJUSTMENTS USED BALANCE DATA RUN XX <PCL/TAB/WEIGHT> NOTE 2 RUN XX M/R MAIN ROTOR TRACK <PCL/TAB>...
Page 294 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description TOP LEVEL SECOND LEVEL THIRD LEVEL FOURTH LEVEL BALANCE MONITOR MAIN ROTOR COLLECT M/R COMPUTING M/R NOTE 1 BALANCE DATA RUN XX SOLTN RUN XX.XX RUN XX M/R PREDICTED VIBS MAIN ROTOR TRACK AUTOMATIC MEASUREMENTS...
Page 295 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description TOP LEVEL SECOND LEVEL THIRD LEVEL BALANCE MONITOR MAIN ROTOR BALANCE DEFAULT MAIN ROTOR TRACK FLASH STROBE BLD SPREAD <ON> FLASH STROBE NOTARR BLD SPREAD <OFF> BALANCE SPECTRUM BMS ADVISORY LOG BMS FAULT LOG BMS VERSION LOG BMS MAINTENANCE...
Page 296 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description TOP LEVEL SECOND LEVEL THIRD LEVEL FOURTH LEVEL BALANCE MONITOR MAIN ROTOR COLLECT NOTAR FLY 100% GND BALANCE RUN XX RPM XXXX PRESS REC NOTE 1 RUN XX NOTAR MAIN ROTOR TRACK ACQUIRING MEASUREMENTS 100% GND RADIAL...
Page 297 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description SECOND LEVEL TOP LEVEL THIRD LEVEL FOURTH LEVEL BALANCE MONITOR MAIN ROTOR BALANCE MAIN ROTOR TRACK NOTAR COLLECT 100% GND RADIAL BALANCE NOTAR DATA X.XX IPS AT YY:YY NOTAR NOT ACQUIRED SPECTRUM MEASUREMENTS NOTE 1...
Page 298 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description TOP LEVEL SECOND LEVEL THIRD LEVEL FOURTH LEVEL BALANCE MONITOR MAIN ROTOR FLY 100% GND BALANCE PRESS REC NOTE 1 MAIN ROTOR TRACK GATHERING TREND SET XX SPC XX/XX NOTE 2 NOTAR TREND SPECTRUM BALANCE...
Page 299 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description TOP LEVEL SECOND LEVEL THIRD LEVEL BALANCE MONITOR MAIN ROTOR BALANCE MAIN ROTOR TRACK NOTAR BALANCE NOTE 1 BALANCE OK SPECTRUM BMS ADVISORY LOG END OF BMS ADVISORY LOG BMS FAULT LOG DBASE USAGE XXX% ADVISORIES = XX NOTE 2...
Page 300 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description TOP LEVEL SECOND LEVEL THIRD LEVEL BALANCE MONITOR MAIN ROTOR BMS BOARD P/N BALANCE XXXXX−XX BMSBP VER XX.XXX MAIN ROTOR TRACK P/N XXXXX−XX BMSBP CHECKSUM NOTAR XXXXXXXX BALANCE BMSOP VER XX.XXX SPECTRUM P/N XXXXX−XX BMSOP CHECKSUM...
Page 301 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description TOP LEVEL SECOND LEVEL THIRD LEVEL NOTE 1 BALANCE MONITOR MAIN ROTOR CLEAR FAULT BALANCE MAIN ROTOR TRACK CLEAR ADVISORY NOTAR CLEAR SPECTRUM BALANCE SPECTRUM CLEAR M/R BALANCE LOG CLEAR NOTAR BMS ADVISORY LOG BALANCE LOG CLEAR SETUP...
Page 302 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description SECOND LEVEL TOP LEVEL THIRD LEVEL EXCEEDANCE LOG AIRCRAFT MONITOR EXCEED LOG XXX L ENG TORQUE DATE XX−XX−91 TREND LOG TIME XX:XX:XX PEAK VALUE XXX% FAULT LOG SEC TO PK = XX SEC DATA LOG NO X IIDS SETUP SEC ABV T1 = XX...
Page 303 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description AIRCRAFT MONITOR EXCEEDANCE LOG TREND LOG TREND LOG XX LEFT ENGINE DATE FAULT LOG TIME XXX% IIDS SETUP TORQUE XX% EGT XXXC P0 XXXX FT OAT XX C PERFORM MARGIN L PA CK NG −XX L PA CK EGT−XX COR FTR XX.X...
Page 304 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description SECOND LEVEL TOP LEVEL THIRD LEVEL AIRCRAFT MONITOR EXCEEDANCE LOG TREND LOG FAULT LOG FAULT LOG L ENG S/N R ENG S/N IIDS SETUP DATE TIME IIDS FALT1=X XX XX, XX IIDS FALT XX ACFT FALT=X SENS FALT=X...
Page 305 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description SECOND LEVEL TOP LEVEL THIRD LEVEL AIRCRAFT MONITOR EXCEEDANCE LOG A/C NO XXXXXXXX ENG INSTALL PWC TREND LOG IPS INSTALLED HT/DEFOG INSTAL FAULT LOG ROTOR BRK INSTAL FWD FUEL CAL XXX IIDS SETUP AFT FUEL CAL XXX TOP LVL SFTWR PN...
Page 306 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Systems Description SECOND LEVEL TOP LEVEL THIRD LEVEL NOTE 2 NOTE 1 FUEL CALIBRATION SET CAL CODE FWD FUEL CAL<XXX> AFT FUEL CAL <XXX> NOTE 1 DO CALIBRATION AIRCRAFT READY? CRUISE ATTITUDE? NOTE 3 FWD FUEL CAL XXX AFT FUEL CAL XXX...
Page 307 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Systems Description TOP LEVEL SECOND LEVEL NOTE 1 SET ENGINE PARM LNG COR FCTR <XX.X> LEGT CORFCT <XX.X> NOTE 1 RNG COR FCTR <XX.X> " REGT CORFCT <XX.X> NOTE 1: ENT" SELECTS DIGITS TO BE EDITED, KEYS CHANGE SELECTED DIGITS, REC"...
Page 309 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance VIII E C T I O N ANDLING, ERVICING AINTENANCE TABLE OF CONTENTS PARAGRAPH PAGE 8−1. Hoisting, Lifting, and Jacking ..........8−1 8−2.
Page 310 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance PARAGRAPH PAGE 8−7. Cockpit Door Removal ........... 8−34 Figure 8−20.
Page 311: Hoisting, Lifting, And Jacking
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance SECTION VIII HANDLING, SERVICING, AND MAINTENANCE 8–1. HOISTING, LIFTING, AND JACKING Hoisting, lifting, and jacking of the helicopter shall only be CAUTION performed with the proper equipment and tools as specified in the MD900 Rotorcraft Maintenance Manual.
Page 312 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance Jack hydraulic ram which forces wheels down and skids up. When the jack is extended, a mechanical safety latch automatically snaps into position, to prevent the wheels from going up in the event of loss of hydraulic pressure.
Page 313 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance Avoid sudden stops and starts. Avoid short turns, which could cause helicopter to turn over. CAUTION A safe minimum turning radius is approximately 20 feet. Allow inside wheel to turn (not pivot) while helicopter is being turned. Helicopter Transport The heli−porter is designed for the MD Explorer with the use of a towing tractor or vehicle.
Page 314: Parking And Storage
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance TOW BAR GROUND HANDLING VIEW ROTATED ATTACH POINTS HELI−PORTER SKID TUBE F92–103 Figure 8–1. Helicopter Towing and Ground Handling 8–3. PARKING AND STORAGE Helicopter tiedowns and covers Covers and tiedowns (Ref. Figure 8−2) are provided to shield the MD Explorer from inclement weather conditions and other outside environmental factors that could cause FOD damage while the helicopter is parked, moored, or while in storage.
Page 315 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance Attach cover, at forward corners to snap−head screws placed in existing screw holes on lower edge of particle separator inlet. Attach cover, at rear corners with similar snaps, or with a strap going under neath the tailboom where it meets the fuselage.
Page 316 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance AFT UPPER TIEDOWN FORWARD UPPER TIEDOWN FORWARD LOWER TIEDOWN (IF INSTALLED) AFT LOWER TIEDOWN (IF INSTALLED) BLADE TIEDOWN PITOT TUBE COVER ROTOR HUB COVER THRUSTER COVER ENGINE AREA COVER UPPER DECK COVER BOOM COVER BLADE COVER...
Page 317 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance Rotor hub cover The MD Explorer rotor hub cover (Ref. Figure 8−2) overlaps with the blade covers and the engine area cover to insure complete protection for the entire main rotor system.
Page 318 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance If possible, park helicopter into the prevailing wind and secure in accordance with normal parking conditions. Statically ground helicopter (Ref. Figure 8−3). GROUNDING JACK (2 LOCATIONS) CABLE PLUG F92–105 Figure 8–3.
Page 319 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance High Wind Conditions − Helicopter Mooring When severe storm conditions or wind velocities higher than 40 knots are forecast, helicopter should be hangared or evacuated to a safe area. If the helicopter must be parked in the open during high winds, comply with the following.
Page 320: Access And Inspection Provisions
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance 8–4. ACCESS AND INSPECTION PROVISIONS Various doors, covers, panels, and fairings are located through out the airframe to provide access for inspection, maintenance, and servicing. External and internal doors, covers, panels and fairings are shown in Figure 8−5 thru Figure 8−13.
Page 321 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance CAMLOC LATCH HINGE KEYLOC UNLOCKED LOCKED TURN UNLOCK− UNLOCK− PUSH HERE COUNTERCLOCKWISE COUNTERCLOCKWISE ROTATES 180° TO UNLOCK LOCK−CLOCKWISE LOCK−CLOCKWISE TO UNLOCK LATCH CAMLOC SLEEVE BOLT LOCKED UNLOCKED LOCKED UNLOCKED TURN PUSH TO...
Page 322 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance N106 9G06−001 Removal and Installation Item Method Name Permits Access To Quantity Type Figure 8–4 Nose Door Pitot – Static System, Battery Latch Keyloc Panel Landing Light, Flight Control Rods Screw Avionics Cooling Fan, Wire Harness, External Power Box...
Page 323 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance L220 L260 L270 L210 L155 L262 L166 L210 L109 NACA INLET L107 INSTALLATION 9G06−002A Removal and Installation Item Method Name Permits Access To Quantity Type Figure 8–4 L107 Crew Door Copilot Instrument Panel, Pedestal Console Lever Action Handle...
Page 324 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance R260 R220 R210 R270 R155 R107 R166 R210 NACA INLET INSTALLATION R185 R158 R128 R109 9G06−003A Removal and Installation Item Method Name Permits Access To Quantity Type Figure 8–4 R107 Crew Door Pilot Instrument Panel, Pedestal Consol...
Page 325 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance T292 TR218 T240 TL218 T155 T220 9G06−009 Removal and Installation Item Method Name Permits Access To Quantity Type Figure 8–4 T155 Forward Fairing As- Hydraulic Servo Actuators, Screw sembly Swashplate Swashplate, Mixer Bolt...
Page 326 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance B178 B142 B230 9G06−005 Removal and Installation Item Item Name Permits Access To Method Ref Quantity Type Figure 8–4 B142 Access Panel Assem- Throttle Interconnect Cable, RH Screw bly Center Collective B178 Access Panel Assem-...
Page 327 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance 9G06−004 Removal and Installation Item Method Name Permits Access To Quantity Type Figure 8–4 Lower Tailboom/ Horizontal Stabilizer Mount Fitting Screw Thruster Fairing Stationary Thruster Mounting Assembly Thruster End Cover Attachment Bolts For Rotating Screw Thruster...
Page 328 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance AR230 AR250 AR155 AR165 AR138 AR129 A235 AL138 AL230 AL129 AL155 A160 A217 AL165 AL250 A170 NOTE: ALL PANELS ARE STRESS PANELS. 9G06−010 Removal and Installation Item Item Name Permits Access To Method Ref...
Page 329 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance PR120 PL120 9G06−012 Removal and Installation Item Method Name Permits Access To Quantity Type Figure 8–4 PL120 Panel Wire Harness, Forward Interconnect Camloc Panel (Relays), Ground Modules PR120 Panel Wire Harness, Forward Interconnect Camloc Panel (TB2, TB3,TB4)
Page 330 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance REF. STATOR REF. FAN SUPPORT AND HOUSING 9G06−013 F92−115 Removal and Installation Item Method Name Permits Access To Quantity Type Ref Figure 8–4 Anti–Torque Drive Shaft Fan Drive Shaft Screw Cover Anti–Torque Lower Inlet...
Page 331: Servicing
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance 8–5. SERVICING General Servicing includes replenishment of fuel, changing or replenishment of oil, and other such maintenance functions (Ref. RMM, Section 12−00−00). The locations of servicing points are shown in Figure 8−14. Engine, transmission and hydraulic servicing materials and capacities are shown in Table 8−1.
Page 332 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance Capacities − Fuel System: JET A: 1097 lb; 498 kg; 161.3 U.S. gal; 611L total capacity 1078 lbs; 158.5 U.S. gal; 600L useable JET B: 1048 lb; 476 kg; 161.3 U.S. gal; 611L total capacity 1030 lbs;...
Page 333 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance Specification Material Manufacturer 1. Engine − Total Capacity 1.34 U.S. Gal (1.12 Imp Gal; 5.12 L) NOTE: The mixing of different oil brands is not approved. MIL−PRF−23699 Castrol 5000 Castrol Canada, Inc.
Page 334 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance Specification Material Manufacturer 2. Transmission − Total Capacity 10.0 Quarts, 9.5 L NOTE: Observe servicing instruction placard located on transmission oil filler. Transmissions P/N 900D1400004−101 and 900D1400005−101: MIL−L−23699 See item 1.
Page 335 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance NOTE : The lanyard must be secured properly in order to assure that the gravity filler port check valve fully opens. CAUTION Do not attempt to refuel helicopter if the lanyard has broken. Service fuel cell slowly.
Page 336 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance Hydraulic System: NOTE : The hydraulic system may be serviced by using either the optional hydraulic system hand pump or a hydraulic mule. For servicing the system using the mule, refer to the RMM, Section 29–00–00.
Page 337 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance COVER HANDLE (STOWED) FLUID LEVEL SIGHT GAUGE MINIMUM OIL LEVEL HANDLE IN SELECTOR VALVE OPERATING POSITION LEVER HAND PUMP (OPTIONAL) FLUID LEVEL FILTER BYPASS SIGHT GAUGE INDICATORS FLUID TEMP −40°C 95°C FLUID TEMP −40°C...
Page 338 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance Main Transmission Filling Open access panel (Ref. Figure 8−6 and Figure 8−7). Open oil filler cap (Ref. Figure 8−17). Pour in oil. Verify quantity of oil in sight window. Close oil filler cap.
Page 339 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance OIL FILLER TRANSMISSION OIL FILL CHIP SERVICE WITH DETECTOR MOBIL SHC 626 OIL HOUSING NOTE: 900D1400006−101 TRANSMISSION ONLY OIL LEVEL TRANSMISSION CHIP DETECTOR INDICATOR OIL FILL SERVICE WITH OIL PER MIL–L–23699 NOTE: 900D1400004−101 AND 900D1400005−101 TRANSMISSIONS ONLY...
Page 340 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance Rotor brake: The rotor brake reservoir is located on the top forward deck. Open right−hand forward access door. Remove filler cap. Using hydraulic fluid, fill reservoir to top of sight glass. Install filler cap.
Page 341 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance Powerplant Engine Oil System Filling / Replenishing Do not mix different brands or types of oil since their different CAUTION chemical structures may make them incompatible. If different brands or types of oil become mixed, drain system (including engine integral oil tank, engine oil filter housing, engine oil heat exchanger and oil in and out hoses) and refill with new oil.
Page 342 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance OIL LEVEL SIGHT GLASS ENGINE OIL FILTER CASE OIL FILTER IMPENDING OIL FILLER DIPSTICK BYPASS (VIEW ROTATED) INDICATOR OIL FILLER DIPSTICK MINIMUM OIL LEVEL OIL LEVEL SIGHT GLASS CHIP NOTE: SOME ENGINE DETAIL OMITTED FOR CLARITY DETECTOR...
Page 343: Aircraft Cleaning
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance 8–6. AIRCRAFT CLEANING General cleaning of oil and dirt deposits from the helicopter and its components can be accomplished by using dry−cleaning solvent, standard commercial grade kerosene, or a solution of detergent soap and water. Exceptions that must be observed are specified in the following cleaning paragraphs.
Page 344: Cockpit Door Removal
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance Fuselage Exterior Cleaning NOTE : Avoid directing high pressure concentrations of soap and/or clean water toward engine air intake areas, instrument static source ports and main rotor swashplate bearings.
Page 345 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance DOOR RELEASE HANDLE DOOR HANDLE DOOR RESTRAINT GAS STRUT BALL SOCKET BALL STUD F92–123 Figure 8–20. Cockpit Door Attachment 8–35 Original...
Page 346: Cabin Seats: Removal/Installation
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance 8–8. CABIN SEATS: REMOVAL/INSTALLATION Cabin Seat Removal (Ref. Figure 8−21): First disengage upper quick disconnect fittings then lower quick disconnect fit tings from their anchor plates to release cabin seat assembly. Remove seat assem bly.
Page 347: Copilot Flight Controls
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance 8–9. COPILOT FLIGHT CONTROLS PEDAL SHAFT ASSEMBLY PEDAL ADJUSTMENT PINS PEDAL CRANK ASSEMBLY PEDAL DISENGAGE HOOK TAPE F92–125 Figure 8–22. Copilot Pedals Copilot Pedals: Disengaging (Ref. Figure 8−22) Copilots pedal shaft assemblies can be temporarily stowed in the full forward position.
Page 348: Engine Charts
ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance 8–10.ENGINE CHARTS The following charts define maintenance action requirements for engine over temper ature, overspeed, and overtorque. AREA A − RECORD IN ENGINE LOG BOOK (2.5 MINUTE RATING) AREA B −...
Page 349 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance AREA A − VISUAL INSPECTION THROUGH EXHAUST DUCT AND RECORD IN ENGINE LOG BOOK AREA B − PERFORM HSI AREA C − RETURN ENGINE TO OVERHAUL AREA D − DETERMINE CAUSE FOR HUNG START AND CARRY Ç...
Page 350 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance AREA A − RECORD IN ENGINE LOG BOOK (2.5 MINUTE RATING) AREA B − RECORD IN ENGINE LOG BOOK (CONTINUOUS RATING) AREA C − RETURN ENGINE FOR OVERHAUL 103.4 AREA C 102.4...
Page 351: Special Operational Checks And Procedures
CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance 8–11. SPECIAL OPERATIONAL CHECKS AND PROCEDURES The following checks are typically utilized as part of a post maintenance run up associated with scheduled inspections, troubleshooting or maintenance on specific aircraft systems.
Page 352 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance HYDRAULIC SYSTEM CHECK With the aircraft operating at IDLE or FLY (100%): IIDS secondary display CHECK ‘‘1 HYD 2” CAUTION SEGMENTS ARE NOT ILLUMINATED With the aircraft operating at FLY (100%): HYD TEST switch SET AND HOLD TO ‘‘SYS 1”...
Page 353 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance WET ENGINE MOTORING RUN Before performing this procedure, insure that the power supply CAUTION to the ignition exciter is disconnected (IGNTR circuit breakers pulled). When a fuel metering unit/pump is replaced in the field, motoring CAUTION or starting the engine is not recommended until priming is accomplished by performing a engine wet motoring run.
Page 354 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance ENGINE OUT/LOW ROTOR WARNING CHECK Engine control switches Collective INCREASE TO A CLP OF >5% FOR MORE THAN 5 SECONDS Collective LOWER TO A CLP OF 0% Engine control switches SWITCH TO IDLE AND NOTE THE FOLLOWING ENG OUT warning light flashes and low rotor RPM tone is activated for one cycle.
Page 355 CSP–900RFM206E–1 ROTORCRAFT FLIGHT MANUAL MD900 With PW 206E Handling Servicing and Maintenance Allow starter to cool between runs. CAUTION If water/methanol mixture has been used, perform additional dry engine mo toring run. Close main transmission access door (Ref. RMM, Section 06−00−00). Repeat procedure on other engine.
Page 356 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Handling Servicing and Maintenance Close main transmission access door. Repeat procedure on other engine. Once engine wash is complete, start and operate engines at idle for at least one minute to completely dry engines. ENGINE WASH RIGHT ENGINE WASH NOZZLE...
Page 357 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data E C T I O N DDITIONAL PERATIONS ERFORMANCE TABLE OF CONTENTS PARAGRAPH PAGE 9−1. Abbreviated Checklists ..........9−1 9−2.
Page 359 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data SECTION IX ADDITIONAL OPERATIONS AND PERFORMANCE DATA 9–1. ABBREVIATED CHECKLISTS NOTE : These checklists do not have any CAUTION, WARNINGS, or NOTES. Be sure you have a thorough understanding of the checks as described in Section IV before attempting to operate the helicopter.
Page 360 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data ELECTRICAL POWER – ON POWER BAT/EXT Monitor BIT FIRE WARNING ANNUNCIATORS ON FOR 2 SECONDS; CHECK IIDS FOR ADVISORIES AT COMPLETION OF BIT Fuel quantity display CHECK DISP (display by exception) AS DESIRED ENGINE STARTING –...
Page 361 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data BEFORE TAKEOFF Cyclic control CHECK RESPONSE Collective friction AS DESIRED Primary and secondary IIDS displays CHECK ADVISORIES Utility panel switches AS REQUIRED ENGINE/AIRCRAFT SHUTDOWN – NORMAL Collective stick FULL DOWN/FRICTION ON Cyclic stick TRIM TO NEUTRAL...
Page 362 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data 9–2. FUEL FLOW vs AIRSPEED Description: The fuel flow charts presented in this section are based on level flight performance data. Fuel consumption values are based on minimum specification engines and thus may vary between engines.
Page 363 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB LONG RANGE CRUISE 5000 LB 4000 LB INDICATED AIRSPEED − KNOTS F92–131–1 Figure 9–1. Fuel Flow, AEO, Sea Level, ISA (15°C) 9–5 Original...
Page 364 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB LONG RANGE CRUISE 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–131–2 Figure 9–2. Fuel Flow, AEO, 4000 Feet H , ISA (7°C) 9–6 Original...
Page 365 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB LONG RANGE CRUISE 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–131–3 Figure 9–3. Fuel Flow, AEO, 8000 Feet H , ISA (–1°C) 9–7 Original...
Page 366 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB LONG RANGE CRUISE 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–132–1 Figure 9–4. Fuel Flow, AEO, Sea Level, ISA + 20°C (35°C) 9–8 Original...
Page 367 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB LONG RANGE CRUISE 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–132–2 Figure 9–5. Fuel Flow, AEO, 4000 Feet H , ISA + 20°C (27°C) 9–9 Original...
Page 368 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB LONG RANGE CRUISE 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–132–3 Figure 9–6. Fuel Flow, AEO, 8000 Feet H , ISA + 20°C (19°C) 9–10 Original...
Page 369 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB LONG RANGE CRUISE 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–133–1 Figure 9–7. Fuel Flow, AEO, Sea Level, ISA + 30°C (45°C) 9–11 Original...
Page 370 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB LONG RANGE CRUISE 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–133–2 Figure 9–8. Fuel Flow, AEO, 4000 Feet H , ISA + 30°C (37°C) 9–12 Original...
Page 371 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB LONG RANGE CRUISE 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–133–3 Figure 9–9. Fuel Flow, AEO, 8000 Feet H , ISA + 30°C (29°C) 9–13 Original...
Page 372 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 100 KIAS 6250 LB 6000 LB 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–134–1 Figure 9–10. Fuel Flow, OEI, Sea Level, ISA (15°C) 9–14 Original...
Page 373 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 100 KIAS 6250 LB 6000 LB 4000 LB 5000 LB F92–134–2 INDICATED AIRSPEED − KNOTS Figure 9–11. Fuel Flow, OEI, 4000 Feet H , ISA (7°C) 9–15 Original...
Page 374 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6000 LB 100 KIAS 5000 LB 4000 LB INDICATED AIRSPEED − KNOTS F92–134–3 Figure 9–12. Fuel Flow, OEI, 8000 Feet H , ISA (–1°C) 9–16 Original...
Page 375 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB 100 KIAS 4000 LB 5000 LB INDICATED AIRSPEED − KNOTS F92–135–1 Figure 9–13. Fuel Flow, OEI, Sea Level, ISA + 20°C (35°C) 9–17 Original...
Page 376 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 100 KIAS 5000 LB 4000 LB F92–135–2 INDICATED AIRSPEED − KNOTS Figure 9–14. Fuel Flow, OEI, 4000 Feet H , ISA + 20°C (27°C) 9–18 Original...
Page 377 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 5000 LB 100 KIAS 4000 LB F92–135–3 INDICATED AIRSPEED − KNOTS Figure 9–15. Fuel Flow, OEI, 8000 Feet H , ISA + 20°C (19°C) 9–19 Original...
Page 378 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 100 KIAS 5000 LB 4000 LB INDICATED AIRSPEED − KNOTS F92–136–1 Figure 9–16. Fuel Flow, OEI, Sea Level, ISA + 30°C (45°C) 9–20 Original...
Page 379 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 5000 LB 100 KIAS 4000 LB INDICATED AIRSPEED − KNOTS F92–136–2 Figure 9–17. Fuel Flow, OEI, 4000 Feet H , ISA + 30°C (37°C) 9–21 Original...
Page 380 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 100 KIAS 5000 LB 4000 LB INDICATED AIRSPEED − KNOTS F92–136–3 Figure 9–18. Fuel Flow, OEI, 8000 Feet H , ISA + 30°C (29°C) 9–22 Original...
Page 381 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 100 KIAS 6250 LB 6000 LB 5000 LB 4000 LB INDICATED AIRSPEED − KNOTS F92–188–1 Figure 9–19. Fuel Flow, OEI, –1000 Feet H , ISA (17°C) 9–23 Original...
Page 382 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6250 LB 6000 LB 100 KIAS 5000 LB 4000 LB INDICATED AIRSPEED − KNOTS F92–188–2 Figure 9–20. Fuel Flow, OEI, –1000 Feet H , ISA + 20°C (37°C) 9–24 Original...
Page 383 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data MCP LIMIT 6000 LB 100 KIAS 5000 LB 4000 LB INDICATED AIRSPEED − KNOTS F92–188–3 Figure 9–21. Fuel Flow, OEI, –1000 Feet H , ISA + 30°C (47°C) 9–25 Original...
Page 384 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Additional Operations and Performance Data 9–3. INTERNATIONAL CIVIL AVIATION ORGANIZATION (ICAO) NOISE LEVELS The MD900 meets the ICAO Annex 16, Volume 1, Chapter 8 noise requirements for level flight, takeoff/climb, and approach descent profiles at the certified maximum gross weight of 6250 LB.
Page 385 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment E C T I O N PTIONAL QUIPMENT TABLE OF CONTENTS PARAGRAPH PAGE 10−1. General Information ........... 10−1 10−2.
Page 386 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment PARAGRAPH PAGE 10−10. Operating Instructions: Rescue Hoist ....... . . 10−35 Figure 10−15.
Page 387 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment SECTION X OPTIONAL EQUIPMENT 10–1.GENERAL INFORMATION This section provides general supplemental information on optional equipment for the helicopter. The information includes a listing of usable optional equipment and compatibility of combined equipment on the helicopter. Supplemental data is prepared and included in this section whenever the installation of that equipment affects the FAA Approval Data for Limitations (Section II), Emer gency and Malfunction Procedures (Section III), Normal Procedures (Section IV),...
Page 388 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment 10–3.COMPATIBILITY – COMBINED OPTIONAL EQUIPMENT Table 10–1. Optional Equipment MD900 Helicopter Air conditioner CSP−900RFM206E−1 − Section X (P/N 900P7250302−101) Search light CSP−900RFM206E−1 − Section X Cargo hook CSP−900RFM206E−1 − Section X Fire extinguishing system CSP−900RFM206E−1 −...
Page 389 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Air–Conditioning System 10–5.OPERATING INSTRUCTIONS: AIR CONDITIONING (P/N 900P7250302–101) PART I GENERAL The air−conditioning system circulates conditioned air throughout the cabin. A five position rotary switch AC/VENT controls the vent fan and air−conditioning. COOL HIGH provides air−conditioning at a high setting.
Page 390 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Air–Conditioning System CABIN/PASSENGER COMPARTMENT AIR OUT LETS 6 PLACES HIGH PRESSURE SWITCH RECEIVER/ DRYER EVAPORATOR È 3 WAY È VALVE WATER RAM AIR IN SEPARATOR CONDENSER EVAP FAN Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï...
Page 391 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Air–Conditioning System PART II LIMITATIONS No change. PART III EMERGENCY AND MALFUNCTION PROCEDURES As with any air conditioning system the installation in the MD900 has several built in features to prevent damage. The compressor has an electrically controlled clutch which is engaged when the system is turned on.
Page 392 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Air–Conditioning System PART IV NORMAL PROCEDURES A five position rotary switch AC/VENT controls the vent fan and air−conditioning. Selecting the COOL HIGH position provides air−conditioning at a high setting; COOL LOW provides air−conditioning at a low setting, selected from the center console utility panel assembly.
Page 393 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Controllable Landing/Search Light 10–6.OPERATING INSTRUCTIONS: CONTROLLABLE LANDING/SEARCH LIGHT PART I GENERAL The controllable search light is located on the lower fuselage ahead of the forward landing gear crosstube and offset to the left of the centerline. In the stowed position, the search light is flush with the lower fuselage skin and faces downward.
Page 394 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Controllable Landing/Search Light Preflight Checks − Electrical power OFF: Search light CHECK FOR BROKEN COVER, DAMAGE TO MECHANICAL ASSEMBLY OR BURNED OUT BULB. Console mounted LND LGT circuit breaker IN (REF. FIGURE 10–4) Baggage compartment mounted SRCH LT and IN (REF.
Page 395 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Controllable Landing/Search Light Preflight Checks − Electrical power ON: NOTE : The following operational checks may be performed with an external power source to prevent excessive battery drain. Electrical master panel POWER switch BAT/EXT Collective stick switch panel...
Page 396 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Controllable Landing/Search Light LEFT GENERATOR BUS BATTERY BUS AUDIO CRGO CKPT FUEL PNL2 BST PMP HOOK UTIL UTIL EVAP VENT COMP PITOT IGNTR DETENT GATE EVAP HEAT2 CNDSR POSN AREA CNSL INSTR STROBE...
Page 397 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Controllable Landing/Search Light PART V PERFORMANCE DATA No change. PART VI WEIGHT AND BALANCE DATA No change. PART VII SYSTEM DESCRIPTION The search light is controlled by the three position LIGHTS toggle switch. This switch connects battery bus power to the search light through the hover and landing light relays.
Page 399 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rotorcraft Cargo Hook Kit 10–7.OPERATING INSTRUCTIONS: ROTORCRAFT CARGO HOOK KIT PART I GENERAL The cargo hook is an option that permits the helicopter to carry a jettisonable external load of up to 3,000 pounds. The hook is suspended by a bridle of four cables that attach to the landing gear saddle fittings, and join at the cargo load cell link to support the hook.
Page 400 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rotorcraft Cargo Hook Kit PART II LIMITATIONS Weight Limitations: Maximum weight allowed on the landing gear is 6250 pounds. CAUTION Weight in excess of 6250 pounds and up to 6900 pounds must be external and jettisonable.
Page 401 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rotorcraft Cargo Hook Kit 7000 6500 LONGITUDINAL CG 6000 ENVELOPE 5500 5000 NORMAL CG LIMITS CARGO HOOK CG LIMITS >6250LBS 4500 4000 3500 3000 FUSELAGE STATION (IN.) 7000 6500 LATERAL CG 6000 ENVELOPE 5500...
Page 402 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rotorcraft Cargo Hook Kit PART III EMERGENCY AND MALFUNCTION PROCEDURES The presence of an external load may further complicate procedures following an emergency or malfunction. Release of loads attached through the cargo hook should be considered consistent with safety of flight factors.
Page 403 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rotorcraft Cargo Hook Kit With the load beam in its locked position, apply pressure to simulate a load on the beam and functionally check the three methods of cargo hook release: Mechanical release lever on the right side of hook Manual cargo hook release handle on cyclic Electric cargo hook release switch on cyclic...
Page 404 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rotorcraft Cargo Hook Kit QUICK RELEASE PIN (SEE NOTE) LINK ASSEMBLY AFT SADDLE CLAMP CABLE QUICK RELEASE PIN (SEE NOTE) PIN LINK FORWARD PIN LINK LINK ASSEMBLY FWD SADDLE CLAMP CABLE NOTE: ENSURE QUICK RELEASE PIN HEAD FACES ‘‘UP’’...
Page 405 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rotorcraft Cargo Hook Kit PART V PERFORMANCE DATA Hover Ceiling: Use the OGE hover ceiling charts: Refer to Section V for Hover Ceiling Data. PART VI WEIGHT AND BALANCE DATA Cargo Hook Longitudinal CG: 203.0 In.
Page 406 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rotorcraft Cargo Hook Kit PART VII SYSTEM DESCRIPTION Cargo Hook Installation (Figure 10−9): Align cargo hook cable attaching hardware with landing gear saddle clamp assem blies. Install FWD link assemblies into FWD saddle clamps. Install FWD pin links into link assemblies and quick release pins into FWD pin links.
Page 407 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Windscreen Wipers 10–8. OPERATING INSTRUCTIONS: WINDSCREEN WIPERS PART I GENERAL The windscreen wipers provide the pilot a means to clear the windscreens of rain or snow. The windscreen washers (if installed) provide pressurized washer fluid to the wind screen through spray nozzles.
Page 408 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Windscreen Wipers PART IV NORMAL PROCEDURES Windscreen wipers: Use the windscreen wipers whenever it is necessary to clear the windscreens of rain or snow. Do not use the windscreen wipers on a dry windscreen. The wipers have a panel mounted control switch (Ref.
Page 409 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Windscreen Wipers PART VI WEIGHT AND BALANCE DATA WEIGHT STATION MOMENT ITEM (LB) (ARM) (IN–LB) Washer reservoir full − water only 82.7 Washer reservoir full − water alcohol mixture 82.7 PART VIII HANDLING, SERVICING AND MAINTENANCE Servicing Materials –...
Page 411 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Supplemental Fuel System 10–9. OPERATING INSTRUCTIONS: SUPPLEMENTAL FUEL SYSTEM PART I GENERAL The MD900 supplemental fuel system option adds a transfer type auxiliary fuel tank located below the baggage compartment floor. Refer to Part VII for system description.
Page 412 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Supplemental Fuel System PART IV NORMAL PROCEDURES Preflight checks: Fuel cap SECURED Prestart cockpit check: Fuel transfer switch Inflight operation: Fuel transfer switch ON; VERIFY FUEL TRANSFER LIGHT ‘‘ON’’ NOTE : Fuel transfer should be begun when the fuel level in the main tank is between 700 and 300 LBS.
Page 413 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Supplemental Fuel System SUPPLEMENTAL FUEL SYSTEM USE MAIN FUEL DOWN TO 700 LBS BEFORE SELECTING AUX FUEL TRANSFER. FUEL TRANSFER SWITCH FUEL TRANSFER INDICATOR LIGHT 50 100 150 AUXILIARY FUEL QUANTITY GAUGE AUX FUEL GAUGE, SWITCH AND INDICATOR LIGHT F90–155A...
Page 414 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Supplemental Fuel System PART VI WEIGHT AND BALANCE DATA Weight and balance characteristics: The lateral CG of the auxiliary fuel tank is at station −2.0. Calculate CG as shown in the example below. EXAMPLE I: Longitudinal CG Determination WEIGHT STATION...
Page 415 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Supplemental Fuel System Table 10–4. Fuel Loading Table – Jet–A (6.8 LB/GAL) FUEL WEIGHT LONGITUDINAL LONGITUDINAL LATERAL LATERAL (LB) STATION MOMENT STATION MOMENT 239.4 4789 −2.0 −40 240.6 9625 −2.0 −80 241.6 14494...
Page 416 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Supplemental Fuel System JET – A (6.8 LB/GAL) 238.0 238.5 239.0 239.5 240.0 240.5 241.0 241.5 242.0 242.5 243.0 243.5 244.0 244.5 245.0 FUSELAGE STATION – INCHES JET – B (6.5 LB/GAL) 238.0 238.5 239.0 239.5 240.0 240.5 241.0 241.5 242.0 242.5 243.0 243.5 244.0 244.5 245.0 FUSELAGE STATION –...
Page 417 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Supplemental Fuel System PART VII SYSTEM DESCRIPTION The MD900 supplemental fuel system option adds a transfer type auxiliary fuel tank with a usable capacity of approximately 29.4 US gallons (200 LB, Jet−A) under neath the baggage compartment floor.
Page 418 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Supplemental Fuel System FUEL VENT ROLL OVER VALVE AUXILIARY TANK FILLER NECK FUEL QUANTITY TRANSMITTER FUEL VENT LINE AUXILIARY FUEL TANK FUEL TRANSFER LINE FUEL TRANSFER LINE FUEL LEVEL CONTROL VALVE MAIN FUEL TANK (REF.) SUPPLEMENTAL FUEL SYSTEM INSTALLATION STA 230.5 BULKHEAD...
Page 419 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Supplemental Fuel System PART VIII HANDLING SERVICING AND MAINTENANCE Fuel additives: Anti−icing additives, if required, must be added to the auxiliary fuel tank during refueling. FAA Approved 10–33/(10–34 blank) Original...
Page 421 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist 10–10.OPERATING INSTRUCTIONS: RESCUE HOIST PART I GENERAL The rescue hoist system provides a means for lowering and raising personnel or cargo from an airborne helicopter. It is capable of being operated from the passenger cabin by a qualified crewmember or from the pilot’s station.
Page 422 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist Airspeed limitations: Observe airspeed limitations in Section II with hoist installed and doors closed. Observe V for doors open/removed flight in Section II. while conducting hoist operations is 60 KIAS. Hoist limitations: Maximum load on hoist is 600 LB.
Page 423 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist PART III EMERGENCY AND MALFUNCTION PROCEDURES CABLE CUTTING: Procedures: Pilot: Activate the CABLE CUT switch on collective to jettison load in the event of an emergency. Hoist operator: Use provided cable cutters. GENERATOR FAILURE: NOTE : Hoist operations can require up to 125 amps of electrical power (63% load from...
Page 424 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist PART IV NORMAL PROCEDURES Preflight checks: To lower the work platforms/steps, remove the quick release pin CAUTION on the hoist strut and move the strut aside. The quick release pin must be reinstalled before any load is placed on the hoist.
Page 425 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist NOTE : The cable should be reeled out onto a smooth, clean surface or payed out into a drum. Exercise care to prevent kinking of the cable. Reel in cable by using both the pendant and the pilot OPERATE HOIST payout controls and verify hoist stops when hook reaches upper limit without excess tension on cable.
Page 426 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist MOTOR CABLE PAYOUT DISPLAY Ô Ô Ô Ô FEET LOAD MODE SELECT Ô Ô Ô Ô INDICATOR LIGHT Ô Ô HOIST PAYOUT ICS CONTROL SWITCH DIRECTION/SPEED CONTROL EMERGENCY CABLE CUT Ê...
Page 427 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist PART V PERFORMANCE DATA Reduce hover gross weight capability 70 LB when hovering with CAUTION rescue hoist installed. Refer to Section V for hover performance data. PART VI WEIGHT AND BALANCE DATA Maximum operating and hoist load weights: Maximum gross weight for hoist operations is 6250 LB including hoist load.
Page 428 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist EXAMPLE I: Lateral CG Determination – Enroute (above 60 KIAS) WEIGHT STATION MOMENT ITEM (LB) (ARM) (IN–LB) Basic Weight 3272.8 1465 Hoist Installation 136.8 55.60 7611 Pilot 15.85 3170 Hoist Operator (L/H seat) −19.00...
Page 429 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist EXAMPLE III: Lateral CG Determination – With Hoist Load WEIGHT STATION MOMENT ITEM (LB) (ARM) (IN–LB) Basic Weight 3272.8 1465.0 Hoist Installation 136.8 55.60 7611.0 Pilot 200.0 15.85 3170.0 Hoist Operator (R/H step) 200.0...
Page 430 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist For use below 6300 60 KIAS only 6200 100 LB 6100 200 LB 6000 300 LB 5900 400 LB 5800 500 LB 5700 600 LB 5600 5500 MAXIMUM 5400 HOIST LOAD 5300...
Page 431 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist PART VII SYSTEM DESCRIPTION The hoist assembly consists of a cable drum that holds 245 feet of 3/16" in. spin resistant cable, a fail safe load brake, 28 VDC electric motor, limit switches coupled to the cable drum to control fully−extended and intermediate cable positions, and redundant switches.
Page 432 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist VARIABLE SPEED CONTROLLER HOIST ASSEMBLY É (FAIRING REMOVED) HOOK CONTROL PENDANT MID SKID GUARD FAIRING SUPPORT TUBE 15° 15° WHITE STRIPE WHITE STRIPE STRUT INBOARD AFT SKID TUBE COVER FWD SKID TUBE MID SKID...
Page 433 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Rescue Hoist PART VIII HANDLING SERVICING AND MAINTENANCE Table 10–6. Servicing Materials Specification Material Manufacturer Hoist assembly: MIL−L−7808 Stauffer Jet I Stauffer Chemical Co. 380 Madison Avenue New York, NY 10017 American PQ American Oil and Lubricant 6899...
Page 435 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Fire Extinguishing System 10–11. OPERATING INSTRUCTIONS: FIRE EXTINGUISHING SYSTEM PART I GENERAL The fire extinguishing system provides a means for the pilot to direct a charge of fire extinguishing agent into the designated fire zone of each engine. There is no fire extinguishing system for the transmission area.
Page 436 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Fire Extinguishing System PART IV NORMAL PROCEDURES No change. PART V PERFORMANCE DATA No change. PART VII SYSTEM DESCRIPTION The fire extinguishing system (Ref. Figure 10−19) contains two individual hermeti cally sealed pressurized spherical containers (bottles) that are filled with 60 cubic inches of CF BR (Bromotrifluoromethane), also known as Halon 1301, and pressur...
Page 437 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Optional Equipment Fire Extinguishing System PRESSURE GAUGE FILLER PORT (RED PORT) PRIMARY (BLUE PORT) CARTRIDGE ALTERNATE CARTRIDGE DISCHARGE TUBE DISCHARGE TUBE DISTRIBUTION TUBE RIGHT SIDE FIRE BOTTLE ENGINE DECK ASSEMBLY DISTRIBUTION TUBE LEFT SIDE OUTLET PORT...
Page 439 ROTORCRAFT FLIGHT MANUAL CSP–900RFM206E–1 MD900 With PW 206E Increased Internal Gross Weight Operations E C T I O N NCREASED NTERNAL ROSS EIGHT PERATIONS TABLE OF CONTENTS PARAGRAPH PAGE 11−1. General ............. . . 11−1 11−2.
Page 441 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations SECTION XI INCREASED INTERNAL GROSS WEIGHT OPERATIONS 11–1. GENERAL By observing the limitations and performance data described in this section, pilots may operate at internal gross weights from above 6250 pounds, up to and including 6500 pounds.
Page 442 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations 11–2. ENVIRONMENTAL OPERATING CONDITIONS Maximum operating altitude: 5000 feet H 10000 8000 6000 4000 2000 −50 −40 −30 −20 −10 −36 FREE AIR TEMPERATURE − °C F90–162 Figure 11–1.
Page 443 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations 11–3. AIRSPEED LIMITS Maximum airspeed (V ) from sea level to 5000 H is 100 KIAS. FROM SL TO 5000 H IS 100 KIAS AT GROSS WEIGHTS FROM >6250 TO 6500 LBS CARD...
Page 444 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations 11–5. PERFORMANCE DATA The MD900 meets the FAR Part 36−H noise requirements for level flight, takeoff/ climb, and approach descent profiles at the certified maximum gross weight of 6500 MD900 NOISE CHARACTERISTICS ENGINE: PW 206E, GROSS WEIGHT: 6500 LB Configuration...
Page 445 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations 10000 9000 8000 −20°C −10°C −36°C 7000 −30°C 0°C 6000 5000 FT H 10°C 5000 20°C 4000 30°C 3000 40°C 2000 1000 50°C MAXIMUM OAT LIMIT −400 −300...
Page 446 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations 10000 −30°C −36 °C 9000 −20°C 8000 −10°C 7000 0°C 6000 10°C 5000 FT H 5000 20° 4000 30°C 3000 40°C 2000 MAXIMUM OAT LIMIT 1000 50°C 1000...
Page 447 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations 10000 Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï 9000 Ï...
Page 448 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations 10000 Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï 9000 Ï...
Page 449 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï 10000 9000 Ï...
Page 450 ROTORCRAFT FLIGHT MANUAL CSP–900 RFM206E–1 Model MD 900 With PW 206E Increased Internal Gross Weight Operations 10000 Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï 9000 Ï...

MD Helicopters MD900 with PW206E Flight Manual

E C T I O N Imitations

Table of Contents

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for MD Helicopters MD900 with PW206E

Summary of Contents for MD Helicopters MD900 with PW206E

Table of Contents
