Summary of Contents for Laser BLU-BD2000

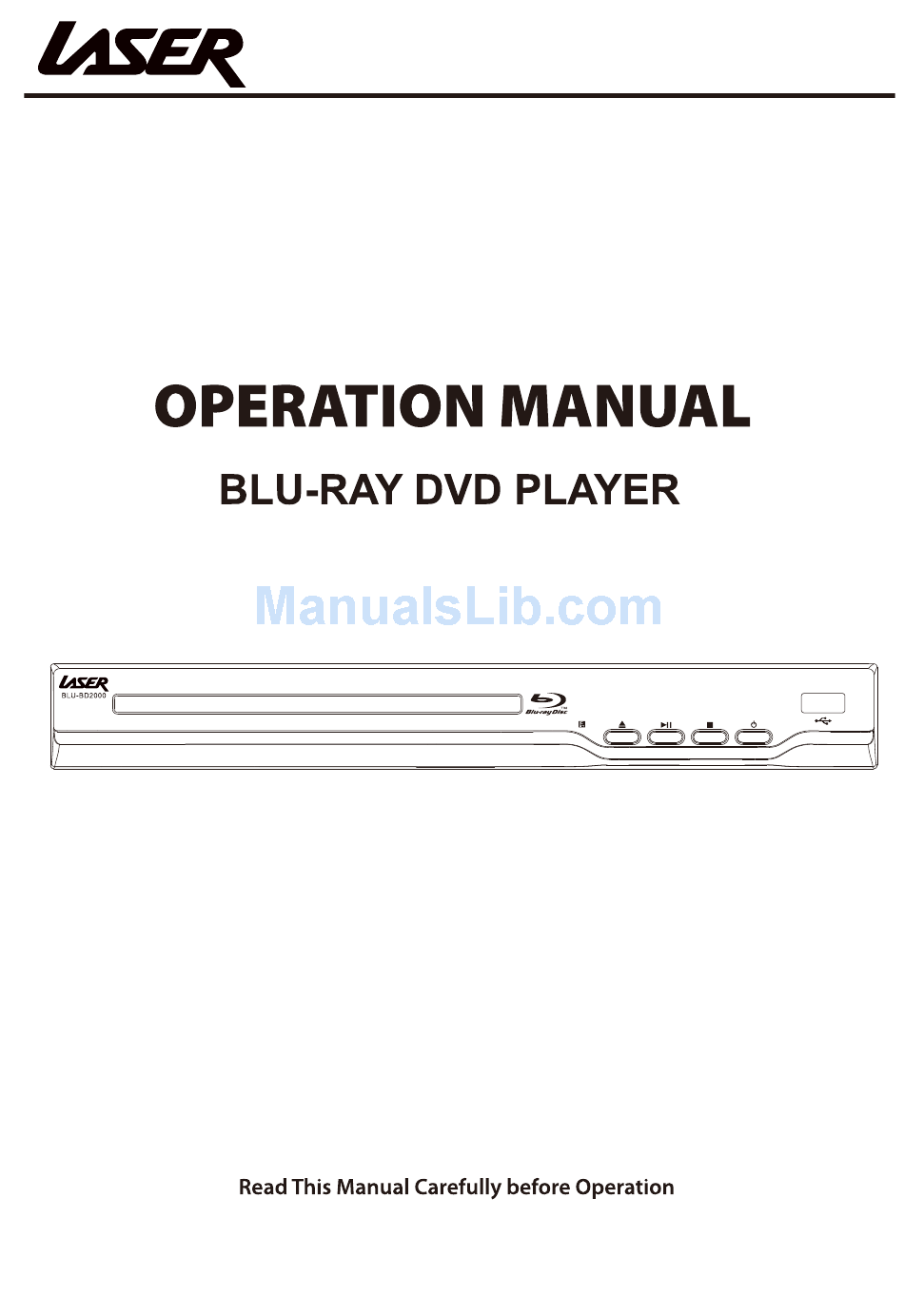

- Page 1 BLU-BD2000...
-
Page 2: Table Of Contents
INEDX IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS MEDIA COMPATIBILITY INCOMPATIBLE MEDIA PLAYER & DISC CARE Using Remote & Battery Panel Description Remote Control Description Device Connection Description Setup – customizing setting in the main menu System Language Play back Security Video processing Audio output Speaker setup Post processing... -
Page 3: Important Safety Instructions And Precautions
to alert the user to the presence of important operation and maintenance (servicing) instruction in the literature accompanying the appliance THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR A DJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN ... - Page 4 IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS •Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. •HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. •All other trademarks are the properties of their respective owners.
-
Page 5: Media Compatibility
DVD Video or files compatible with the (SL/DL), DVD-R BLU-BD2000 only. (SL/DL), DVD-RW (SL/DL). Recordable DVD media must be finalised by a recorder before playback on the BLU-BD2000. Media Type Compatibility Limitations CD-Audio, CD-R. Recordable CD media must be finalised by a CD-RW recorder before playback on the BLU-BD2000. -
Page 6: Incompatible Media
INCOMPATIBLE MEDIA INCOMPATIBLE MEDIA The following media may not be playable or produce erratic or substandard playback. •DVD-RAM •WMA discs •HD DVD •Super A udio CD •DivX discs •Data files on CD-Extra discs •Photo CD •BDs With cartridge •CD A udio with DRM •DVD-... - Page 7 INCOMPATIBLE MEDIA This player is designed to play DVDs from all regions. Note: Please refer to the GETTING THE BEST FROM THE PLAYER section later in this manual for information on changing BD & DVD Region Codes.
-
Page 8: Player & Disc Care
PLAYER & DISC CARE PLAYER & DISC CARE Cleaning the BLU-BD2000 Player Always turn the player off and unplug the power cord before cleaning. Never use alcohol, paint thinner or benzene to clean this unit. Before using chemically treated cloth, carefully read the instructions that came with the cloth. -
Page 9: Using Remote & Battery
Using Remote & Battery Installing the battery Using remote control 1.Open the battery cover. Aim the remote control at the receiver on the panel and then operate. 2.Insert the battery (R03, AAA). About 7m Align the +/- polarity of the battery to the sign in the slot. -
Page 10: Panel Description
Panel Description Parts and operation guide Front panel 1.Disc tray 5.Play/Pause 2.Eject/Insert 6.Stop 3.USB interface 7.ON/Standby Connect USB device to this interface. Turn on the player or set to standby mode. 4.Remote receiver Rear panel 1.Composite video output 2.Audio output (L) 3.HDMI output 4.Digital audio output (coaxial) 5.Audio output (R) -
Page 11: Remote Control Description
Remote Control Description Remote control While playing, press the following buttons to operate. 1. Power: turn on/off the player. 2. Screen control: access more options while playing. 3. Subtitle: select subtitle language. 4. Mute: mute or cancel mute. 5. Language: select audio language or channel. 6. -
Page 12: Device Connection Description
Device Connection Description Video and composite ouput Audio/video connection cable Audio/video input Connecting two-channel analog input amplifier Audio input Audio connection cable... - Page 13 Device Connection Description Coaxial connection Coaxial Coaxial cable HDMI connection HDMI OUT HDMI IN HDMI connection...
-
Page 14: Setup - Customizing Setting In The Main Menu
Setup – customizing setting in the main menu Specific setting method and description Menu Submenu Item Setting and description Screen saver Enable screen saver. If there is no operation in (prevent screen aging) five minutes while playing, the screen saver will be activated automatically, and enters standby mode if there is no operation in ten minutes. -
Page 15: Language
Setup – customizing setting in the main menu Specific setting method and description Menu Submenu Item Setting and description Network Upgrade Connect the network cable to the NIC interface (software update) and make sure that the network connection is normal. Select this function and press [OK], to show “Easy Easy setup Setup Wizard”... - Page 16 Setup – customizing setting in the main menu Specific setting method and description Menu Submenu Item Setting and description The PIP function of certain BD discs allows the PIP Mark player plays primary screen and secondary screen simultaneously. Generally, the primary video is displayed in full screen, and the secondary video is displayed in window.
-
Page 17: Security
Setup – customizing setting in the main menu Specific setting method and description Menu Submenu Item Setting and description Select this function and press [OK] and the screen Change password shows the dialog box below: Change password Please enter current password Press [0]-[9] to enter current password, and the following dialog box appears if the password is valid:... -
Page 18: Country Code
Setup – customizing setting in the main menu Specific setting method and description Menu Submenu Item Setting and description Motion Picture Association of America Film Rating Security Rating Description Children Suitable for children safe Suitable for all ages Watch under parent guide PG-13 Children younger than 13 watch under parente guid... - Page 19 Setup – customizing setting in the main menu Specific setting method and description Menu Submenu Item Setting and description the horizontal direction of the output signal will remain unchanged, and the vertical direction will TV Screen be compressed to 9/16 of the horizontal width. (set the aspect ratio When connected to 4:3 TV, select: matching the connected...
-
Page 20: Video Processing
Setup – customizing setting in the main menu Specific setting method and description Menu Submenu Item Setting and description Set color space Color space YcbCr YcbCr422 Full RGB HDMI Deep color Set HDMI color depth to 30-bit, 36-bit, 48-bit or OFF. -
Page 21: Audio Drc
Setup – customizing setting in the main menu Specific setting method and description Menu Submenu Item Setting and description Spdif Re-encode: (select the digital audio Output re-encoded digital signal. signal format from the Audio OFF: digital audio output output Turn off the signal output of digital audio output terminal) terminal of the player. -
Page 22: Speaker Setup
Setup – customizing setting in the main menu Specific setting method and description Menu Submenu Item Setting and description Configuration 2X (configuration when two channels are Speaker (select according to settings connected) connected speaker and First step: select the audio channel mode power amplifier) L/R: select this option if your power amplifier is compatible with Dolby Pro Logic;... -
Page 23: Playing - Advanced Playing Operation
Playing – Advanced Playing Operation Press the direction key [ ] to open the audio bar, Advanced Playing Operation and press [ ] [ ] to switch the audio. 1. Using screen control menu With screen control menu, you can set and select Angle [BD-V DVD-V]: display current playing angle. -
Page 24: Using Osd Menu
Playing – Advanced Playing Operation 2. Using OSD menu In OSD menu, you can check the current playing state. In playing state, press the [OSD] key to show the OSD menu on the screen. When playing BD-V DVD-V disc, the menu is shown below: OSD menu contains the following information: 1)Playing state... -
Page 25: Media Player - Special Operation Of Data Discs And Usb Playing
Media Player – Special operation of data discs and USB playing Note: 4.Press the direction key to select the type of the data With media player, you can play the photos, music file to be played (e.g. picture, music or movie), and and video saved in data discs and USB devices then press OK to select the file directory of selected (including HDD). - Page 26 Media Player – Special operation of data discs and USB playing ] to select data files, and then press [OK] to [ ]: pause playing and convert the picture; play all the files in the playing list. [ ]: pause playing and mirror the picture; In the playing list, press [Popup Menu] to pop up [ ]: pause playing and rotate the picture a dialog box, select accordingly and press [OK].
-
Page 27: Troubleshooting A
Troubleshooting A If there is any failure, please check as below. If you are not sure with the instructions or the problems still can’t be solved, please contact your local distributor. It isn’t the problem of the player in the following cases. There is noise when the disc is rotating;... -
Page 28: Troubleshooting
Troubleshooting player according to the specification of the TV. HDMI always has output, and CVBS only has output at 720P. Therefore, certain user can’t watch BD images in CVBS, because the output resolution in the setting menu is too high; please set the resolution in HDMI state to lower than 720P. -
Page 29: Troubleshooting B
•In case of player malfunction, please turn it off, wait for 30 seconds and turn it back on. If the problem still exists, please follow the troubleshooting instructions or contact Laser Technical Support. Use this chart to resolve general operational problems. If there are any problems that you cannot resolve, please contact Laser technical Support... - Page 30 Disc not properly loaded Eject disc and make sure the label side is facing up and the record side is facing down. Condensa on on the Laser Turn on the player, eject the disc and leave the pick-up head player on for about an hour.
-
Page 31: Technical Specifications
Technical Specifications Specifications Note The specification is subject to change without prior notice. Area code The player supports the following area code. Blu-ray Country/Region Australia Compatible media BD-Video DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL (double-layer) VCD/SVCD Audio CD, CD-R-/CD-RW, MP3, JPEG USB device Video Signal system: PAL/NTSC... -
Page 32: Basic Function
Technical Specifications Basic Function Model BLU-BD2000 Function DOLBY DTS HD RMVB AVCHD DivX BD original Disc MP3 Lyrics display Those who marked with “V”, are the basic functions of this model supports. -
Page 33: Contact Information
Product and a copy of your receipt. Laser will cover the cost of the return delivery. Step 4: Wait for us to contact you. Once we have received your defec ve Laser Product for inspec on, we will inform you of our assessment of your claim within 7 days.
