Summary of Contents for Laser DVD-PT-10D

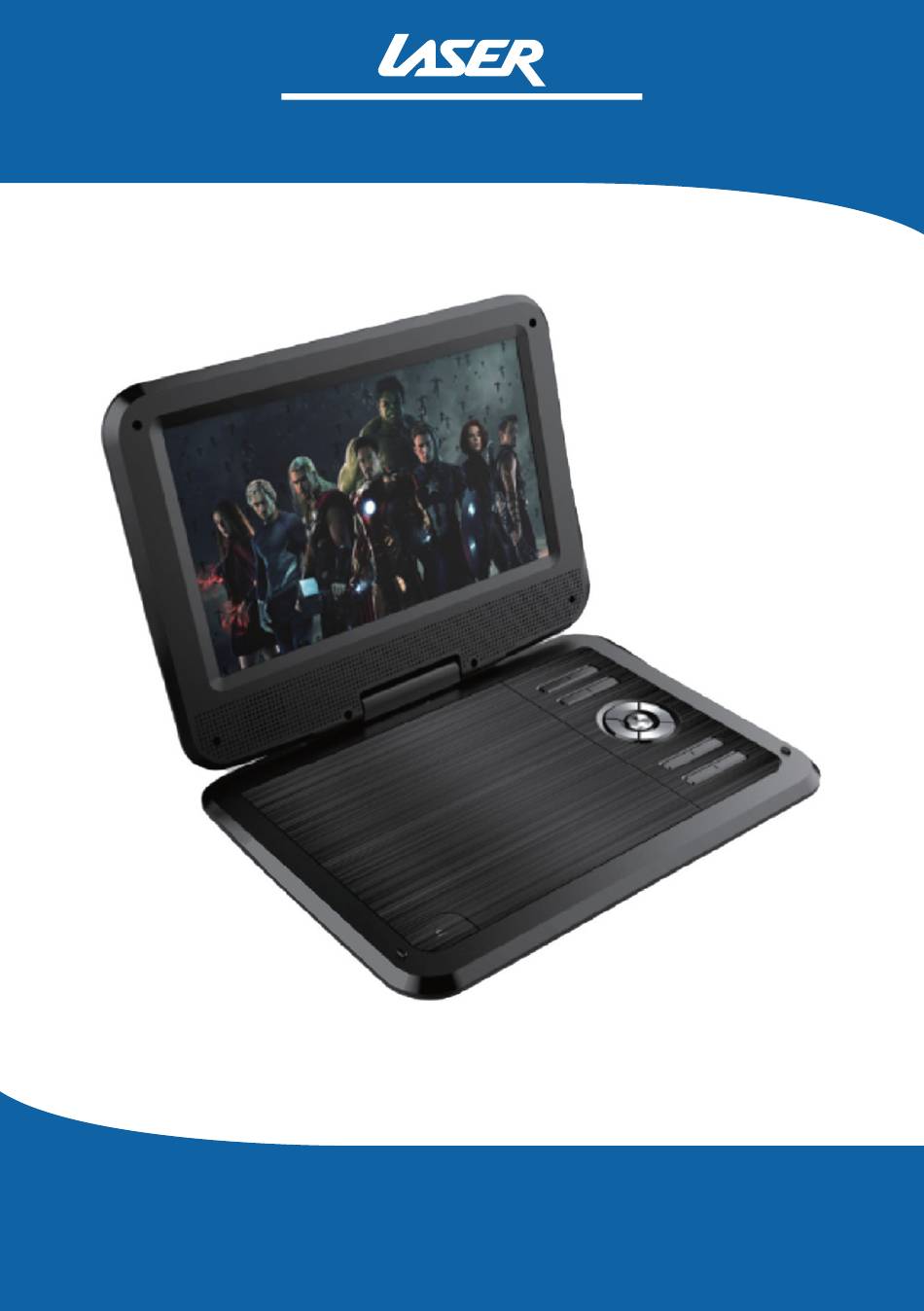

- Page 1 User Manual 10" Portable DVD Player DVD-PT-10D...
-
Page 3: Safety Precautions
• This player is classified as a Class 1 laser product. Avoid direct exposure to laser radiation as it may cause harm to eyes. •... - Page 4 SAFETY PRECAUTIONS continued... • Ensure ventilation holes are not covered. • Place the device on stable surfaces with secure cables to prevent falls. • Do not use the monitor unit or headphones while driving or operating any vehicle, as it may cause accidents.
-
Page 5: What's In The Box
WHAT'S IN THE BOX • 10" DVD player • Wall power adaptor • 12V car power adaptor • Remote control • AV cable • Earphones • Carry case & headrest pouch • 2x AAA batteries • User manual... - Page 6 OVERVIEW Mode DVD/USB/SD 3 Menu Setup 5 Up/Skip back Left/Rewind 7 Right/Fast Down/Skip forward forward 9 OK Volume down 11 Volume up Stop...
- Page 7 OVERVIEW continued... Play/Pause Open disc tray IR sensor Power LED DC power input Main power On/Off switch AV input 3.5mm AV output 3.5mm stereo headphone output SD/MMC card slot USB port...
-
Page 8: Remote Control
REMOTE CONTROL... - Page 9 REMOTE CONTROL continued... 1. Power: Turn the player On or Off. 2. Display: Show current content info. 3. TFT: Turn the screen On or Off. 4. Mute: Silence audio. 5. Repeat: Loop title, chapter, or track. 6. Search: Pick title, chapter, track, title time, track time. 7.
- Page 10 REMOTE CONTROL continued... 17. OK: Confirm choice or setting. 18. Audio: Choose DVD audio language. 19. Mode 2: Switch between DVD, USB and SD card. 20. A-B: Mark a section to repeat. 21. Number pad: Input in menus or passwords. 22.
-
Page 11: Operation
OPERATION Connecting to power Indoor use 1. Plug the wall power adaptor into a power outlet. 2. Connect the other end to the DVD player's DC power jack. 3. Turn on the power outlet. 4. Switch the DVD player on. In-car use 1. - Page 12 OPERATION continued... Loading and playing a disc: 1. Connect power to the DVD player, then slide the power button to On position. 2. Open the DVD cover, then place a disc gently into the tray with the label facing up. 3.
- Page 13 OPERATION continued... • Speed can be adjusted from 2X to 32X. Menu: • DVDs are divided into titles and chapters. Press Menu during playback to see the options. Playback and Remaining Time: • Press Display during playback to see title and chapter info.
- Page 14 OPERATION continued... Subtitle: • Press Sub to choose subtitle language. • Press again for more languages. • Press until "Subtitles off" for no subtitles. Some DVDs only let you access this feature through the DVD menu. Audio: • Press Audio to select audio language. •...
-
Page 15: Menu Settings
MENU SETTINGS • Press Setup on the remote to open the setup menu. • Use or buttons to navigate between settings. • Press OK to enter a setting. • Navigate to the desired feature using the /p buttons. •... -
Page 16: Menu System
MENU - SYSTEM TV System: Select the video output format when connected to an external screen: • PAL: Output is PAL only; used in Australia. • NTSC: Output is NTSC only. Screen aver • On: Activates screen saver after five minutes of inactivity. - Page 17 MENU - SYSTEM continued... Rating • Choose a parental control level from 1 (kids safe) to 8 (adult). Restrict playback with a password if needed. Requires parental control on the disc. Default • Reset the player to factory settings. Not all discs have these features; some depend on the disc.
-
Page 18: Menu Language
MENU - LANGUAGE OSD (On-Screen Display): Choose OSD language from several options. Audio: Set the default language for DVD audio. Subtitle: Set the default language for DVD subtitles. Disc Menu: Set the default language for DVD menus. Availability depends on the DVD. - Page 19 MENU - AUDIO Use ▲/▼ buttons to change the Key value.
- Page 20 MENU - VIDEO Adjust the image quality. Brightness: Control how bright or dim the screen appears. Contrast: Adjust the difference between the lightest and darkest parts of the picture. Hue: Change the overall colour tint of the video. Saturation: Control the intensity of colours, making them more or less vibrant.
- Page 21 MENU - DIGITAL AUDIO Dynamic range: Adjust the difference between the softest and loudest sounds in the audio. Dual Mono: Adjust how the audio is played through the player's speakers. • Stereo: Plays audio through both the left and right channels with distinct left or right channel separation.
-
Page 22: Troubleshooting
TROUBLESHOOTING No sound or distorted sound? • Make sure the audio isn't muted. • See if the player's volume is turned up. • Check if your DVD is connected properly. Ensure all cables are securely inserted into the right jacks. •... - Page 23 TROUBLESHOOTING continued... The icon (Ø) appears on the screen? • This feature can't be used right now because: • The disc's software restricts it. • The disc's software doesn't support the feature, like angles. • The feature isn't available. • You've selected a title or chapter number that's out of range.
- Page 24 TROUBLESHOOTING continued... DVD player doesn't respond to remote's signal • Point the remote directly at the player's IR sensor. • Check if the remote's battery is fresh. • Ensure nothing is blocking the remote sensor. Disc won't play? • Insert the disc with the label side facing up. •...
-
Page 25: Specifications
SPECIFICATIONS Compatible discs DVD/VCD/CD/MP3/ JPG/AVI USB/SD file format USB/SD max. capacity 32 GB USB/SD supported MPEG1/MPEG-2/MP4V/ codecs - video MPG/FLV/VOB/MP4/ AVI file max. supported resolution (720x480) USB/SD supported MP3/WMA/AC3 codecs - audio USB/SD supported JPEG codecs - images Power source 12 VDC 1.5A Power consumption 15 W... - Page 27 Thank you for your purchase! Laser Corporation is 100% Australian owned & operated. To get the most out of your product please read the user manual carefully and keep for future use. For specific information relating to your product such as Spare Parts, FAQs, Warranty claims, and...
- Page 28 Visit our website www.laserco.com.au Check us out at www.youtube.com/lasercoau Product support: E: support@laserco.com.au P: (02) 9870 3355...
