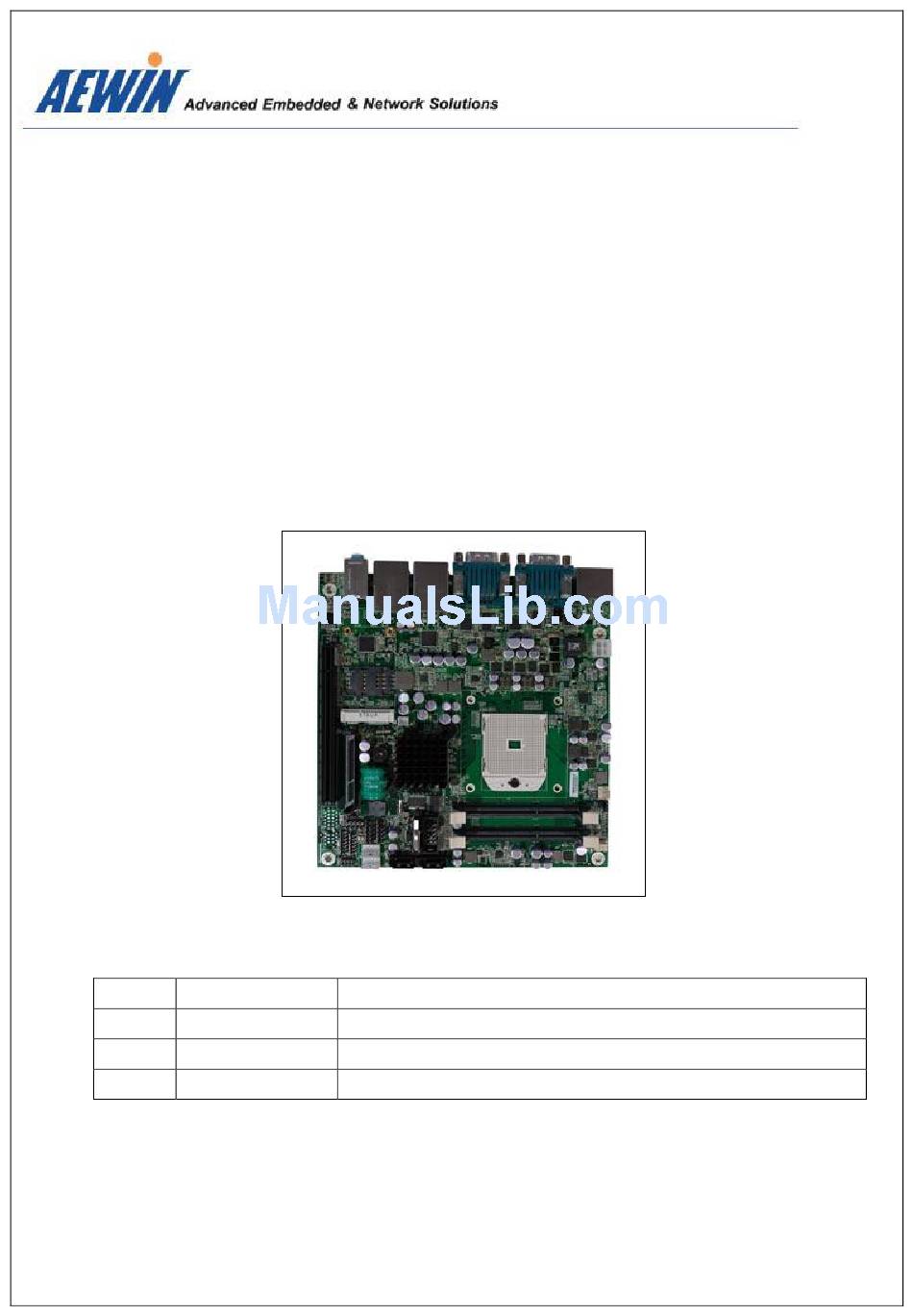

User Manual
MB-8390
Mini-ITX support AMD® R-series APU, AMD® A75 chipset, DDR3 up to 16GB, 2 x
Intel® Giga LAN, Onboard 3 x HDMI, 1 x DP port, 2 x SATA, 8 x USB, 2 x COM,
GPIO, PCI-Express X16 & X1 slots, Cfast socket, Mini-PCIe socket, optional 8 x
intrusion detection / TPM 1.2 / Dual BIOS, DC 8V ~ 32V inputs
Ver.
Release Date
Update
1.0
2013.10.21
Release
AEWIN Technologies Co., Ltd
MB-8390 User Manual
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aewin MB-8390
Summary of Contents for Aewin MB-8390
-
Page 1: User Manual
Intel® Giga LAN, Onboard 3 x HDMI, 1 x DP port, 2 x SATA, 8 x USB, 2 x COM, GPIO, PCI-Express X16 & X1 slots, Cfast socket, Mini-PCIe socket, optional 8 x intrusion detection / TPM 1.2 / Dual BIOS, DC 8V ~ 32V inputs Ver. Release Date Update 2013.10.21 Release AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 2 For more information or other AEWIN products, please visit our website http://www.aewin.com.tw. For technical supports, please send your inquiry to sales@aewin.com.tw...
-
Page 3: Packing List
Packing list Before use this product, please make sure that the following materials have been shipped. 1 x MB-8390 motherboard 1 x SATA cable, L/ 200mm ( P/N: 46L-SATA11-00 ) 1 x 12V/5V SATA power cable , L/ 150mm ( P/N: 46L-IPOW41-00 ) - Page 4 SATA cable, L/ 200mm P/N: 46L-IPOW41-00 12V/5V SATA power cable , L/ 150mm P/N: 46L-IUSB07-AA Dual USB cable, L/ 250mm, with bracket P/N: 46L-IPOW102-00 P4 4-pin to DC Jack lockable power cable, L/ 200mm AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 5: Safety Information
Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet. Place the product on a stable surface. If you encounter technical problems with the product, contact a qualified service technician or your retailer. AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 6: Table Of Contents
CN22 for Full-size Mini-PCIe socket ……………....32 2.4.10 CN23 for internal 4-pin power input ………........34 2.4.11 2.4.12 CN7 & CN16 for CPU & System Fan connector ........35 Triple display configuration ……………………........36 AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 7 Chapter BIOS Menu Setting ..………………….....37 Chapter Programming WDT & GPIO ………………………..58 GPIO DOS sample code ....……………………..……………..…..…58 WatchDog timer DOS sample code .…………………… ..………..…..…...65 Chapter Device Resources ..………………...…..69 AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 8: Chapter 1 General Information
2 x RS232, 2 x USB3.0 + 6 x USB2.0, HD Audio, 2 x SATA, CFast socket, 8-bit GPIO, optional onboard 8 x intrusion detection & TPM 1.2 function. The MB-8390 accepts a wide range 8V ~ 32V DC input suitable for a variety of applications in digital signage, POS, kiosks. -
Page 9: Specification
1 x 3-pin PWM Fan header 1 x Front Panel header for power on/off, reset, HDD/power LED indicator 2 x 4-pin 12V/5V DC out for SATA HDD 1 x 2-pin for Full-size/Half-size Mini-PCIe LED indicator header AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 10 Power in DC 8V ~ 32V input ( AT/ATX mode jumper selectable ) Power connector 1 x P4 4-pin internal header Note : All specifications and photos are subject to change without notice. AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 11: Block Diagram
2 x RS232 2 x USB2.0 external USB2.0 Super IO Optional F81866A Intrusion detect Full-size Switch PCIe Mini-PCIe 8-bit GPIO WDT, H/W SATA 2 x SATA2.0 internal Monitor 1 x CFast socket BIOS AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 12: Board Layout Dimension
1.4 Board Layout Dimension AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 13 AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 14: Io / Connector
SIM card holder PCI-Express X16 Full-size Mini-PCIe PGA socket for AMD® R-series APU CFast socket Intrusion battery CPU Fan PCI-Express X1 GPIO System Fan SATA2 AMD® A75 Front Panel Intrusion DDR3 SO-DIMM SATA power AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 15 Display Port RS232 RS232 GLAN GLAN Audio HDMI HDMI HDMI USB3.0 USB2.0 AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 16: Chapter 2 Hardware Installation
2.1 The location of onboard connectors CN26 CN29 + CN31 CN35A + CN36B CN28 CN27 CN30 + CN33 Intel® QM77 CN20 CN23 CN21 CN19 CN22 CN18 CN17 CN16 CN13 CN11 CN10 CN12 AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 17 CN30 COM2 CN13 PCI-Express X1 slot CN31 HDMI 2 CN14 CN32 CN33 HDMI 1 CN15 Reserve CN16 3-pin CPU Fan connector CN34 CN35A DP port CN17 Reserve CN18 CFast socket CN36B HDMI 0 AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 18: The Location Of Onboard Jumpers
2.2 The location of onboard jumpers Label Function CMOS Clear jumper CFast card write-protect DDR3 voltage selection Power AT/ATX mode selection AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 19: The Function List Of Onboard Jumpers Setting
If you want to clean the CMOS data, set jumper to 2-3 just for few seconds, Then, Move the jumper back to 1-2 pin Closed Pin Result Normal Clear CMOS * Default setting AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 20: Jp2 For Cfast Card Write-Protect
Can’t write the data into CFast card Could write data into CFast card * Default setting Note: Compatible with a particular brand with a particular model only. Please check with MB-8390 testing report AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 21: Jp3 For Ddr3 Voltage Delect
-2.3.3 : JP3 DDR3 voltage select Closed Pin Result +1.35V +1.5V * Default setting AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 22: Jp4 For Power At/Atx Mode Select
-2.3.4 : JP4 for AT/ATX power mode Closed Pin Result AT mode ATX mode * Default setting AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 23: The Pin Define Of Onboard Pin Header
-2.4.1 : CN1 for front Panel pin header CN16 : 2 x 4 header , pitch 2.00 mm Signal Signal Power_LED+ HDD_LED+ HDD_LED- Power on/off RESET AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 24: Cn2 & Cn5 For 4-Pin Hdd Power
CN2 : 4-pin wafer for SATA power connector Signal Signal +12V Note: Maximum output current 12V/1A, 5V/1A CN5 : 4-pin wafer for SATA power connector Signal Signal +12V Note: Maximum output current 12V/1A, 5V/1A AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 25: Cn8 For 8-Bit Gpio
-2.4.3 : CN8 for 8-bit GPIO CN4 : 2 x 6 header , pitch 2.0 mm Signal Signal +3.3V GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 26: Cn9 For Low Pin Count Pin Header
-2.4.4 : CN9 for Low Pin Count pin-header CN9 : 2 x 7 header , pitch 2.0 mm Signal Signal +3.3V LAD0 LAD1 LAD2 LAD3 LFRAME Reset LCLK LPME SERIRQ LDRQ AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 27: Cn10 For Intrsuion Detection
-2.4.5 : CN10 for Intrusion Detection CN19 : 2 x 5 header, pitch 2.54 mm Signal Signal DOOR0 DOOR1 DOOR2 DOOR3 DOOR4 DOOR5 DOOR6 DOOR7 Note: This function for OEM model only CN10 AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 28: Cn11 & Cn12 For Usb2.0 Pin Header
CN11: 2 x 5 header , pitch 2.54 mm Signal Signal USB2_ data- USB3_data- USB2_ data+ USB3_data+ CN12: 2 x 5 header , pitch 2.54 mm Signal Signal USB4_ data- USB5_data- USB4_ data+ USB5_data+ CN11 CN12 AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 29: Cn14 For Spi Programmer Pin Header
CN14 : 2 x 4 header , pitch 2.54 mm Signal Signal +3.3V SCLK ( Serial Clock) CS_N ( Chip Select ) MOSI MISO ( Master Input, Slave Output ) ( Master Output, Slave Input ) CN14 AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 30: Cn20 For Full-Size Mini-Pcie Wlan Led Indictor
- 2.4.8 : CN20 for WLAN LED connector for Full-size Mini-PCIe socket CN20 : 1 x 2 wafer Signal Signal LED- +3.3V Note: Support WLAN / wireless LAN signal CN20 AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 31: Cn21 For Sim Card Holder
-2.4.9 : CN21 for SIM holder CN21 : SIM card holder Signal Signal RESET CLOCK Reserved Reserved CN21 AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 32: Cn22 For Full-Size Mini-Pcie Socket
SMBCLK PETN0 +1.5V SMBDATA CLKREQ PETP0 UIM_PWR CN22 UIM_DATA USB_D- REFCLK- UIM_CLK USB_D+ REFCLK+ +3.3V AUX UIM_RESET +3.3V AUX UIM_VPP LED_WWAN UIM_C8 LED_WLAN UIM_C4 W_Disable PERST +1.5V PERN0 +3.3V AUX PERP0 +3.3V AUX AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 33 Please into BIOS and set ” SATA ” when you install a Full-size add-on card, such as mSATA SSD... Please into BIOS and set ” PCIE ” when you install a Full-size add-on card, such as WIFI card..AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 34: Cn23 For Internal 4-Pin Power Input
-2.4.11 : CN23 for internal 4-pin power input CN23 : ATX 2 x 2 Signal Signal 8V ~ 32V DC input 8V ~ 32V DC input CN23 AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 35: Cn7 & Cn16 For Cpu & System Fan Connector
-2.4.12 : CN7 for system Fan connector CN7 : 1 x 3 wafer Signal Signal +12V Sense CN16 for CPU Fan connector CN16: 1 x 3 wafer Signal Signal +12V Sense CN16 AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 36: Triple Display Configuration
HDMI 1 + HDMI 2 + DP port = Pass Note: If need to connect with DP port for triple display application, the HDMI 2 must be used in the configuration, Otherwise, the system will show two display only. AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 37: Bios Menu Setting
3. BIOS setting Menu - 3.1 Main Menu The Main Menu of BIOS Setup Utility provide a quick overview of basic system information and the ability to change the system Date, time …………….. AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 38: Advanced Menu
- 3.2 Advanced Menu The Advanced Menu of BIOS Setup Utility allows users to configure advanced system settings. AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 39 Description: This item manually sets the maximum read request size of the PCI Express device or allows the system BIOS to choose the value (Auto). The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes and 4096 Bytes. AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 40 - 3.2.2 Advanced Menu ACPI Setting: Enable ACPI Auto Configuration < Disable > Description : Use this feature to configure Advanced Configuration and Power Interface (ACPI) power management settings for your system. AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 41 Description : Select Enabled to activate support for trusted platforms (TPM 1.1/1.2) and allow the BIOS to automatically download the drivers needed to provide support for the platforms specified. The options are Disable and Enable. > AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 42 - 3.2.4 Advanced Menu CPU Information: This item displays the current CPU Revision, Current CPU1 Memory Frequency, Memory Type and Memory Reference Code Revision. Description : This item displays the current CPU information.” AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 43 - 3.2.5 Advanced Menu IDE Configuration: Description : When this submenu is selected, the AMI BIOS automatically detects the presence of the IDE Devices and displays the following items: AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 44 - 3.2.6 Advanced Menu F81866 Super IO Configuration: Description : Select Enabled to enable the onboard serial port. The options are Enabled and Disabled. AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 45 F81866 H/W monitor: PC Health Status < Enabled/Disabled > Description : This feature allows the user to check CPU temperature and the fan speed. And also displays the current voltages of the above voltage monitors AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 46 Select Enabled to enable the capability to ‘wake-up’ the system from the S5~power state (Soft Off State) through the Ethernet controller. The settings are Enabled and Disabled. Select Enabled to enable on board AMD LAN device PXE remote boot function AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 47: Chipset Menu
- 3.3 Chipset Menu Chipset: Description : South Bridge & North Bridge Setting AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 48 - 3.3.1 Chipset Menu AMD Reference code version : Description: Check the code version and optional for SATA, USB and audio function. AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 49 Description: Customer could enabled/disabled SATA function here. Default setting is <Enabled> Onchip SATA Type selects the mode for the installed drives. The options are Disabled, IDE Mode, AHCI Mode and RAID Mode. Default setting is <AHCI> AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 50 - 3.3.3 Chipset Menu SB USB Configuration: XHCI Controller 0/1 < Disabled/enabled > Description: This feature enables support for USB function parameters The options are Enabled, and Disabled. Default setting is <Enabled> AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 51 - 3.3.4 Chipset Menu SB GPP port configuration: SB GPP Function < Disabled/enabled > Description: AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 52 - 3.3.5 Chipset Menu SB HD Azalia configuration: HD Audio Azalia Device < Disabled/enabled > Description: Select Enabled to enable the Azalia High Definition Audio feature. The settings are Enabled and Disabled. Default setting is <Enabled> AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 53 Primary Video Device < IGD Video > Description: Select primary video device that BIOS will use to for output Default setting is <IGT Video> IGT : Integrated Graphics Device. PEG : PCI Express Graphics AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 54 - 3.3.7 Chipset Menu Memory Configuration: Memory Clock < Auto > Description: This feature allows the user to select the memory speed. Under normal conditions, please set this to Auto. Default setting is <Auto> AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 55: Boot Menu
- 3.4 Boot Menu Boot Configuration: Description: This feature allows the user to specify which devices are boot devices and the order of priority from which the systems boots from during startup. AEWIN Technologies Co., Ltd MB-8390 User Manual... -
Page 56: Security Menu
Password Description: Description: Administrator Password : Press Enter to create a new, or change an existing Administrator password. User Password : Press Enter to create a new, or change an existing User password. AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 57 Exit from the Exit menu and press <Enter>. Restored Defaults : To set this feature, select Restore Defaults from the Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. AEWIN Technologies Co., Ltd MB-8390 User Manual...
-
Page 58: Programming Wdt & Gpio
4. GPIO and WatchDpg Timer sample code - 4.1 GPIO Sample Program for DOS environment //AEWIN GPIO Program for MB-8390(DOS Version) #include <stdio.h> #include <string.h> #include <dos.h> #include <stdlib.h> #include <inlines/pc.h> #define index_port 0x4E #define data_port 0x4f void help(); void Enter_SIO();... - Page 59 |= val; outportb(data_port, data_rw8); printf("(Set GP82 to high)\n"); else if(strcmp(argv[1], "-82l") == 0){ val = 0x04; outportb(index_port, 0x89); data_rw8 = inportb(data_port)&(~val); outportb(data_port, data_rw8); printf("(Set GP82 to low)\n"); else if(strcmp(argv[1], "-83h") == 0){ AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 60 0x89); data_rw8 = inportb(data_port)&(~val); outportb(data_port, data_rw8); printf("(Set GP84 to low)\n"); else if(strcmp(argv[1], "-85h") == 0){ val = 0x20; outportb(index_port, 0x89); data_rw8 = inportb(data_port)&(~val); data_rw8 |= val; outportb(data_port, data_rw8); printf("(Set GP85 to high)\n"); AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 61 0x89); data_rw8 = inportb(data_port)&(~val); data_rw8 |= val; outportb(data_port, data_rw8); printf("(Set GP87 to high)\n"); else if(strcmp(argv[1], "-87l") == 0){ val = 0x80; outportb(index_port, 0x89); data_rw8 = inportb(data_port)&(~val); outportb(data_port, data_rw8); printf("(Set GP87 to low)\n"); AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 62 = 0xF0; outportb(index_port, 0x89); data_rw8 = inportb(data_port)&0x00; data_rw8 |= val; outportb(data_port, data_rw8); printf("(Set GP80~83 to low, GP84~87 to high)\n"); else if(strcmp(argv[1], "-gpr") == 0){ outportb(index_port, 0x8A); val = 0x01; data_rw8 = inportb(data_port)&(val); AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 63 = 0x40; data_rw8 = inportb(data_port)&(val); if(data_rw8==val)printf("(GP86 is high)\n"); else printf("(GP86 is low)\n"); val = 0x80; data_rw8 = inportb(data_port)&(val); if(data_rw8==val)printf("(GP87 is high)\n"); else printf("(GP87 is low)\n"); AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 64 0x07); outportb(data_port, 0x06); void Exit_SIO() outportb(index_port, 0xAA); void help() printf("AEWIN GPIO test program\n"); printf("==============================================\n"); printf("gpio -hhh (Set GP80~87 to high)\n"); printf("gpio -lll (Set GP80~87 to low )\n"); printf("gpio -lte (Set GP80~83 to high, GP84~87 to low)\n"); printf("gpio -ltd (Set GP80~83 to low, GP84~87 to high)\n");...
-
Page 65: Watchdog Timer Dos Sample Code
4.2 Watchdog timer Sample Program for DOS environment //AEWIN Watch dog program for MB-8390(Dos Version) #include <stdio.h> #include <string.h> #include <dos.h> #include <stdlib.h> #include <inlines/pc.h> #define index_port 0x4E //Super IO Index port address #define data_port 0x4F //Super IO Data port address void Enter_sio_config();... - Page 66 //Disable count outportb(index_port, 0xF5); data_rw8 = inportb(data_port)&0xCF; outportb(data_port , data_rw8); else{ outportb(index_port, 0xFA); outportb(data_port , 0x01); //Enable reset function printf("Watchdog Timer will count down for %d second(s)\n", time); else if(strcmp(argv[1], "-m") ==0 ){ AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 67 , data_rw8); else{ outportb(index_port, 0xFA); outportb(data_port , 0x01); //Enable reset function printf("Watchdog Timer will count down for %d minute(s)\n", time); Exit_sio_config(); return; void Enter_sio_config() //Enter W83627EHF Configuration outportb(index_port, 0x87); delay(1); //Delay some time AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 68 , 0x07); //Select logical device 7 void Exit_sio_config() //Exit W83627EHF Configuration outportb(index_port, 0xAA); void help() printf("AEWIN Watchdog Timer Program\n"); printf("Usage: WDT -s (Show Watchdog Register Settings)\n"); printf("Usage: WDT -t xxx (Set Time-out Value)\n"); printf(" xxx = 1 ~ 255 seconds\n");...
-
Page 69: Device Resources
Microsoft ACPI-Compliant System IRQ 111 Exclusive Microsoft ACPI-Compliant System IRQ 112 Exclusive Microsoft ACPI-Compliant System IRQ 113 Exclusive Microsoft ACPI-Compliant System IRQ 114 Exclusive Microsoft ACPI-Compliant System IRQ 115 Exclusive Microsoft ACPI-Compliant System AEWIN Technologies Co., Ltd MB-8390 User Manual... - Page 70 Microsoft ACPI-Compliant System IRQ 141 Exclusive Microsoft ACPI-Compliant System IRQ 142 Exclusive Microsoft ACPI-Compliant System IRQ 143 Exclusive Microsoft ACPI-Compliant System IRQ 144 Exclusive Microsoft ACPI-Compliant System IRQ 145 Exclusive Microsoft ACPI-Compliant System AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 71 Standard Enhanced PCI to USB Host Controller IRQ 17 Shared Standard Enhanced PCI to USB Host Controller IRQ 17 Shared PCI standard PCI-to-PCI bridge IRQ 170 Exclusive Microsoft ACPI-Compliant System IRQ 171 Exclusive Microsoft ACPI-Compliant System AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 72 Microsoft ACPI-Compliant System IRQ 83 Exclusive Microsoft ACPI-Compliant System IRQ 84 Exclusive Microsoft ACPI-Compliant System IRQ 85 Exclusive Microsoft ACPI-Compliant System IRQ 86 Exclusive Microsoft ACPI-Compliant System IRQ 87 Exclusive Microsoft ACPI-Compliant System AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 73 Memory FEB48000-FEB49FFF Exclusive Universal Serial Bus (USB) Controller Memory FEB4A000-FEB4BFFF Exclusive Universal Serial Bus (USB) Controller Memory FEB4C000-FEB4CFFF Exclusive Standard OpenHCD USB Host Controller Memory Exclusive Standard Enhanced PCI to USB Host Controller AEWIN Technologies Co., Ltd MB-8390 User Manual...
- Page 74 High precision event timer Memory FED00000-FED00FFF Exclusive Motherboard resources Memory FED40000-FED44FFF Exclusive Unknown Memory FED61000-FED70FFF Exclusive Motherboard resources Memory FED80000-FED8FFFF Exclusive Motherboard resources Memory FEE00000-FEE00FFF Exclusive Motherboard resources Memory FF000000-FFFFFFFF Exclusive Motherboard resources AEWIN Technologies Co., Ltd MB-8390 User Manual...
