Aewin AW-MB700 User Manual

Socket 478 atx industrial motherboard w/two lan, ieee 1394, raid-0, ssd & audio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

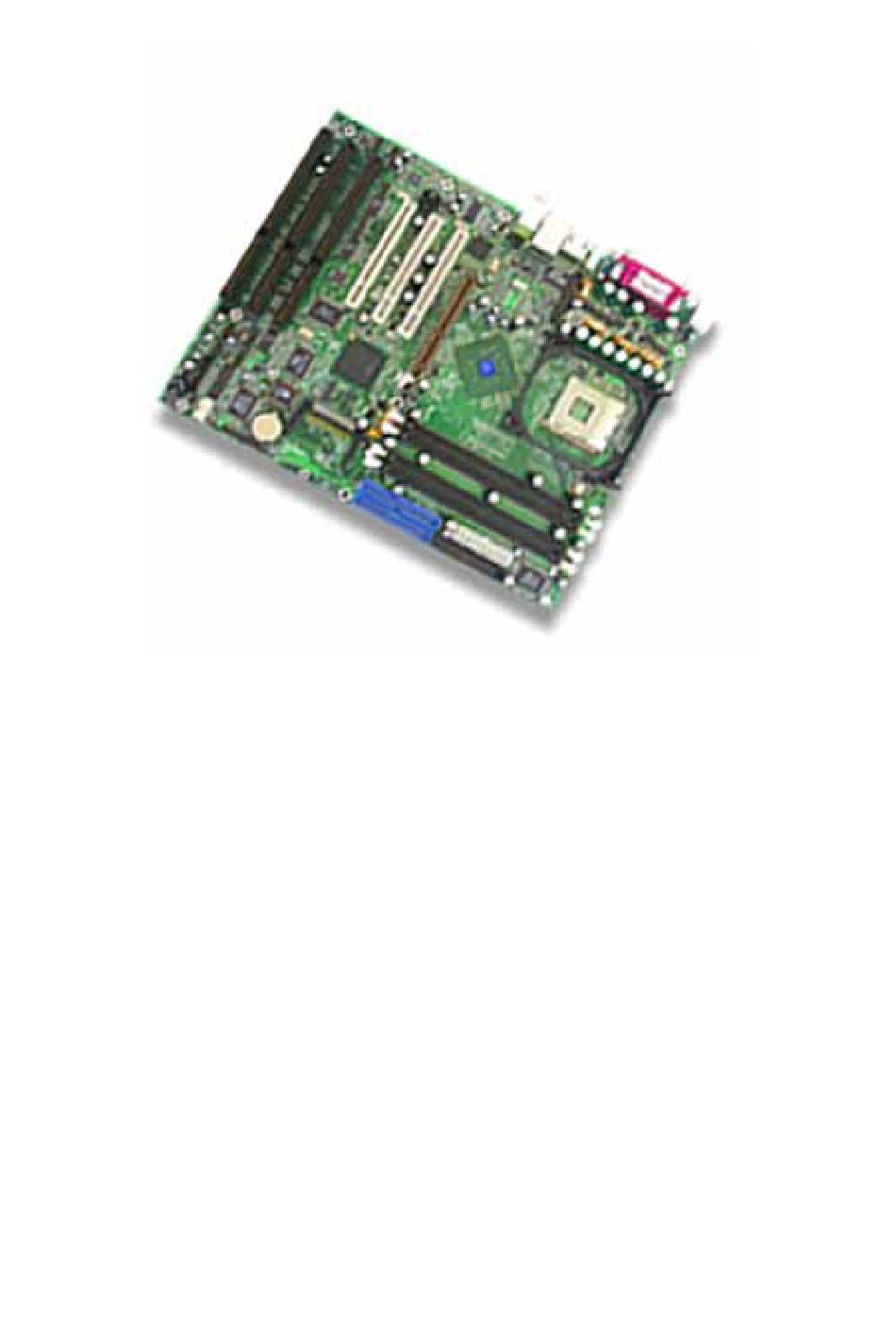

Industrial Motherboard
Model Number AW-MB700
Socket 478 ATX Industrial Motherboard w/Two LAN, IEEE 1394, RAID-0,
SSD & Audio
User's Manual
Version 1.0
We embed your need!
©Copyright 2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW-MB700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aewin AW-MB700

Summary of Contents for Aewin AW-MB700

  • Page 1 Industrial Motherboard Model Number AW-MB700 Socket 478 ATX Industrial Motherboard w/Two LAN, IEEE 1394, RAID-0, SSD & Audio User’s Manual Version 1.0 We embed your need! ©Copyright 2002...
  • Page 2 While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 3: Table Of Contents

    CN14:USB Jack and 100/10LAN RJ45----------------------------------------------------------------------19 CN15:Audio Connector------------------------------------------------------------------------------------------19 CN16:Audio Front Panel Connector-------------------------------------------------------------------------19 CN19/CN21:SATA Connector-----------------------------------------------------------------------------------19 CN20: CompactFlash Socket----------------------------------------------------------------------------------19 CN22:AUX-IN--------------------------------------------------------------------------------------------------------20 CN23:CD-IN----------------------------------------------------------------------------------------------------------20 CN24:Front Panel Pin-Header---------------------------------------------------------------------------------20 CN25:SPDIF Connector------------------------------------------------------------------------------------------20 CN27:IrDA Connector---------------------------------------------------------------------------------------------20 CN29/30:IEEE1394 Port2/Port3--------------------------------------------------------------------------------20 CN34:Wake On LAN Connector-------------------------------------------------------------------------------21 ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 4 Set Supervisor & User Password-------------------------------------------------------------40 Chapter 4. Drivers and Utilities Installation----------------------------------------------------41 4.1 Ethernet Driver Installation-------------------------------------------------------------------------------41 4.1.1 Intel ® 865 Chipset Update driver---------------------------------------------------------------46 4.1.2 Intel Application Accelerator RAID Edition--------------------------------------------------47 ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 5: Chapter 1. General Information

    800MHz FSB with Hyper-Threading Technology and onboard with four DDR DIMM socket up to 4Gbytes of DDR333/400 SDRAM The most noticeable feature on AW-MB700 is its Expansion Slots, to meet most of the industrial computer requirements and needs, it comes with an 8x AGP slot, 3 PCI slots and 3 ISA slots onboard.

  • Page 6: Specification

    One 8X AGP slot AGP Slot Support four input and four output, I/O address: 220H Digital I/O Support ATX power supply, Wake on LAN and Modem Power management Ring-in functions ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 7 One 50-pin CompactFlash™ socket Mechanical and Environmental VCC (4.75V to 5.25V), +12V (11.4V to 12.6V), -12V (-11.4V Power supply voltage to 12.6V), 3.3V, 5VSB Board size 12"(L) x 9.595"(W)(304.8mm x 243.71mm) ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 8: Aw-Mb700 Package

    Please make sure you properly ground yourself before handling the AW-MB700 board or other system components. Electrostatic discharge can be easily damage the AW-MB700 board. Do not remove the anti-static packing until you are ready to install the AW-MB700 board. Ground yourself before removing any system component from it protective anti-static packaging.

  • Page 9: Board Layout

    User’s Manual 1.4 Board Layout 1.5 Board Dimension ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 10: Chapter 2. Connectors Location And Configuration

    System FAN 1 LAN Jack 1000/100/10 System FAN 2 Secondary IDE Connector Wake On LAN Pin-Header Primary IDE Connector USB Port 3/4 Pin-Header USB1/2 Jack USB Port 5/6 Pin-Header ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 11 RS422/485 Select 1 Clear CMOS RS232/422/485 Select Modem Ring In RS422/475 Select 2 USB Port 1/2 Power Jumper USB Port 5/6 Power Jumper USB Port 3/4 Power Jumper ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 12: Installing Process

    User’s Manual 2.2. Installing CPU The AW-MB700 onboard with Pentium® 4 socket 478 for 400/533/800MHz system bus. 2.2.1 Installing CPU： (1) The CPU socket on your motherboard and nudge the lever away from the socket 478. (2) Then lift the lever to a 90-degree angle for 478 socket, please see the picture.
  • Page 13 2.2.2 Removing CPU (1) First, please push the tappet to unlock location. (2) Then untie the screw beginning from left side you can refer to below the picture. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 14 （1） Lower the CPU fan onto the CPU and use the clasps on the fan to attach to the socket. （2） Finally, extend the power cable from the fan and insert it onto the CPU FAN adapter. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 15: Installing Memory

    2.3 Installing Memory To insert a DDR SDRAM Memory: The AW-MB700 onboard with four 184-pin DDR DIMM sockets supports up to 4Gbytes DDR SDRAM. To Insert a DIMM Memory: Please align the module with the socket key and press down until the levers at each end of the socket snap close up.

  • Page 16: Connector And Jumpers Settings

    KB-DATA Ground Ground Ground KB-CLK Ground MS-DATA Ground Ground Ground MS-CLK BUSY Ground Ground Ground Ground Ground Ground SELECT CN2: CPU Fan Connector Signal +12V Sense (Top View) ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 17: Cn5:Atx Power Connector

    Ground Ground 12 Drive select 1 +12V Ground Ground 14 Driver select 0 Ground 16 Motor enable 1 Ground 18 Direction Ground 20 Step Ground 22 Write data ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 18: Cn9:Ieee 1394 Connector

    Data 15 TX1- Ground Active RX0- Ground RX1+ RX1- LED: D1 :Bi-Color Speed LED 10 Mbps 100 Mbps Green 1000 Mbps Yellow D2 :Link/Activity LED Link Green Activity Blinking ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 19: Cn14:Usb Jack And 100/10Lan Rj45

    Line In DATA14 Line Out DATA15 Mic In SELECT CN16: Audio Front Panel Connector IOR* IOW* INTRQ Signal Signal CSEL* Lin_R/Surr_R Lin_L/Surr_L MIC2/LEF_OUT 4 MIC1/CENT_OUT SPKOUT_R SPKOUT_RR SPKOUT_L SPKOUT_LL ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 20: Cn22:Aux

    CN24: Front Panel Pin-Header +12V Pin Signal Pin Signal -12V HLED+ 5VSB HLED- Ground Ground Suspend LED 5VSB CN31/CN32: System FAN1/FAN2 Power Switch Signal Ground Ground Reset +12V Ground Ground Sense ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 21: Cn34:Wake On Lan Connector

    R_NTXD#4 Signal USB Power NCTS#4 R NDTR#4 USB Power RI IN#4 USBP3- Ground USBP2- USBP3+ USBP2- CN39: Download Cable Connector Ground Ground Pin Signal Pin Signal Ground GPO_0 ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 22: Cn40: Gpio Connector

    27 COM2 PIN6 COM2 PIN8 29 NCTS#2 NRI#2 31 CTS#2 CTS#422 +5VSB 33 +5V COM2 EN232 JP2: RS422/485 Select Setting Define RS422 RS485 (Two Wire) RS485 (Four Wire) ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 23: Jp4:S422/485 Select

    (Four Jumper 13-15, 14-16, Wire) 33-34 Setting Define JP4: RS422/485 Select Master Setting Define Slave RS485 (Two Wire/Four Wire) JP7: CMOS Clear Setting Define RS422 Normal(Default) Clear CMOS ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 24: Jp8:Modem Ring

    User’s Manual JP8: Modem Ring In Setting Define 9-10 Setting Define 11-12 +12V JP9/JP10: USB Port 1/2 and 3/4 Select Setting Define +5VSB +5V(Default) ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 25: Chapter 3. Bios Setup

    Type of display adapter installed Number and type of disk drives The CMOS memory is maintained by battery installed on the AW-MB700 board. By using the battery, all memory in CMOS can be retained when the system power switch is turned off.

  • Page 26: Entering The Cmos Setup Program

    2. Press the <DEL> key to enter CMOS Setup program. The main menu appears: 3. Choose a setup option with the arrow keys and press <Enter>. See the following sections for a brief description of each setup option. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 27: Menu Options

    Configure the CPU speed and, if the optional Winbond W83627HF system monitor IC is installed, view system information LOAD FAIL-SAFE DEFAULT: Loads BIOS default values. Use this option as diagnostic aid if your system behaves erratically ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 28: Standard Cmos Features

    When you get in the BIOS program, you will see the Main menu and the contents is showed as below: Standard COMS Features Set up the time, date for the system ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 29: Advanced Bios Features

    A20.Fast. The chipset controls Gate A20. Normal A pin in the keyboard controller controls Gate A20. APIC Mode Leave this field in its default setting，must be Enable. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 30: Advanced Chipset Features

    This field is used to select the memory clock speed of the DIMM. DDR333 will run at 320MHz memory frequency when used with 800MHz FSB CPU. Under such circumstance, make sure this fields set to Auto or DDR320. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 31 Init Display First If your system has both PCI and AGP Interface display card, this function can let you choose the display card you want to use first. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 32: Integrated Peripherals

    When Auto is selected, the BIOS will select the best available mode after checking your drive. Auto The BIOS will automatically set the system according to your hard disk drive’s timing. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 33 Serial ATA Port0 Mode and Serial ATA Port1 Mode These fields are used to select the master/slave mode of the serial ATA drives. Make sure they do not conflict with the settings of the IDE hard drives. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 34 UR2 Duplex Mode Half Use IR Pins IR-Rx2Tx2 378/IRQ7、278/IRQ5、3BC/IRQ7 Onboard Parallel Port Parallel Port Mode SPP/EPP/ECP/ECP+EPP EPP Mode Select EPP1.7 ECP Mode Use DMA Power After PWR-Fail Off/On/Former-Sts ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 35 Allows normal speed operation but in one direction only. ECP (Extended Capabilities Port) Allows parallel port to operate in bidirectional mode and at a speed faster than the normal mode’s data transfer rate. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 36 “Suspend Mode” and “HDD Power Down” fields. If you want to use the Suspend to RAM function, make sure this field is enabled then select “S3 (STR)” in the field below. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 37: Power Management Setup

    Video Off In Suspend This field is used to activate the video off feature when the system enters the Suspend mode. Suspend Mode When the system enters the Suspend mode, the CPU and onboard peripherals will be shut off. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 38 On Ring/LAN) prior to the date and time set in these fields, the system will give priority to the incoming calls or network. Disabled Disables the automatic power-on function. (default) ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 39: Pnp/Pci Configuration

    This field determines whether the MPEG ISA/VESA VGA cards a work with PCI/VGA or not. Enabled MPEG ISA/VESA VGA cards work with PCI/VGA. Disabled MPEG ISA/VESA VGA cards does not work with PCI/VGA. PC Health Status ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 40: Load Optimized Default

    “Setup” option selected in the Advanced BIOS Features. You will not be prompted for a password when you cold boot the system. Use the arrow keys to highlight “Set Supervisor Password” and press <Enter>. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 41: Chapter 4. Drivers And Utilities Installation

    “Set User Password” that appears in the main menu screen. Access to all other options is denied. Use the arrow keys to highlight “Set User Password” and press<Enter>. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 42 • Both the data and power SATA cables are new cables. You cannot use older 40-pin 80-conductor IDE or regular IDE power cables with SATA hard drives. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 43 Raid Configuration Utility. After this message appears, press the ＜Ctrl＞ and ＜I＞ keys simultaneously, the following screen menu appears. Creating a RAID volume 1. Select option 1 Create RAID Volume and press the ＜Enter＞ key ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 44 Deleting a RAID Volume 1. Select option 3 Reset RAID Data and press the ＜Enter＞ key to delete the RAID set and remove any RAID structures from the drives. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 45 1. The iaar2_floppy.exe utility enables you to create a floppy disk with the RAID Driver necessary when configuring RAID installations. 2. During OS installation, press the F6 key and insert the created driver floppy disk to upload RIAD driver. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 46: Intel ® 865 Chipset Update Driver

    User’s Manual Chapter 4 Driver utility The System drive installation procedure must be performed first. 4.1 Ethernet Driver Installation 4.1.1 install 865 chipset update driver ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 47: Intel Application Accelerator Raid Edition

    User’s Manual 4.1.2 Intel Application accelerator RAID Edition （1）Install SATA RAID application ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 48 User’s Manual （2）Install AD198 Driver& Applications USB 2.0 Driver ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 49 User’s Manual INTEL 547EI Gigabit LAN Driver ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 50 User’s Manual INTEL 562EM 100 Base LAN ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
